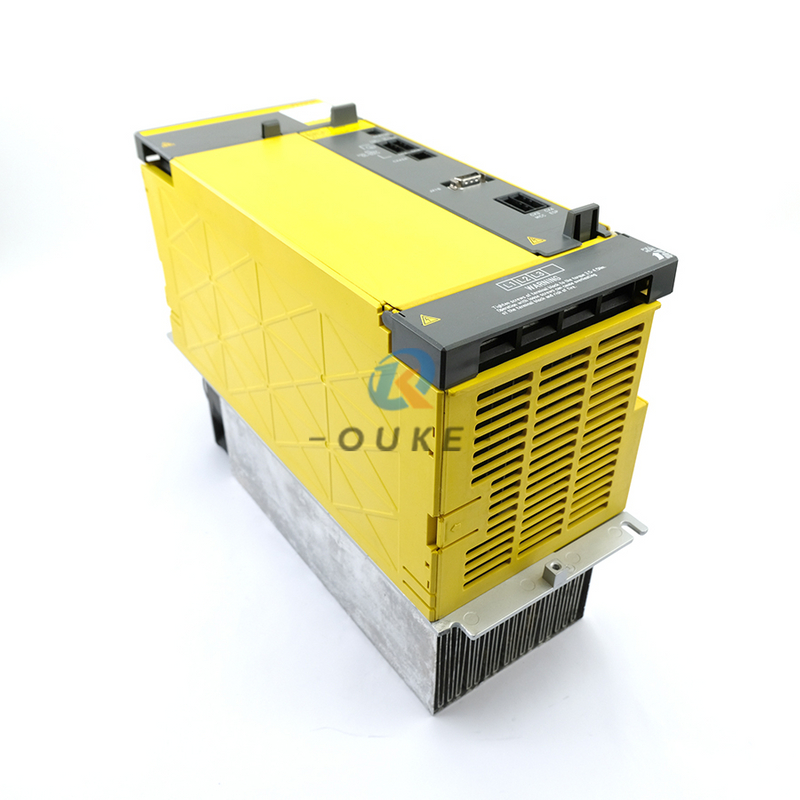

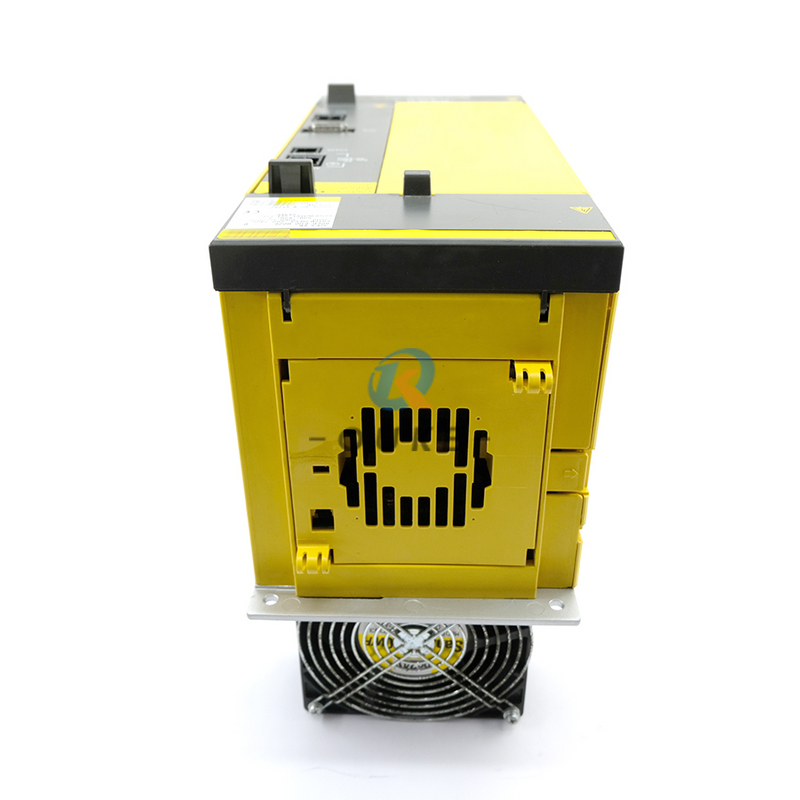

Specifications of Fanuc A06B-6110-H026

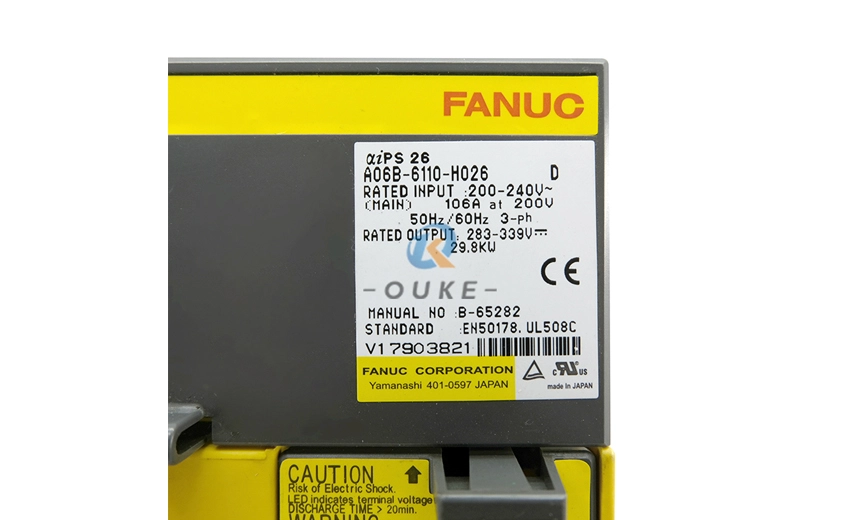

| Product Name | Fanuc Servo Amplifier |
| Model | A06B-6110-H026 |
| Brand | FANUC |
| Place of Origin | Japan |
| Rated Input | 200-240V~ 160A At200V 50Hz/60Hz 3-ph |
| Rated output | 283-339V 29.8KW |
| Weight | 7.4KG |

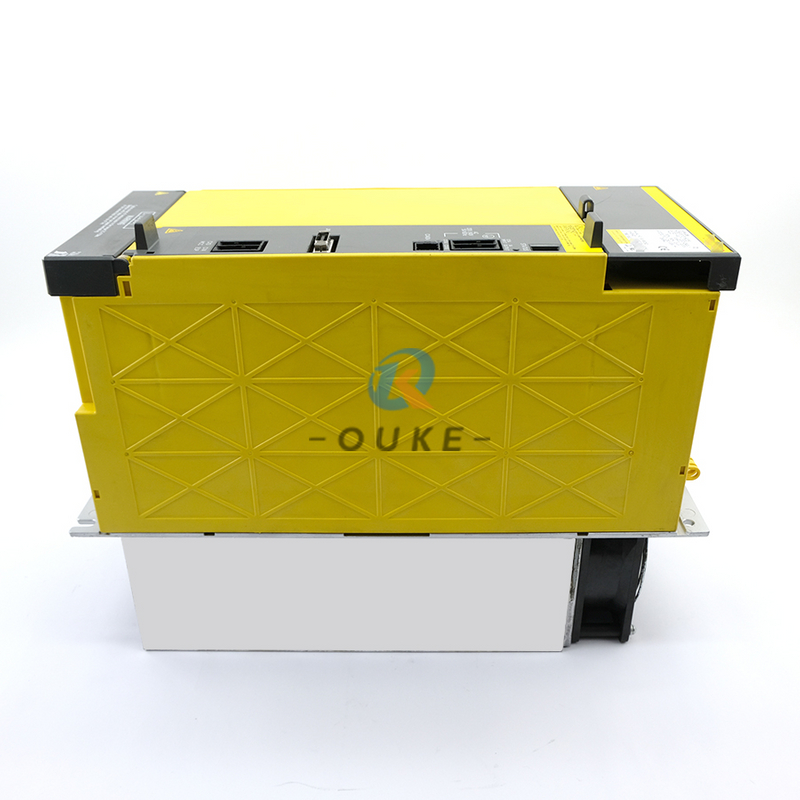

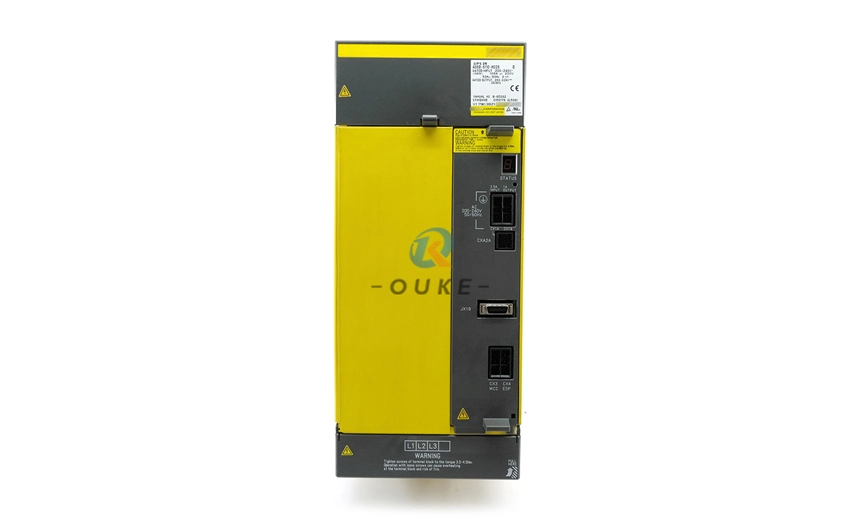

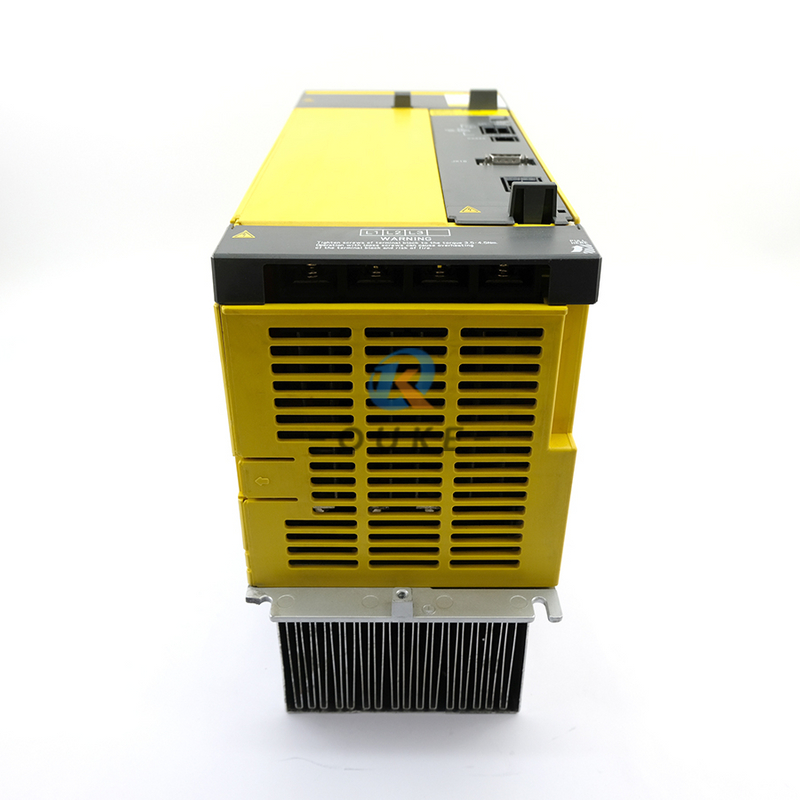

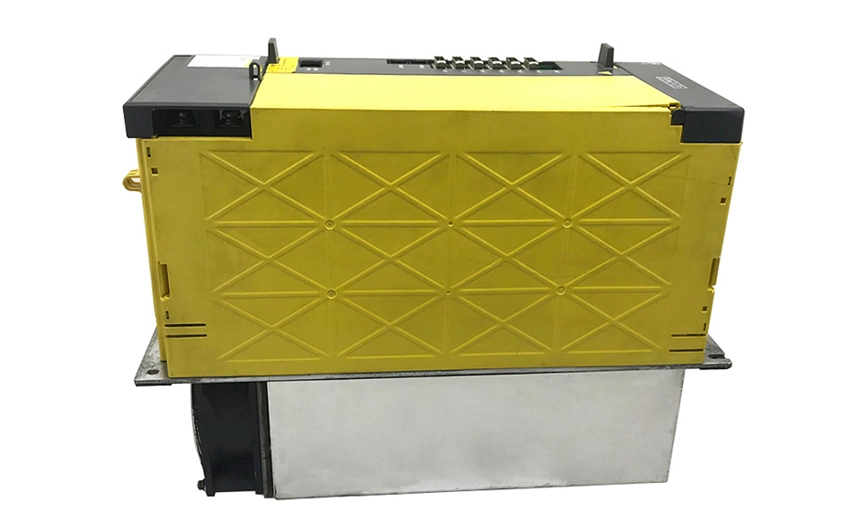

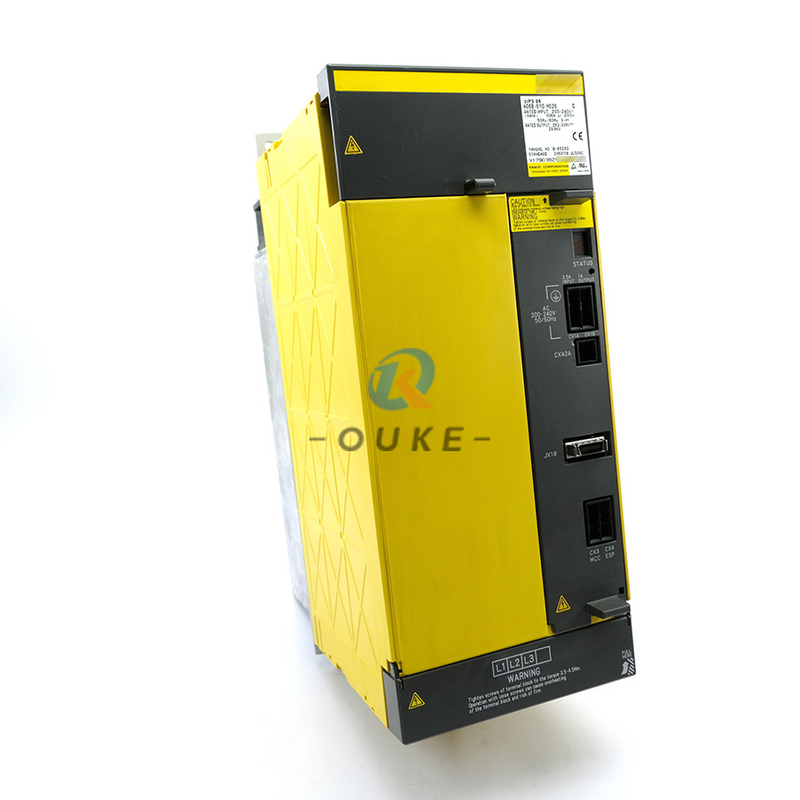

Details of Fanuc A06B-6110-H026 | Fanuc Servo Drive Module
TECHNICAL SPECIFICATIONS OF FANUC A06B-6110-H026
The PSM 26i operates on a voltage range of 200-240 VAC with a maximum output current of 26 Amps. It supports an input frequency of 50-60 Hz.
The A06B-6110-H026 module features built-in cooling and safety mechanisms for overcurrent, overvoltage, and over-temperature protection. It boasts a 92% efficiency rating and a power factor correction greater than 0.98.
Weighing approximately 10.7 kg, the module’s dimensions are 190 mm x 290 mm x 170 mm (7.5 in x 11.4 in x 6.7 in).
With a rated output of 26 Amps at 240 VAC, the FANUC A06B-6110-H026 power supply module can deliver up to 6.24 kW of power to the connected load. It is essential to ensure that the connected load does not exceed this rating, which represents the module’s continuous output capability.
The module has a maximum output capacity of 31 Amps, indicating it can temporarily provide up to 7.44 kW of power before the overcurrent protection activates.
A distinguishing feature of the FANUC A06B-6110-H026 power supply module is its use of an IGBT inverter PWM control for motor management.
IGBT, or Insulated Gate Bipolar Transistor, is a semiconductor device used in power electronics. This technology allows for rapid switching of current to the motor, enabling more precise and efficient control of the motor’s speed and position.
