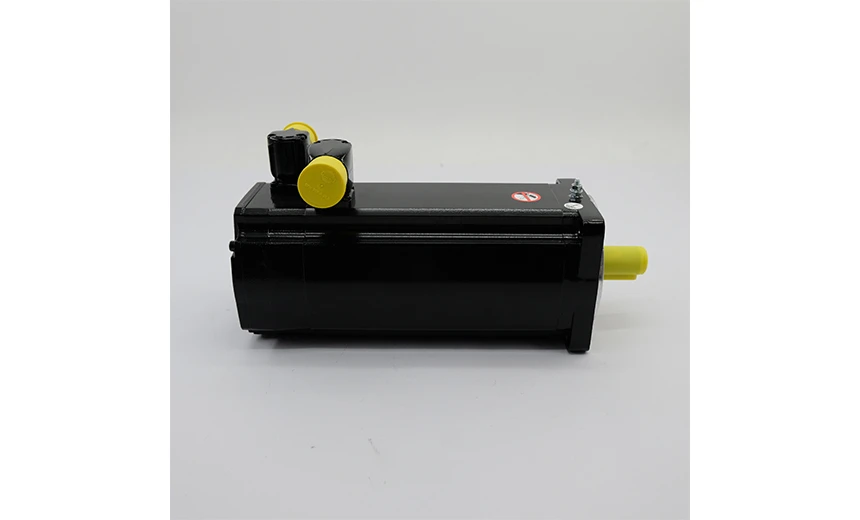

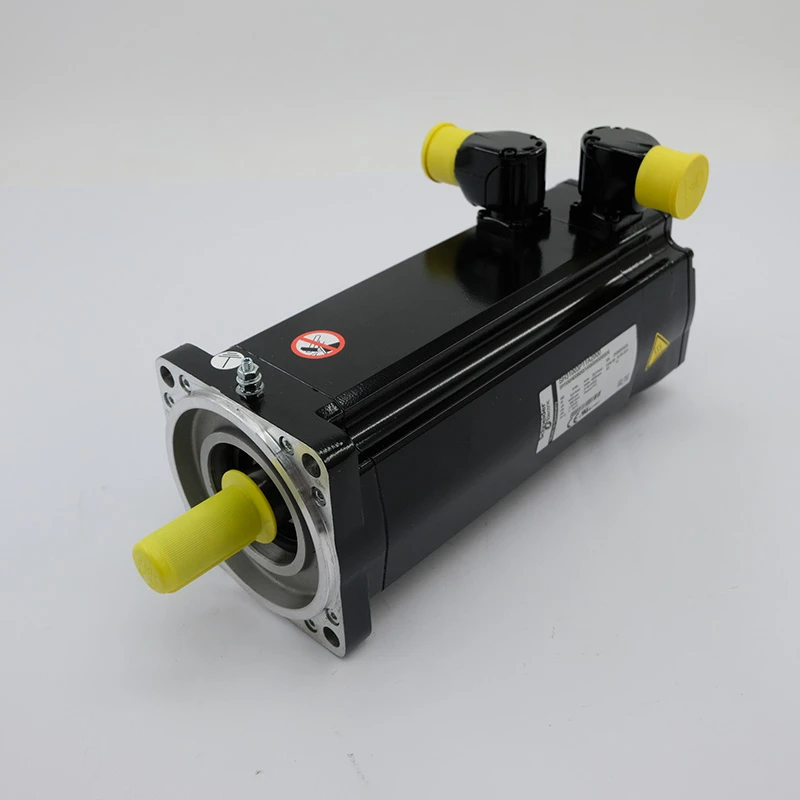

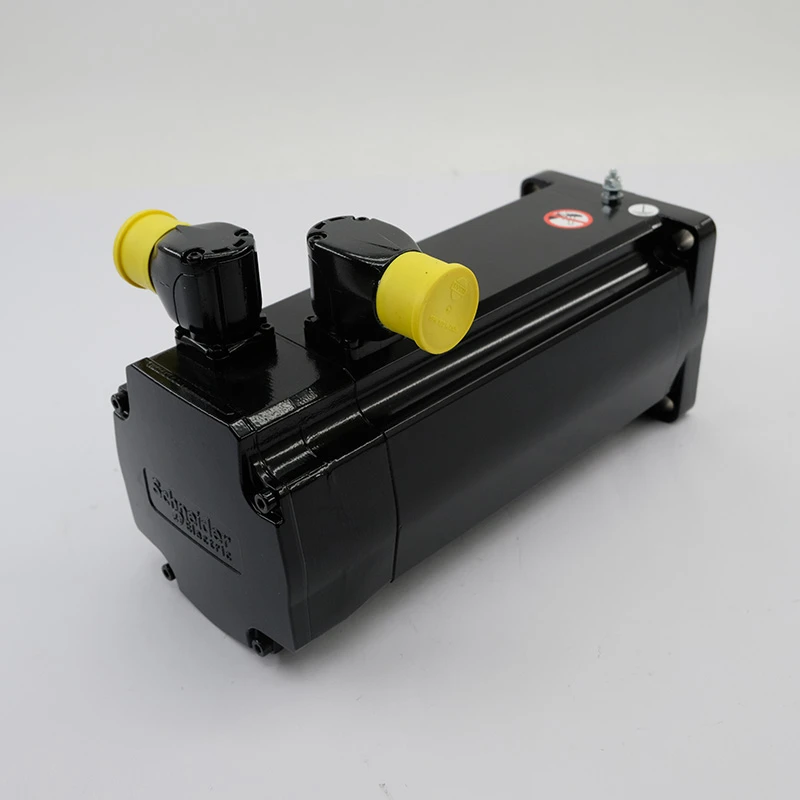

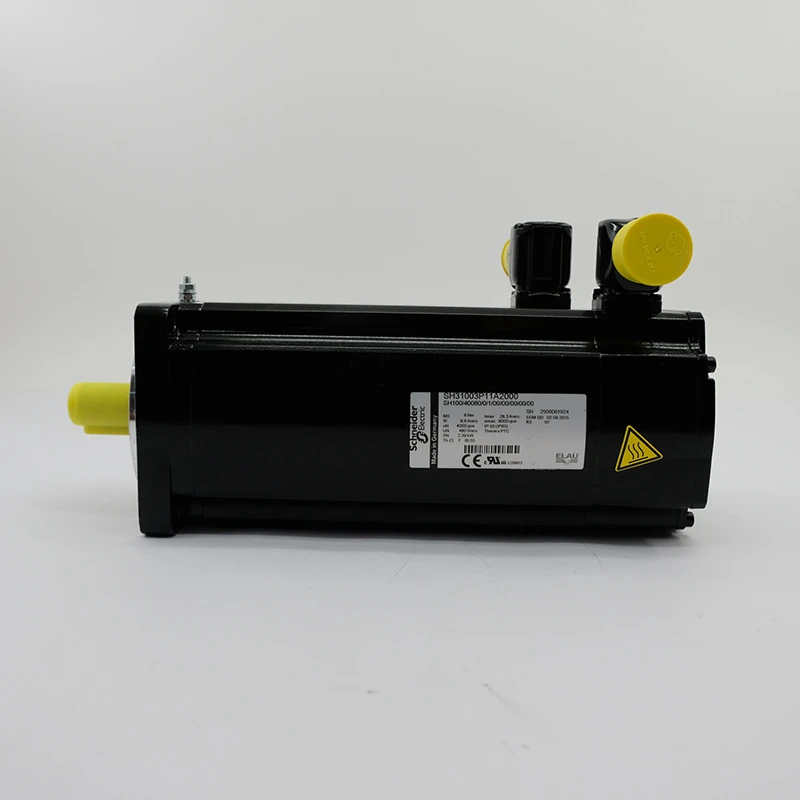

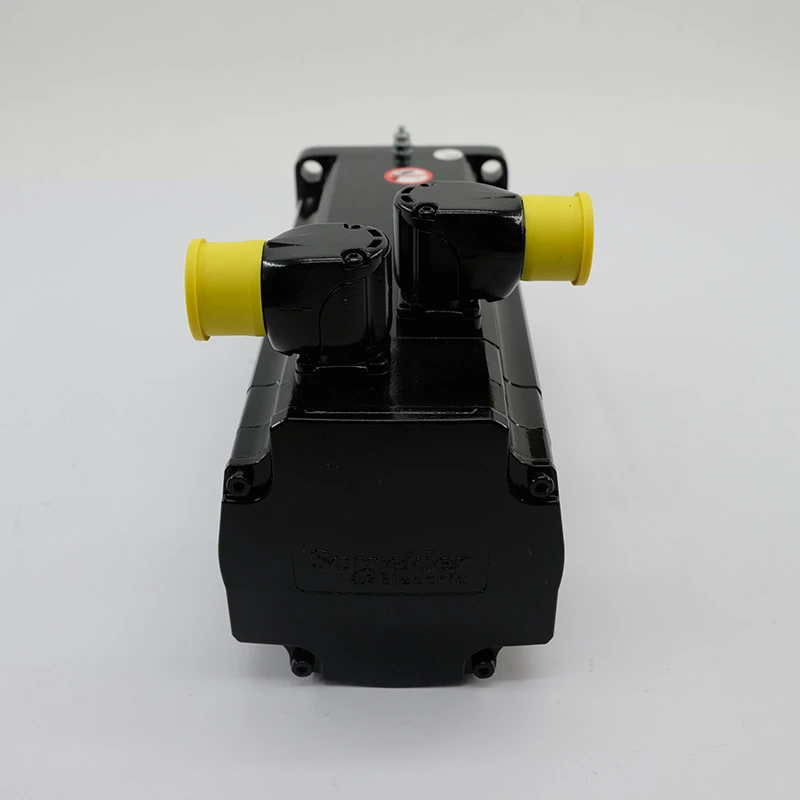

Schneider SH31003P11A2000 Servo Motor – Lexium SH3 2.4kW

The Schneider SH31003P11A2000 from the Lexium SH3 series is a servo motor with 100mm flange, keyed 19mm shaft, single-turn SinCos Hiperface encoder (128 periods), and no holding brake. Rated for 115-480V 3-phase supply with 2400W continuous power and 6000 RPM max speed.

Model Number: Schneider SH31003P11A2000

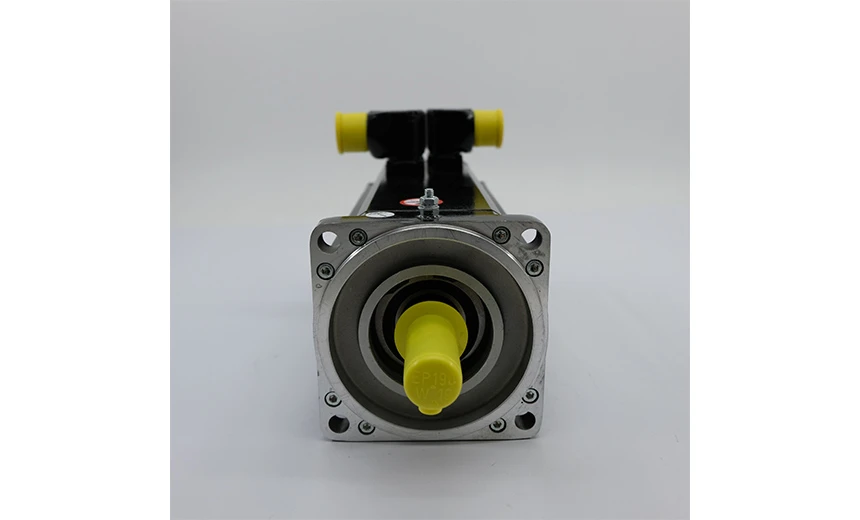

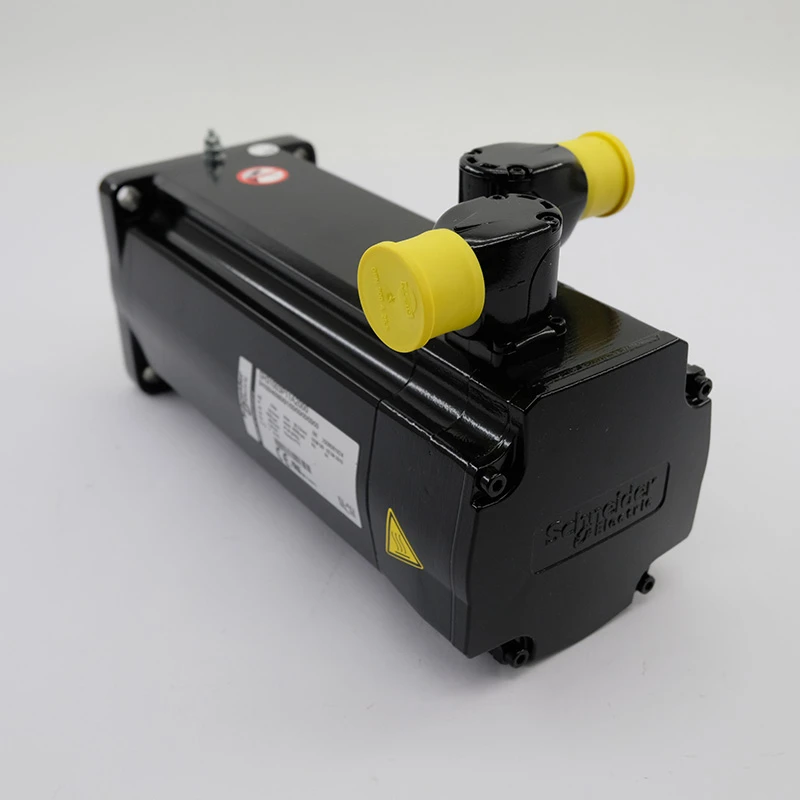

Product Image

Submit your inquiry and we'll respond within 24 hours

100k+ Parts

Extensive Inventory

Warranty Coverage

New parts: 1-Year | Used: 3-Month

17+ Years

Industry Experience

Fast Shipping

Ships Within 48 Hours

Product Description

Platform Compatibility and Uses

The SH31003P11A2000 pairs with PacDrive 3 control systems for precision motion in robotics, packaging, and machine tools, supporting 115-480V 3-phase networks. Absolute single-turn feedback enables accurate positioning without homing; keyed shaft suits high-torque applications.

Technical Implementation

Continuous stall torque of 8Nm (peak 28.3Nm) at 6.6A stall current, with speeds up to 4800 RPM nominal (6000 RPM max). Torque constant 1.22Nm/A and stator inductance 13.45mH deliver responsive control; 4-pole design minimizes cogging.

Physical Characteristics and Installation

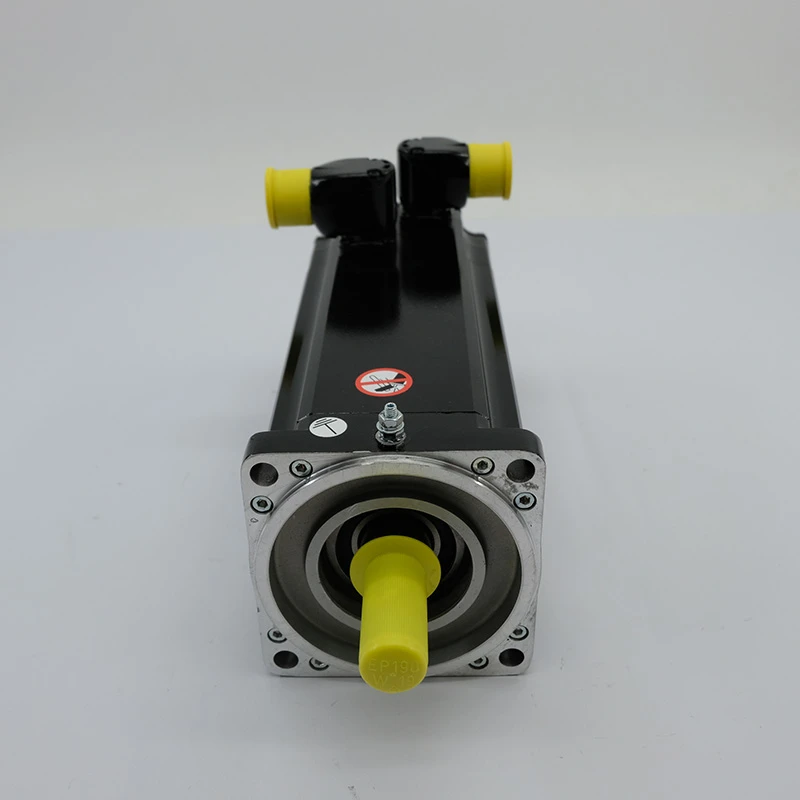

100mm flange (4x9mm holes, 115mm PCD, 95mm collar) allows standard mounting, with IP65 motor/IP54 shaft bushing protection. Length 240.5mm at 7.5kg; rotatable 90° straight connector simplifies wiring. Natural convection cooling for industrial duty.

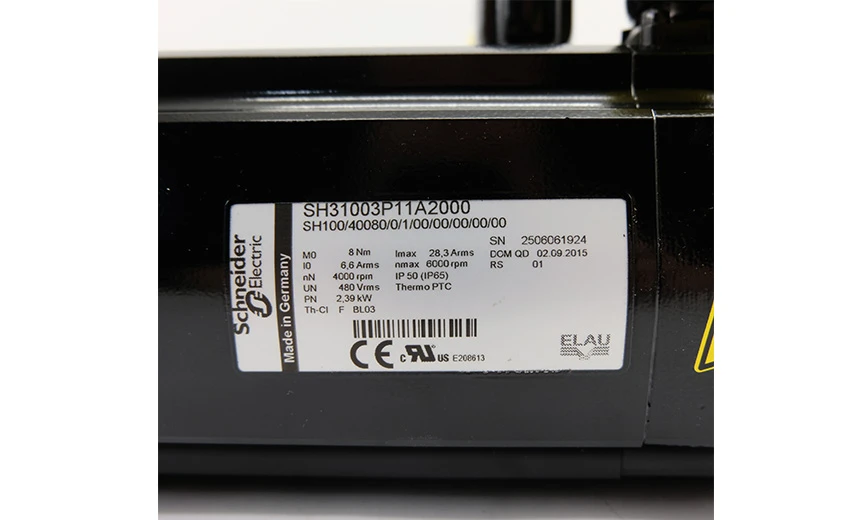

Key Specifications

Parameter	Specification
Catalog Number	SH31003P11A2000
Platform	Lexium SH3 / PacDrive 3
Flange Size	100 mm
Continuous Torque	8 Nm
Peak Torque	28.3 Nm
Max Speed	6000 RPM
Stall Current	6.6 A
Supply Voltage	115-480 V three-phase
Encoder	Absolute single-turn SinCos Hiperface
Shaft	Keyed, 19 mm dia., 40 mm length
Protection Rating	IP65 (motor), IP54 (shaft)
Weight	7.5 kg
