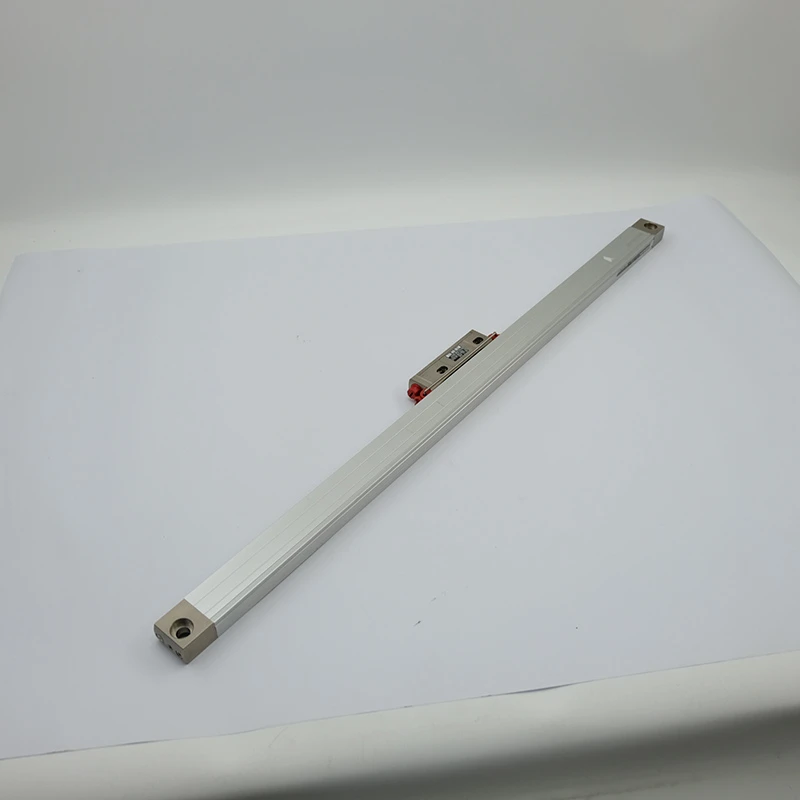

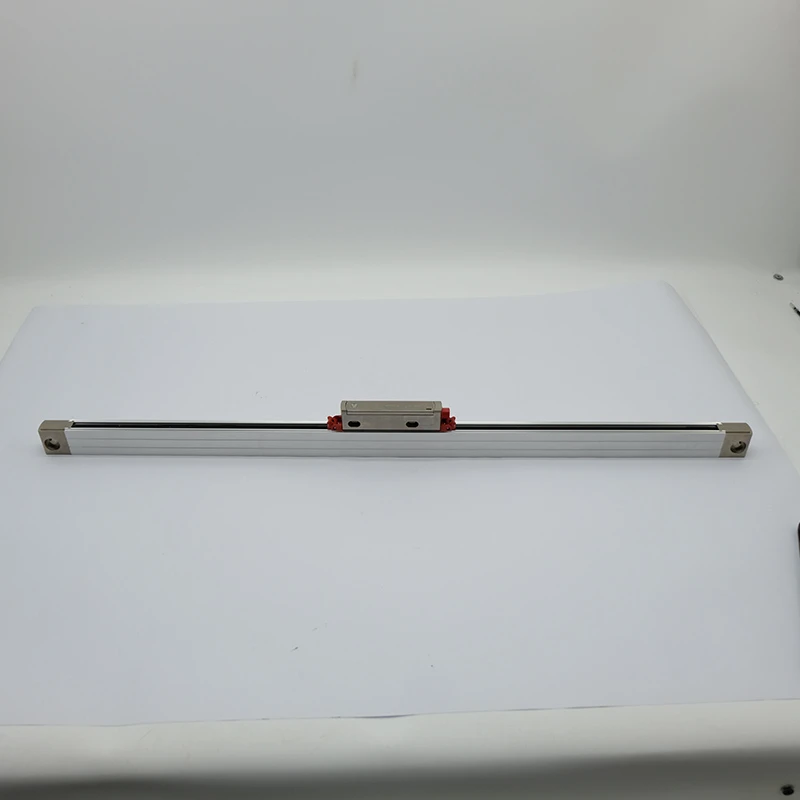

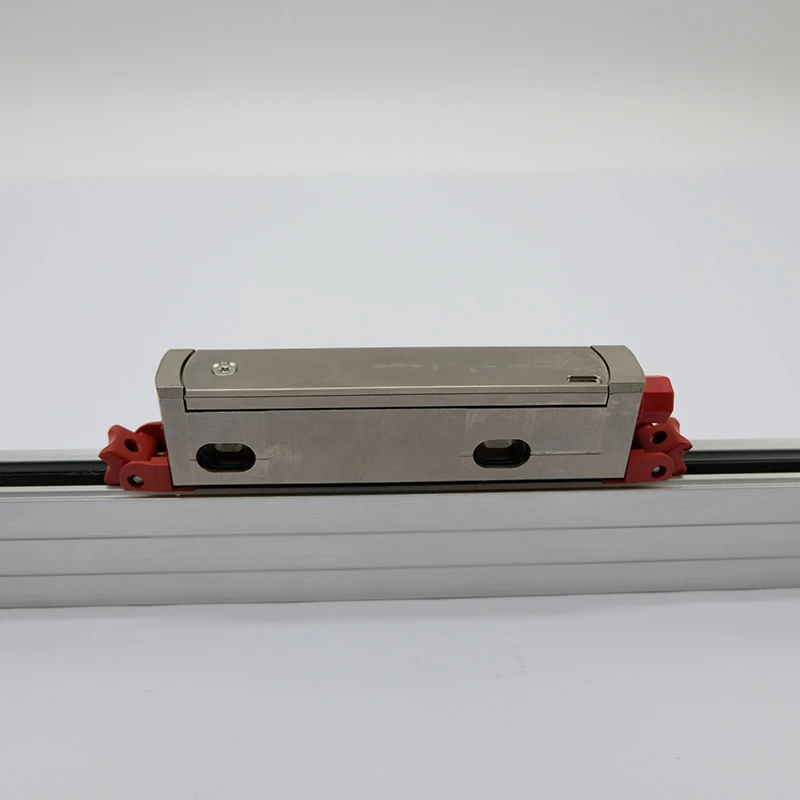

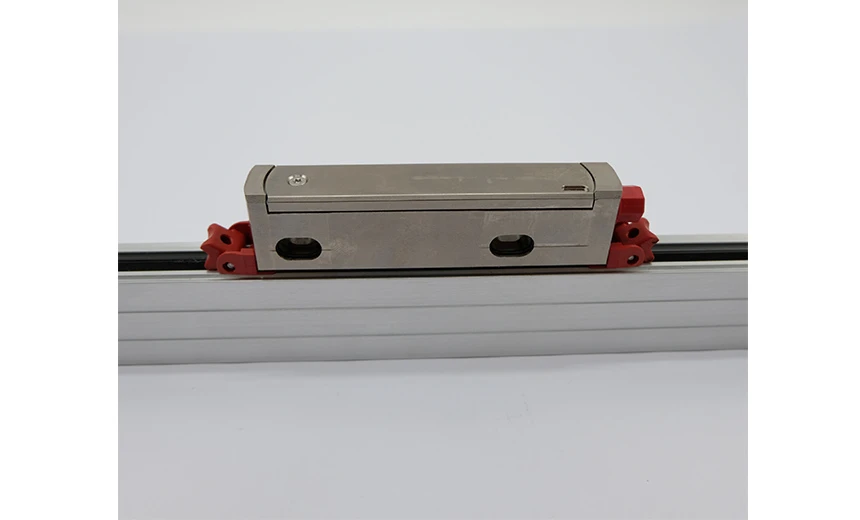

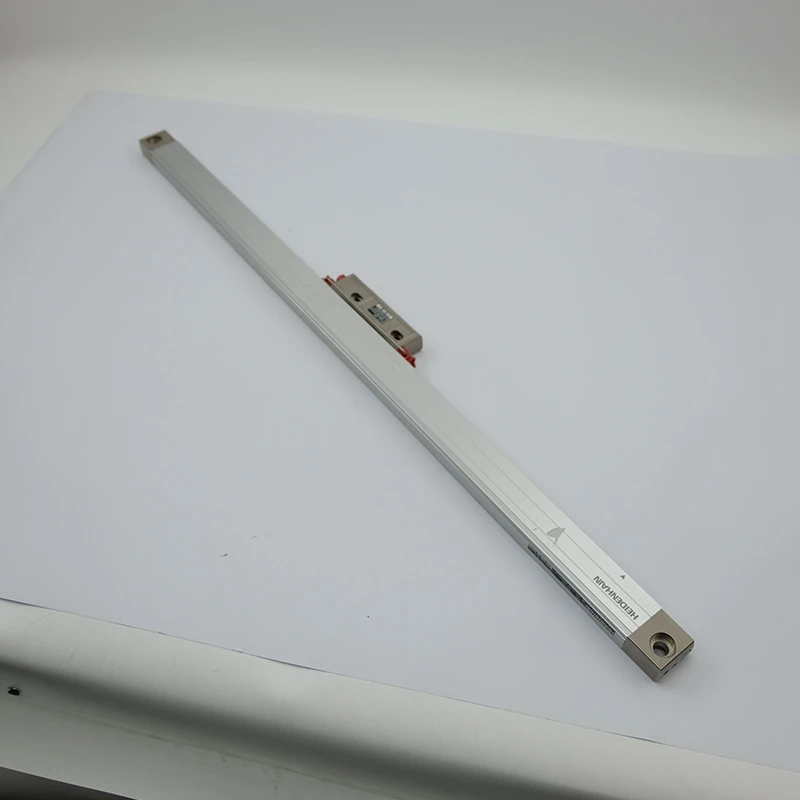

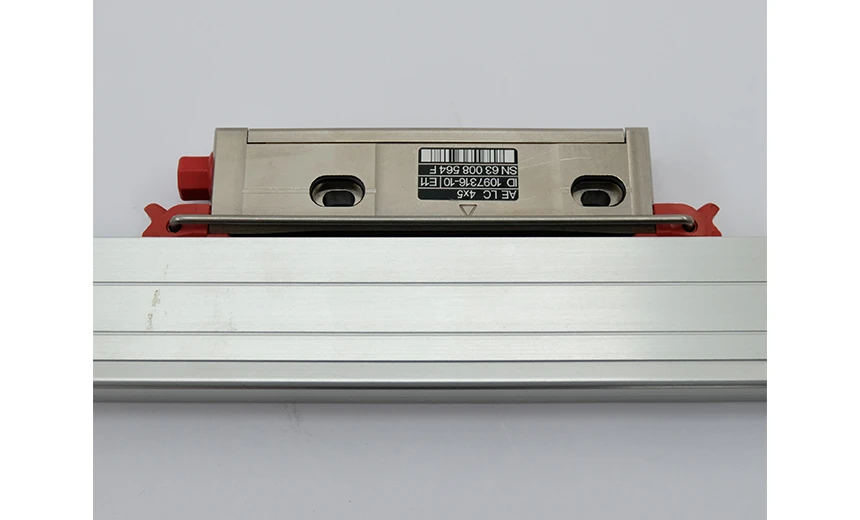

Heidehan 689683-21 absolute linear encoder is a small cross section, absolute design, high precision measurement, sealed protection of high performance encoder, can meet a variety of industrial automation systems for linear position measurement and control needs.
Brand: Heidenhain
Size: 71*6*2cm
Weight: 0.5kg
LC 485

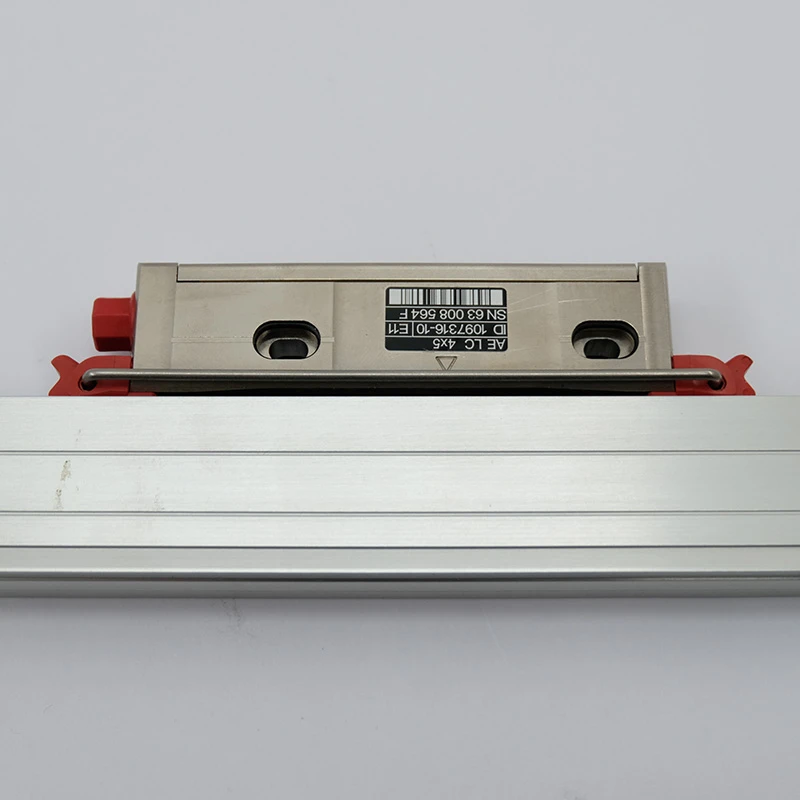

Absolute sealed linear encoder with small cross section
Technical data

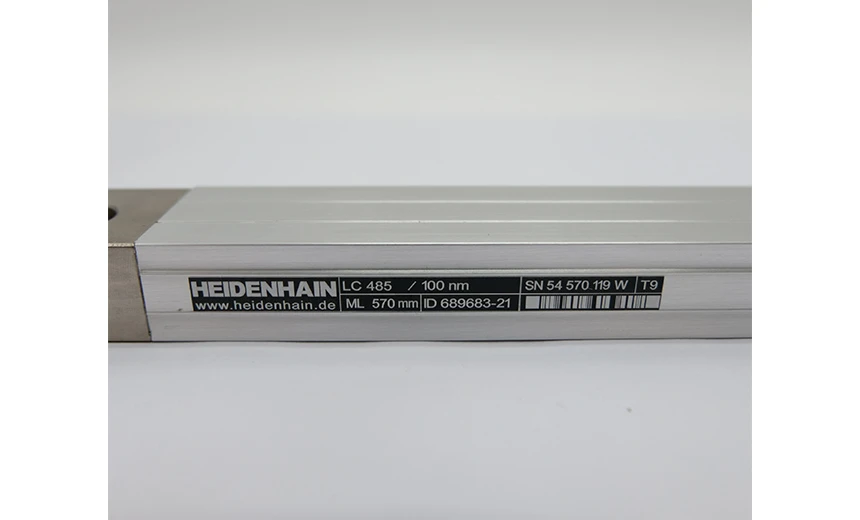

Identnumber: 689683-21
Measuring length: 570 mm
Total length: ML+138 mm
Accuracy grade: ± 5.0 µm
Grating period: 20.000 µm
Measuring step 1:10 0.0000 nm

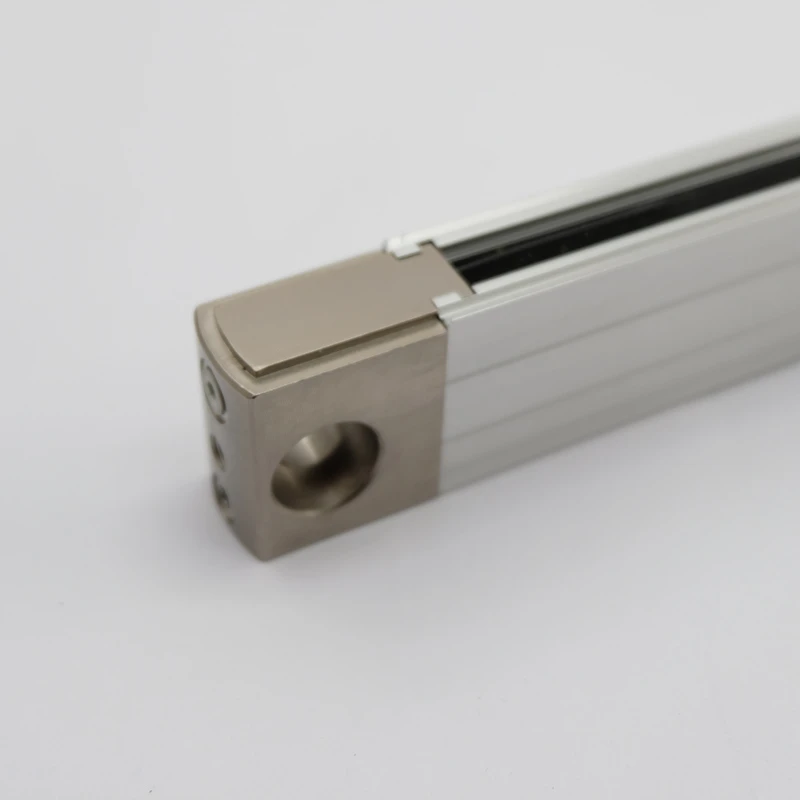

Fastening type: End block + mounting spar
End block: 12A
Output signal: sinusoidal voltage signals (1 Vpp)
Output code: Binary
Data interface: EnDat02 Synchronous serial EnDat 2.2 with incremental signals
Power supply: 3.6V... 14 V
Electrical connection: Flange socket, male, 14-pin
Special characteristics, linear encoder: none
SCIP ID: 9e8eae44-2484-42a3-a1a0-d9480f4a5060
The Heidenhain 689683-21 is a small cross-sectional absolute sealed linear encoder with the following features:
1. Absolute design:
6896883-21 Absolute encoder design for accurate absolute measurement of position.
The system can be quickly restored to the original position regardless of power failure or restart, improving system stability and reliability.
2. Small cross section:
Encoders have a small cross-sectional design for space-constrained applications.
The compact size makes it easy to install in the mechanical structure, improving the overall performance of the system.
3. High precision measurement:
With high-precision measurement capabilities, the position can be accurately measured to ensure the stability and accuracy of the system.
Can meet a variety of application scenarios that require high position measurement accuracy.
4. Sealed protection:
Sealed design, with good dust-proof, waterproof performance, suitable for harsh working environment.
The internal precision components are effectively protected to extend the service life of the encoder.
5. Widely used:
6896883-21 is widely used in a variety of linear motion systems, such as CNC machine tools, automatic production lines and other fields.
Have a wide range of applications in industrial automation where the position of linear axes of motion needs to be accurately measured and controlled.
Through the introduction of the above characteristics, Heidehan 689683-21 absolute linear encoder is a small cross section, absolute design, high precision measurement, sealed protection of high performance encoder, can meet a variety of industrial automation systems for linear position measurement and control needs.
