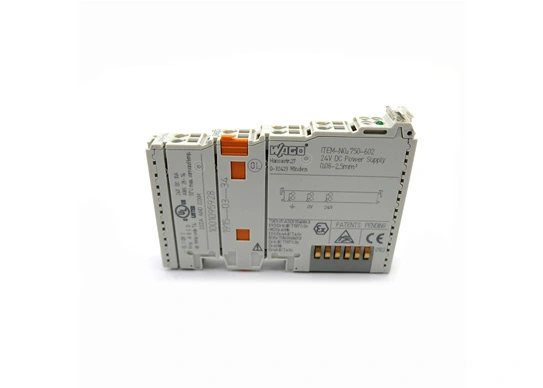

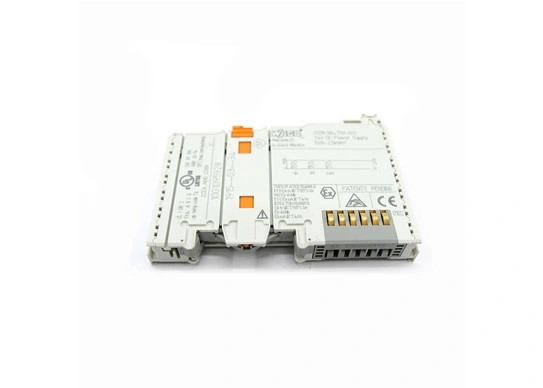

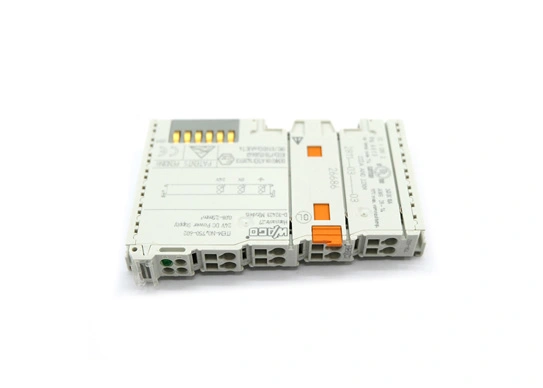

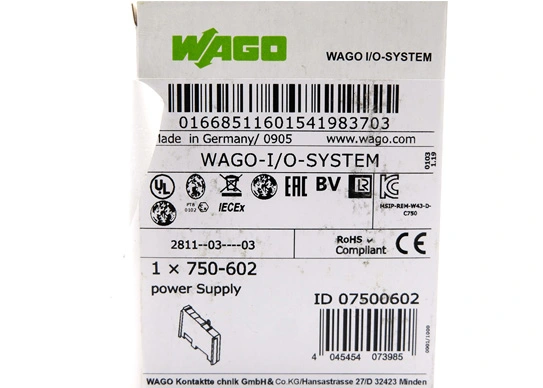

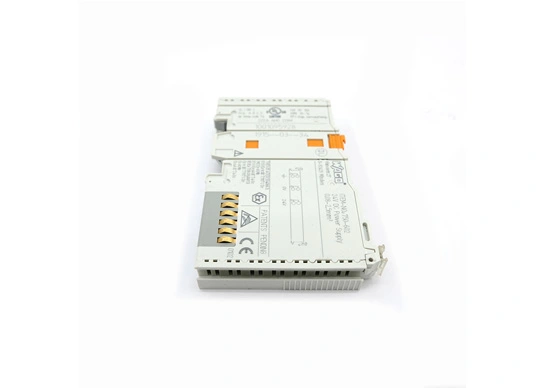

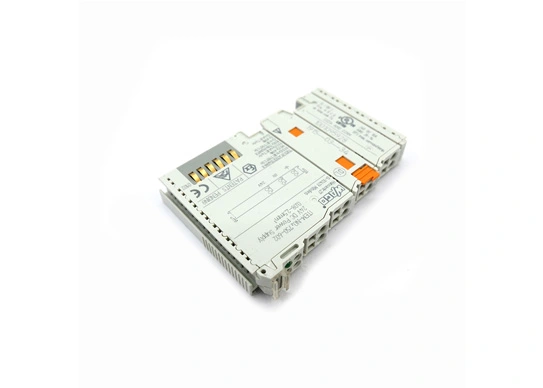

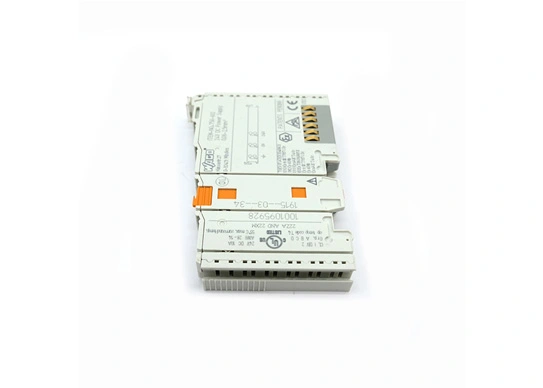

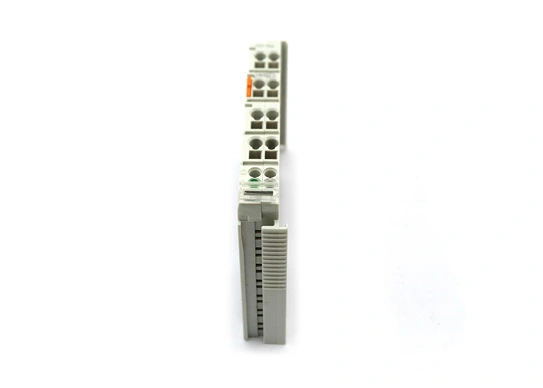

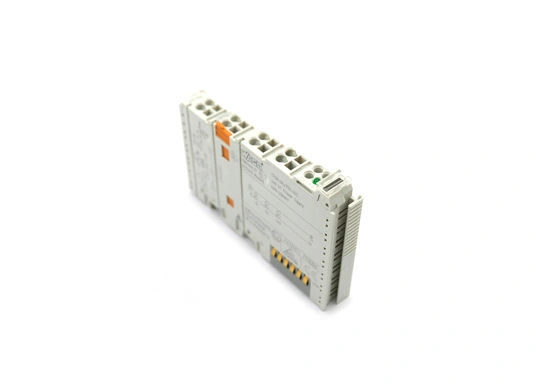

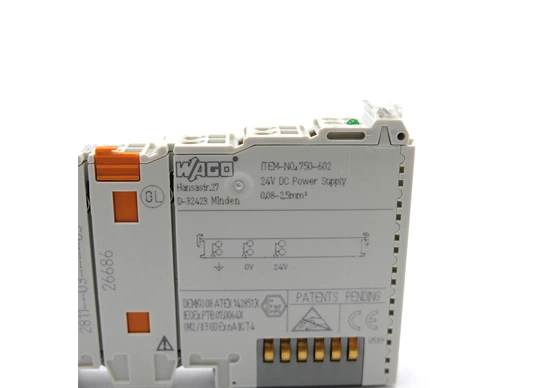

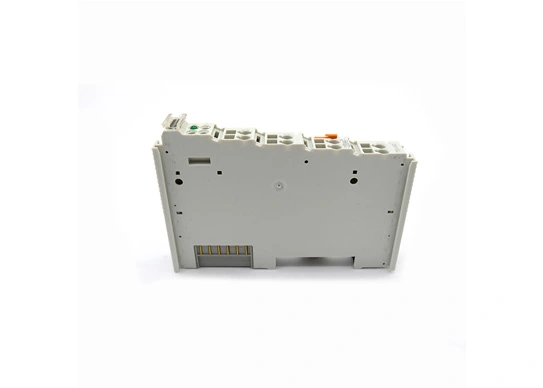

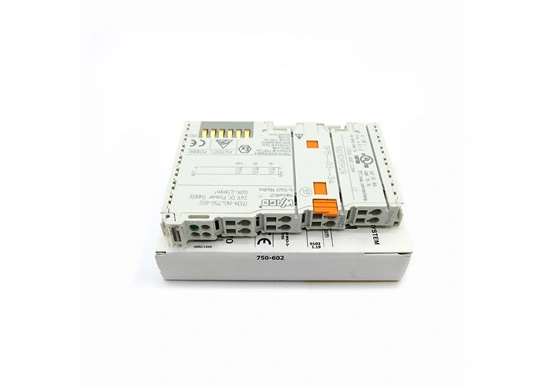

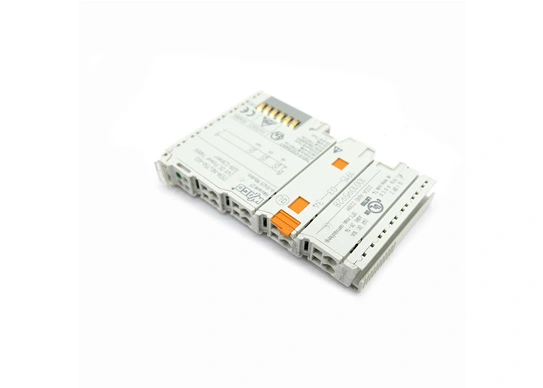

Brand: WAGO
Product type: power supply module
This power supply module supplies power to the I/O modules.
The maximum current supplied by the power supply module is 10 A. The system must be configured in such a way as to ensure that the total current value mentioned above is not exceeded.
If higher currents are required, additional power supply modules should be added to the system.
In Stock √
1 Year Warranty √
Free Shipping √
Technical Information
Signal type | voltage |
Signal Type (Voltage) | 24 VDC |
Supply Voltage (System) | 5 VDC; Through data touchpoints |
Field-side supply voltage | 24 VDC (-25 … +30 %); POWER SUPPLY VIA POWER SUPPLY ACROSS CONTACT POINTS (VIA CAGE SPRING JUNCTION UNIT (CAGE CLAMP®); Transmission via spring contacts) |
Light | LED (C) green: operating voltage status: power jumper contacts |
The number of external power supplies across contacts | 3 |
The power supply is capable of carrying currents across contacts | 10A |
Wiring parameters
Connection technology: On-site power supply | 6 x Cage spring wiring unit(CAGE CLAMP®) |
Connection type1 | On-site power supply |
Single-strand wire | 0.08 … 2.5 mm² / 28 … 14 AWG |
Thin stranded wires | 0.08 … 2.5 mm² / 28 … 14 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
width | 12 mm / 0.472 inches |
height | 100 mm / 3.937 inches |
depth | 69.8 mm / 2.748 inches |
Depth from the upper edge of the DIN rail | 62.6 mm / 2.465 inches |
Mechanical parameters
Installation | DIN-35 type guide rail |
Material parameters
color | light gray |
Housing material | Polycarbonate, nylon 6.6 |
Fire loads | 1.203MJ |
weight | 43.3g |
Certification mark | CE |
Environmental requirements
Operating Ambient Temperature (Operating) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 |
Pollution level | 2,IEC 61131-2 compliant |
Working altitude | 0 … 2000 m |
Installation location | Horizontal left, horizontal right, horizontal up, horizontal down, vertical top and vertical bottom |
Relative humidity (non-condensing) | 95% |
Vibration-resistant | 4g,IEC 60068-2-6 compliant |
Impact-resistant | 15g,IEC 60068-2-27 |
EMC - Interference immunity | According to EN 61000-6-2, marine applications |
EMC - Radiated interference | Complies with EN 61000-6-4 for marine applications |
Corrosion resistance | IEC 60068-2-42 and IEC 60068-2-43 compliant |
Permissible H2S pollutant concentration at 75% relative humidity | 10ppm |
Permissible SO2 pollutant concentration at 75 % relative humidity | 25ppm |
