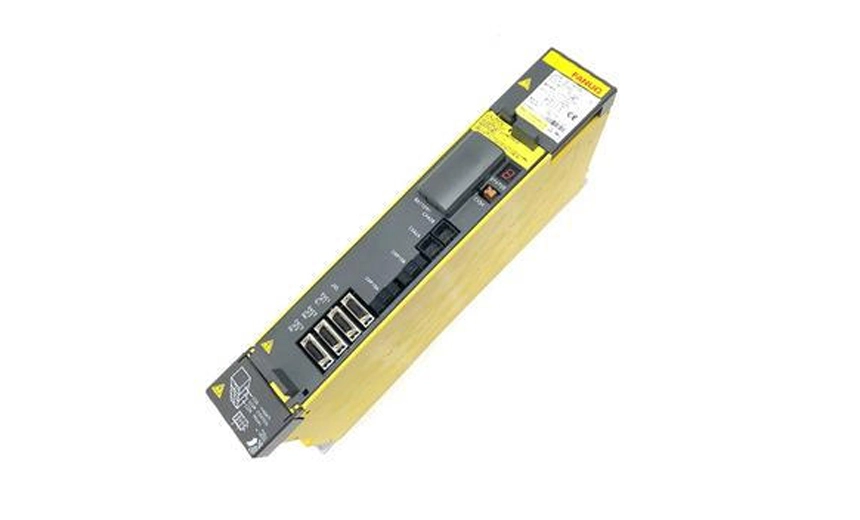

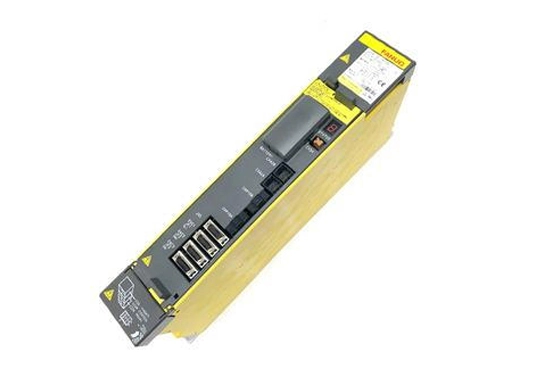

The FANUC A06B-6114-H303 is a 3-axis ALPHA i servo amplifier module typically paired with 4i or 8i servo motors for high-precision motion control. It is designed to work seamlessly within the triple-channel A06B-6114 series and integrates with robot controls, as well as iB and iC control systems from the FANUC 15, 16, 18 and 21 series. This makes it a popular choice for machine tool builders in smaller CNC applications and other industrial automation projects. If you need availability, replacement or repair services for the FANUC A06B-6114-H303 amplifier, OUKE can help you source and support this critical component.
Specifications
- Model: A06B-6114-H303, 3-axis ALPHA i servo amplifier module (SVM3-20/20/20i)
- Application: CNC machines, industrial robots and general industrial automation with precise motion control
- Power supply: 200–240 VAC, 50/60 Hz stable AC input
- Rated current: 6.5 A
- Peak current: 20 A nominal
- Supported motors: AC and DC servo motors with power outputs up to 30 kW
- Heat dissipation: 21 W total
- Dimensions: 195 mm × 300 mm × 220 mm
- Weight: Approx. 2.6 kg
- Operating conditions: Designed for harsh environments with temperatures up to 55 °C, high humidity and strong vibration and shock
- Vibration resistance: 10–200 Hz at 0.5 G (11 ms intervals)
- Shock resistance: Up to 20 G impact protection
- Installation: Requires adequate cooling and airflow around the amplifier to prevent overheating and ensure stable operation
