KUKA KSD1-32 (00122286) Servo Drive Module | 16A 3PH 0-480VAC 0-480Hz

The KUKA KSD1-32 (00122286) is a high-performance servo drive controller for KRC2 robot systems, delivering precise motion control with 2-phase 0-675VDC input and 3-phase 0-480VAC output at 12.8-16A current.

Model Number:KUKA KSD1-32

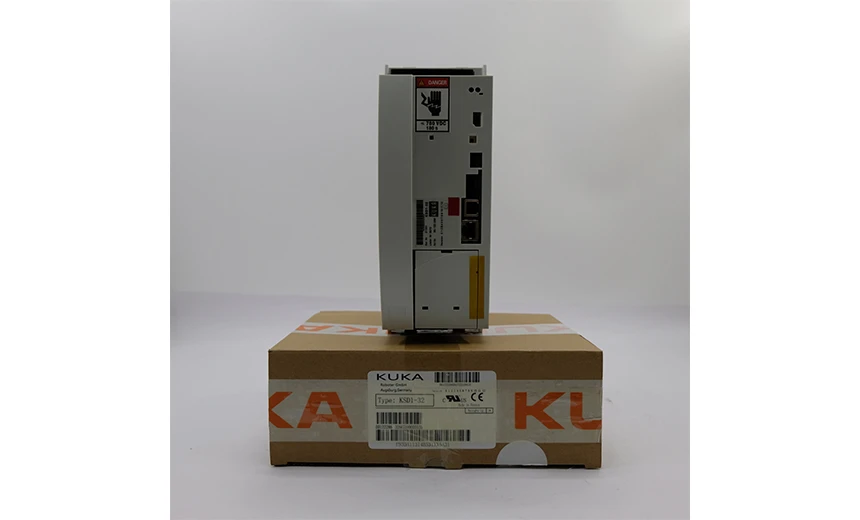

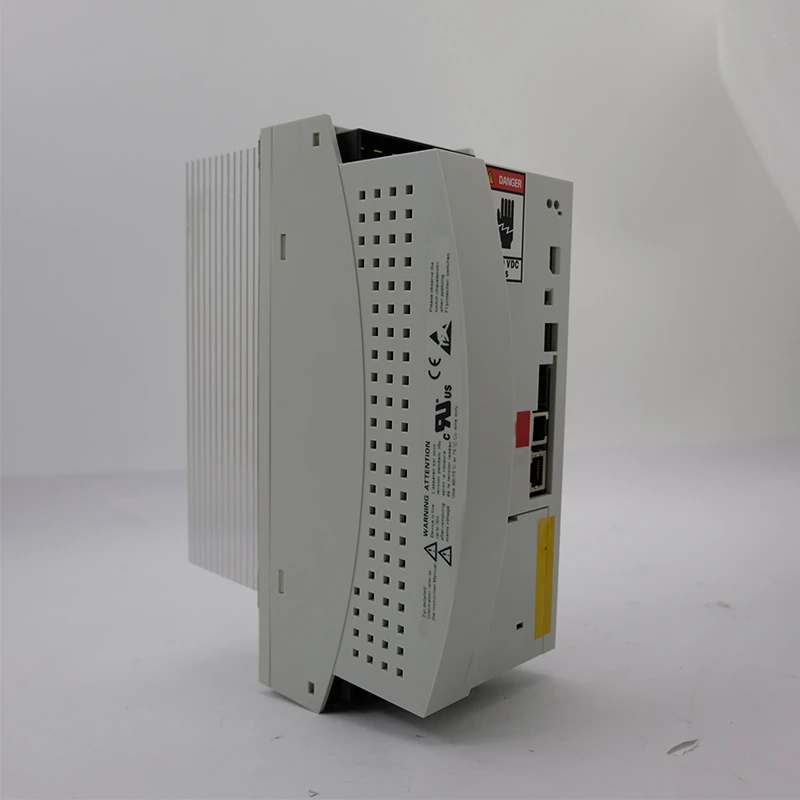

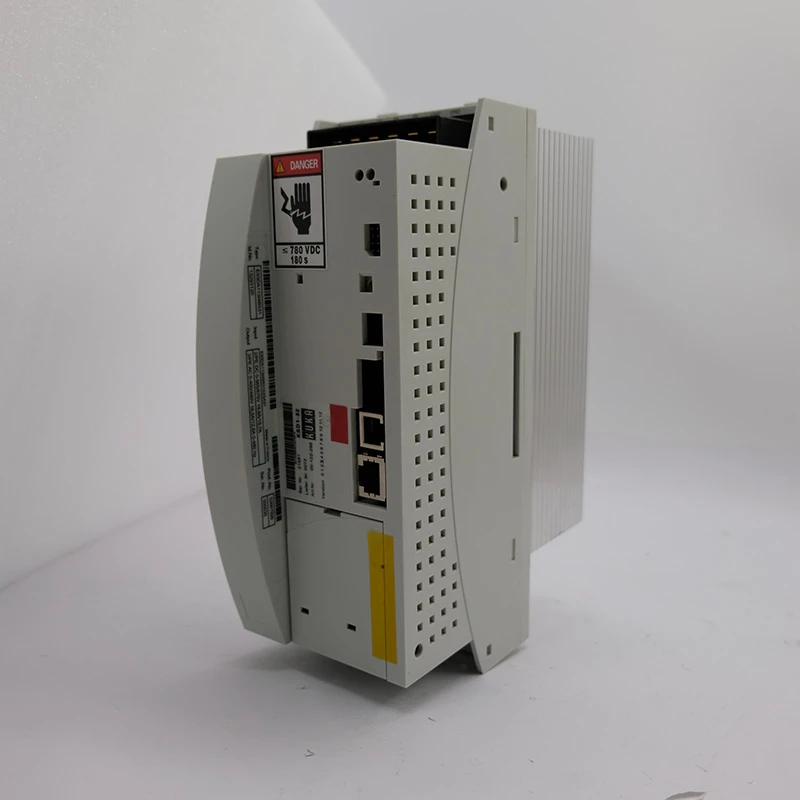

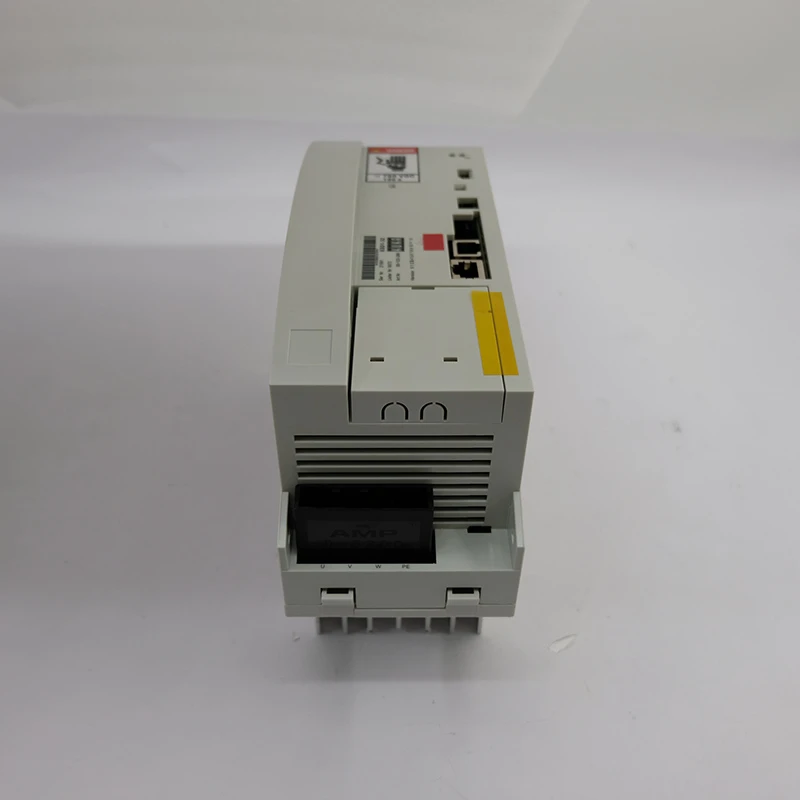

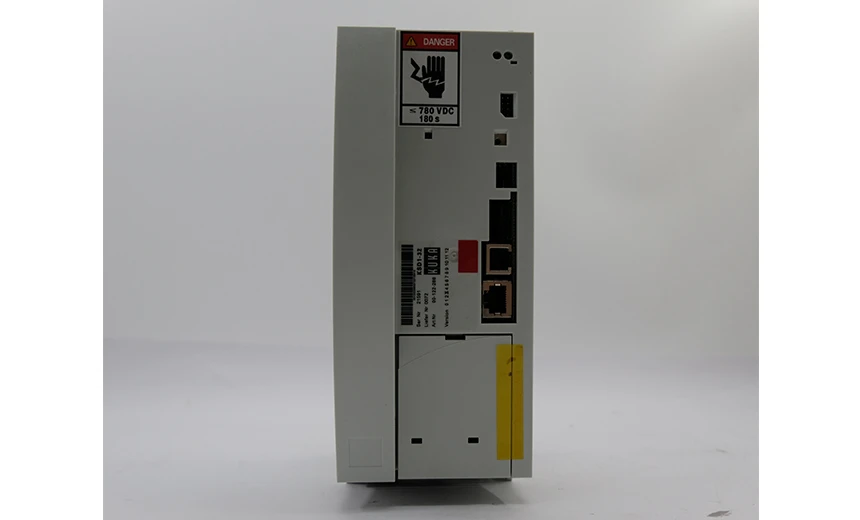

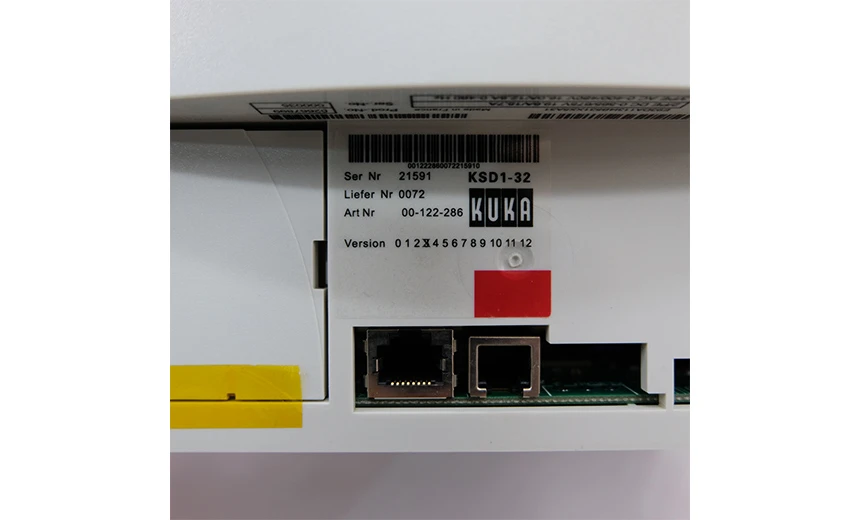

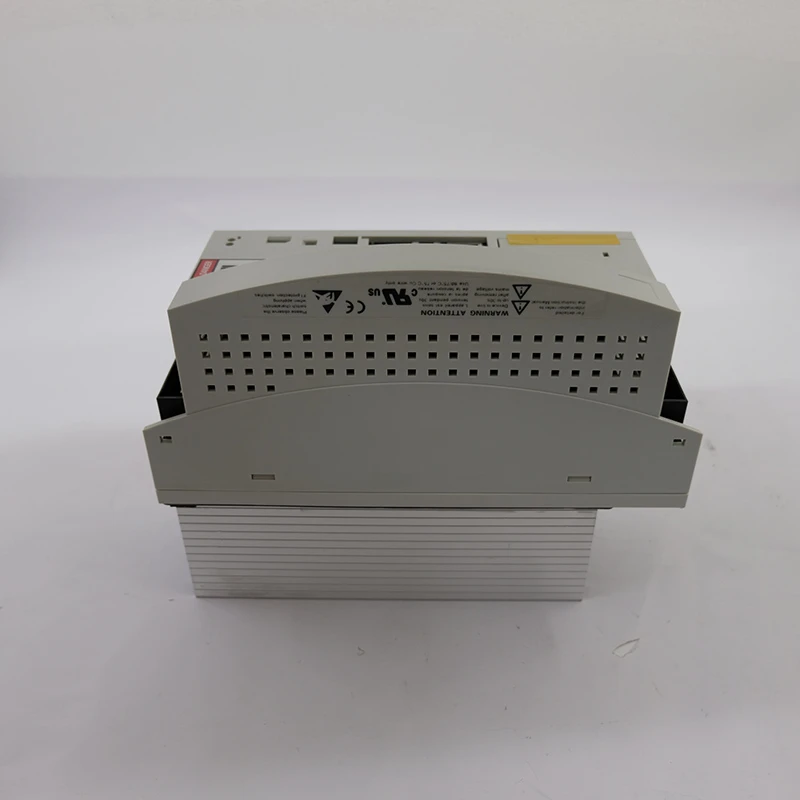

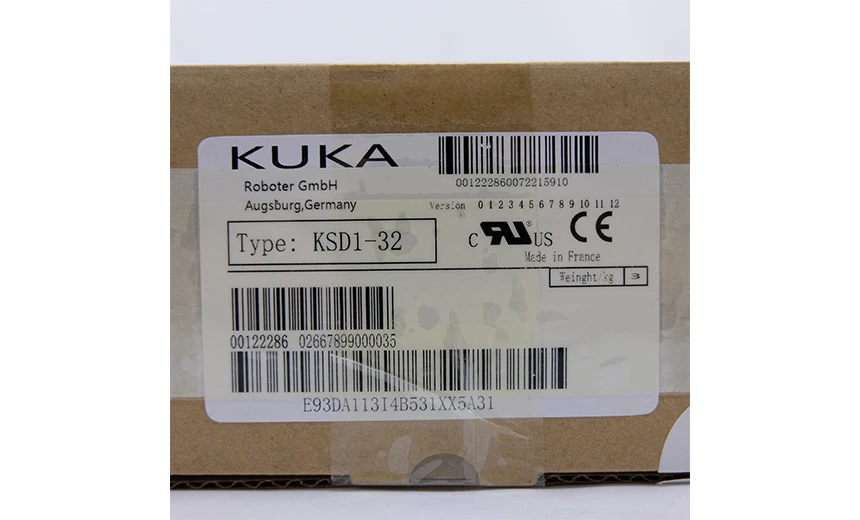

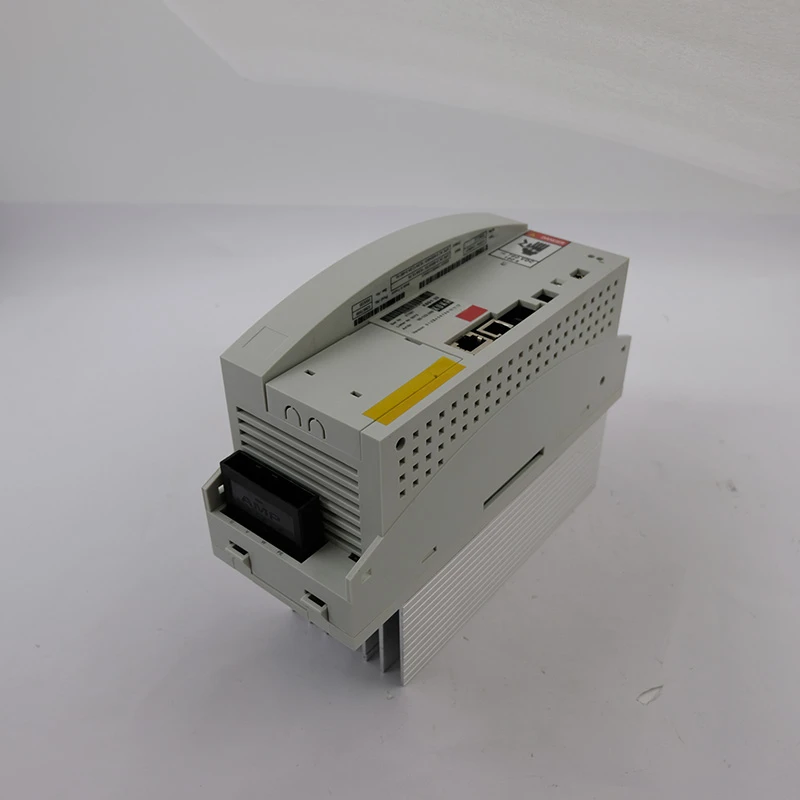

Product Image

Submit your inquiry and we'll respond within 24 hours

100k+ Parts

Extensive Inventory

Warranty Coverage

New parts: 1-Year | Used: 3-Month

17+ Years

Industry Experience

Fast Shipping

Ships Within 48 Hours

Product Description

The KUKA KSD1-32 servo drive module (part number 00122286 or 00-122-286) is a critical component in KUKA KRC2 robot controllers, providing advanced servo amplification for precise position, speed, and torque control across multiple robot axes. It accepts 2-phase DC input (0-565/675VDC at 15.7/19.6A) and delivers regulated 3-phase AC output (0-400/480VAC at 12.8/16.0A, 0-480Hz frequency range), supporting high dynamic response for industrial applications including welding, material handling, and assembly.

Engineered for continuous 24/7 operation, the module features comprehensive protection circuits (overcurrent, overvoltage, thermal), CAN/DeviceNet communication interfaces, and robust diagnostics for seamless integration with KUKA robot kinematics. Its compact design fits standard KRC2 cabinet mounting while maintaining high power density (5.5kVA capacity) and EMI compliance for clean operation in dense automation cells.

Technical Specifications

Parameter	Specification
Model	KSD1-32 (00122286 / 00-122-286)
Type	Servo drive controller
Input Voltage	2-phase 0-565/675 VDC
Input Current	15.7/19.6 A
Output Voltage	3-phase 0-400/480 VAC
Output Current	12.8/16.0 A
Output Frequency	0-480 Hz
Power Rating	5.5 kVA
Interfaces	CAN, DeviceNet
Protection	Overcurrent, overvoltage, thermal

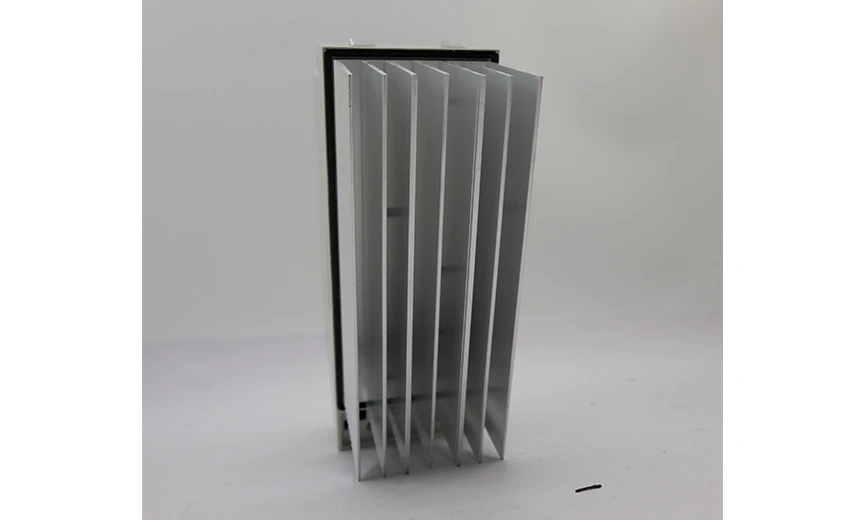

Cooling	Forced air (internal fan)
Compatibility	KUKA KRC2 robot controllers
Applications	Multi-axis robot motion control
Weight	~3-5 kg (estimated)
