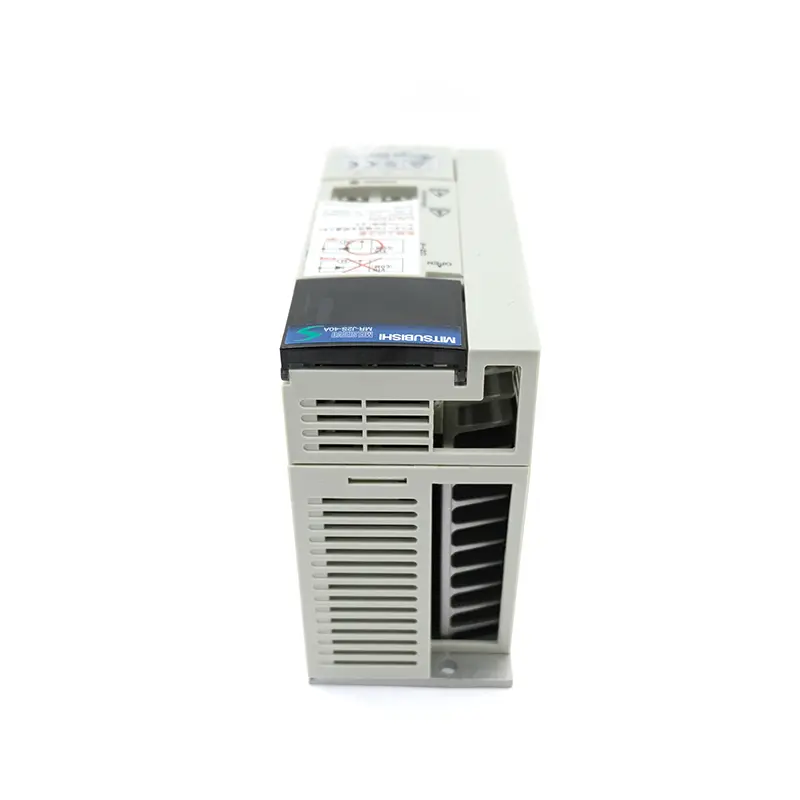

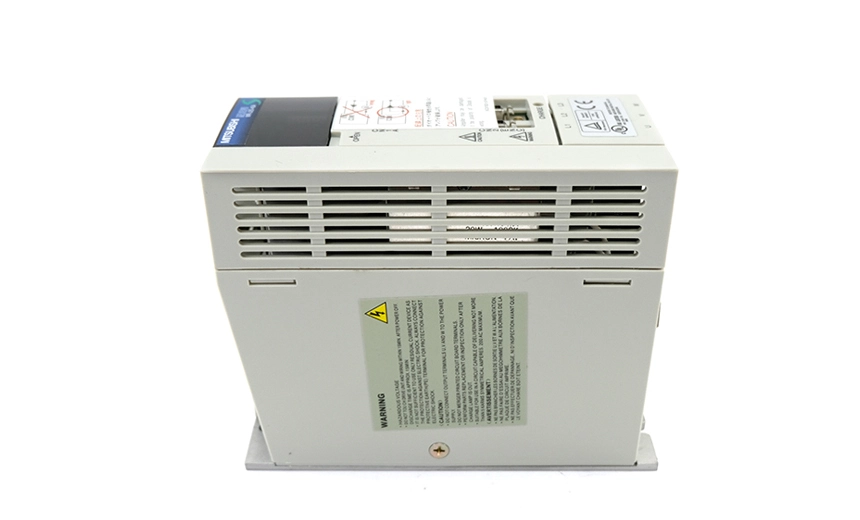

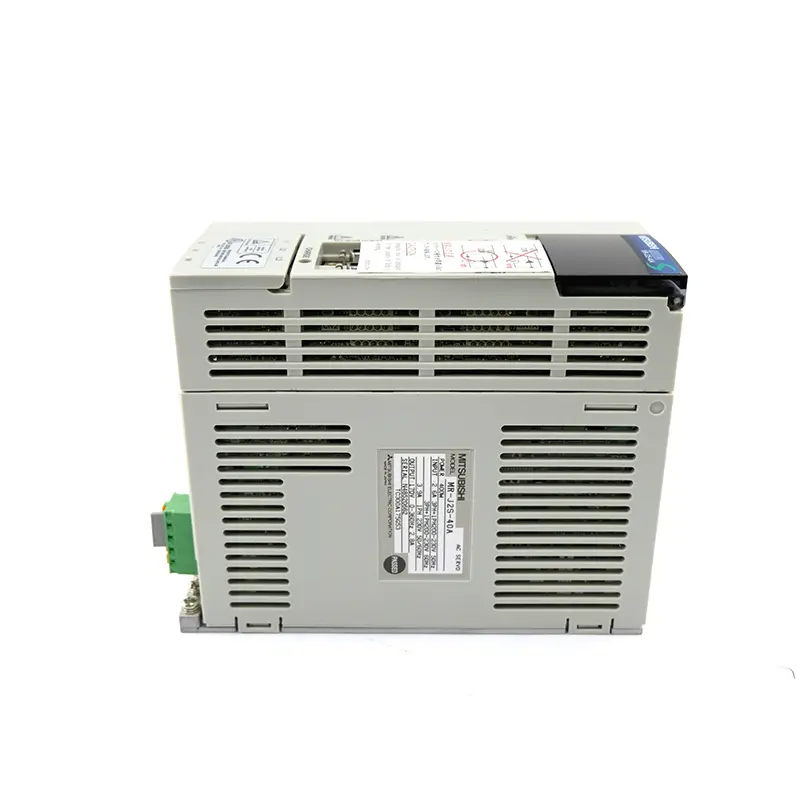

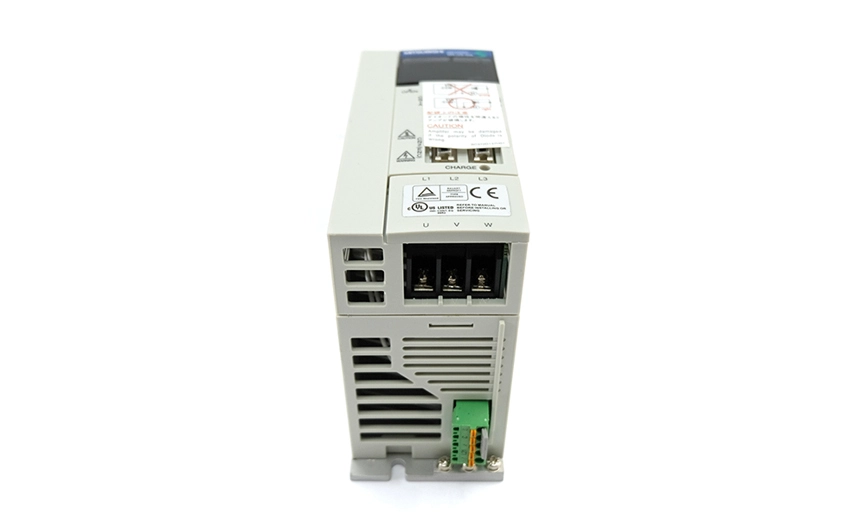

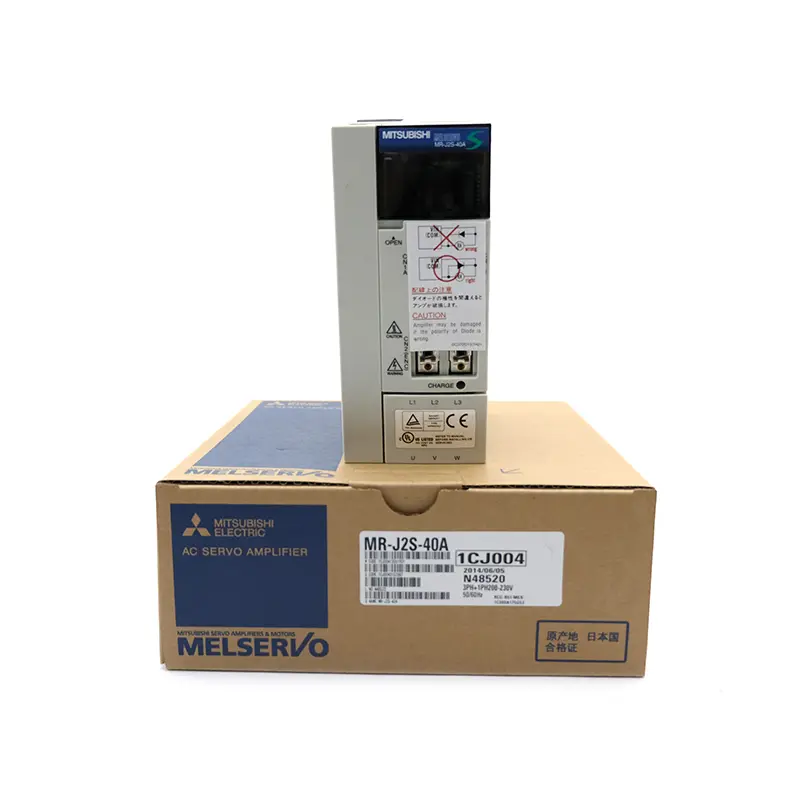

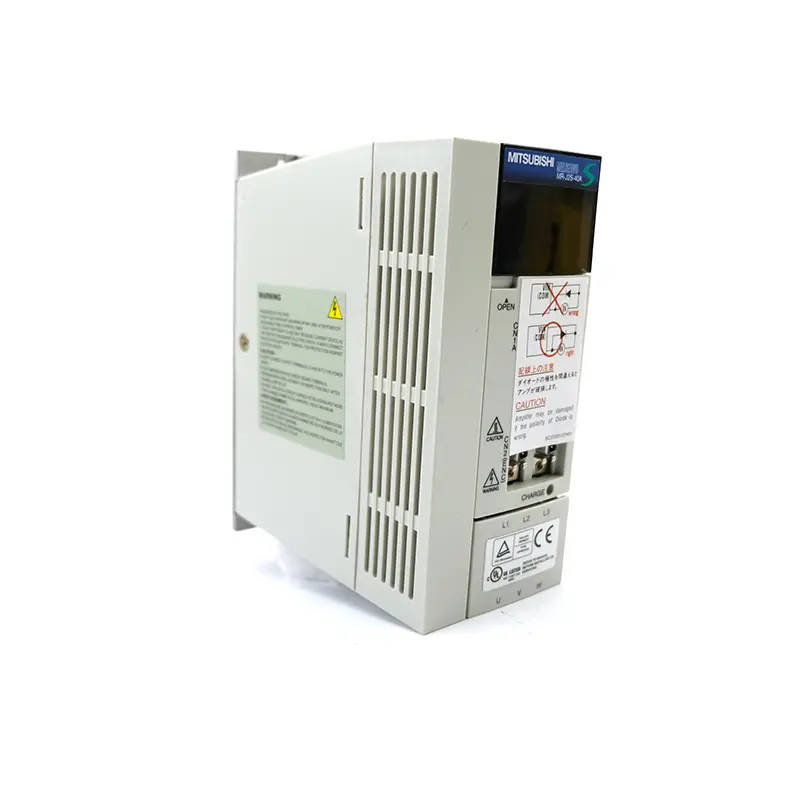

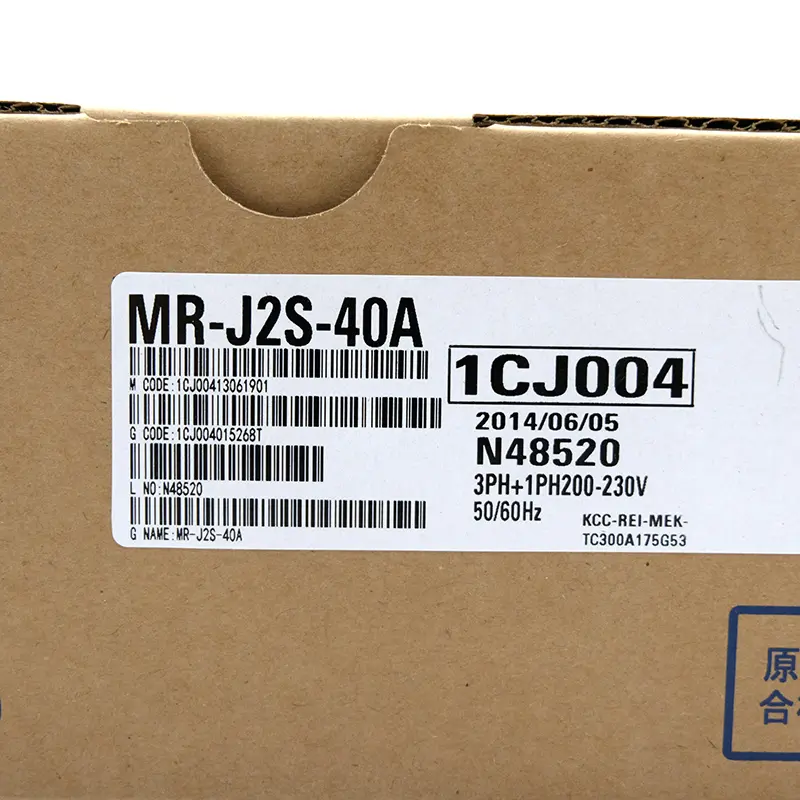

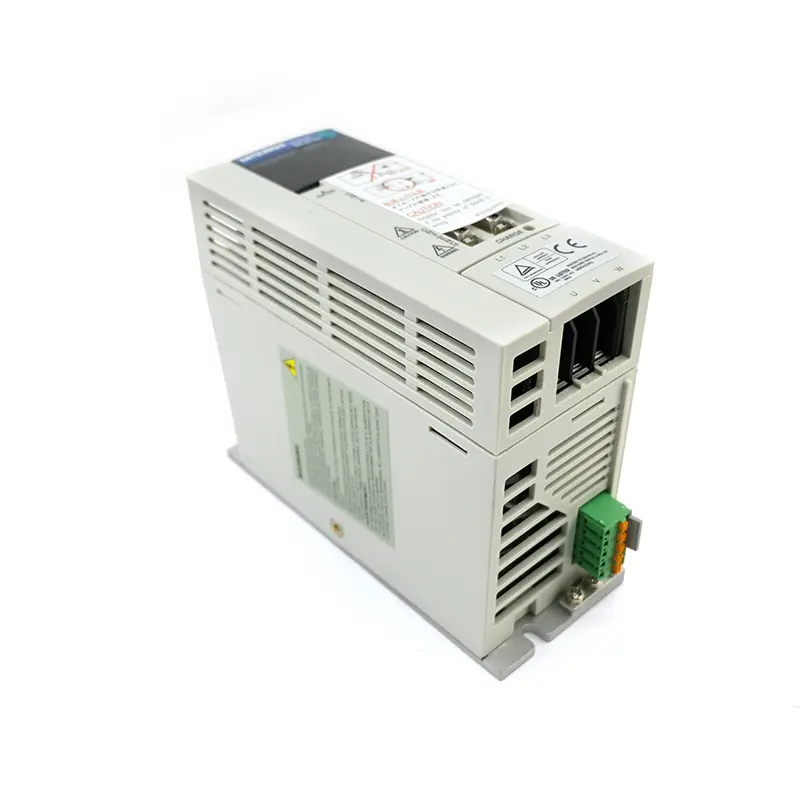

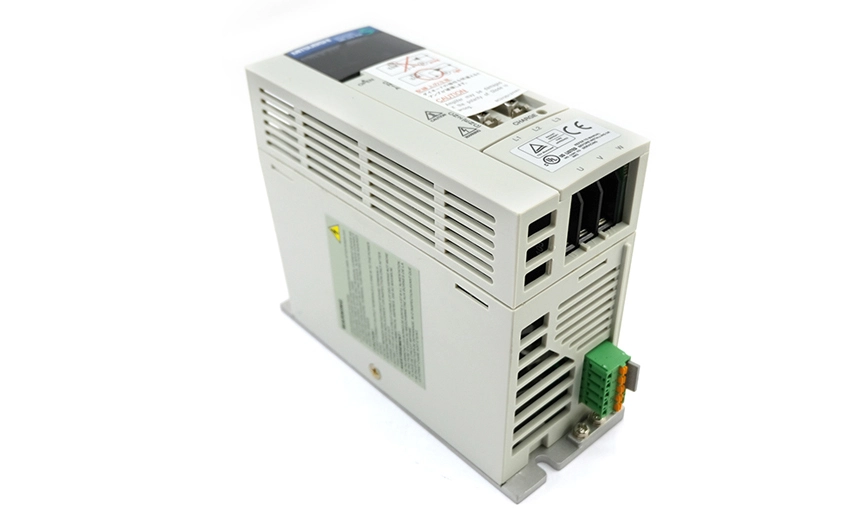

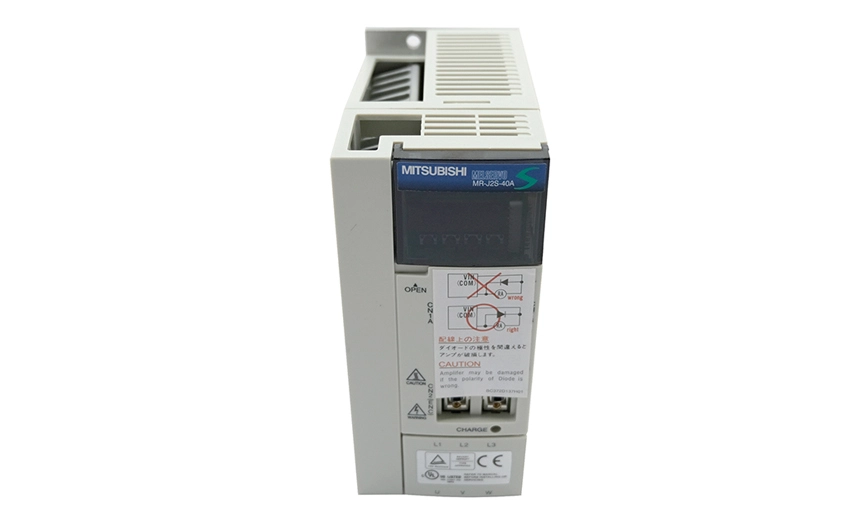

Mitsubishi MR-J2S-40A | Mitsubishi Servo Amplifier

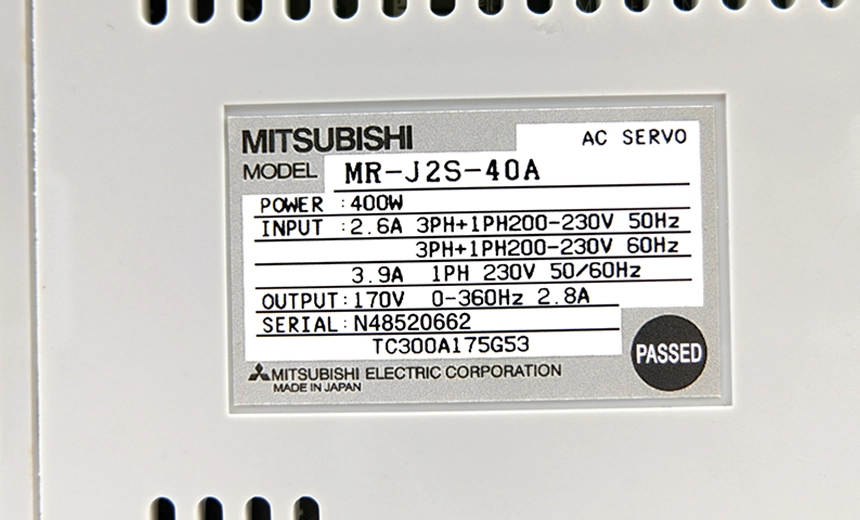

Specifications of Mitsubishi MR-J2S-40A

【 Power supply 】

◆ Voltage. Frequency: three-phase AC200-230V, 50/60Hz or single-phase AC200-230V, 50/60Hz

◆ Allowed voltage fluctuation: three-phase AC200-230V, AC170-253, single-phase AC230,AC207~253

Allowable frequency fluctuation: within 5%

[Control mode] sinusoidal PWM control, current control mode

【 Dynamic braking 】 Built-in

[Protection function] overcurrent, regenerative braking overvoltage, overload (electric heating relay), servo motor overheating, encoder abnormal, regenerative braking abnormal, undervoltage, instantaneous power failure, overspeed, excessive error

[Speed and frequency response] above 550Hz

【 Position control mode 】

◆ Maximum input pulse frequency: 500kps(differential input), 200kpps(collector open input)

◆ Instruction pulse ratio: electronic gear A/B times A =1~65535. 131072 B=1~65535, 1/50 < A/B < 500

Pulse width setting: 0~±10000 pulse (command pulse unit)

The error is too large: ±10 revolutions

◆ Torque limit: set by parameter setting or external analog input (DC0V~+10V/ maximum torque)

【 Speed control mode 】

◆ Speed control range: analog speed instruction 1:2000, internal speed instruction 1:5000

Analog speed command input: DC0V~±10V/ rated speed

Speed rate of change: plus or minus 0.01% the following (load changes: 0% ~ 100%), 0% (power change + / - 10%), plus or minus 0.2% (25 + 10 ℃ ambient temperature:) under the limited amount of quasi velocity instructions

Torque limit: through parameter setting or external analog input instruction setting (DC0V~+10V/ maximum torque)

[Torque control mode]

Analog maximum speed command input :DC0V~±8V/ maximum torque (input impedance :10kΩ~12kΩ)

Speed limit: through parameter setting or external analog input instruction setting (DC0V~+10V/ maximum rated torque

【 Structure 】 Self-cooling, open (IP00)(10~200); Strong cooling, open (IP00)

【 Weight KG】1.1

【MR-J2S-40A Environment Specifications 】

◆ Ambient temperature: 0~+55℃(non-freezing) during operation; Store at -20~+60℃(not frozen)

Ambient humidity: below 90%RH (non-condensing)

◆ Air conditions: indoor (no direct sunlight), no corrosive gas, flammable gas, oil mist, dust place

◆ Altitude: below 1000

Vibration: below 5.9m/s square

Details of Mitsubishi MR-J2S-40A | Mitsubishi Servo Amplifier
