Through the introduction of the above features, Heidehan 533110-01 Absolute Angle encoder is a high performance encoder with built-in bearings and integrated stator coupling, suitable for a variety of industrial automation systems requiring accurate measurement and control of angles, with high precision, high stability and a wide range of applications.
Brand: Heidenhain
Size: 9.5*9.5*5.5cm (without line)
Weight: 1kg

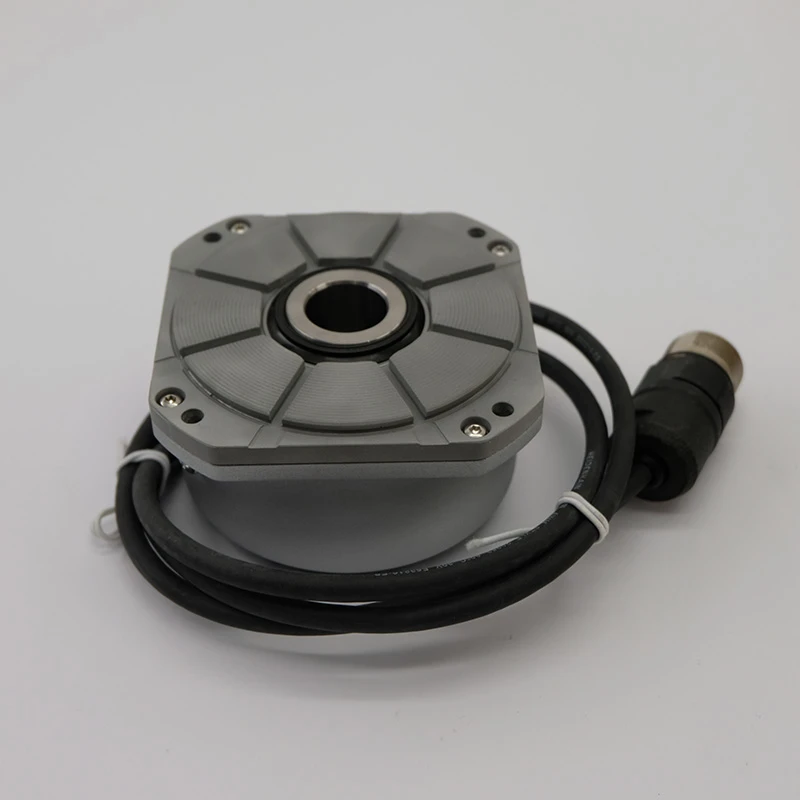

RCN 226

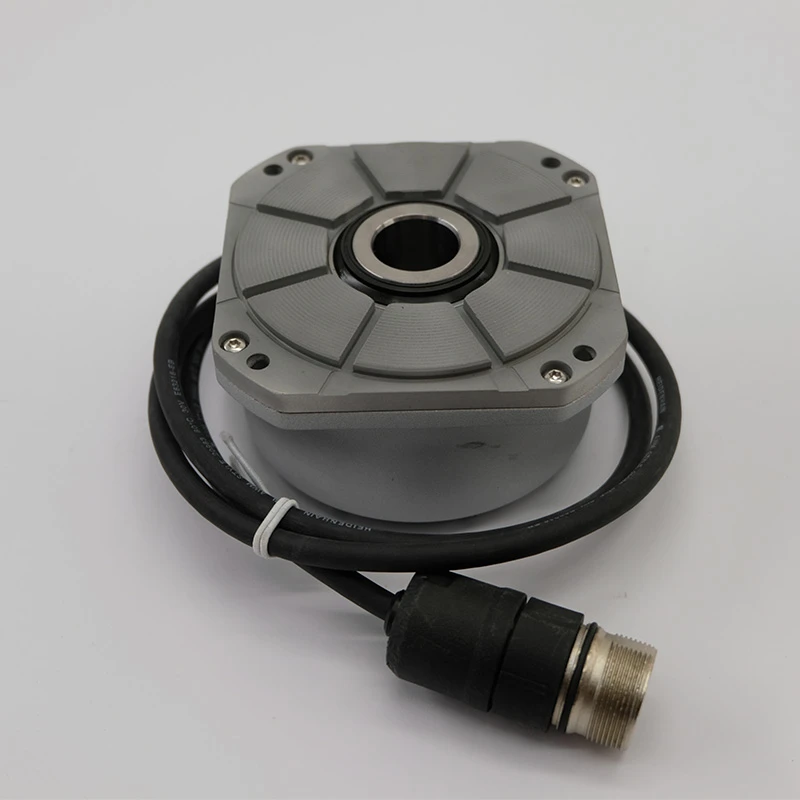

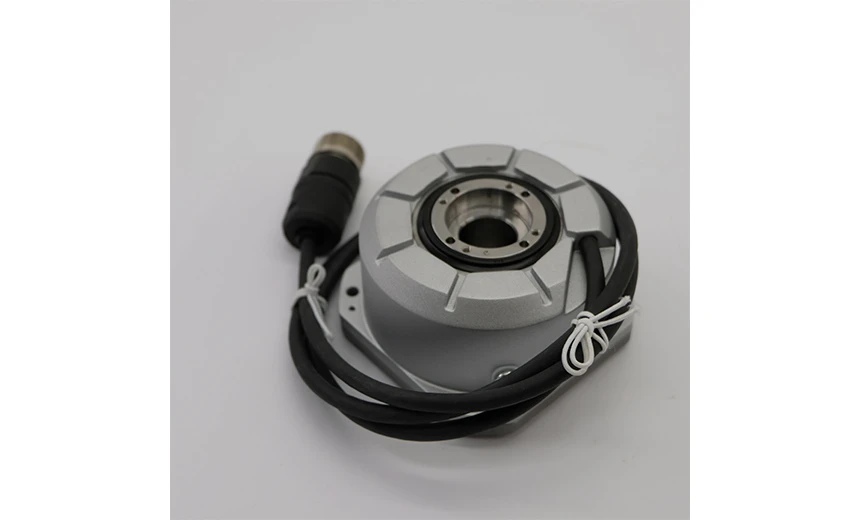

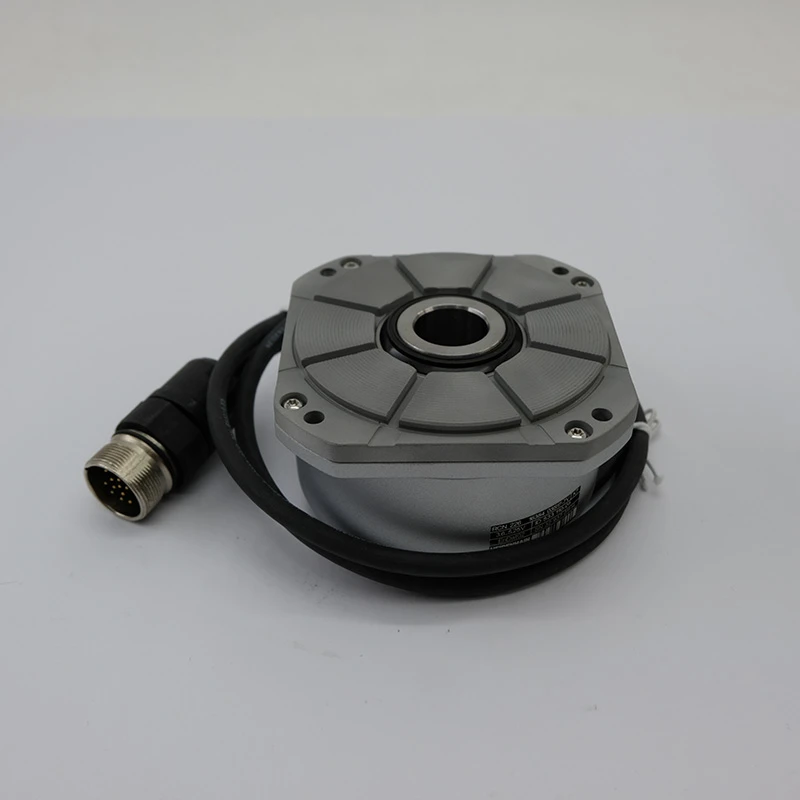

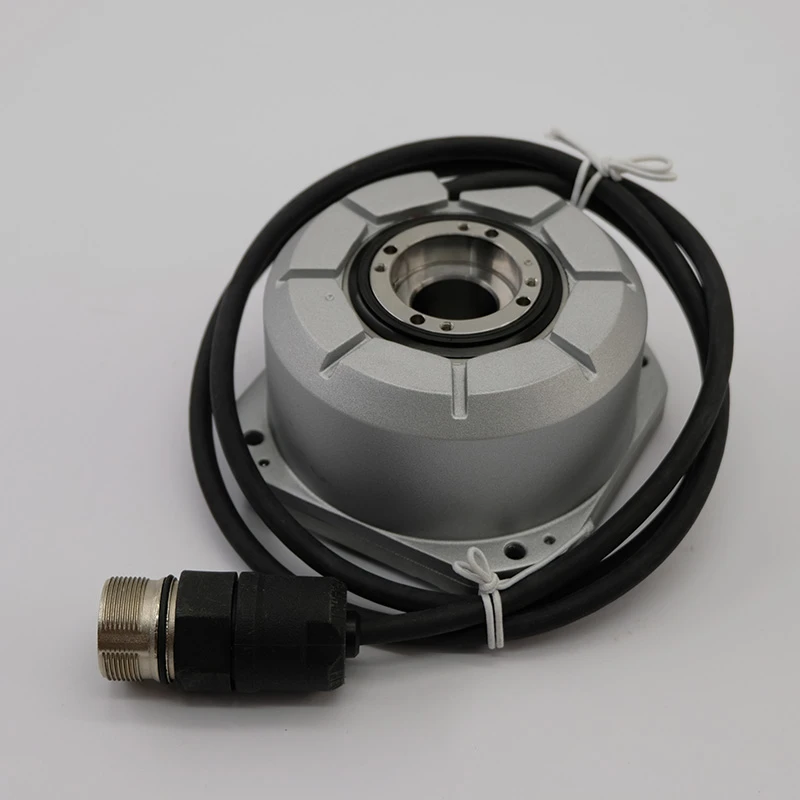

Absolute angle encoder (singleturn) with integral bearing and integrated stator
coupling
Technical data

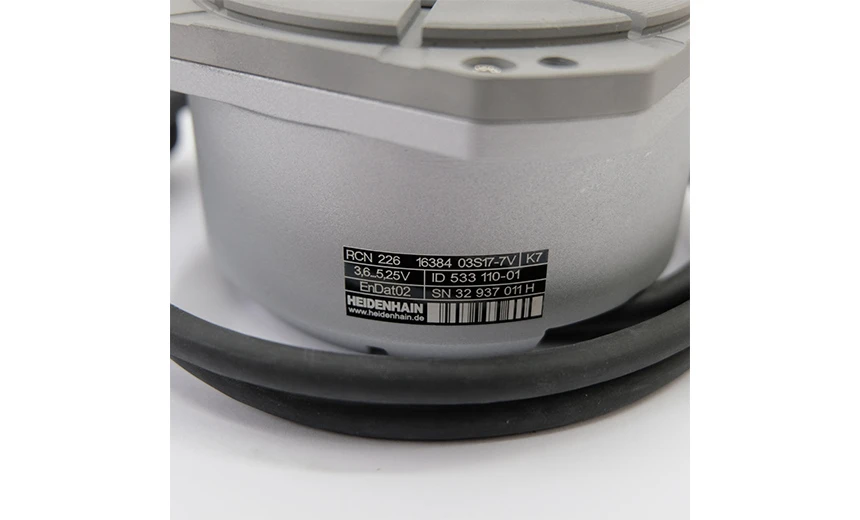

Identnumber: 533110-01
System accuracy: ±5.0"
Data interface: EnDat02
Positions per revolution: 67108864
Output code: Binary
Line count: 16384
Output signal: ~1Vpp
Cutoff frequency (-3 dB) : 180.00 kHz
Power supply: 3.6V... 5.25V

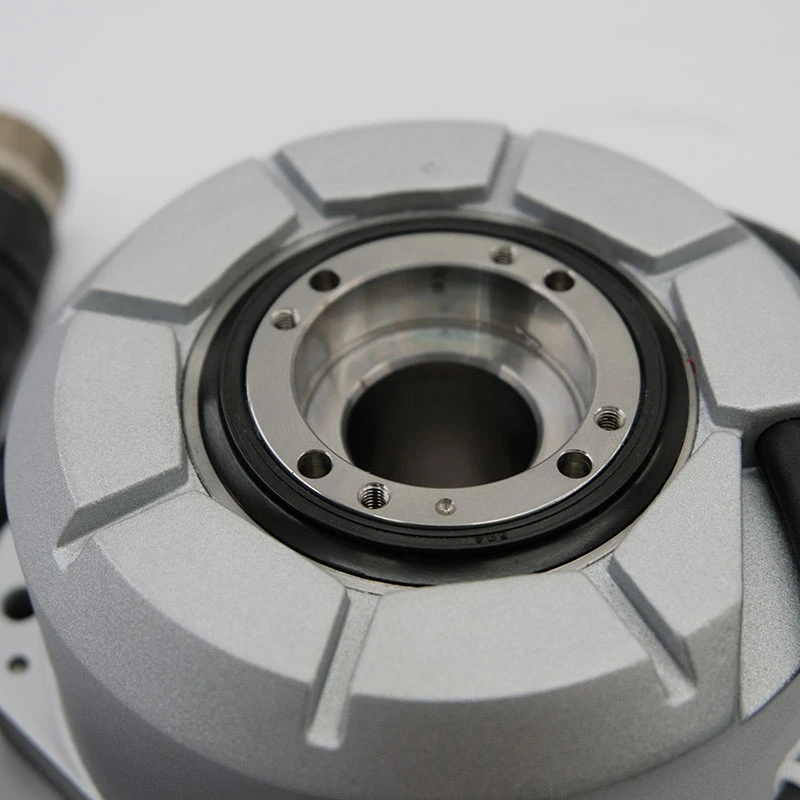

Shaft: Hollow through shaft for axial clamping, diameter 20 mm

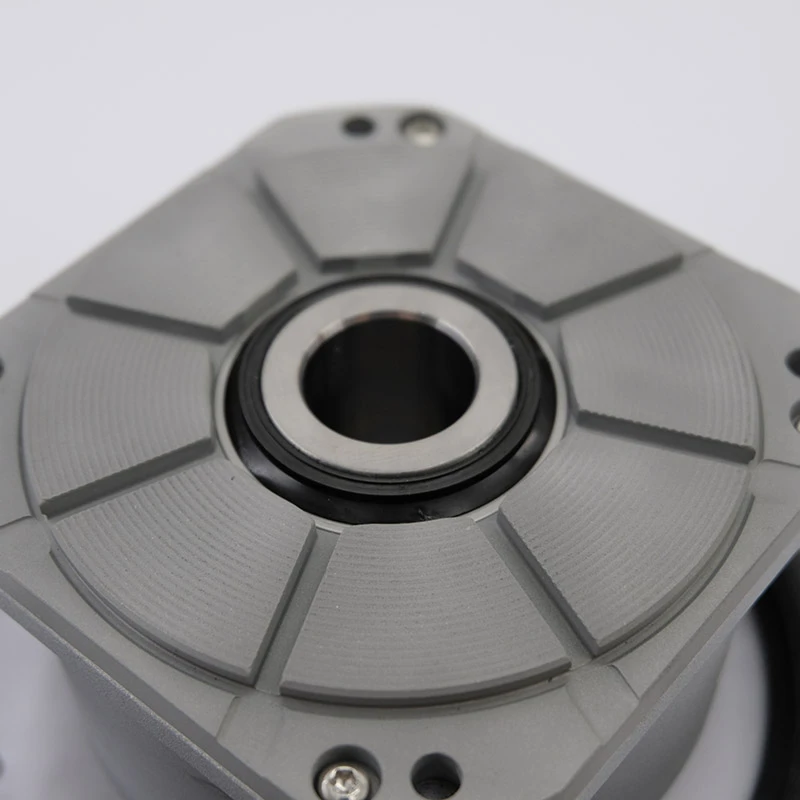

Flange version: Rectangular flange with 85 mm centering collar, drainage channels, aluminum
Degree of protection: IP64 (EN60529)
Operating temperature: -10/+70 °C

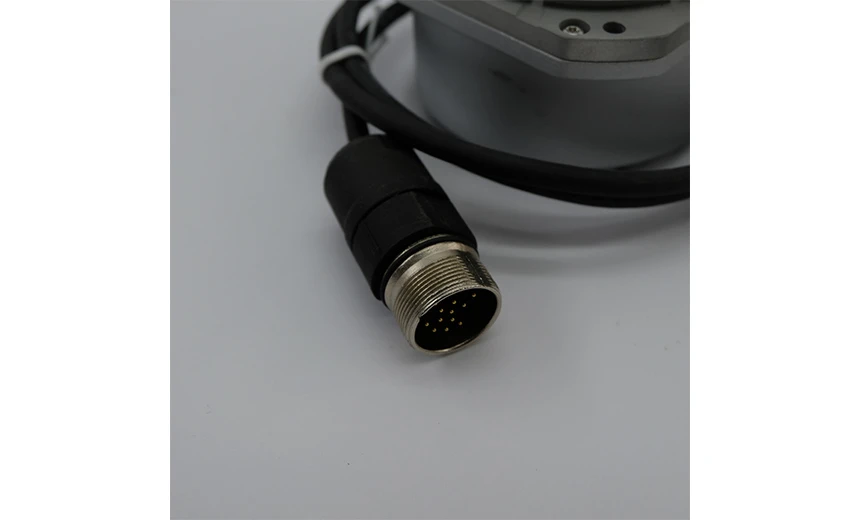

Electrical connection: Coupling M23, male, 17-pin
Pin configuration: D512235
Connecting direction: Cable outlet for axial and radial use
Cable length: 1.00 m
Cable type: PUR Ø6.0 mm
Special characteristics, rotational encoders: none
SCIP ID: 6BDC86C2-AA47-4921-9AAA1-A089C6AF3E1B
Heidenhain's 533110-01 is an absolute Angle encoder (single turn) with built-in bearings and integrated stator couplings with the following features:
1. Absolute Angle measurement:
533110-01 The absolute design enables accurate absolute measurement of angles.
The single-turn design makes it suitable for applications where precise measurement and control of angles is required.
2. Built-in bearing:
The encoder has a built-in bearing, which can effectively support the rotating shaft and improve the stability and reliability of the system.
The built-in bearing design simplifies the installation process and reduces reliance on external support structures.
3. Integrated stator coupling:
533110-01 encoders feature integrated stator couplings that connect directly to the rotating shaft, simplifying mechanical construction and reducing installation space.
The integrated stator coupling design improves the transmission efficiency and accuracy of the system.
4. High precision measurement:
Have the high precision Angle measurement capability, can realize the accurate Angle measurement, to ensure the stability and accuracy of the system.
Can meet the requirements of high Angle measurement accuracy of a variety of applications.
5. Widely used:
533110-01 is suitable for a variety of applications requiring accurate measurement and control of angles, such as robotics, CNC machine tools, etc.
Have important application value in automation systems requiring high precision Angle measurement and reliable transmission.
Through the introduction of the above features, Heidehan 533110-01 Absolute Angle encoder is a high performance encoder with built-in bearings and integrated stator coupling, suitable for a variety of industrial automation systems requiring accurate measurement and control of angles, with high precision, high stability and a wide range of applications.
