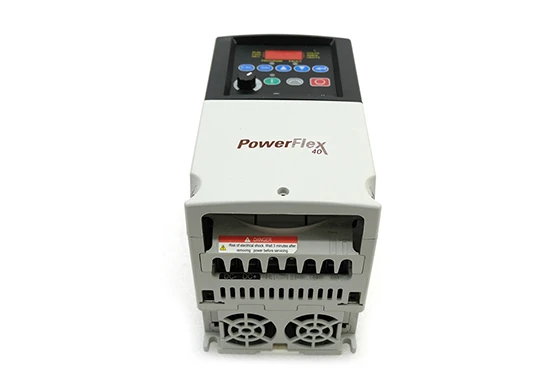

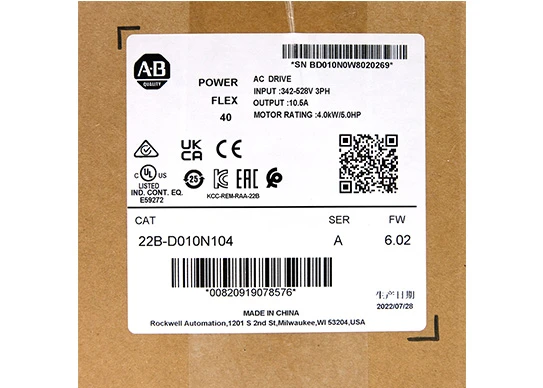

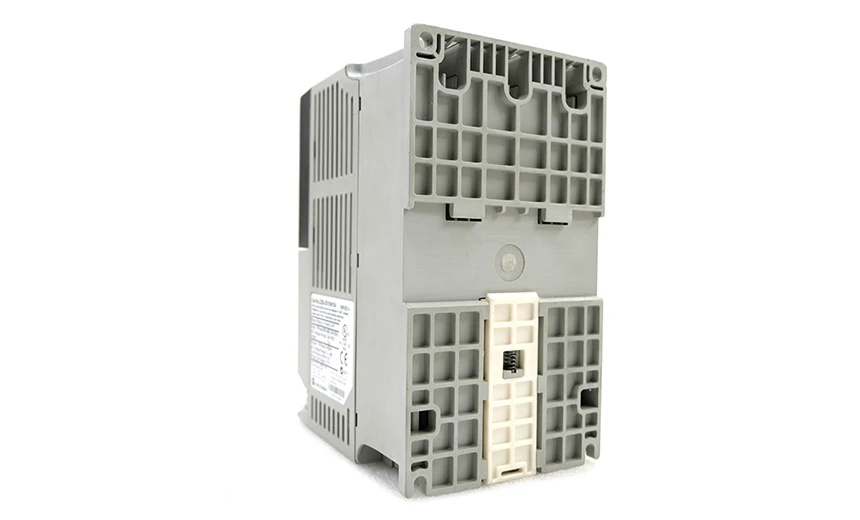

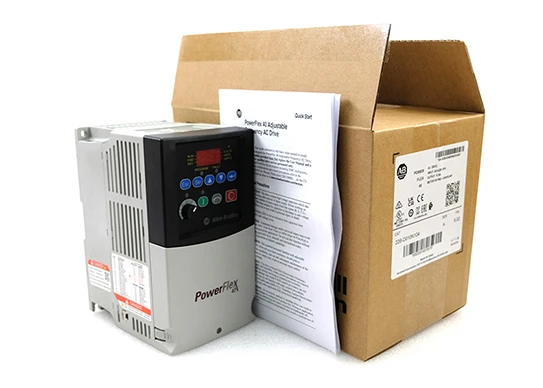

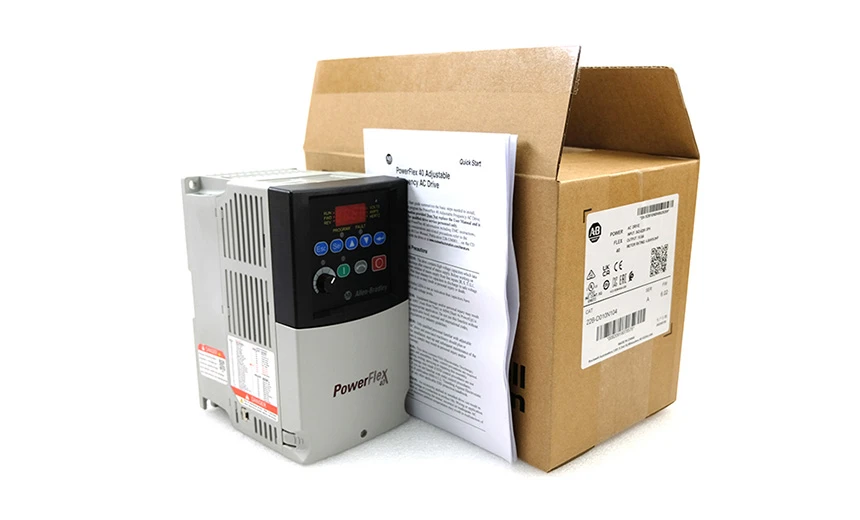

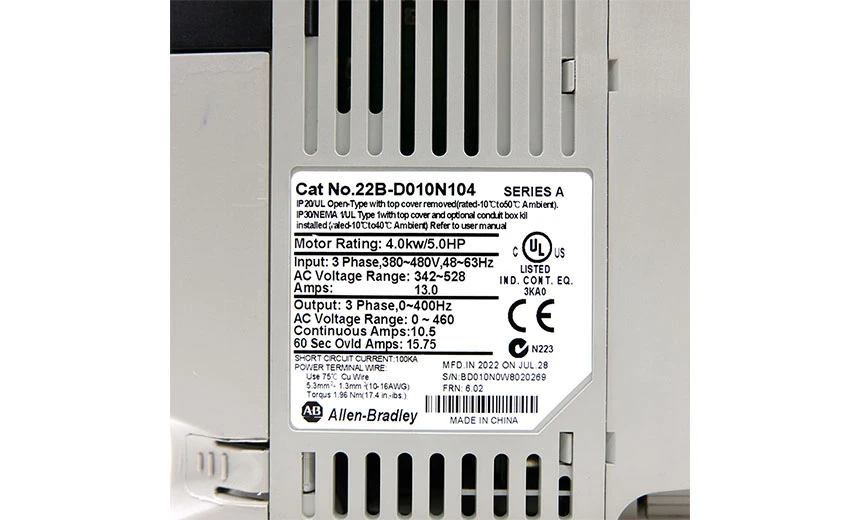

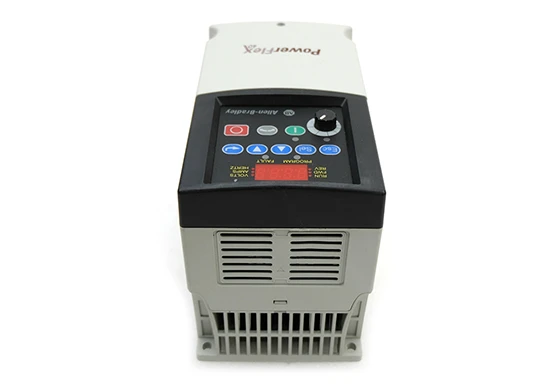

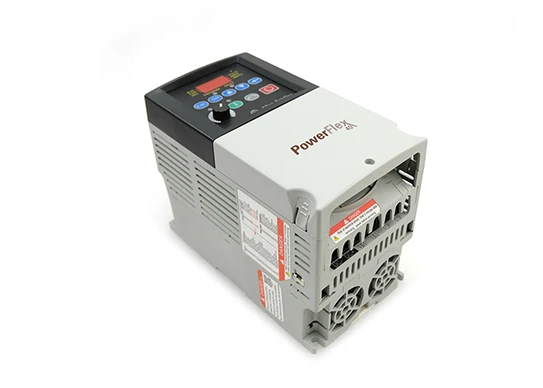

The 22B-D010N104 is a member of the PowerFlex 40 AC drive family, designed for compact, cost‑effective variable speed control of three‑phase induction motors in industrial and commercial applications. It accepts 380–480 V AC, 3‑phase, 48–63 Hz input (range 342–528 V AC) and provides 4.0 kW (5 HP) motor power with 10.5 A continuous output current, making it suitable for a wide variety of pumps, fans, conveyors and material‑handling equipment. The drive is supplied in Frame size B with an IP20 / NEMA UL Open panel‑mount enclosure and has a power factor around 0.98 and efficiency up to ≈97.5%, helping reduce losses and energy costs.
Control capabilities include V/Hz and sensorless vector control, enabling good speed regulation and high torque over a wide speed range, with auto‑boost and slip compensation for improved performance under varying loads. The output frequency is programmable from 0 to 400 Hz, and the drive offers 8 preset speeds, built‑in PID functions, and 4 fully programmable digital inputs for versatile control schemes. A built‑in brake IGBT supports dynamic braking when used with an external brake resistor, allowing faster deceleration of high‑inertia loads.

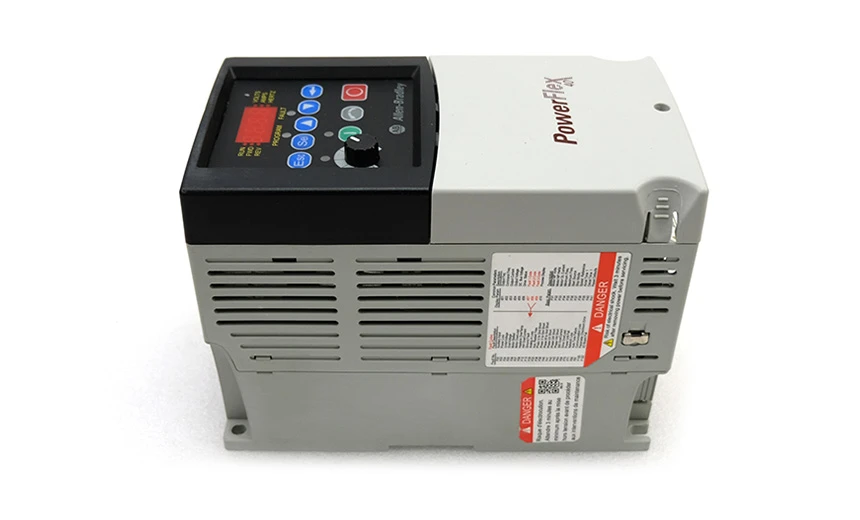

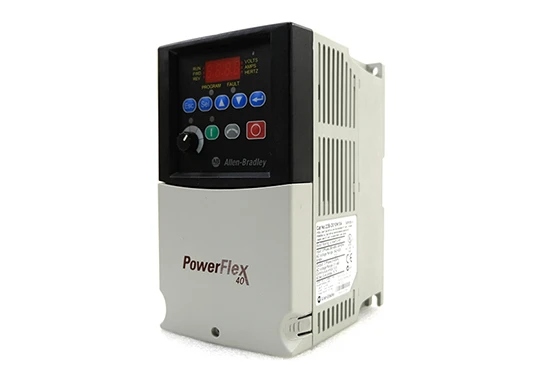

For user interaction, the 22B-D010N104 includes an integral LED display and digital keypad for local programming, monitoring and control, and it supports optional Human Interface Modules (HIMs) such as 22‑HIM‑C2S, 22‑HIM‑C2, 22‑HIM‑A3 and 22‑HIM‑B1. Communication is provided via the integral RS‑485 port, enabling networking and remote configuration with PC tools and integration into multi‑drive systems. Typical protective features include overcurrent, overvoltage, undervoltage, ground‑fault and motor overload protection, with recommended 20 A UL Class J/CC/T or BS88 600 V fuses and motor protection such as 140M‑C2E‑C16.
Key Specifications
