Detailed Description:
-

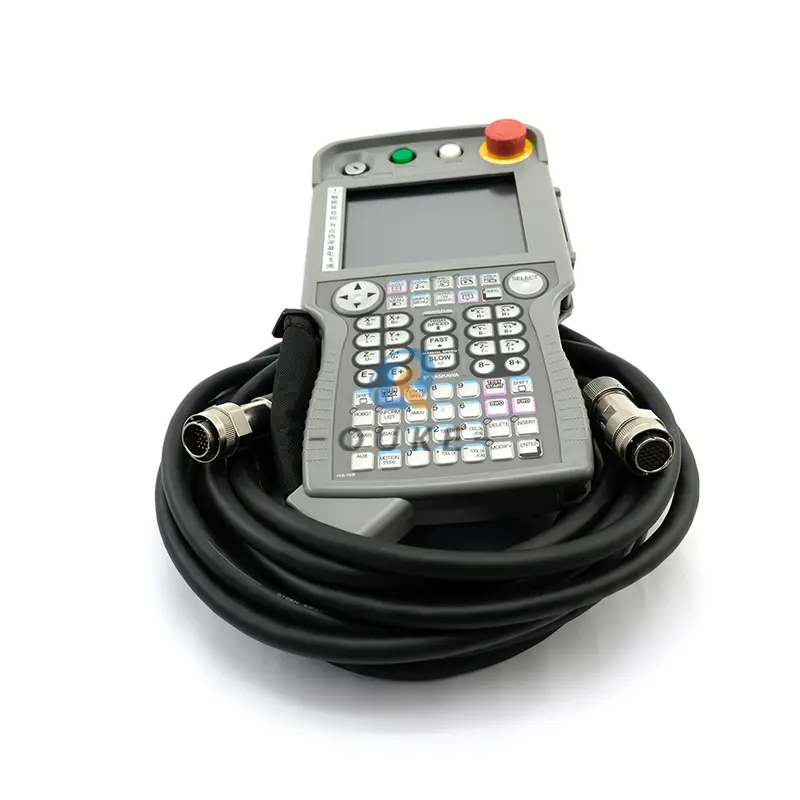

Core HMI Interface: Serves as the bridge between the operator and the robot controller, providing a graphical interface for all robot operations, program management, and system configuration. A high-quality touchscreen or LCD display ensures clear visibility under various lighting conditions.
-

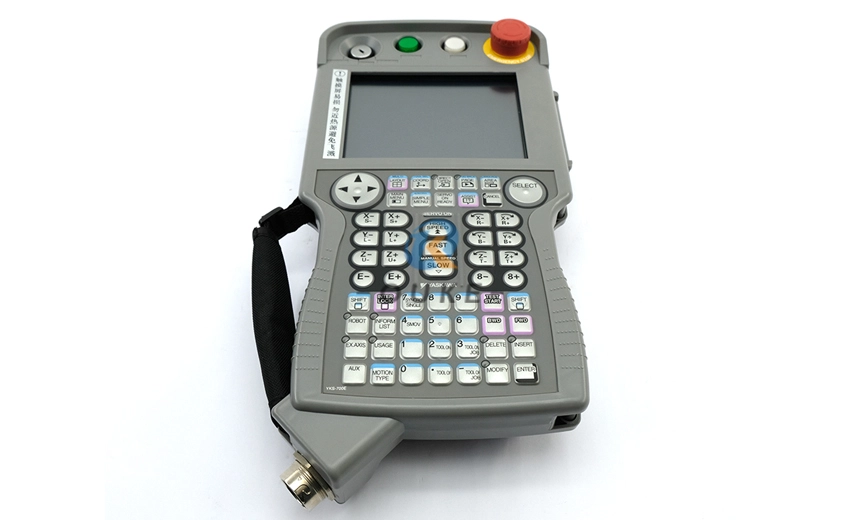

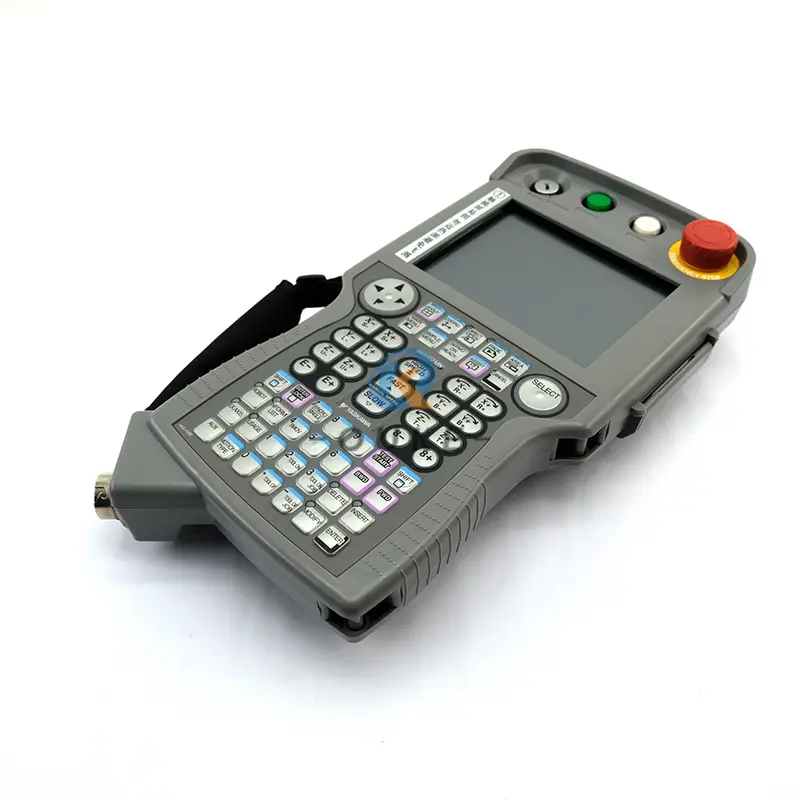

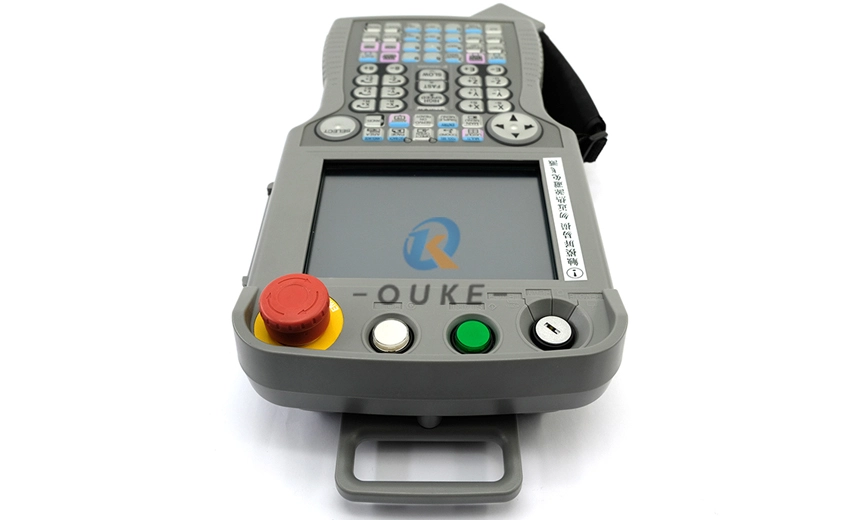

Safety and Manual Control: Integrates a Three-Position Enable Switch, a critical safety device that only allows robot motion when properly pressed. Includes an Emergency Stop Button for immediate cut-off of robot drive power. Features a Manual Speed Override dial or slider to control the jogging speed of the robot.
-
Versatile Programming & Operation: Facilitates easy execution of the following operations via physical keys, soft keys, and the touchscreen: Manual Jogging, Creating/Editing Position Points, Writing Robot Programs (e.g., INFORM language), Managing Jobs and Tasks, Setting Tool Center Point (TCP) and User Coordinate Systems.
-
Status Monitoring & Diagnostics: Displays real-time information such as current robot position, joint angles, I/O status, alarm messages, and system variables. Provides detailed fault diagnosis and history logs to help technicians quickly troubleshoot issues.
-

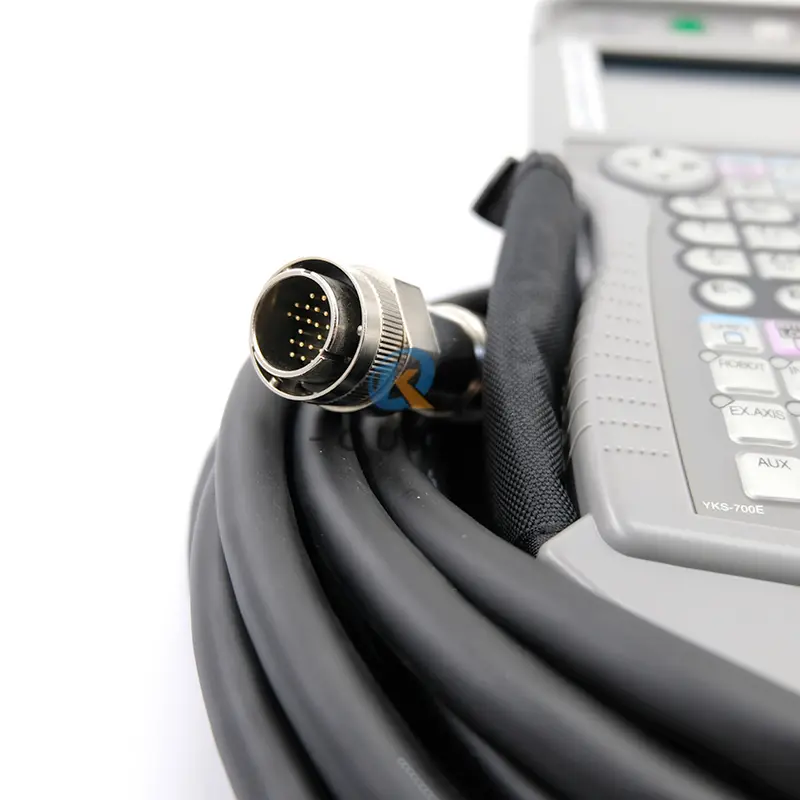

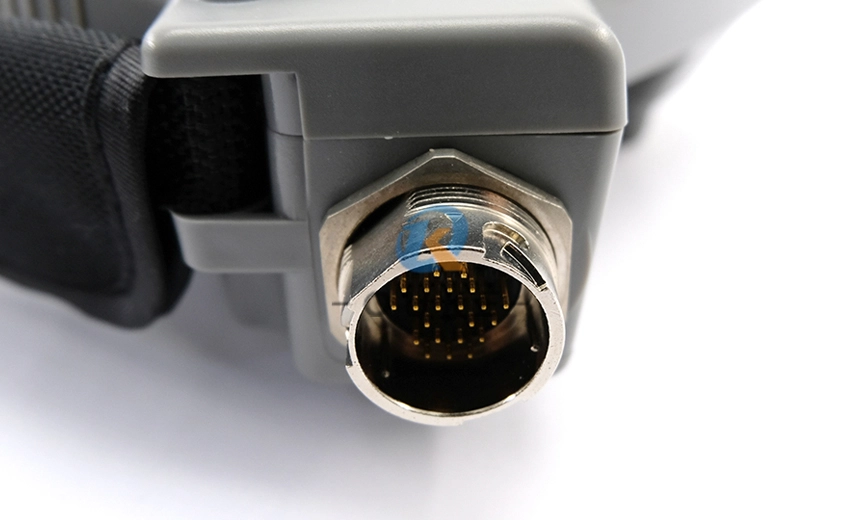

Connectivity & Durability: Connects to the robot controller via a robust cable that typically combines power supply, data communication, and safety signal transmission. The housing is designed to be rugged, meeting requirements for impact resistance and oil/dirt protection in industrial environments.
Key Specifications:
| Parameter | Details / Typical Features |
|---|---|
| Model | JZRCR-YPP21-1 (Example, specific model depends on robot model) |
| Compatible Systems | Yaskawa Motoman specific series robot controllers (e.g., YRC1000, DX100, etc.) |
| Display | Color LCD Touchscreen (size varies by model, e.g., 8 inches) |
| Input Devices | Touchscreen, Membrane Function Keys, Enable Switch, E-stop Button, Manual Speed Dial |
| Safety Devices | Three-Position Enable Switch, Emergency Stop Button |
| Primary Functions | Manual Jogging, Online/Offline Programming, Coordinate Setup, Program Management, Status Monitoring, Fault Diagnosis |
| Connection Interface | Dedicated cable to the controller main cabinet |
| Protection Class | Typically IP54 or similar, dust and water splash protected |
| Operating Temperature | 0 ~ 45°C (typical industrial range) |
| Power Supply | Powered by the controller via the connection cable |
