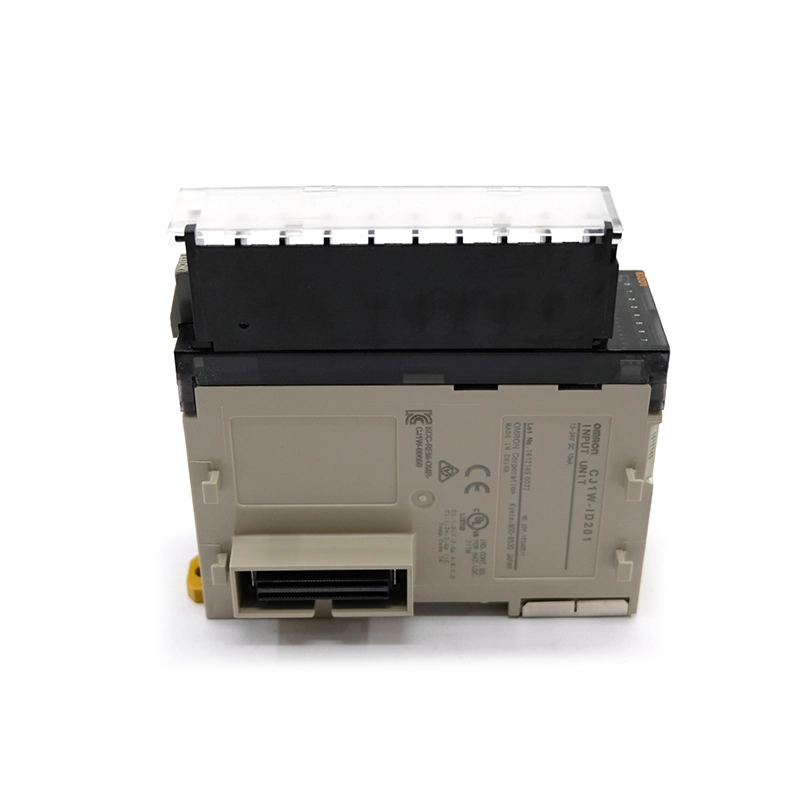

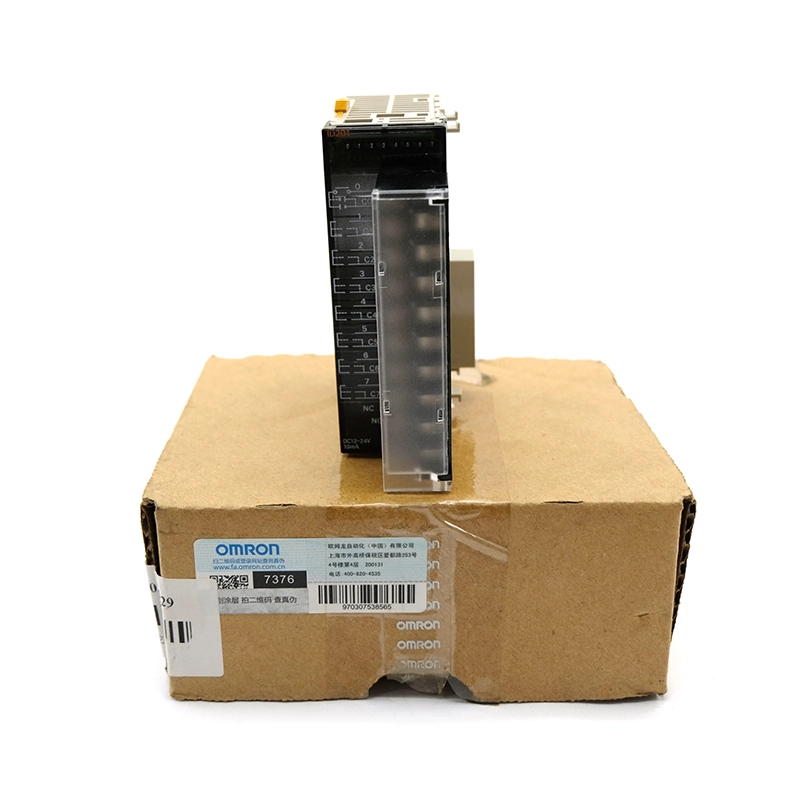

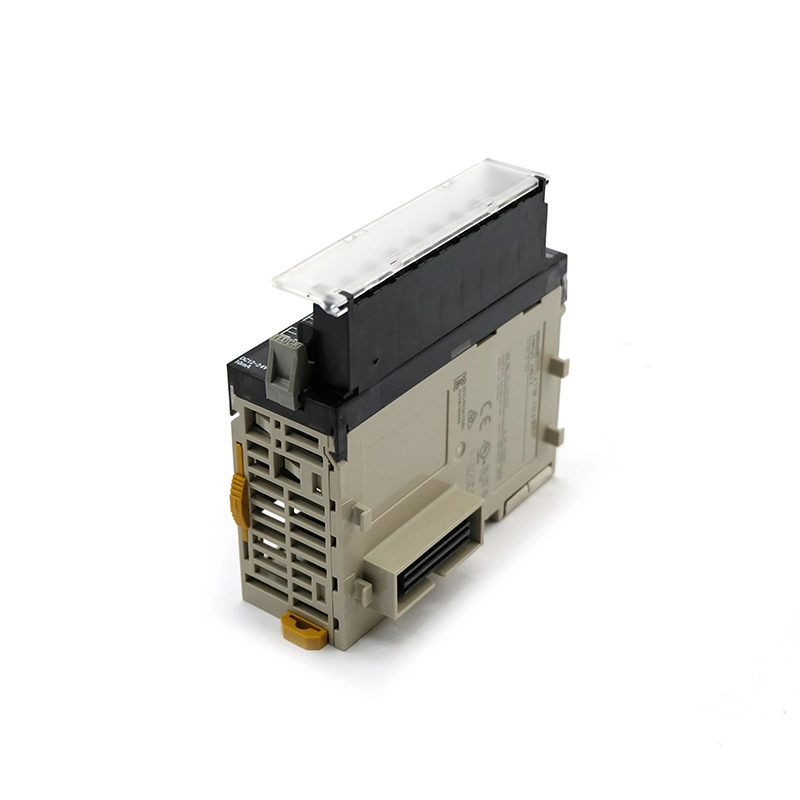

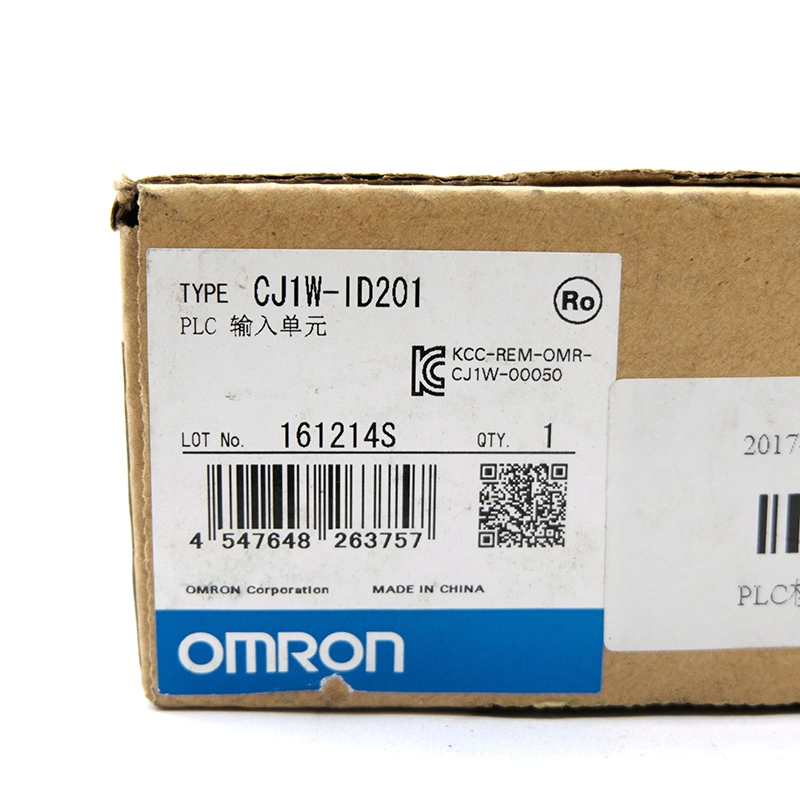

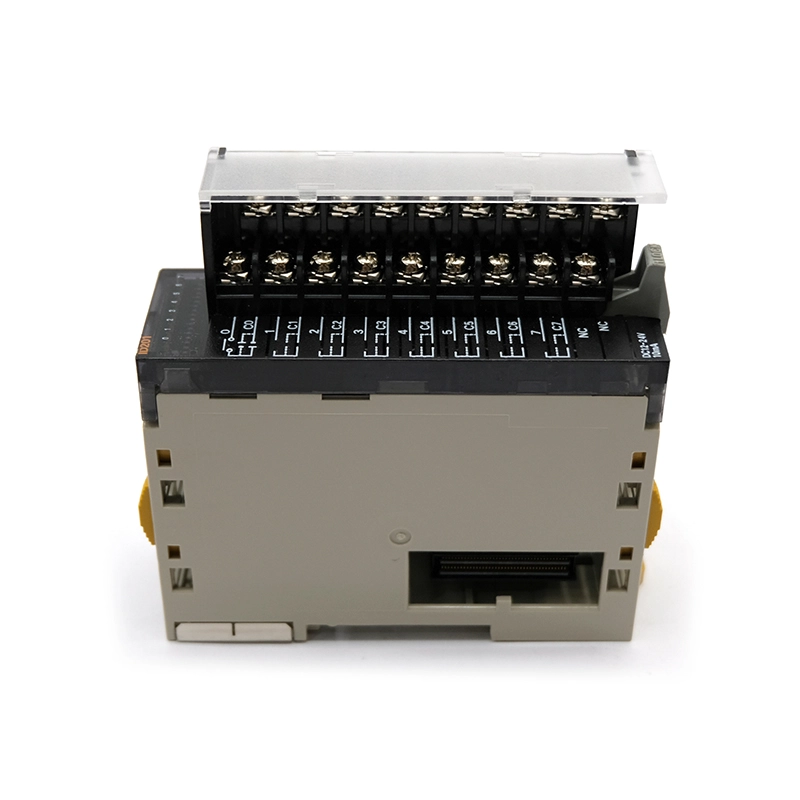

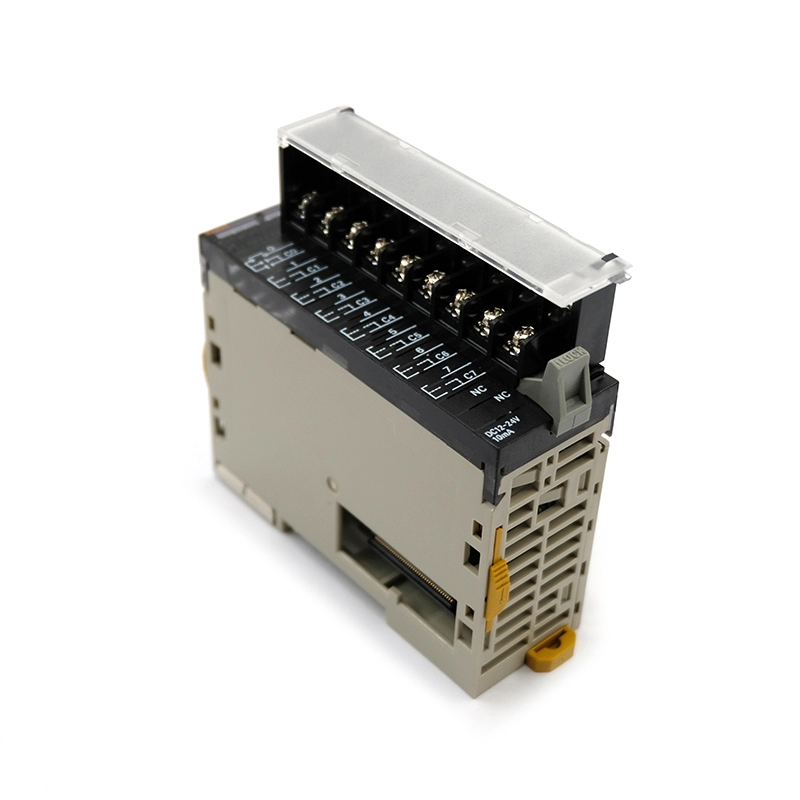

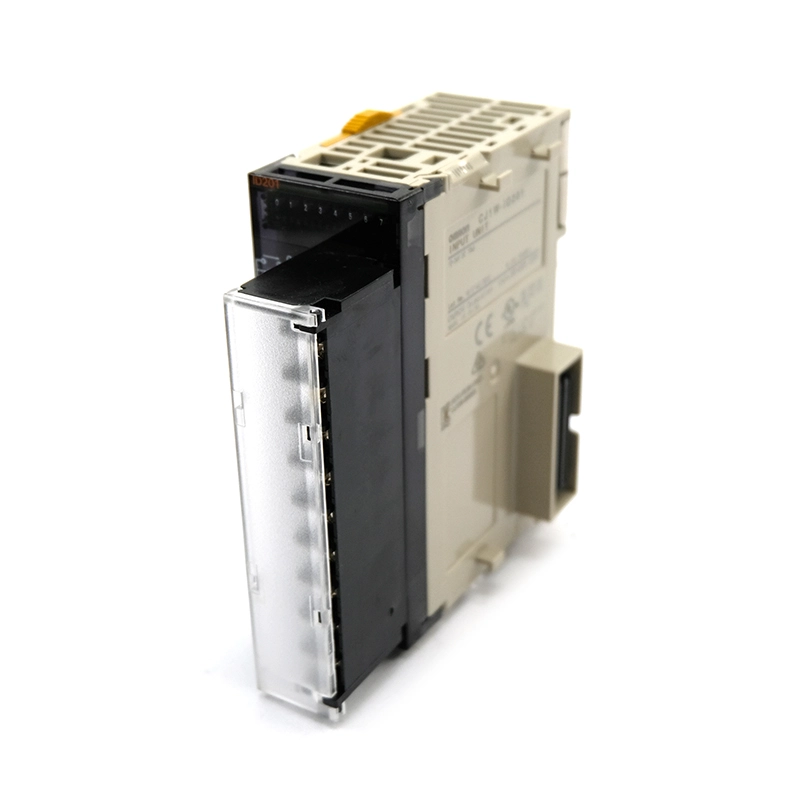

Omron CJ1W-ID201 | Omron Digital Input Module

Features

High-density inputs: Provides 16-point digital inputs for applications requiring high-density inputs.

Fast Response: Provides fast input response time, suitable for control tasks requiring high speed and high accuracy.

Modular design: Easy to install and maintain, can be seamlessly integrated with other CJ1 series modules.

LED Indicators: Each input has an LED indicator for easy status monitoring and troubleshooting.

Advantages

High Flexibility: Modular design allows flexible configuration according to specific needs, adapting to different application scenarios.

Reliable: Omron products are known for their high reliability and durability, suitable for a variety of industrial environments.

Easy to integrate: highly compatible with other modules in the CJ1 series, easy to integrate into existing systems.

Global support: Omron provides technical support and after-sales service worldwide to ensure that users have no worries in the process of use.

Parameter

Input points: 16 points

Input voltage: 24V DC

Input current: 7mA (24V DC)

Response time: ON→OFF: 1ms max, OFF→ON: 1ms max

Insulation resistance: 20MΩ or more (500V DC)

Withstanding voltage: 500V AC, 1 minute (between input terminal and PLC internal circuit)

Operating temperature: 0°C to 55°C

Storage temperature: -20°C to 75°C

Dimensions: 31mm (W) x 90mm (H) x 65mm (D)

Weight: approx. 100g

Application Scenario

Industrial Automation: Suitable for various industrial automation control systems, such as production lines, packaging equipment, conveyor systems, etc.

Process Control: Can be used for signal acquisition and processing in process control system.

Building Automation: Used in building automation system to monitor and control various devices.

Mechanical Manufacturing: Applicable to a variety of control tasks in mechanical manufacturing, such as machine tools, robots and so on.

Summarize

CJ1W-ID201 is a high-performance, highly reliable digital input module for a variety of complex industrial automation and process control tasks. Its modular design and high-density inputs make it ideal for industrial automation. Its competitiveness in the market is further enhanced by the global support and service of the Omron brand.

Details of Omron CJ1W-ID201 | Omron Digital Input Module
