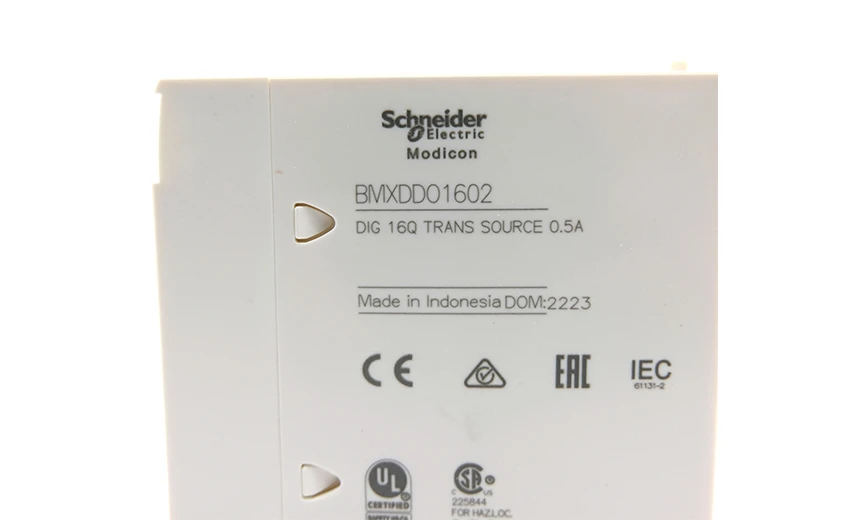

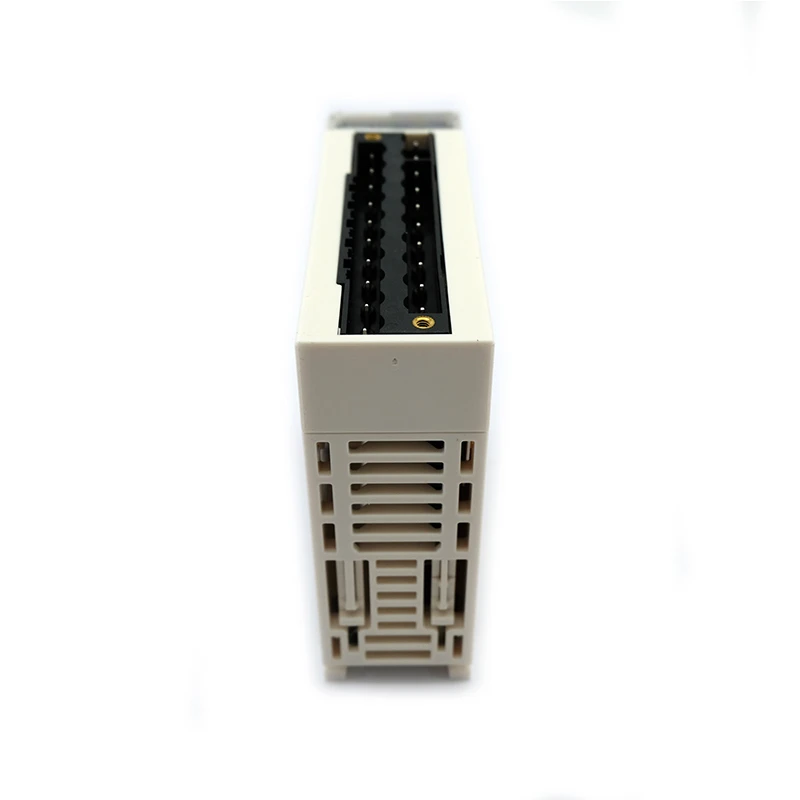

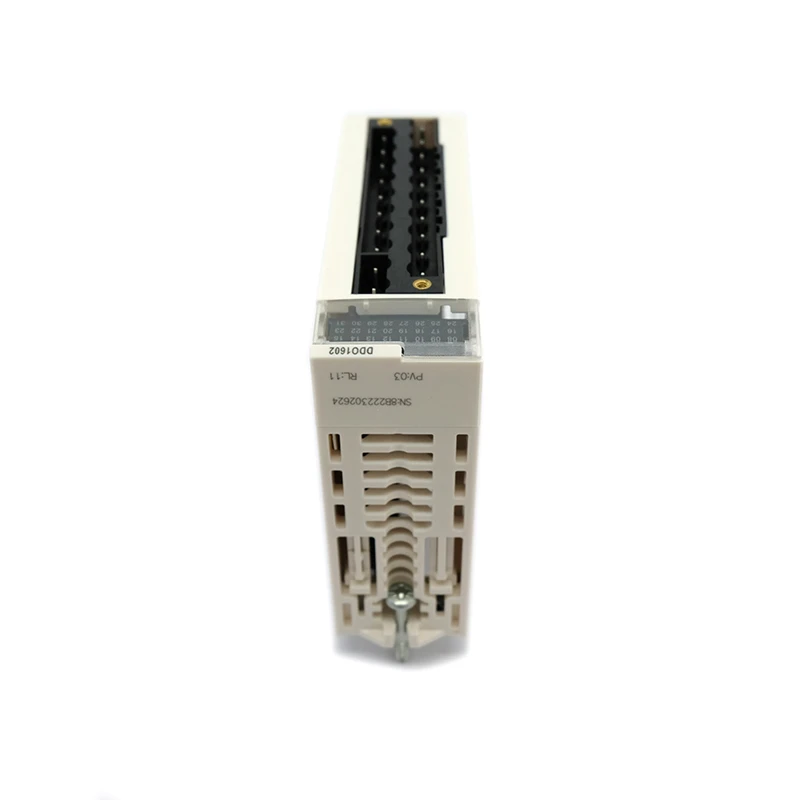

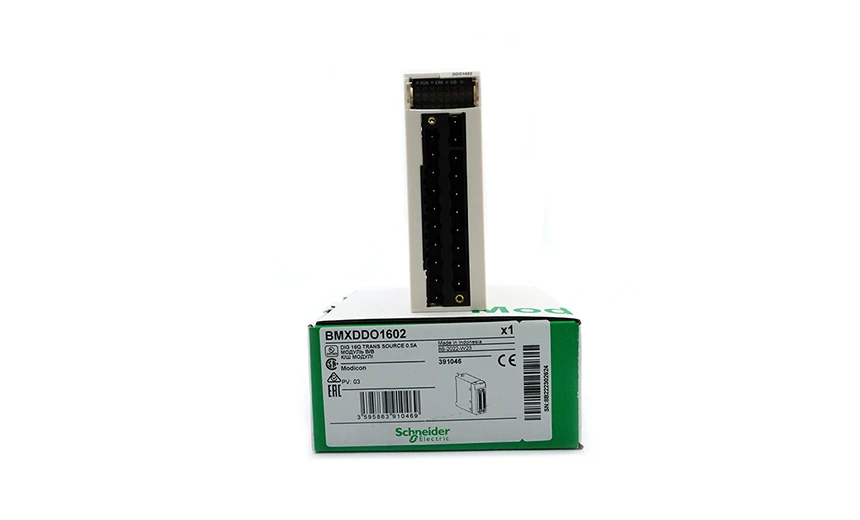

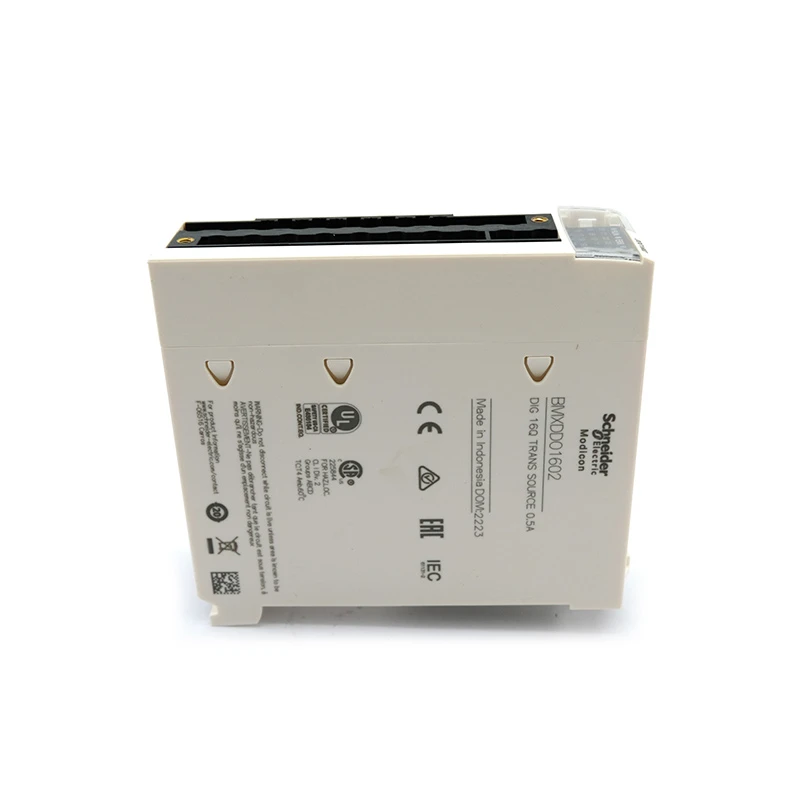

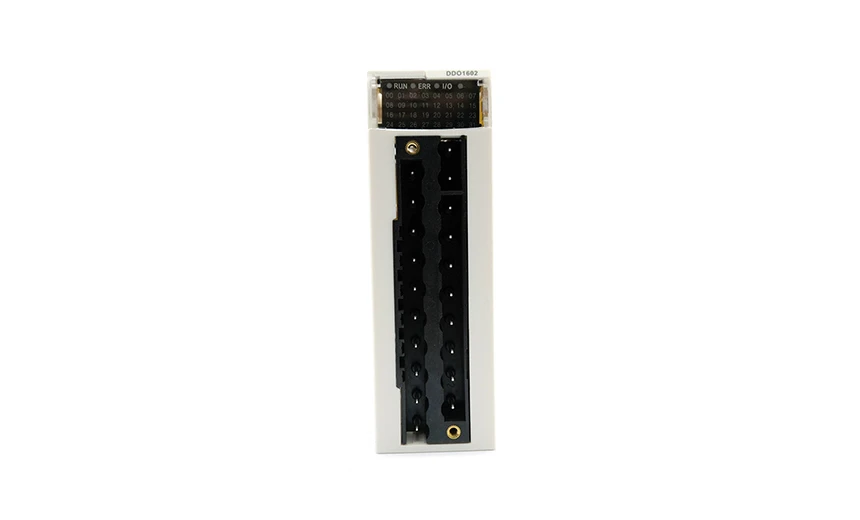

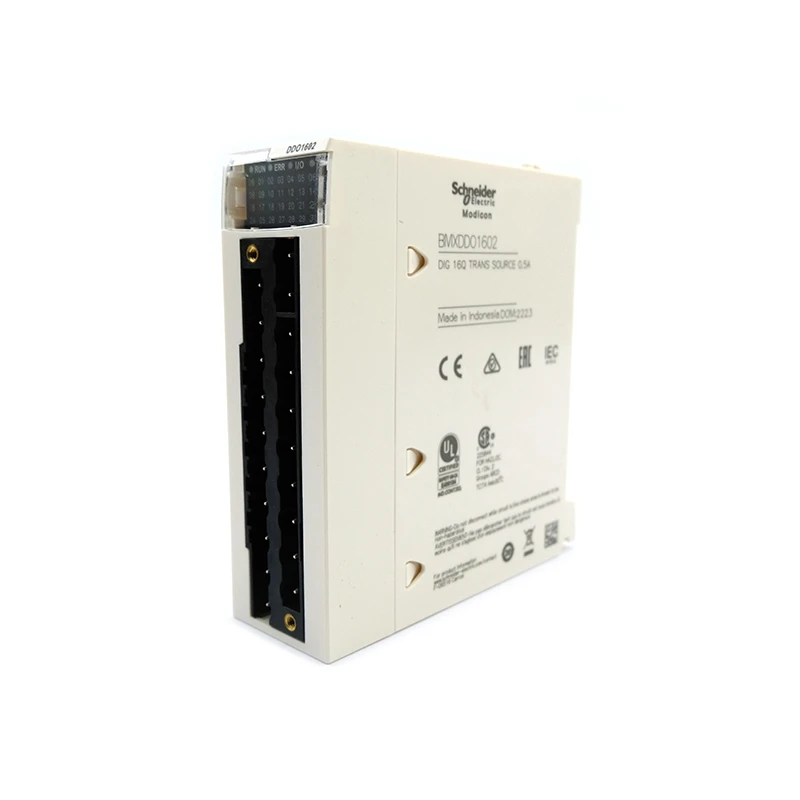

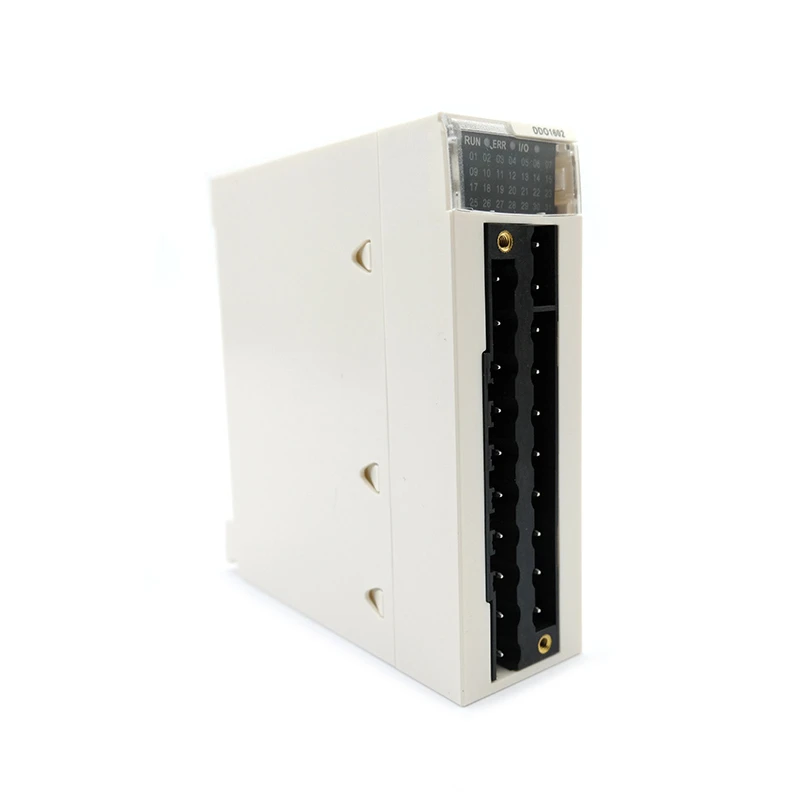

The BMXDDO1602 is a discrete output module from the Schneider Modicon X80 series, designed to provide reliable digital output control functions for industrial automation systems.
Model: BMXDDO1602
Brand: Schneider
Size: 12*11*5.5cm
Weight: 0.5kg
Country of origin: France
Product series | Modicon X80 |
Product type | Discrete quantity output module |
Discrete quantity output quantity | 16 In accordance with EN/IEC 61131-2 |
Solid state output type | Solid state |
Discrete quantity output logic | Positive |
Discrete output voltage | 24 V 19... 30 V DC |
Discrete output current | 0.5 A |
The BMXDDO1602 is a discrete output module from the Schneider Modicon X80 series, designed to provide reliable digital output control functions for industrial automation systems. The module has 16 solid-state output channels, using positive logic, can output 24V DC voltage, the maximum current of each channel is 0.5A, the maximum current of each module is 10A, ensuring sufficient output power and load capacity.
The module has a fast output response time of only 1.2 milliseconds, which can quickly and accurately respond to control instructions, ensuring the real-time and stability of the system. At the same time, it has multiple protection functions, including short-circuit protection, overload protection, overvoltage protection, etc., which effectively protects the safe operation of the equipment and system.
The BMXDDO1602 module is very convenient to install and operate. Each channel is equipped with LED indicators, which can visually display the running status of the module and the working status of the channel, facilitating monitoring and diagnosis. In addition, the module has IP20 level of protection, which can operate reliably in industrial environments, and has strong vibration and shock resistance, which is suitable for harsh working environments.
Overall, the BMXDDO1602 module is a powerful and stable discrete output device, suitable for digital control and output tasks in industrial automation systems, providing users with a reliable control solution.
