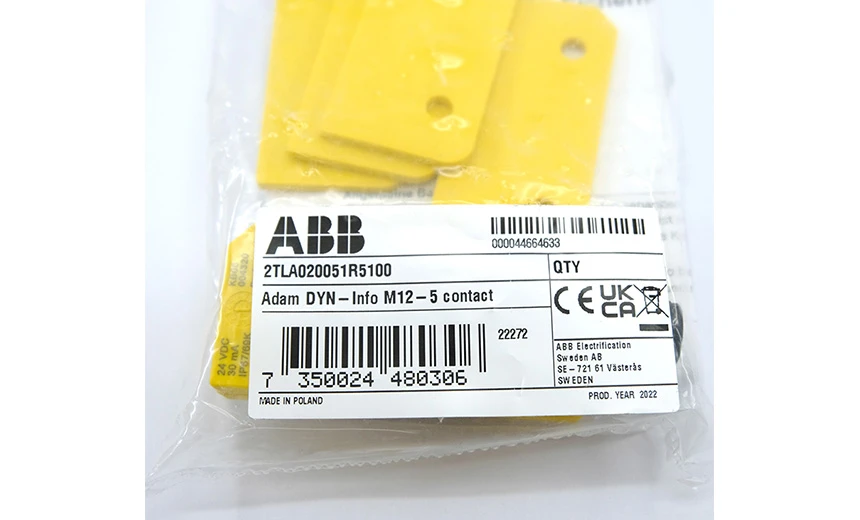

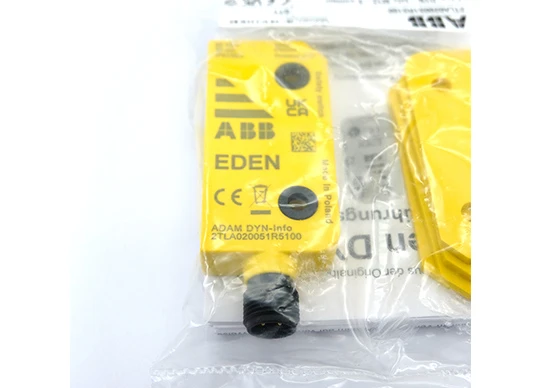

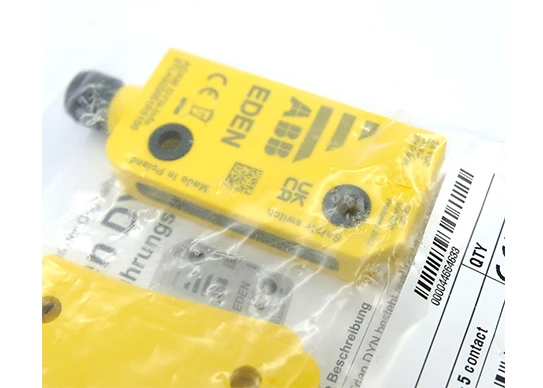

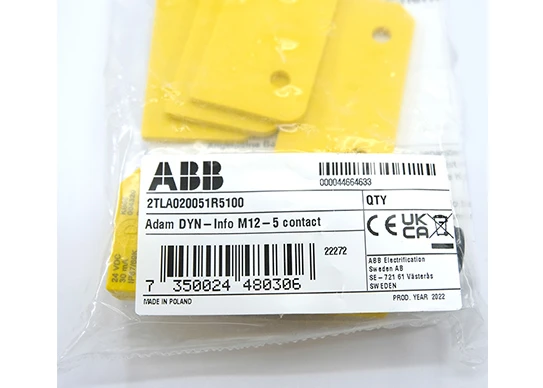

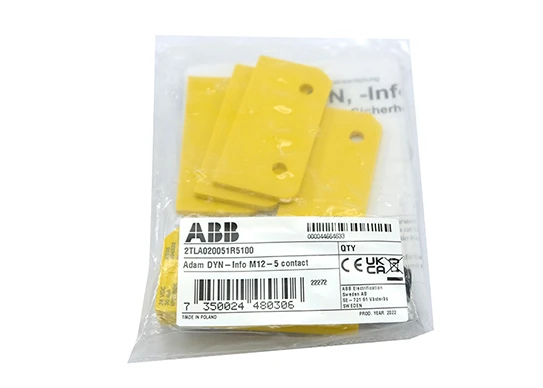

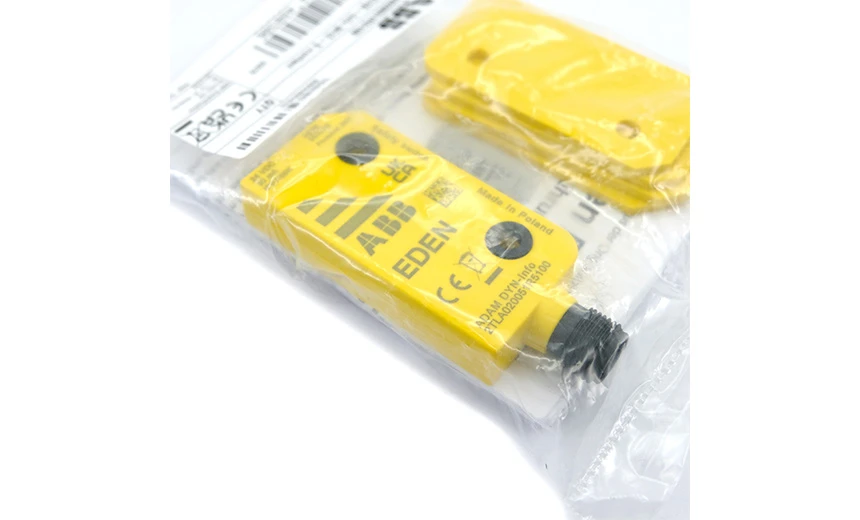

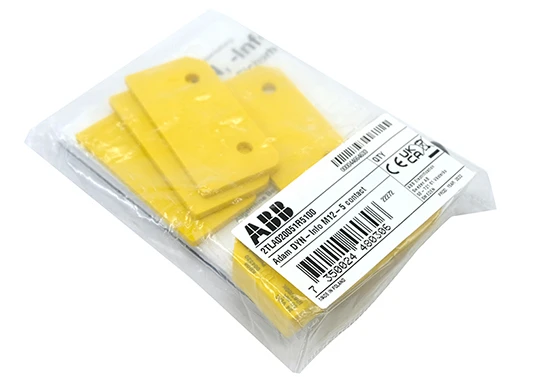

The ABB Sensor 2TLA020051R5100 is a sensor commonly used in door interlocking devices and security position monitoring. The sensor is equipped with a DYNink signal and information output and is usually used in conjunction with an Eva actuator to form a contactless safety sensor Eden. It is equipped with the M12-5 male connector and includes four DA1B distance plates and four DA2B distance rings.
Brand: ABB
Model: 2TLA020051R5100
Size: 11*8*2cm
Net weight: 0.5kg
Shell material: Plastic (PBT)
Product type: Sensor
Origin: Switzerland
Safety information: The sensor is TUVSud certified to safety Category 3 with performance rating up to e. At the same time, it has also received UL certification, making it used in the United States and Canada.
Technical parameters:
Communication interface: DYNink
Connection configuration: M12-5 male connector
Output number: non-failing, non-delayed contact 0, non-failing, non-delayed semiconductor 1
Operating distance (Sn) : 15 mm
Probability of dangerous failure per hour (PFDH) : 4.5x10^-9 hours
Rated control power supply voltage (Us) : 24VDC
UL/CSA Applicable shell type: 4X
Environmental conditions: Operating temperature range of -40 to 70 degrees Celsius, storage temperature range of -40 to +70 degrees Celsius
Protection level: IP67 and IP69K
Material: Shell made of plastic (PBT), uncoated; The package is epoxy resin
Operating humidity (RHamb) : 35% to 85% (no icing, no condensation)
Description: The ABB sensor 2TLA020051R5100 is designed with a compact size and 360° mounting possibility, making it easy to adapt to a variety of application scenarios. Its lack of mechanical contact ensures long-term reliability and stability. In addition, the sensor also meets various material compliance standards such as REACH, ROHS, TSCA, etc., and is suitable to meet the requirements of various industries.
