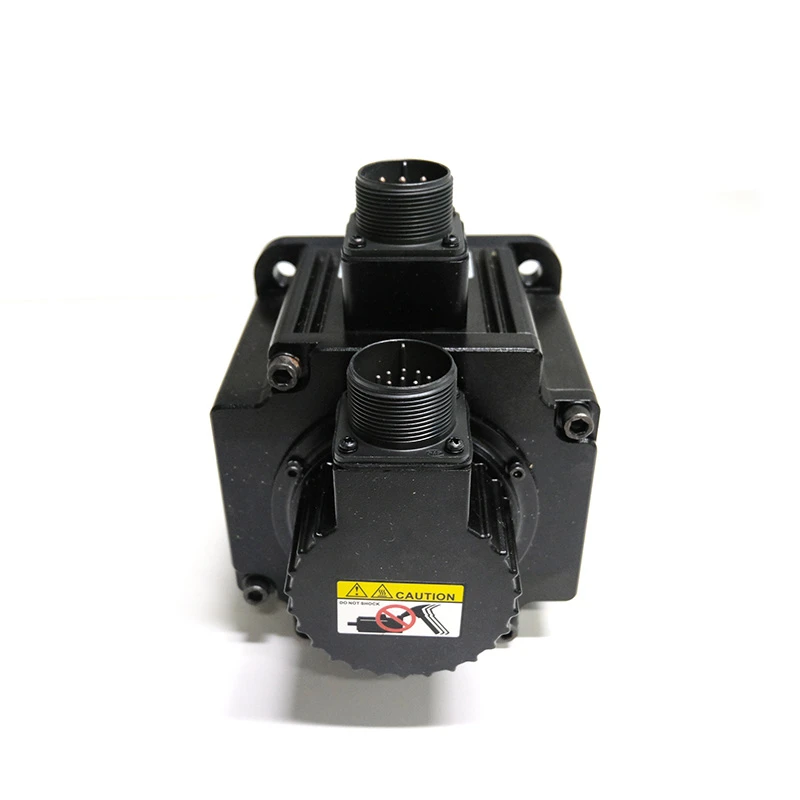

Schneider BCH1302N-11A1C Servo Motor – 1.5kW 3000RPM

The Schneider BCH1302N-11A1C is a high-performance AC servo motor from the Lexium 23 Plus series, rated at 1.5kW continuous power with 3000 RPM maximum mechanical speed and 220V single-phase supply. Featuring a 20-bit incremental encoder for precise feedback, it’s optimized for industrial automation motion control.

Model Number:BCH1302N-11A1C

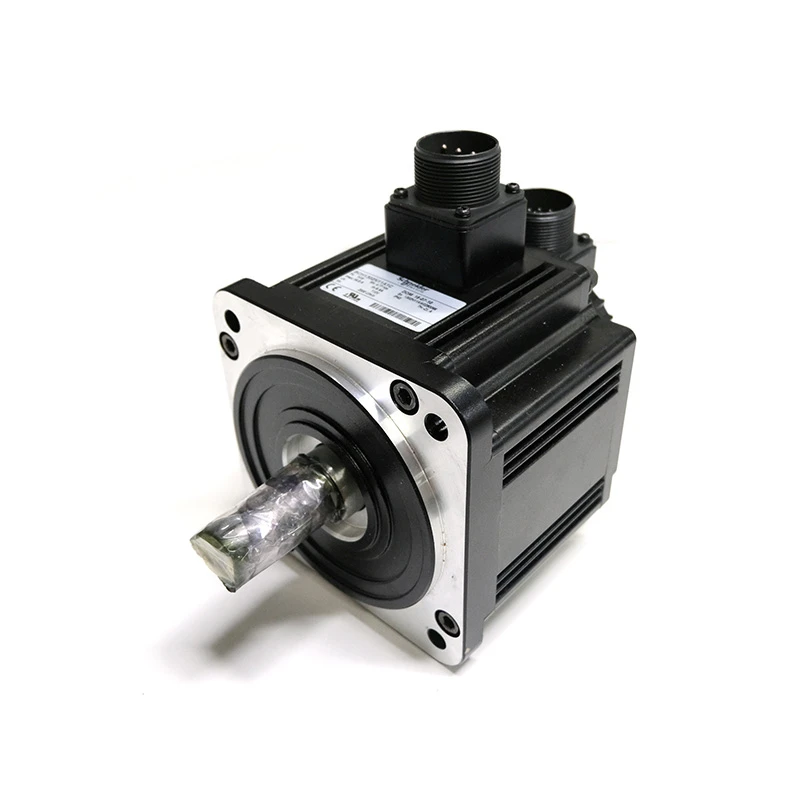

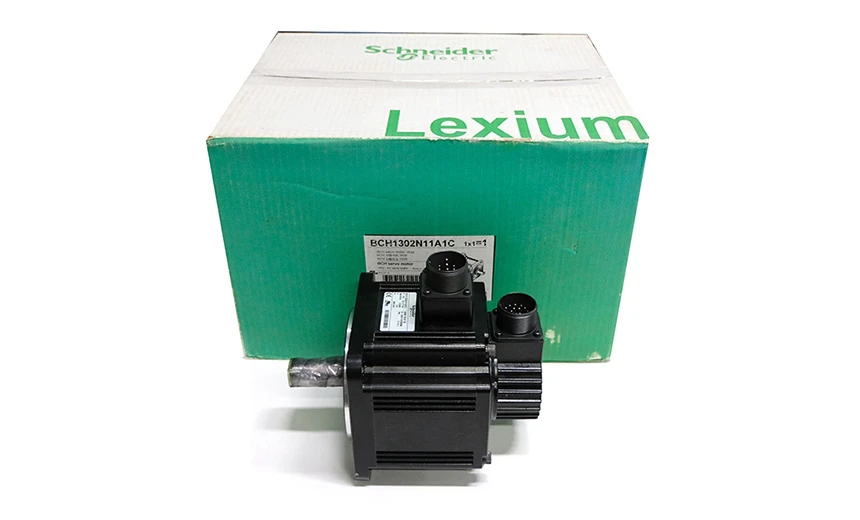

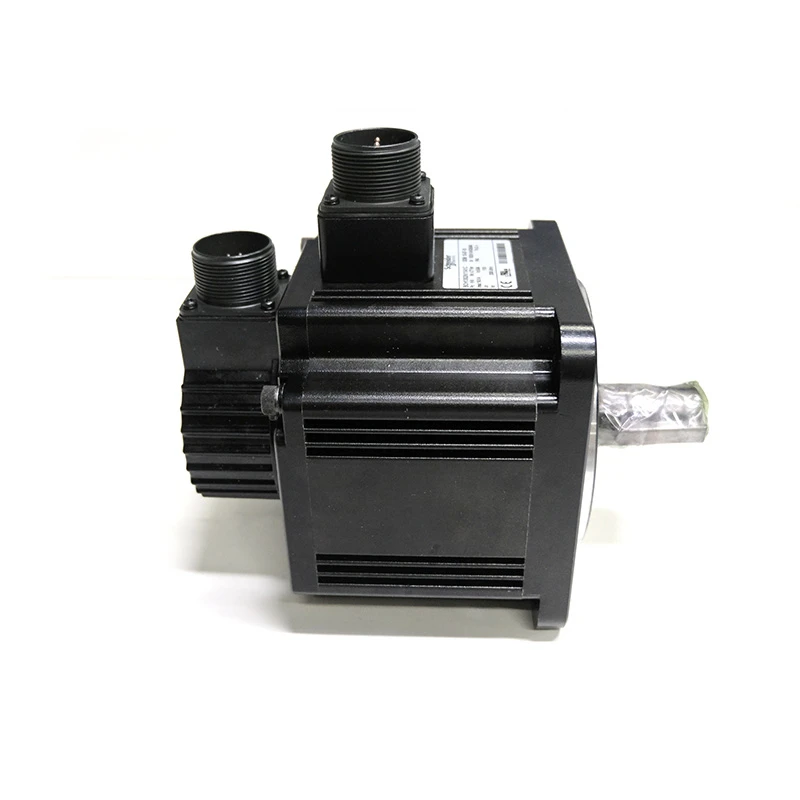

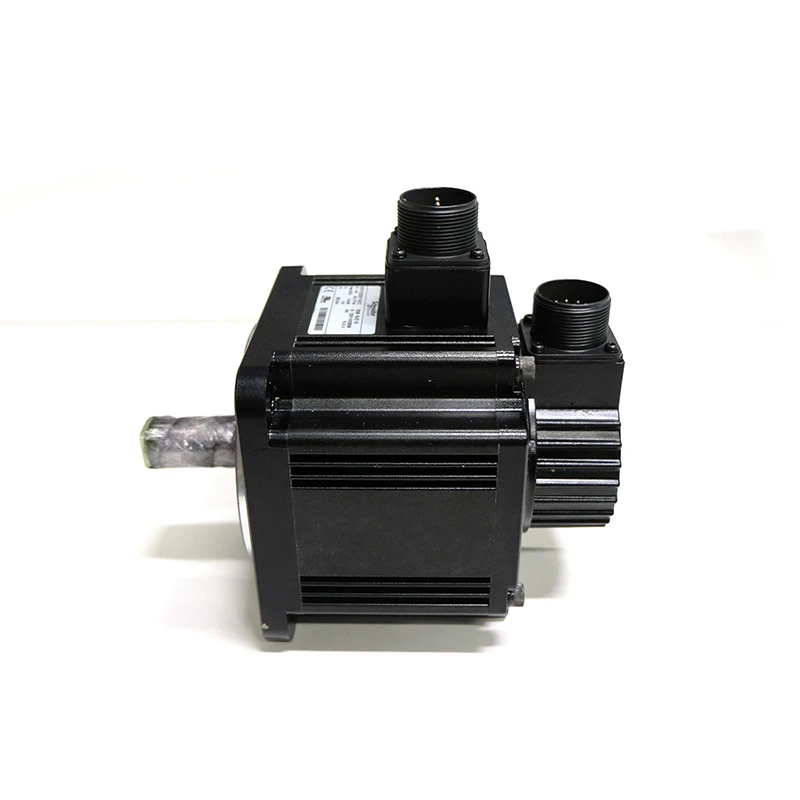

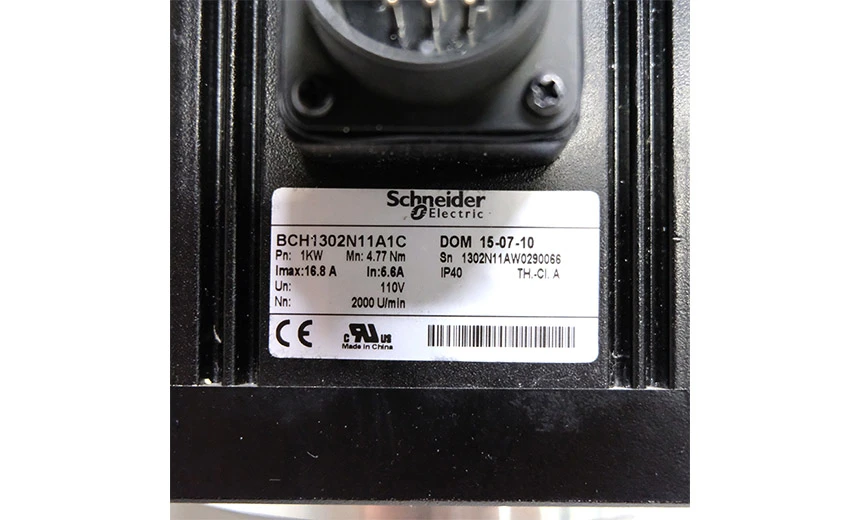

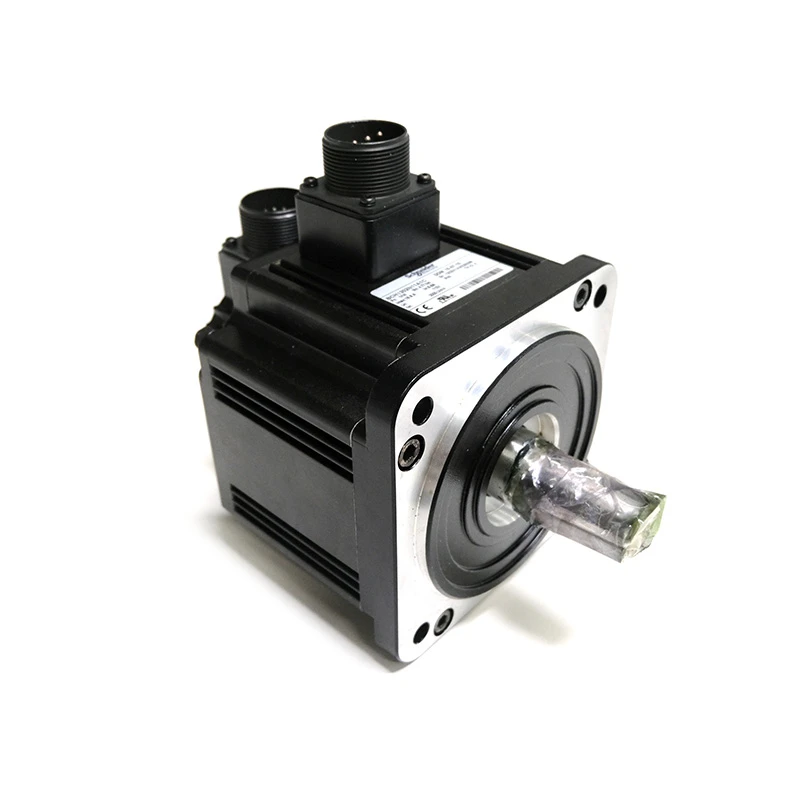

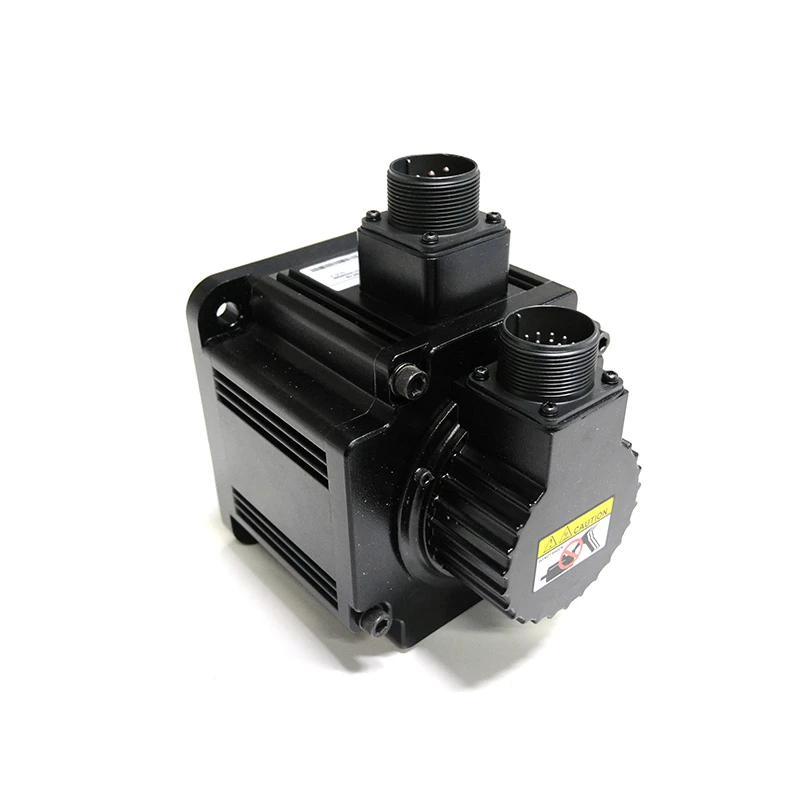

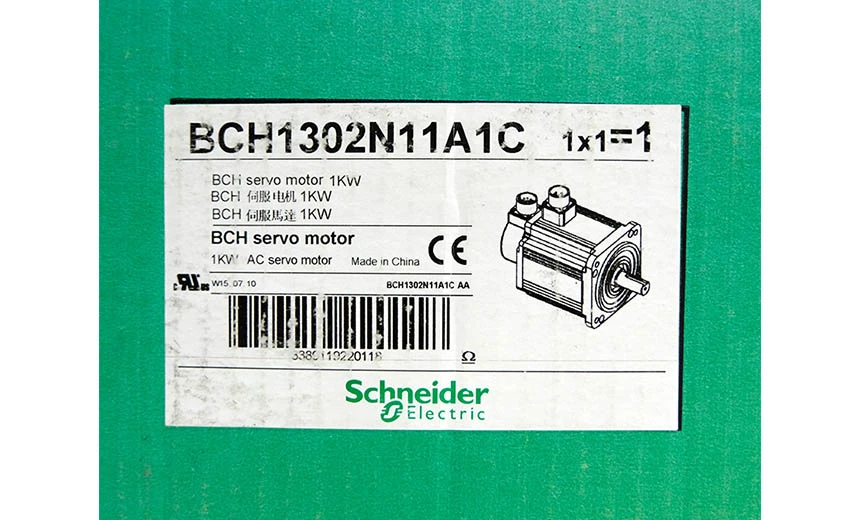

Product Image

Submit your inquiry and we'll respond within 24 hours

100k+ Parts

Extensive Inventory

Warranty Coverage

New parts: 1-Year | Used: 3-Month

17+ Years

Industry Experience

Fast Shipping

Ships Within 48 Hours

Platform Compatibility and Uses

Designed for the Lexium 23 Plus platform, the BCH1302N-11A1C drives precise positioning in industrial automation systems like CNC machines, robotics, and assembly lines, handling high-speed tasks up to 3000 RPM. It supports single-phase 220V grids for flexible deployment in manufacturing, packaging, and material handling applications requiring accurate speed and torque control. Asian flange mounting ensures easy integration with drives and controllers.

Technical Implementation

A 20-bit incremental encoder provides superior feedback resolution for reliable trajectory tracking and position control, paired with 8.3A continuous stall current for dynamic performance. Key shaft (22mm diameter, 47mm length, 8mm key) enables secure mechanical coupling, while natural ventilation maintains efficiency under load. Robust design supports sustained 1.5kW output for demanding cycles.

Physical Characteristics and Installation

Compact at 36.5x30x24cm and 7.6kg, it features IP40 protection for dust-resistant operation in controlled environments, with flange mounting per Asian standards for quick setup. Shaft and flange specs simplify alignment and connection, originating from France for quality assurance. Natural cooling suits ambient industrial conditions.

Key Specifications

Parameter	Specification
Catalog Number	BCH1302N-11A1C
Platform	Lexium 23 Plus
Rated Power	1.5 kW
Supply Voltage	220V single-phase
Max Mechanical Speed	3000 RPM
Stall Current	8.3 A
Encoder	20-bit incremental
Shaft Diameter	22 mm
Dimensions (LxWxH)	36.5 x 30 x 24 cm
Weight	7.6 kg
IP Rating	IP40
