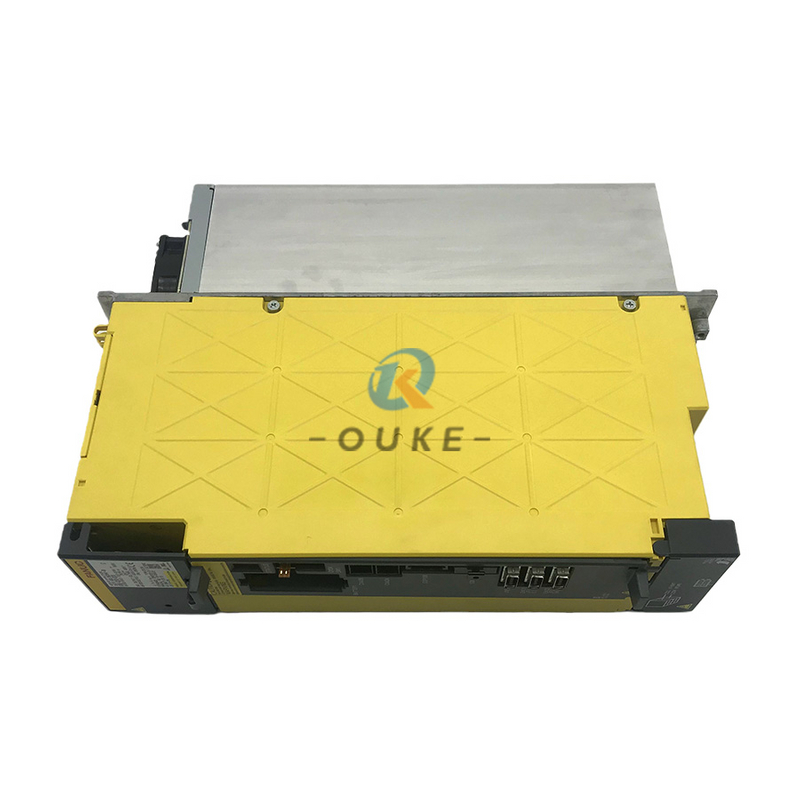

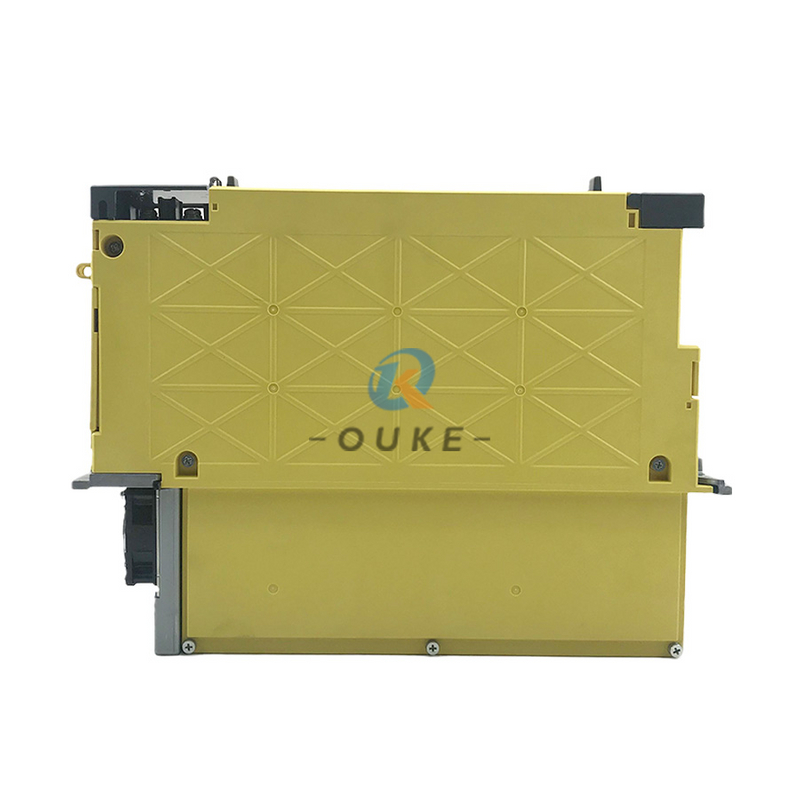

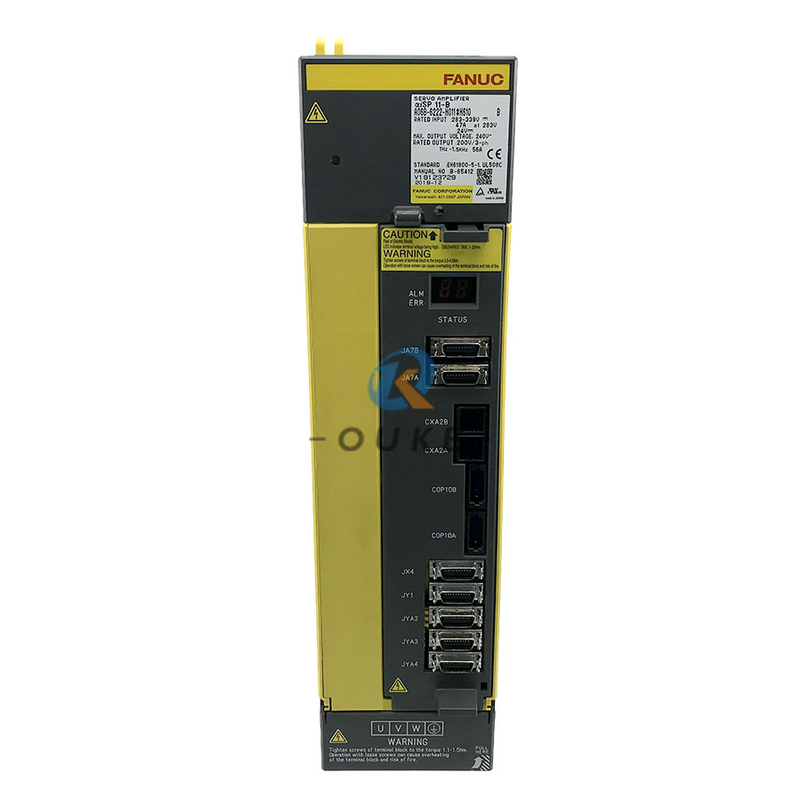

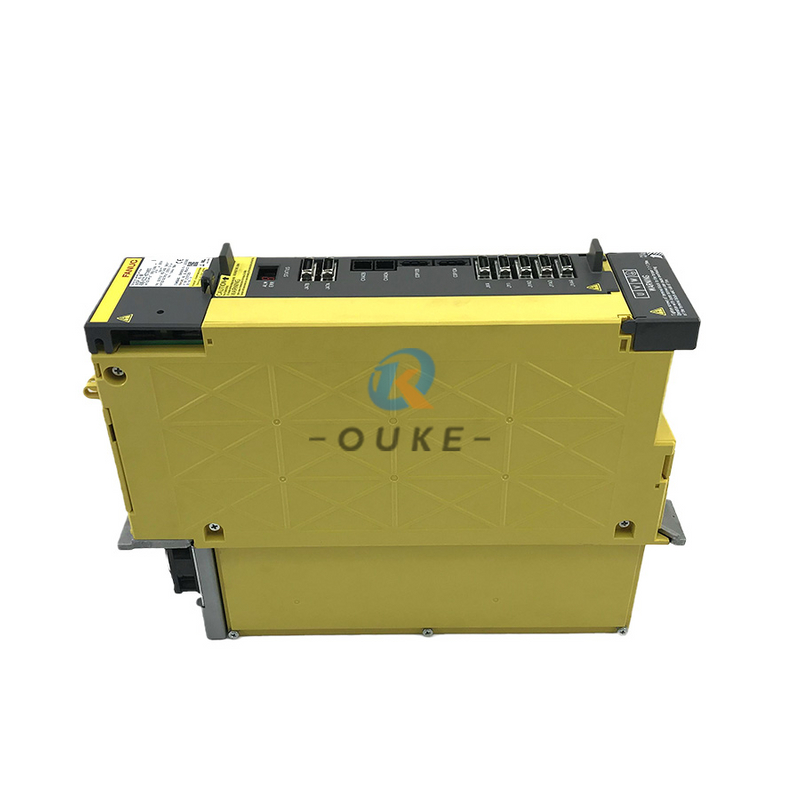

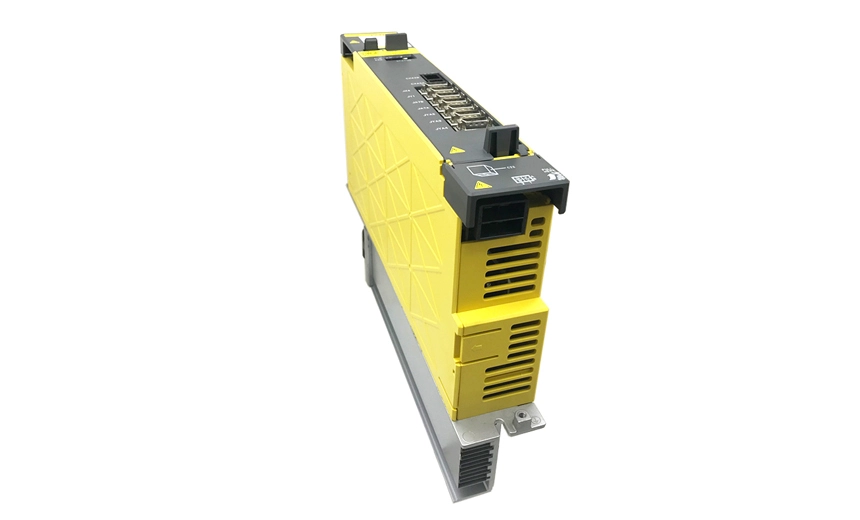

This A06B‑6222‑H011#H610 spindle amp typically receives 283–339 V DC from an upstream HV‑class power‑supply module (such as A06B‑6110‑Hxxx) and outputs 200 V AC at up to 56 A to a single spindle motor, enabling high‑speed cutting and robust torque for machining centers, turning machines, and ROBODRILL‑type equipment. The unit offers smooth speed‑loop control, regenerative braking, and spindle‑positioning capability, making it suitable for both continuous‑cutting and high‑acceleration‑deceleration applications.

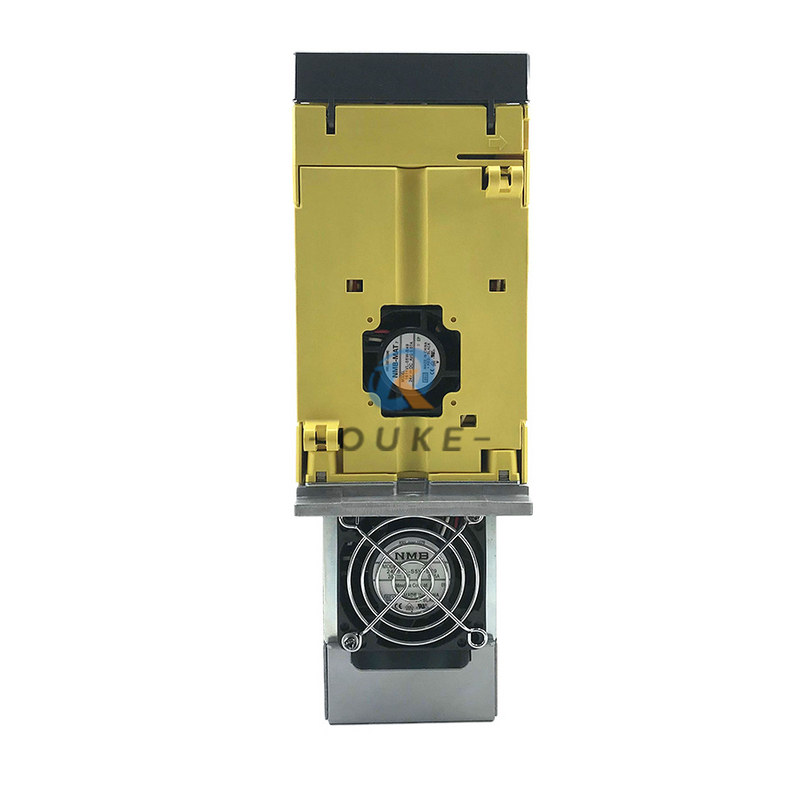

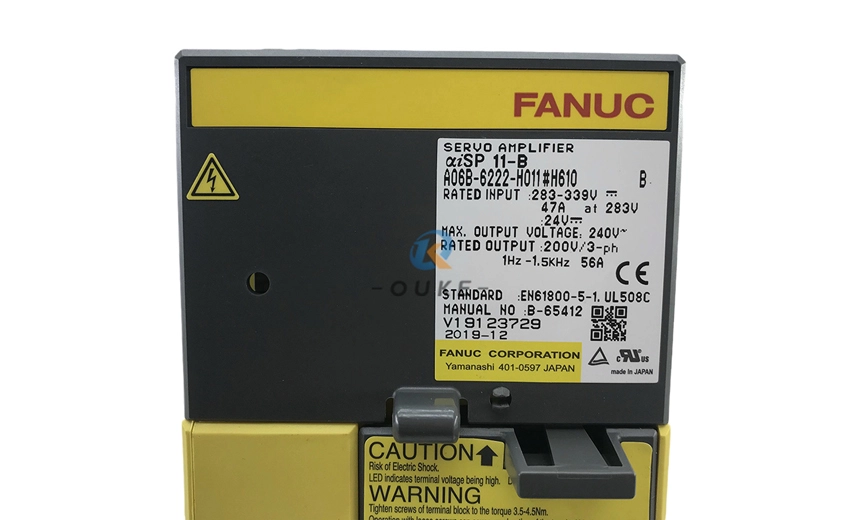

The module is panel‑ or flange‑mountable and uses built‑in internal cooling fan (A90L‑0001‑0580/B) and external fan (A90L‑0001‑0576) to maintain thermal stability under heavy spindle loads. It is part of the αiSP‑11‑B spindle amplifier series and is commonly paired with 30i‑B‑series CNC controllers, supporting FANUC‑standard spindle parameters, diagnostics, and alarm‑monitoring via the CNC‑screen interface. With a rated input of 283–339 V DC at ≈47 A and rated output of 200 V, 56 A 3‑phase, this spindle amp is optimized for energy‑efficient, high‑performance spindle applications in metal‑cutting and automation environments.
