When talking about AB product 22D-D010N104, we can introduce it from the following different perspectives:

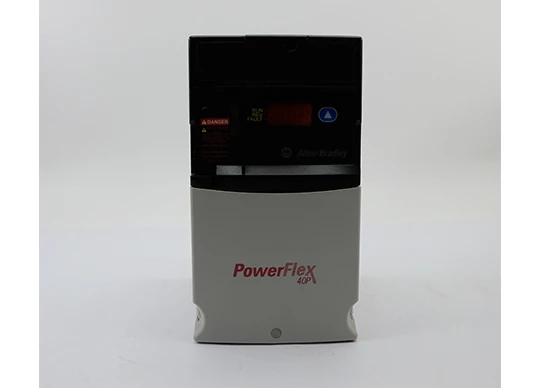

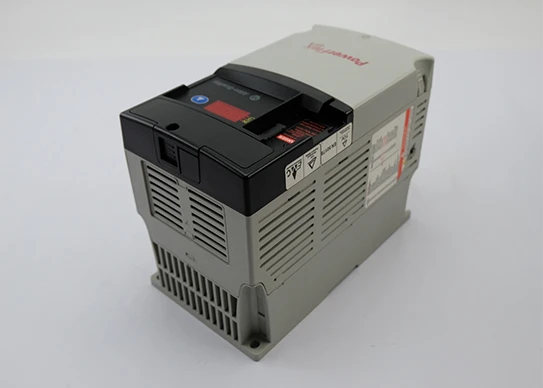

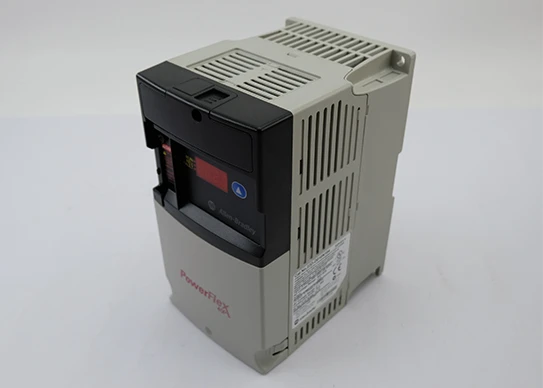

The 22D-D010N104 is part of the PowerFlex 40P (Bulletin 22D) family of compact AC drives, offering enhanced features over PowerFlex 40 for OEMs and end users who need more flexible control and network options. It is a 480 V AC, 3‑phase drive with an input frequency of 50/60 Hz, rated 4 kW (5 HP) with 10.5 A output current, making it suitable for mid‑range applications such as pumps, fans, blowers, and conveyors on 480 V systems. The drive is supplied as Frame Size B with a panel‑mount IP20 (NEMA Type Open) enclosure for installation inside a suitable control cabinet.
This catalog configuration includes an integral keypad and LED display (display with reset only) for local start/stop, speed adjustment, parameter setup and diagnostics. A brake IGBT is included, allowing dynamic braking when an external brake resistor is connected, which improves stopping performance on higher inertia loads. The standard internal communication module provides basic integration capability, and the PowerFlex 40P family supports options such as DeviceNet, EtherNet/IP and other networks via add‑on modules for more advanced systems.
Rockwell Automation has announced that the PowerFlex 40P 4 kW (5 HP) AC drive 22D-D010N104 is discontinued as of June 30, 2025, and the recommended engineering replacement is 25B-D010N104 PowerFlex 525. Despite its lifecycle status, the 22D-D010N104 remains widely used in existing equipment, particularly where its compact size, built‑in braking transistor and familiar PowerFlex interface are valued. Typical applications include 5 HP pumps, fans, small compressors, conveyors and other 480 V three‑phase motor loads that require reliable speed control in a compact package.
Key Specifications
