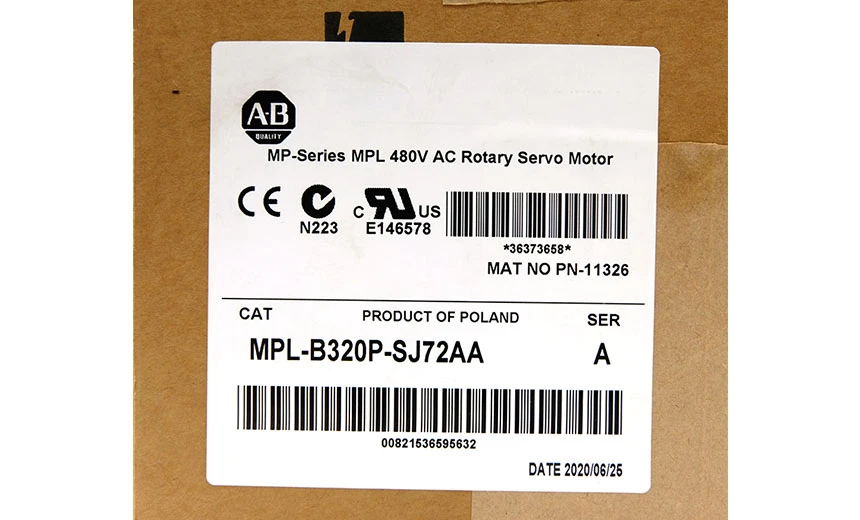

Brand: AB Model: MPL-A320P-SJ72AA
Size: 21.5*31*24cm
Weight: 4.9KG
Model: MPL-B320P-SJ72AA
Power: 320 Watts
Number of poles: 4
Voltage: AC, rated voltage 208-240V
Frequency: 50/60 Hz
encoder: provides highly accurate position feedback with a built-in single-turn absolute encoder
Structure: Permanent magnet synchronous motor technology, with high efficiency and high performance characteristics
Control: can be used with Allen Bradley drives and controllers for precise motion control
Applications: Suitable for industrial automation applications requiring precise control and high performance, such as machining, packaging, printing and food processing

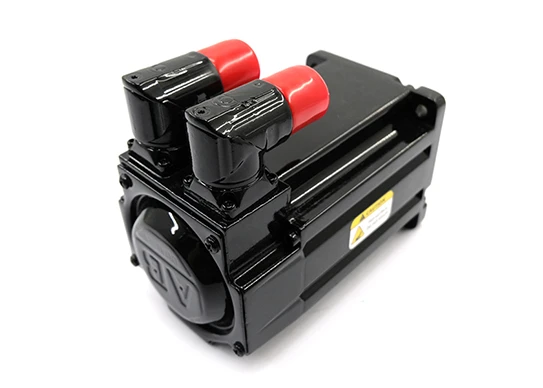

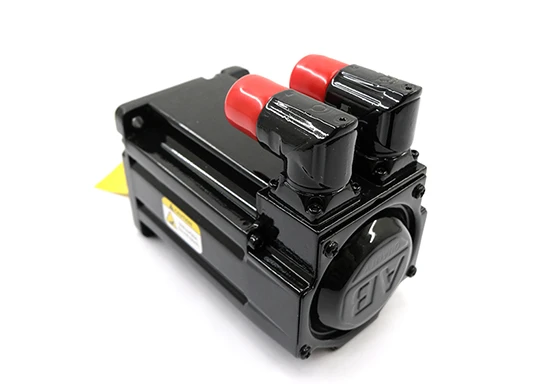

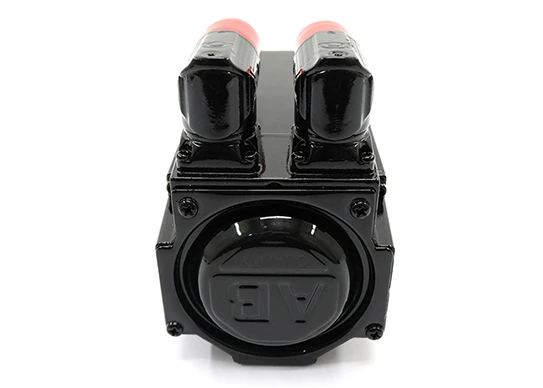

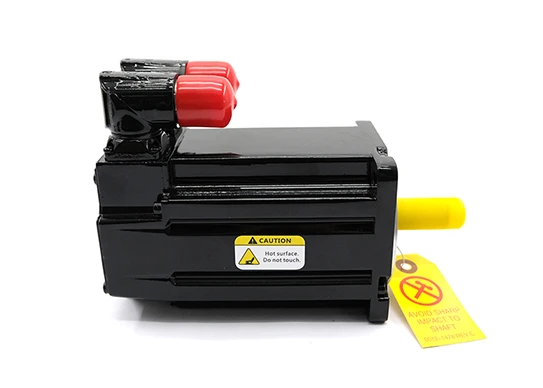

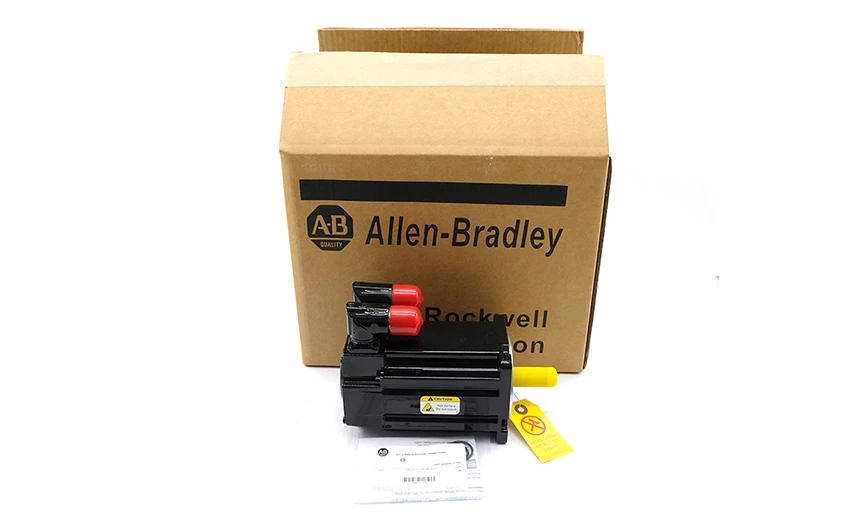

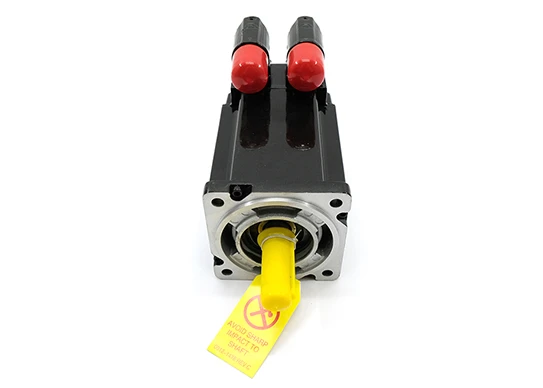

The MPL-B320P-SJ72AA is a Kinetix MP series low inertia servo motor. Using rare earth magnets as the main component of the internal rotor, this series of servo motors enables rapid acceleration and is ideal for motion and position control applications requiring high-speed response.
The MPL-B320P-SJ72AA is only a servo motor and requires a servo drive. The servo drive processes feedback received from a single-turn high-resolution encoder mounted on the MPL-B320P-SJ72AA motor. The servo drive compares the current position with the desired position, which can be entered manually or calculated automatically. The servo drive then sends the correction to the motor to drive the motor to the desired motion or position. Servo drives compatible with the MPL-B320P-SJ72AA include Kinetix 5500, Kinetix 5700, Kinetix 6200/6500, Kinetix 6000, Kinetix 300/350, Kinetix 2000 and Kinetix Kinetix 7000. Typical applications of servo motors are in factory automation industries such as line assembly, material handling and sorting stations.
The MPL-B320P-SJ72AA is a 400V-class motor with frame size 3, 50.8 mm (2.0 in) magnet set, rated at 5000 rpm, with a circular (SpeedTec) DIN connector, right Angle, 180° rotatable. Output power 1.5kW, continuous stall torque 3.05Nm (2.7lb-in.), peak torque 7.91Nm (7.0lb-in.)
The continuous stall current is 4.5 A and the peak stall current is 14.0 A, while the rotor inertia is 0.000078 kg-m2 or 0.00069 lb-in.s2.
The MPL-B320P-SJ72AA has IP53 protection rating when the shaft is mounted downwards; When the shaft is installed horizontally, IP51; And IP50 when the shaft is installed. When the appropriate shaft seals are installed, the IP protection level meets IP66 standards.
