The 557649-09 Absolute linear encoder from Heidham is a high performance encoder with precision, reliability, small cross-section and wide application range, which can meet the needs of linear position measurement and control in various industrial automation systems.
Brand: Heidenhain
Size: 66*8*10cm
Weight: 0.72kg

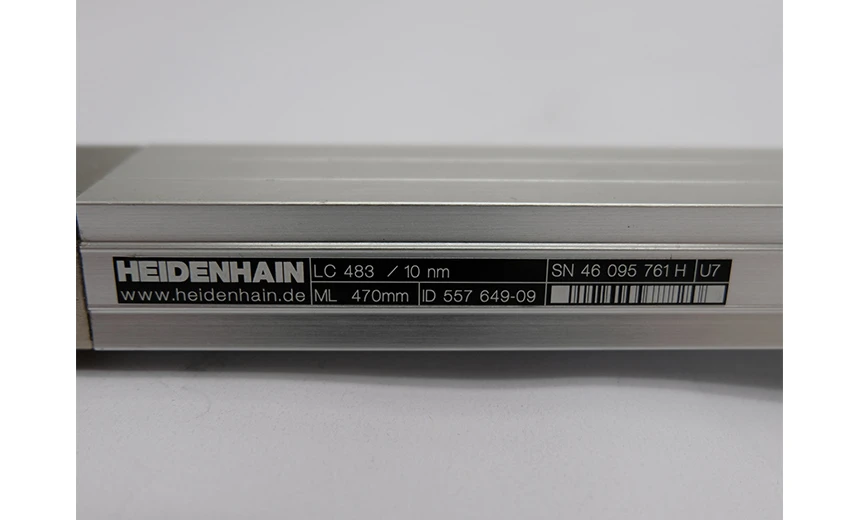

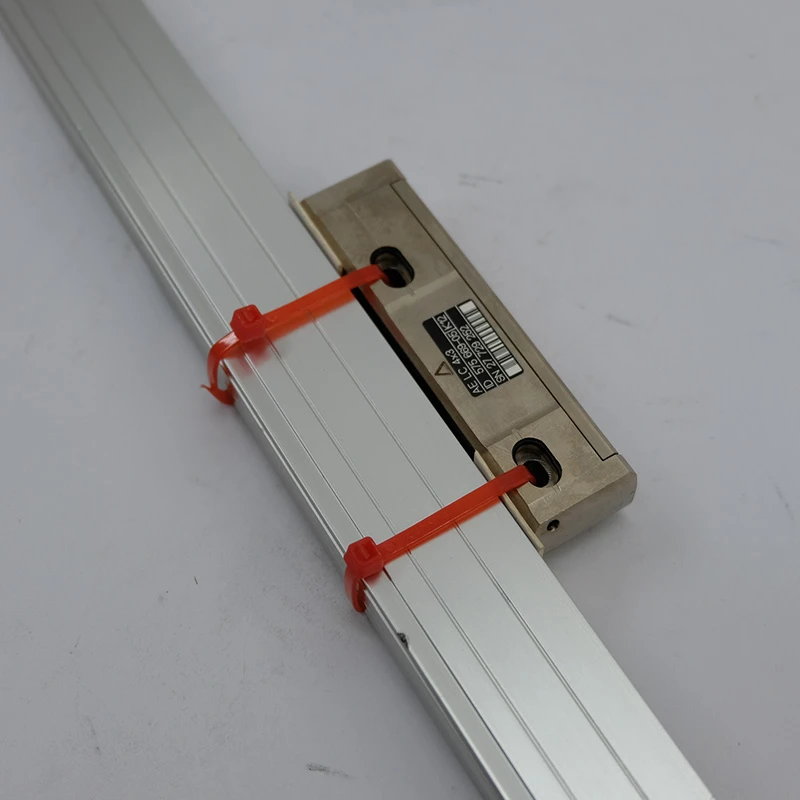

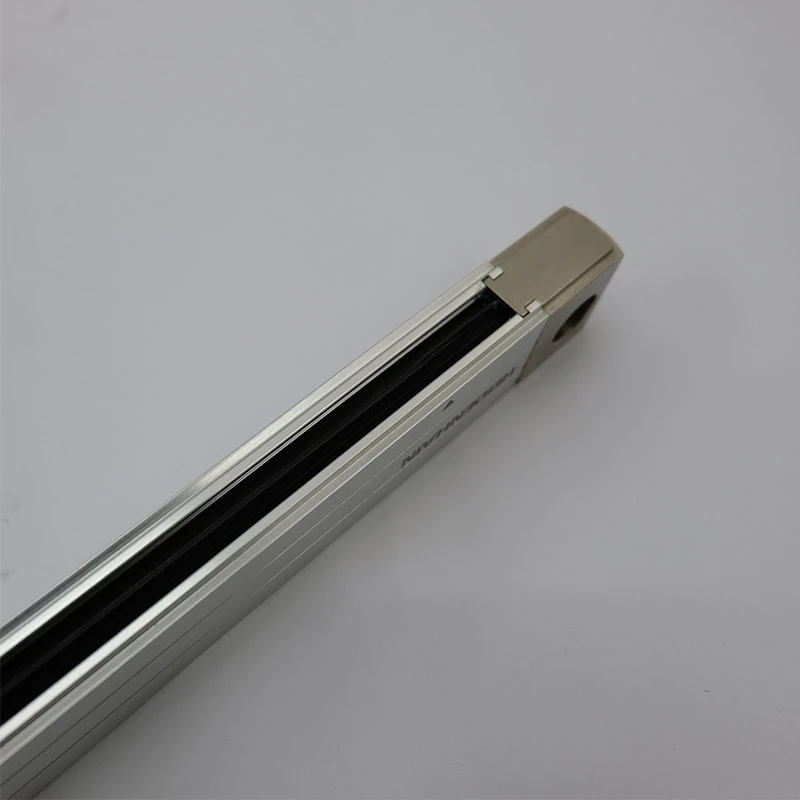

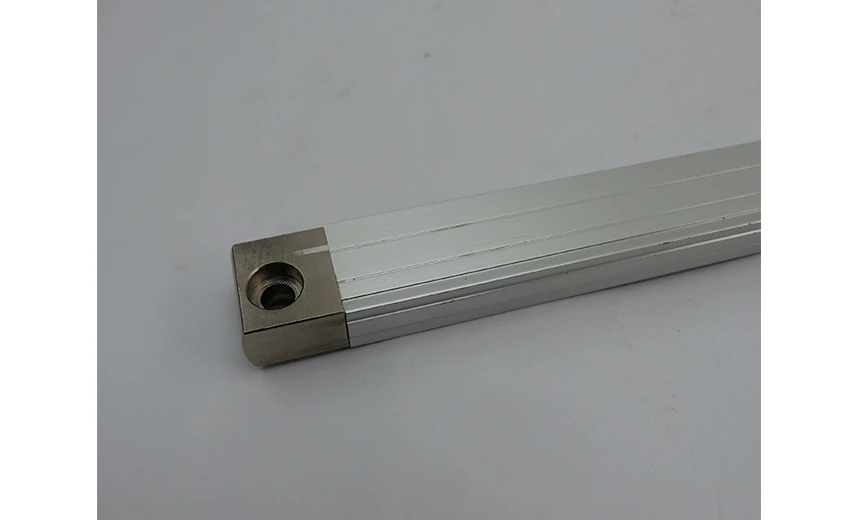

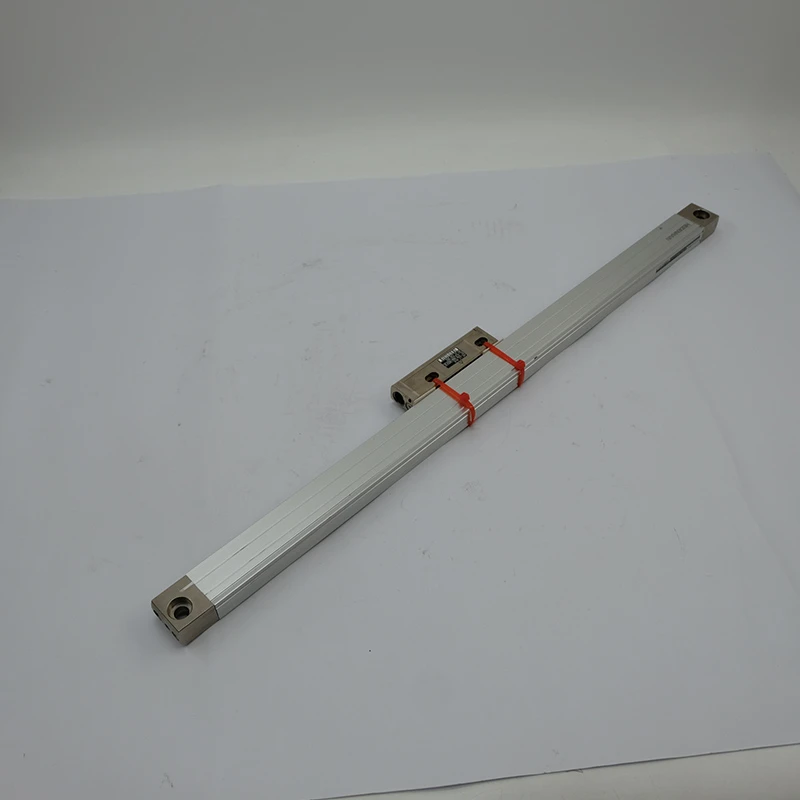

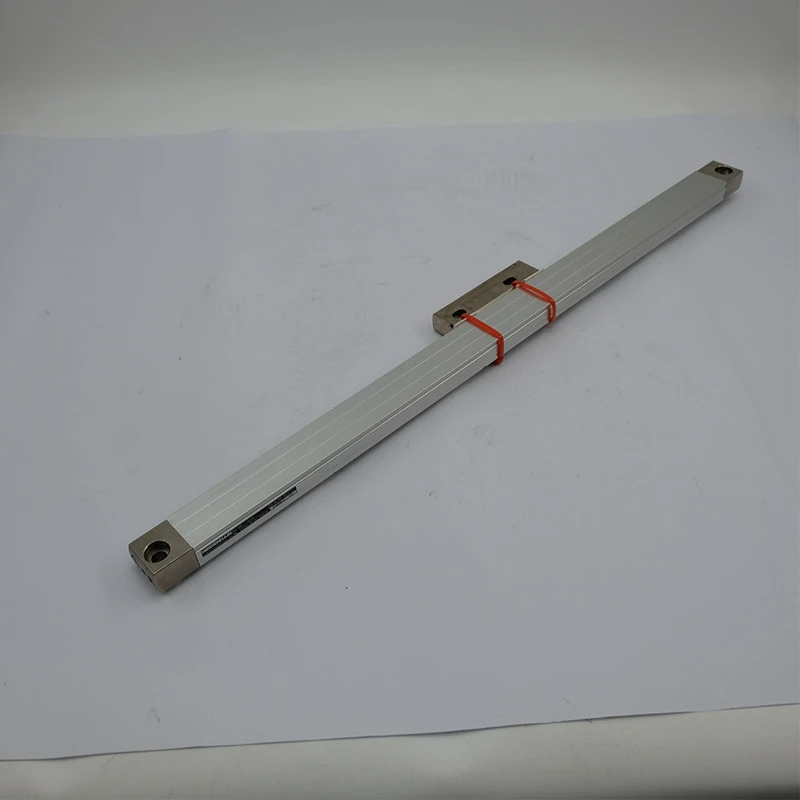

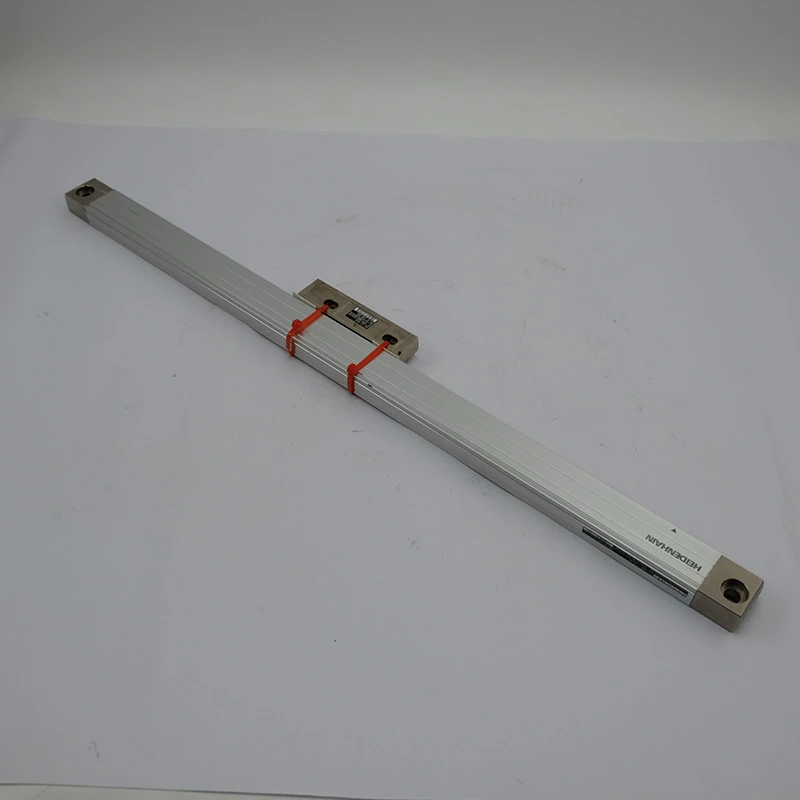

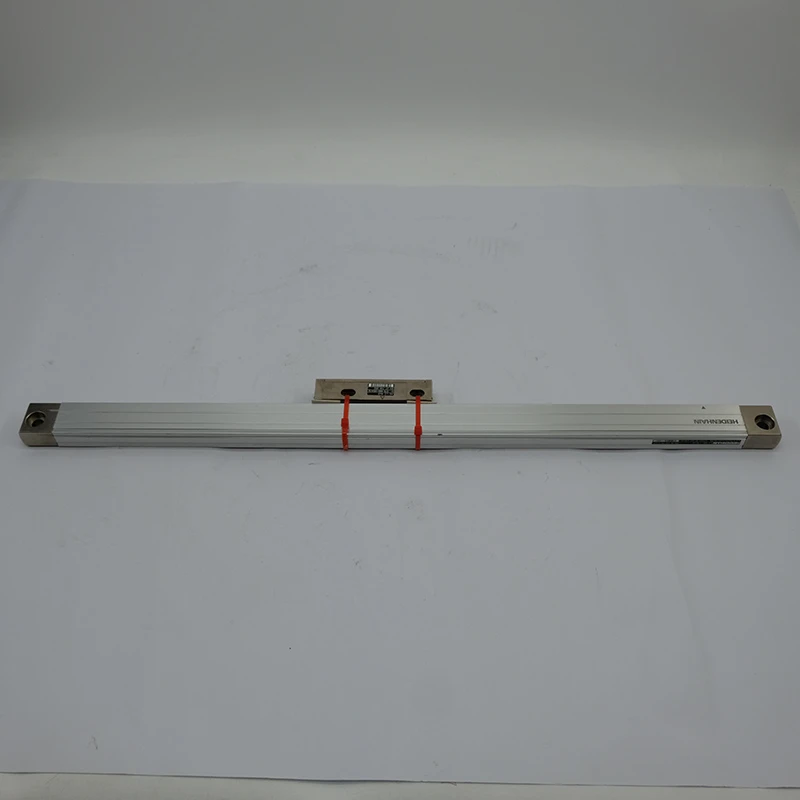

LC 483
Absolute sealed linear encoder with small cross section
Technical data
Identnumber: 557649-09
Measuring length: 470 mm
Total length: ML+138 mm
Accuracy grade: ± 5.0 µm
Grating period: 20.000 µm
Measuring step: 10 nm
Fastening type: End block + mounting spar
Output signal: sinusoidal voltage signals (1 Vpp)
Output code: Binary
Data interface: EnDat02 Synchronous serial EnDat 2.2 with incremental signals
Power supply: 3.6V.. 5.25 V
Electrical connection: Flange socket, male, 14-pin
Special characteristics, linear encoder: none
The 557649-09 from Heidenhain is an absolute linear encoder with a sophisticated design and small cross-section that offers the following features:
1. Absolute design:
557649-09 uses an absolute encoder design for accurate absolute measurement of position.
Not affected by power outage or restart, and can be quickly restored to the previous position without resetting, improving system stability and reliability.
2. Small cross section:
The encoder has a small cross-sectional design for space-constrained applications.
The compact size makes it easy to install in the mechanical structure, improving the overall performance of the system.
3. High precision measurement:
With high-precision measurement capabilities, the position can be accurately measured to ensure the stability and accuracy of the system.
Can meet a variety of application scenarios that require high position measurement accuracy.
4. Sealed protection:
Sealed design, with good dust-proof, waterproof performance, suitable for harsh working environment.
The internal precision components are effectively protected to extend the service life of the encoder.
5. Widely used:
557649-09 is widely used in various linear motion systems, such as CNC machine tools, automatic production lines and other fields.
Has a wide range of applications in industrial automation where the position of linear axes of motion needs to be accurately measured and controlled.
Based on the above characteristics, the 557649-09 Absolute linear encoder from Heidham is a high performance encoder with precision, reliability, small cross-section and wide application range, which can meet the needs of linear position measurement and control in various industrial automation systems.
