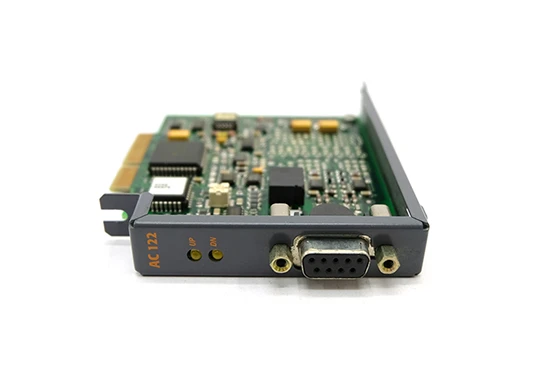

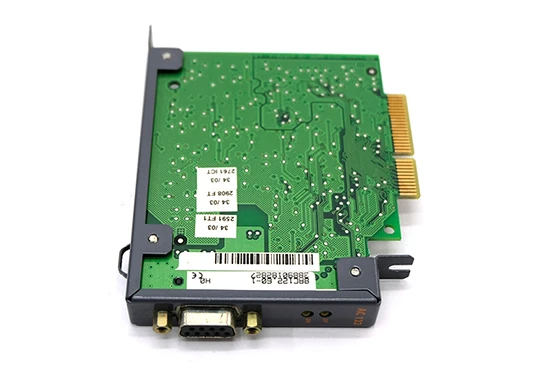

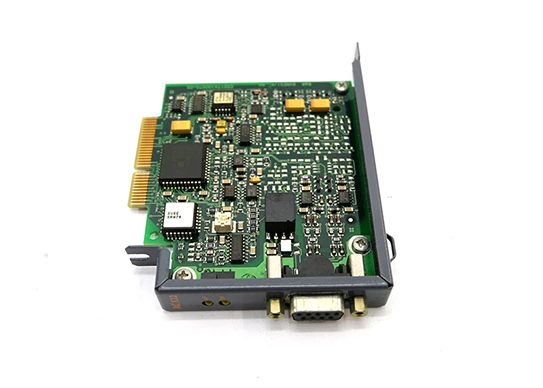

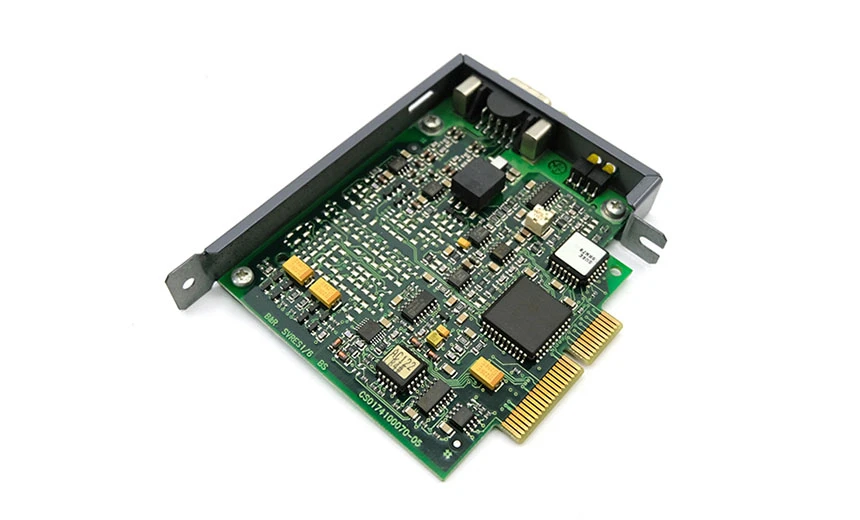

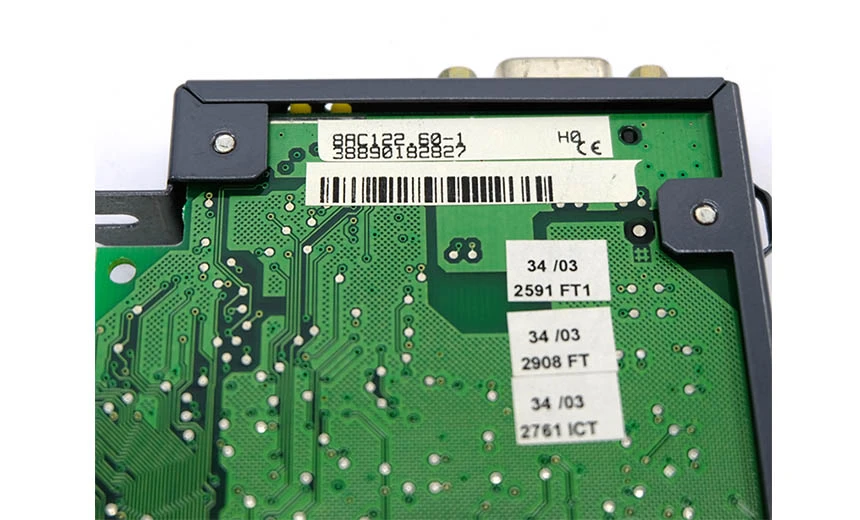

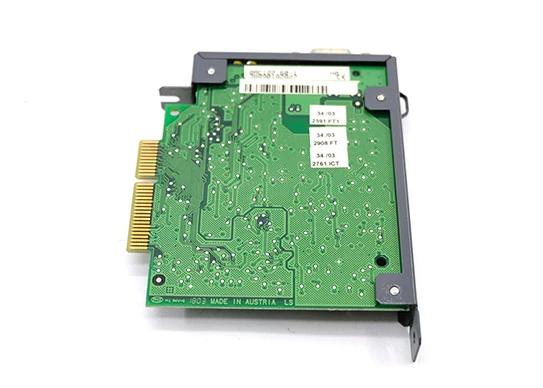

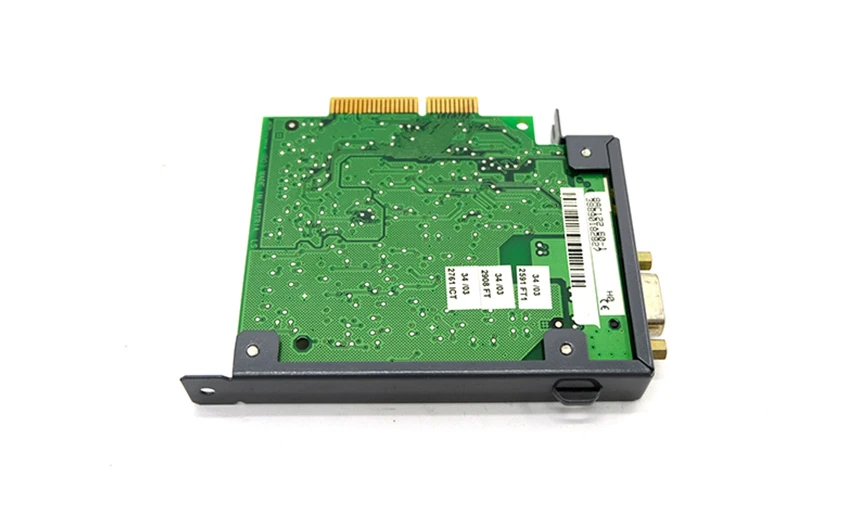

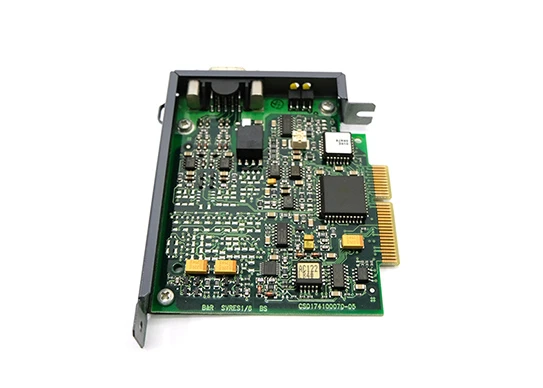

B&r 8AC122.60-1 is a Resolver interface module designed for installation in ACOPOS servo drives. This module is designed to monitor the encoder input signal to ensure the stability and high performance of the servo system.
Brand: B&R
Model: 8AC122.60-1
Product size: 11*9*1.5cm
Weight: 0.5kg
Place of origin: Austria
Type: ACOPOS plug-in module
Slots: Slots 2, 3, and 4
Maximum cable length: 100 meters
Power consumption: Maximum 2.5 watts
Module characteristic
Module type: ACOPOS plug-in module, suitable for installation in a specific slot of the ACOPOS servo drive.
Monitoring function: The ability to monitor and process input signals from the encoder for precise position and speed control.
Scope of application: Mainly used in the field of industrial automation, especially in the application scenarios requiring high precision control and stability.
Parser type: Support BRX type parser, can achieve high precision angular position measurement.
Technical parameter
Input signal parameters: Support 10kHz encoder input signal, providing a maximum output current of 50mA and a typical differential voltage of 3.4Veff.
Angular position resolution: 14 bits per turn for very accurate position measurement.
Connection mode: The module end is connected with a 9-pin female DSUB for easy installation.
Status indicator: with up/down LED indicator, easy for users to monitor the status and fault diagnosis.
Environmental adaptability
Operating temperature range: 5°C to 40°C, up to 55°C, can adapt to a variety of working environments.
Ambient humidity: 5% to 85% relative humidity during operation and 5% to 95% relative humidity during storage, suitable for use under various humidity conditions.
Electrical parameter
Parser input voltage: in the range of 3 to 7Vrms, can meet different voltage requirements.
Electrical isolation: There is no electrical isolation between the parser and ACOPOS. Pay attention to the insulation problem.
Certification and assurance
Certification: Through CE, UKCA and UL certification, to ensure the quality and safety of products.
Featured services: to provide one-year warranty service, to ensure the reliability and stability of products.
B&r 8AC122.60-1 module is a powerful and stable Resolver interface module for a variety of industrial automation applications to meet the needs of users for precision control and reliability.
