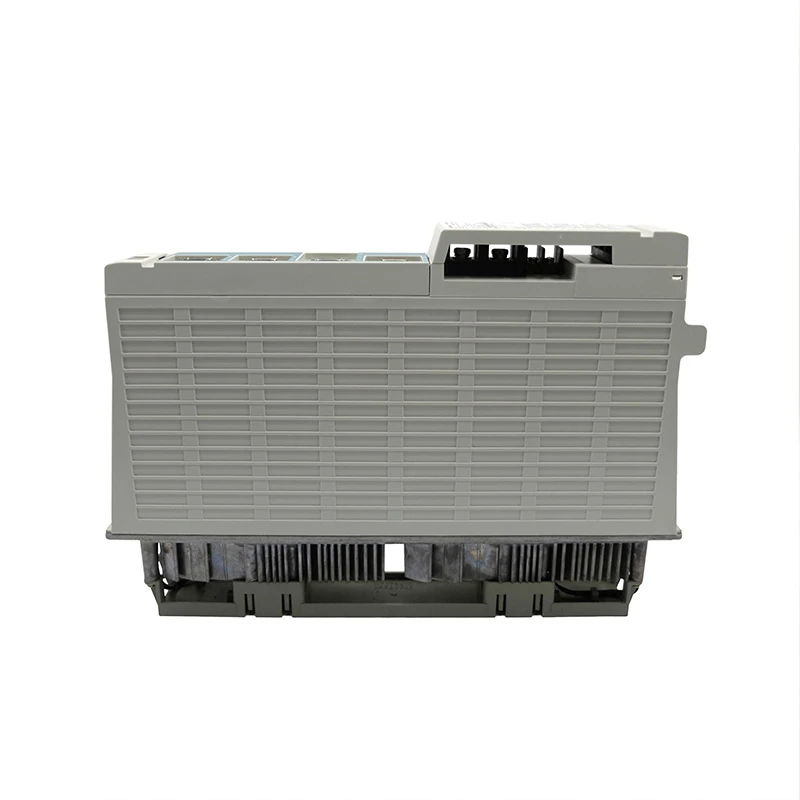

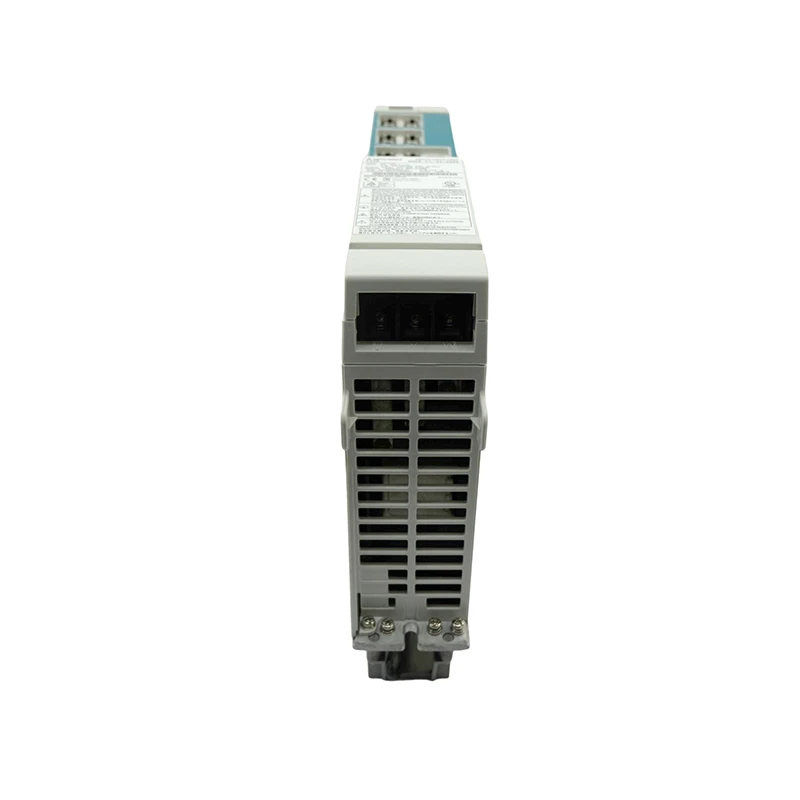

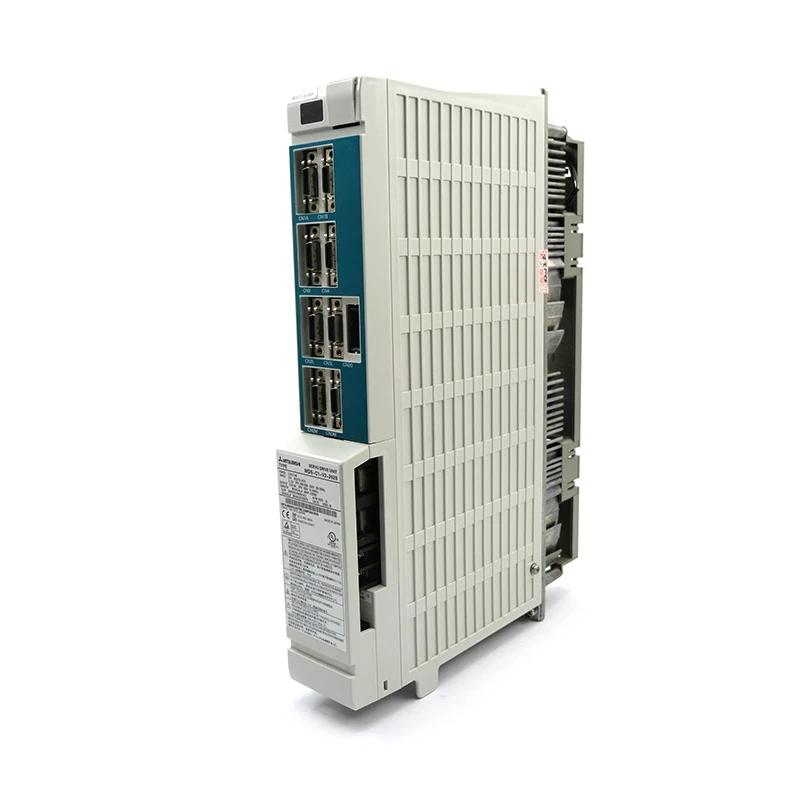

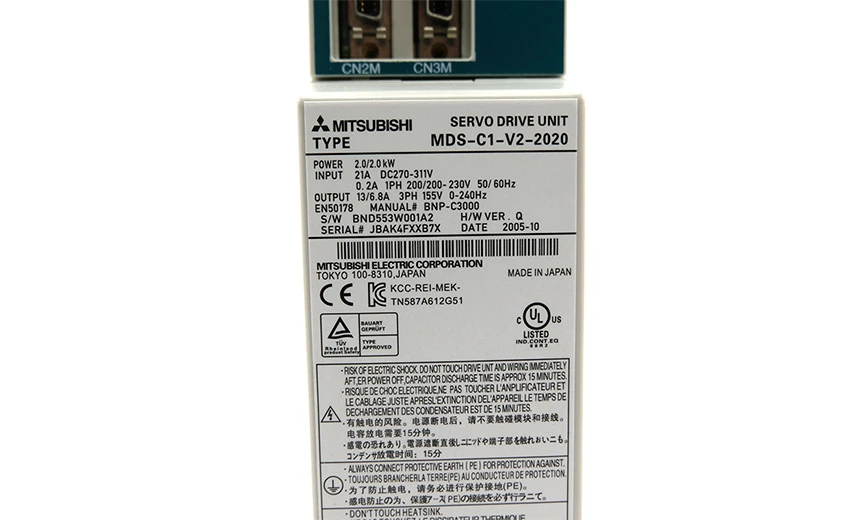

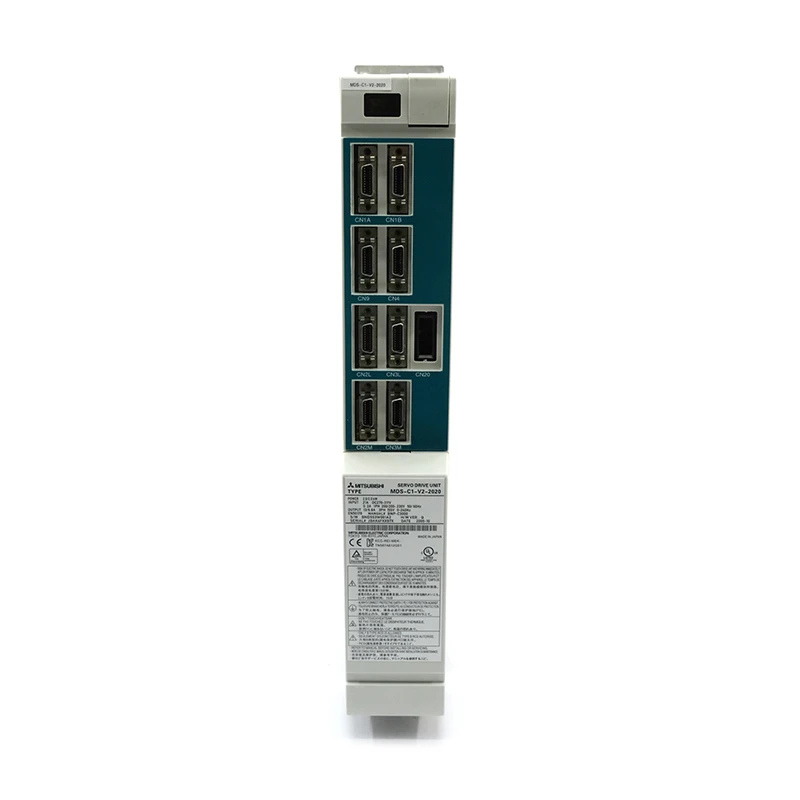

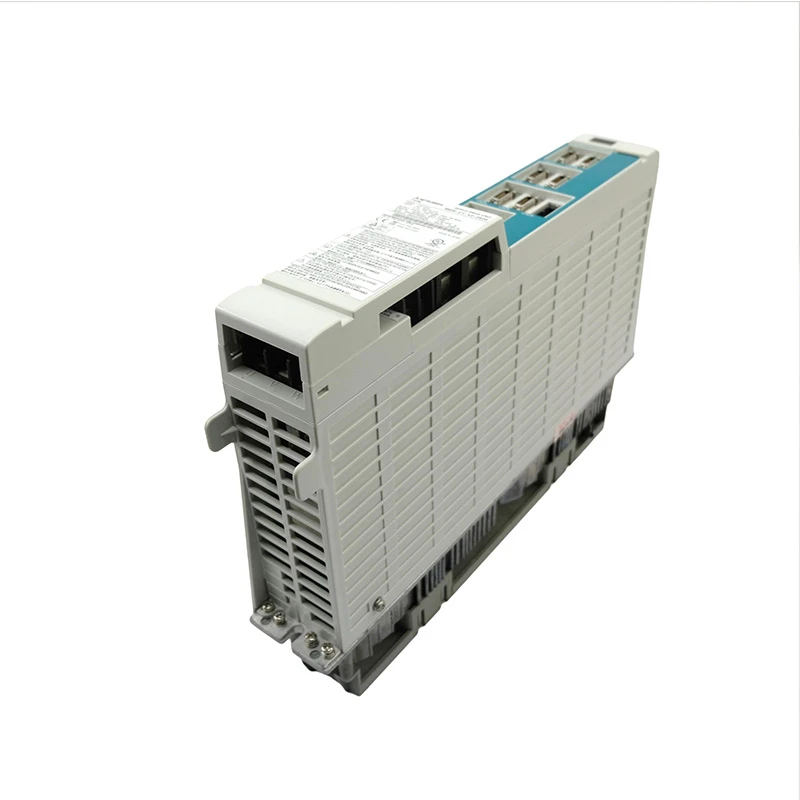

Mitsubishi MDS-C1-V2-2020 | Mitsubishi Servo Drive Unit

Model: MDS-C1-V2-2020

Brand: Mitsubishi

Size: 38*27*6cm

Weight: 4.22kg

Country of origin: Japan

Series: MDS-C1

Power: 1kW/400kW

Rated voltage: 240

Product certification: 3C

Speed response frequency: 100

Applicable motor: servo

Application: Electrical machine tools

Rated power: 360

Rated current: 380

Rated speed: 100/S

Rated torque: 140

Encoder type: Matching

Shaft end specification: 12-48

Installation mode: Connect cables

Protection Class: 3A

The MDS-C1-V2-2020 is an advanced digital servo drive that provides a reliable motion control solution for industrial automation applications. The following are the features and functions of the drive:

1. High performance control: MDS-C1-V2-2020 adopts advanced digital control technology, with excellent performance and response speed. It enables precise speed, position and torque control for a wide range of complex industrial applications.

2. Flexible control mode: The driver supports a variety of control modes, including speed control, position control, torque control, etc. Users can choose the right control mode according to specific needs to achieve accurate motion control.

3. Highly integrated and expandable: MDS-C1-V2-2020 has a wealth of interfaces and functional modules, including EtherCAT, Modbus, DeviceNet and other communication interfaces, as well as encoder interfaces and input/output interfaces. Users can flexibly select and expand functions according to their needs to achieve more diversified applications.

4. Intelligent protection function: The driver built-in a variety of intelligent protection functions, such as overcurrent protection, overvoltage protection, overload protection, etc., can timely monitor and protect the motor and equipment from damage, improve the stability and reliability of the system.

5. Energy-efficient design: MDS-C1-V2-2020 adopts advanced energy-saving design to maximize energy utilization efficiency and reduce energy consumption and operating costs through optimized motor control and intelligent power management.

6. User friendliness: MDS-C1-V2-2020 driver has intuitive operation interface and friendly user interface, which simplifies the parameter setting and debugging process, and improves the user's operation convenience and user experience.

The emergence of MDS-C1-V2-2020 drives has brought more efficient and reliable motion control solutions to the field of industrial automation, and promoted the improvement of the intelligence and automation of industrial production.

Details of Mitsubishi MDS-C1-V2-2020 | Mitsubishi Servo Drive Unit
