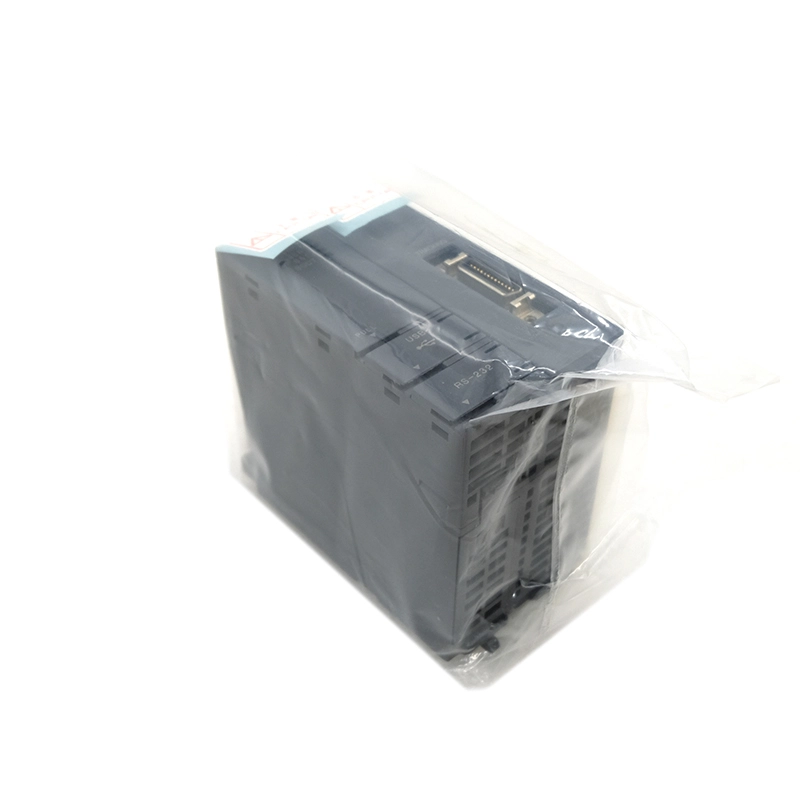

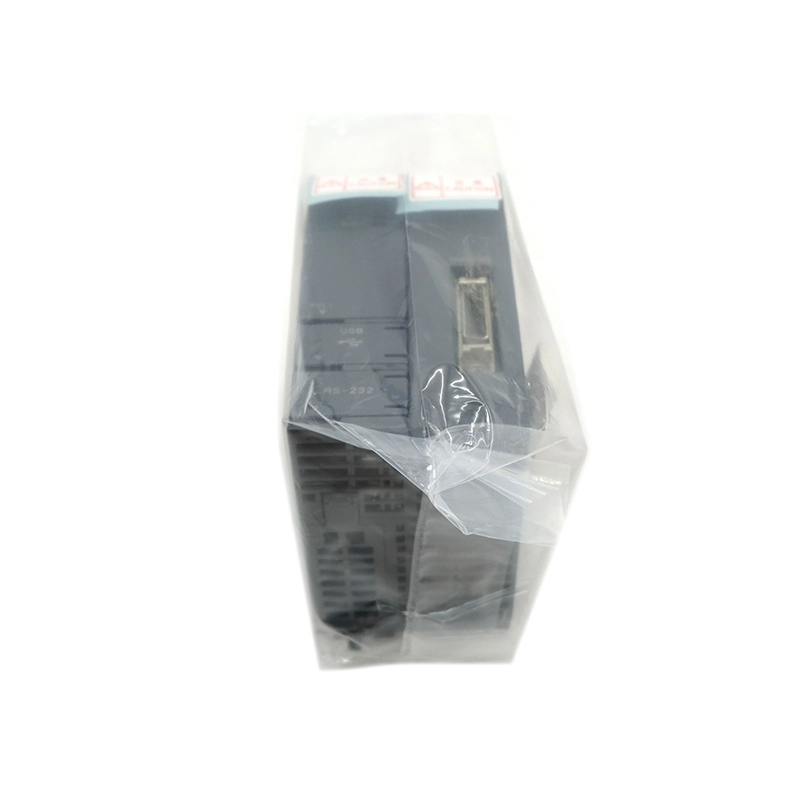

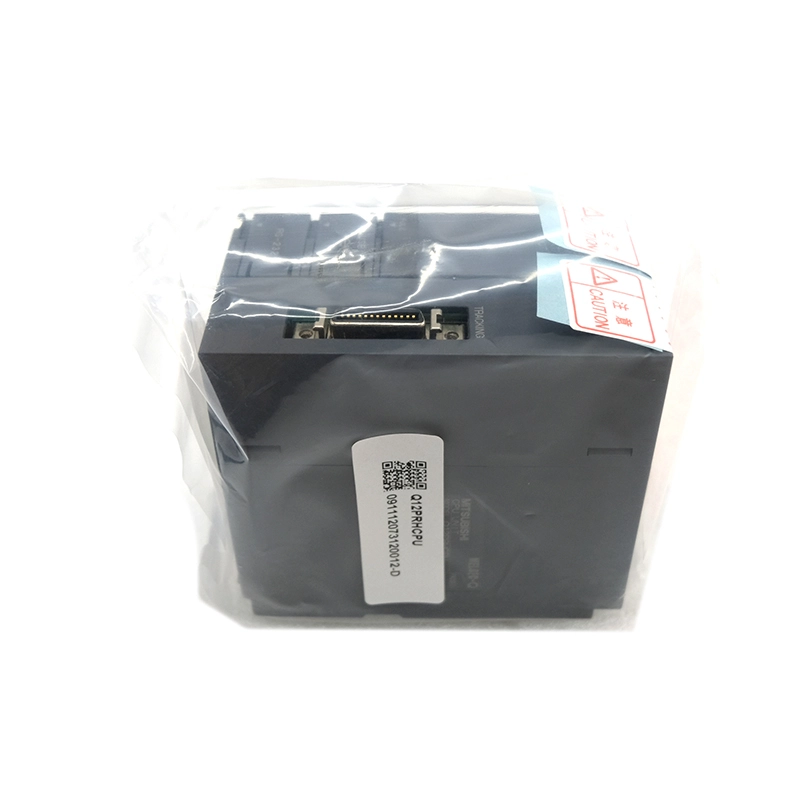

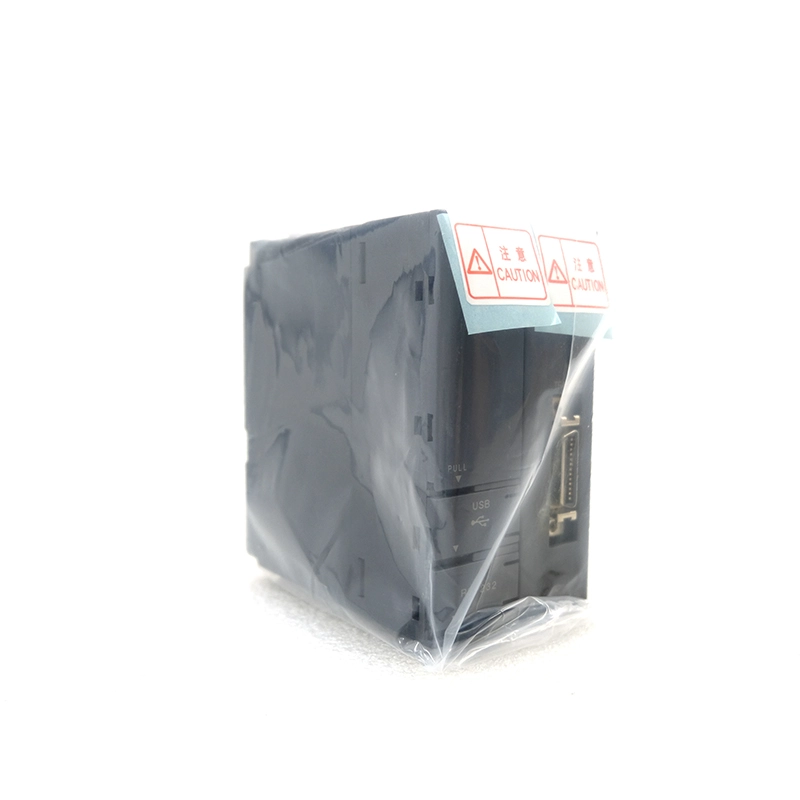

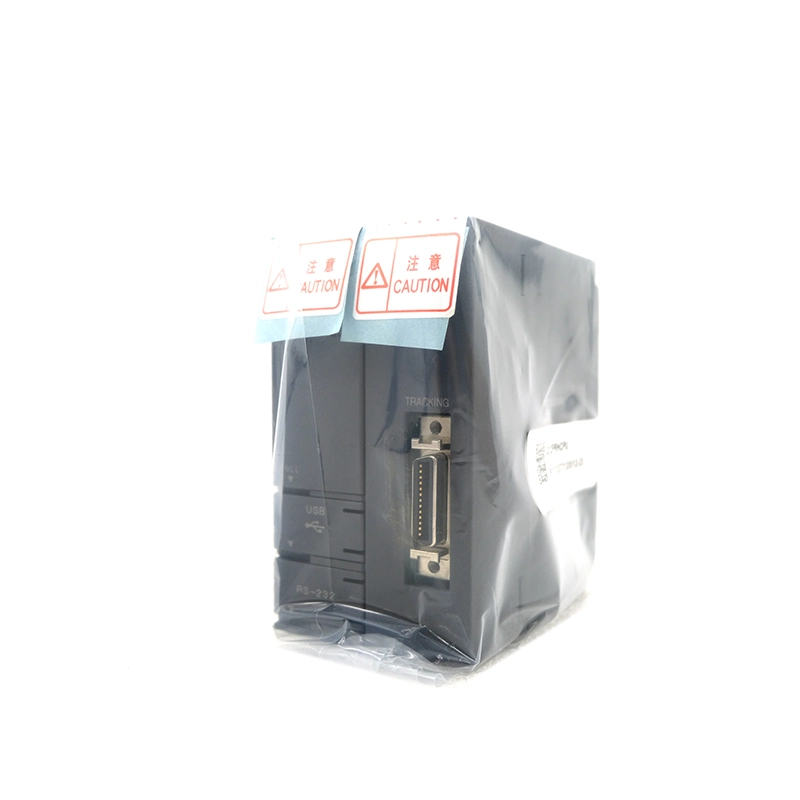

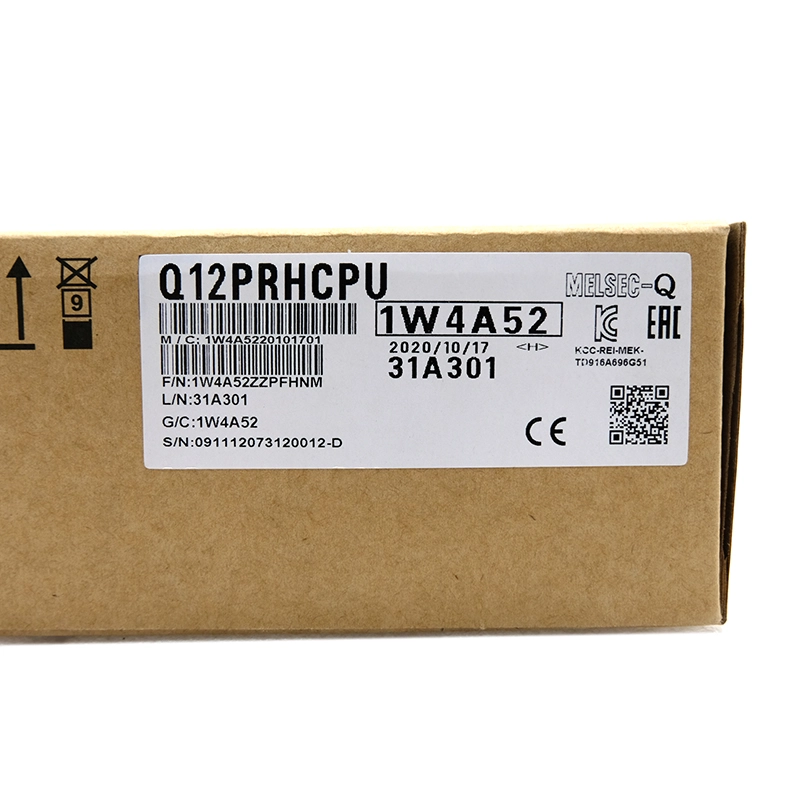

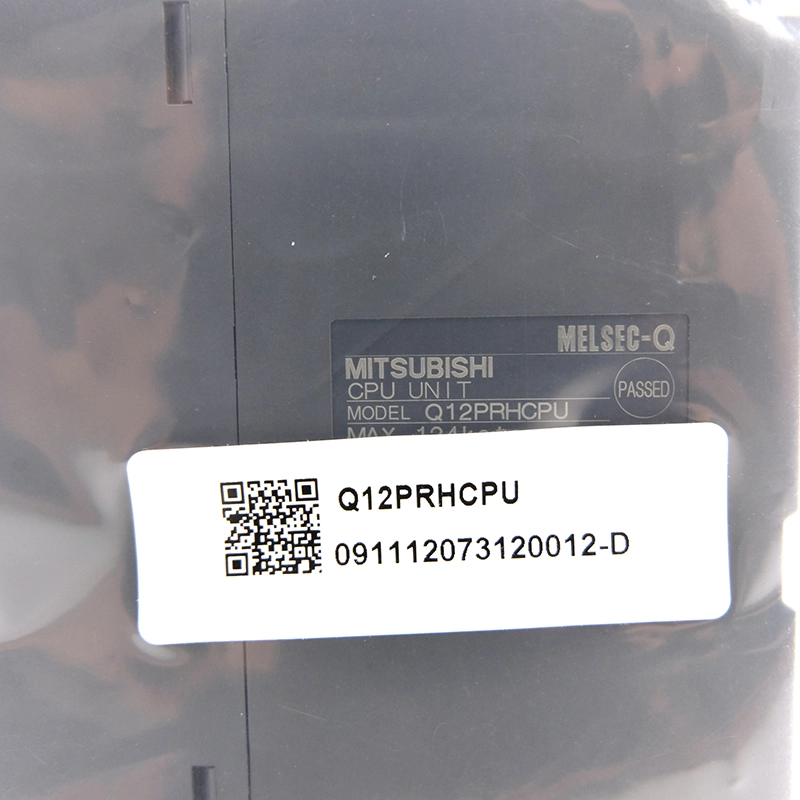

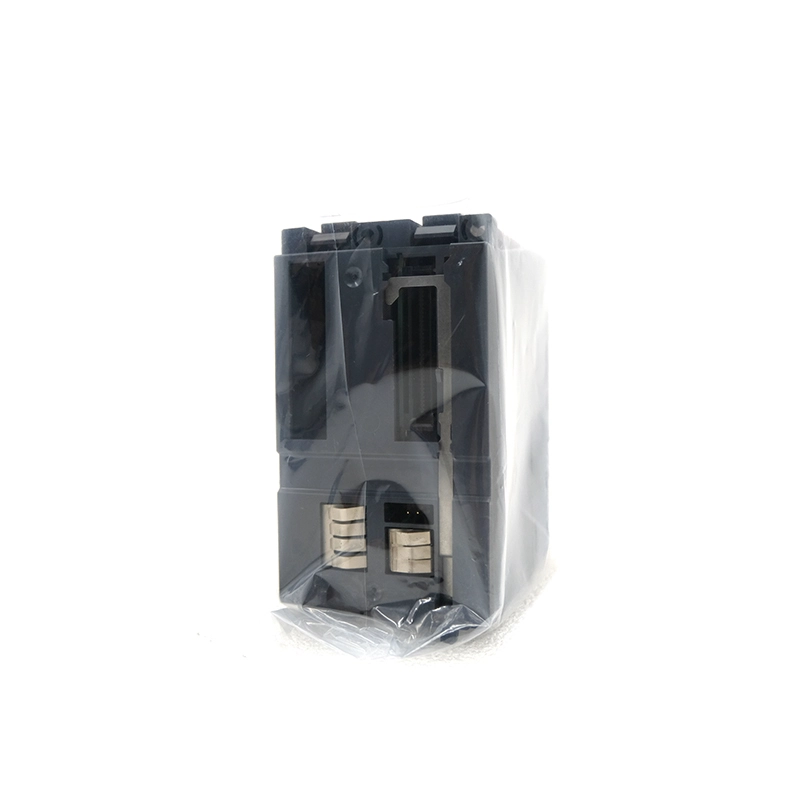

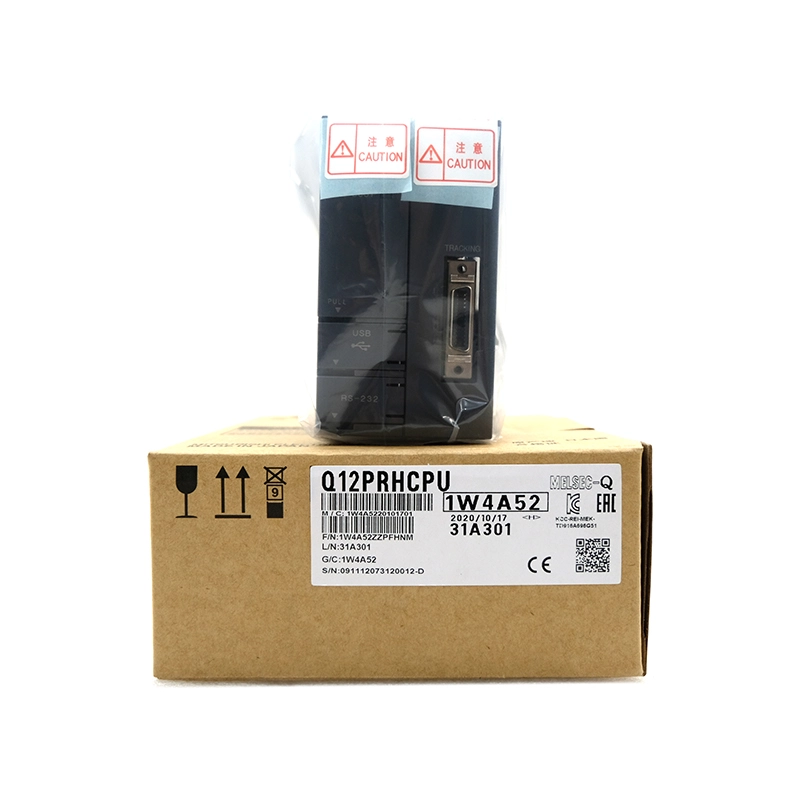

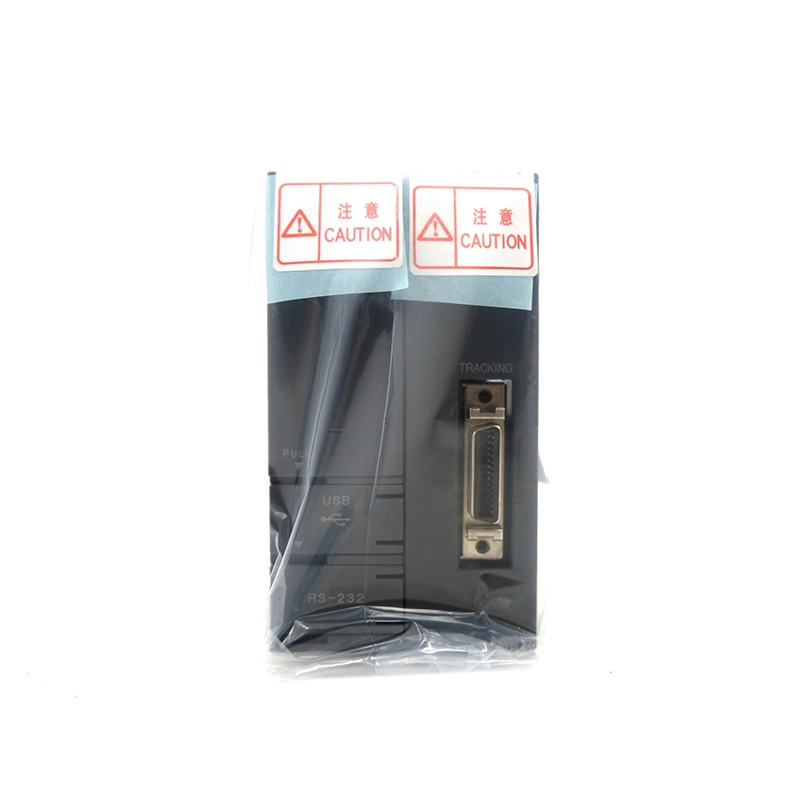

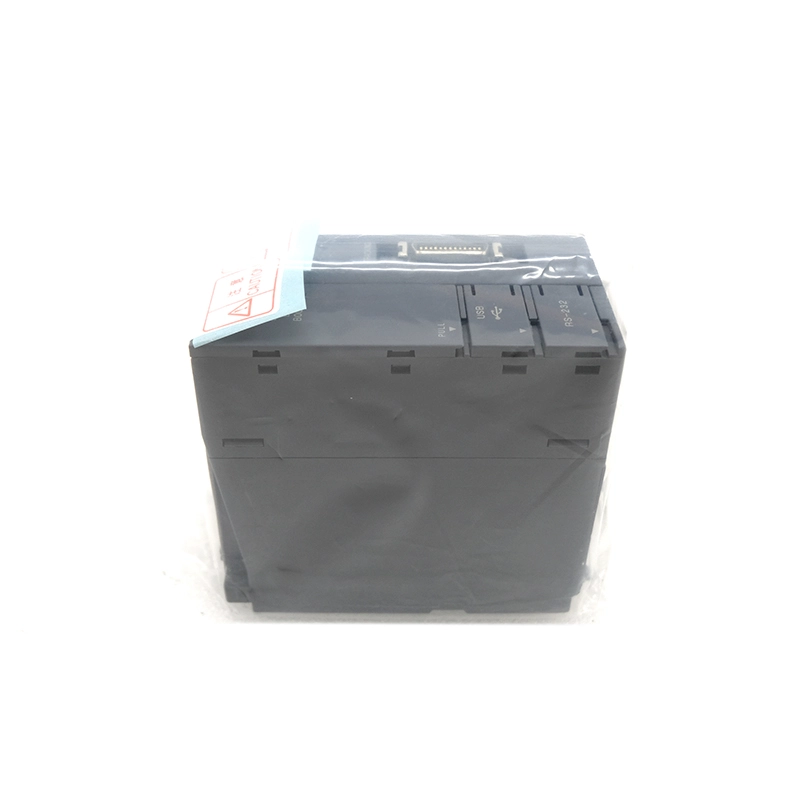

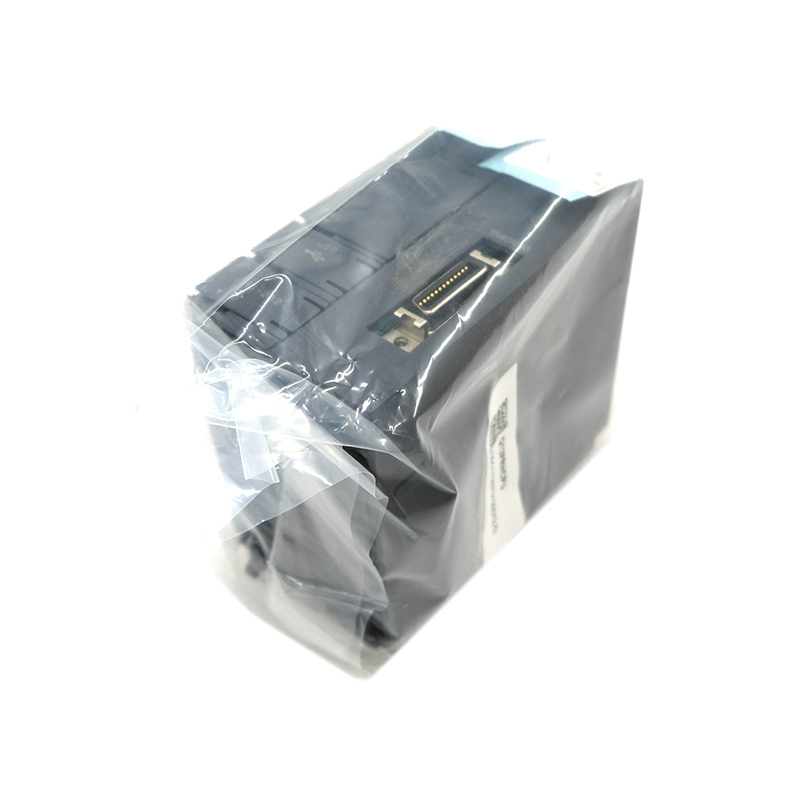

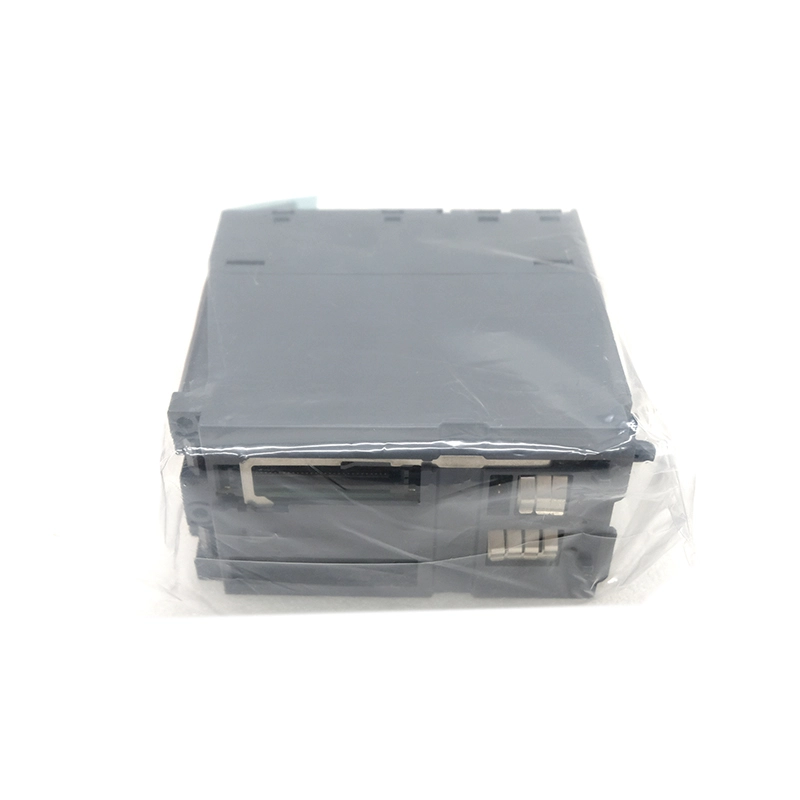

Q12PRHCPU is Mitsubishi Q series 252K step redundant control CPU!
In Stock √
1 Year Warranty √
Free Shipping √
Mitsubishi PLC Q12PRHCPU Introduction:
Input and output points: 4096 points
Input and output device points: 8192 points
Program capacity: 124K bytes
Basic command processing speed (LD X0): 34ns
Program memory capacity: 496Kb
Peripheral device connection: USB interface, RS-232, memory card
Process control language supports duplex function
Mitsubishi PLC Q12PRHCPU Features:
1. Multi-point input/output control
2. High-speed processing
3. High efficiency of programming tools and high-speed communication debugging
4. Maximum 7-segment expansion base device connection
5. Small size, saving space
6. Memory card can be expanded
7. External forced input and output ON/OFF
8. Automatic writing on standard ROM
9. Password can be set remotely
10. MELSECNET/H remote I/O network
11. Support redundant power supply system
Mitsubishi PLC Q12PRHCPU Other Performance Specifications:
Peripheral connection ports | USB, RS-232 |
Memory card interface | Yes (SRAM/Flash memory/ATA card) |
Processing speed | instruction LD X0 34ns; MOV D0 D1 102ns |
Dual function execution time | Memory 48K 10ms; Memory 100KB 15ms |
Constant scanning | 0.5～2000ms |
Device tracking transmission word count | Maximum 100kb |
Link direct device | CC-Link IE, MELSECNET / H dedicated |
Intelligent Function Unit Device | Buffer memory direct access device of intelligent function unit |
DC5V internal current consumption | 0.89A |
Weight | 0.3KG |
Ambient temperature | 0～55℃ |
Storage temperature | -25~75℃ -25~75℃ |
Humidity | 5~95%RH |
