Yaskawa SGD7S-330A00A002 | Yaskawa AC Servo Driver

Brand: Yaskawa

Model: SGD7S-330A00A002

Packing size: 32.5*32*19.5cm

Packing weight: 5.1kg Power Supply: AC

Power: 5kw Rated voltage: 200V

Speed response frequency: 50KHz

Control mode: Closed loop

Product type: Servo drive

Origin: Japan

The Yaskawa Drive module SGD7S-330A00A002 is a high-performance servo drive with the following main specifications and features:

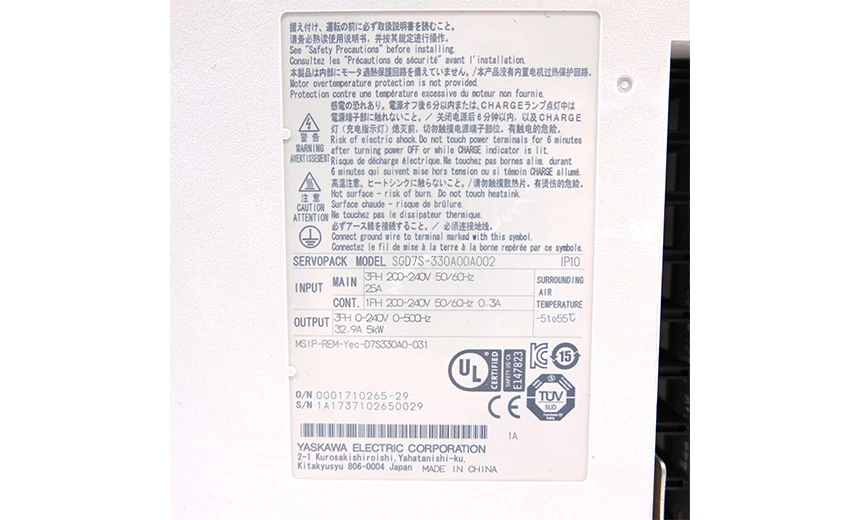

Model and specification: SGD7S-330A00A002 is a seventh-generation servo drive module model produced by Yaskawa Corporation. In terms of input, the main control input is three-phase, the voltage range is 200-240V, the frequency is 50/60Hz, and the rated current is 25A. Continuous input is single phase, voltage range is 200-240V, frequency is 50/60Hz, rated current is 0.3A. In terms of output, the three-phase output voltage range is 0-240V, the frequency range is 0-500Hz, the rated current is 32.9A and the rated power is 5kW.

Environmental adaptability: The driver module can work normally in the ambient temperature range of -5°C to 55°C, adapting to different working environments and temperature conditions.

Protection rating: The driver module is rated IP10, which indicates that it is effective against the intrusion of solid objects, but it is not waterproof.

Manufacturing information: The driver module is manufactured by Yaskawa Electric Co., LTD., the product quality is reliable, has high performance and stability.

Overall, the Yaskawa driver module SGD7S-330A00A002 features high input current and output power for industrial applications requiring high power output and high-performance control. Its reliability and stability make it one of the important drive components in automated production lines and mechanical equipment.

Details of Yaskawa SGD7S-330A00A002 | Yaskawa AC Servo Driver
