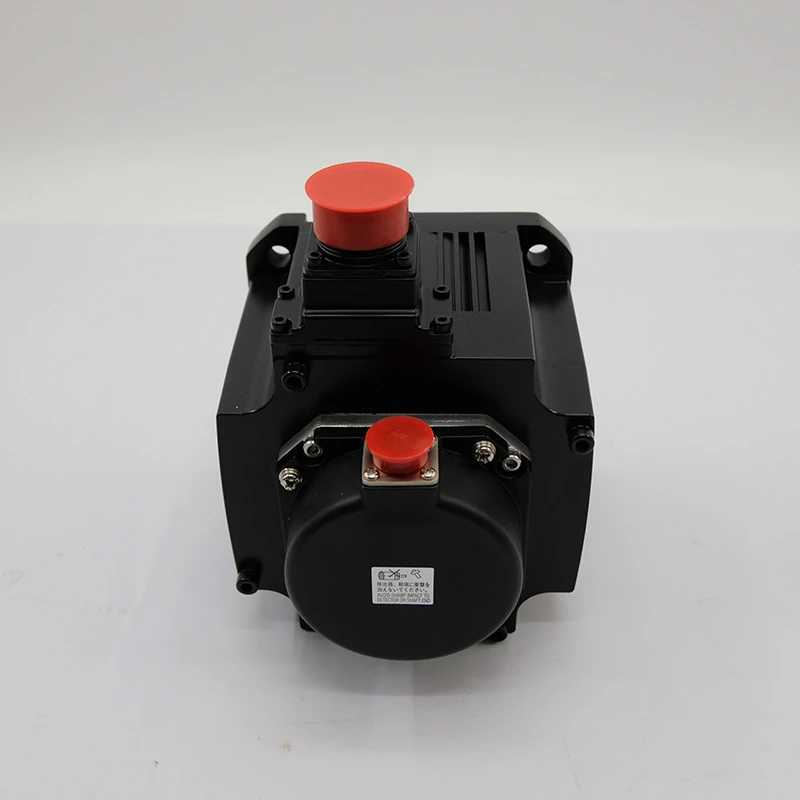

As a powerful and stable servo motor, HF-SP102 is widely used in the field of medium-sized industrial machinery, providing users with a reliable motion control solution to help the development of industrial automation.

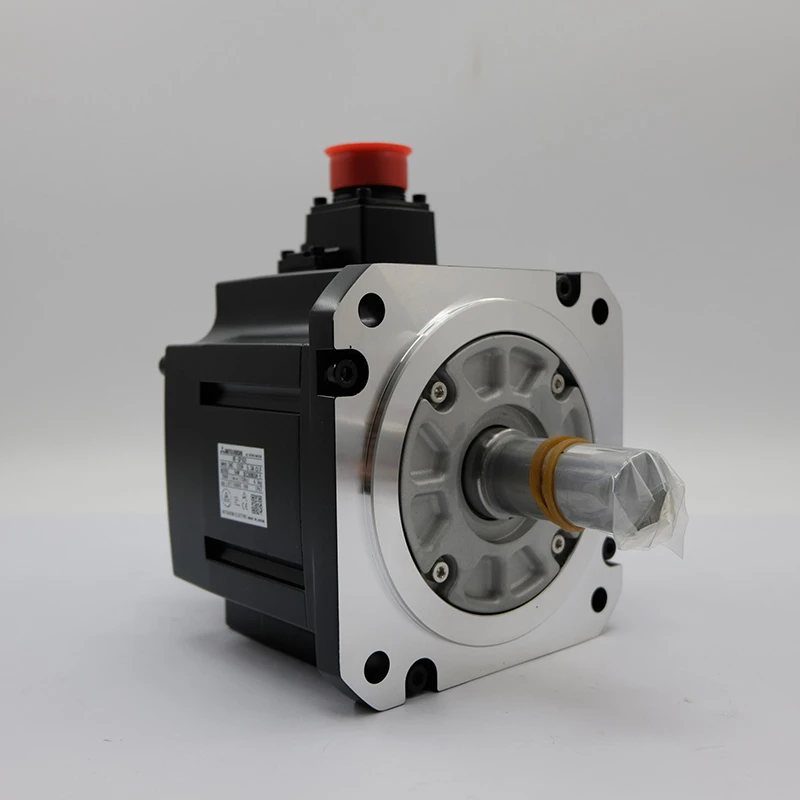

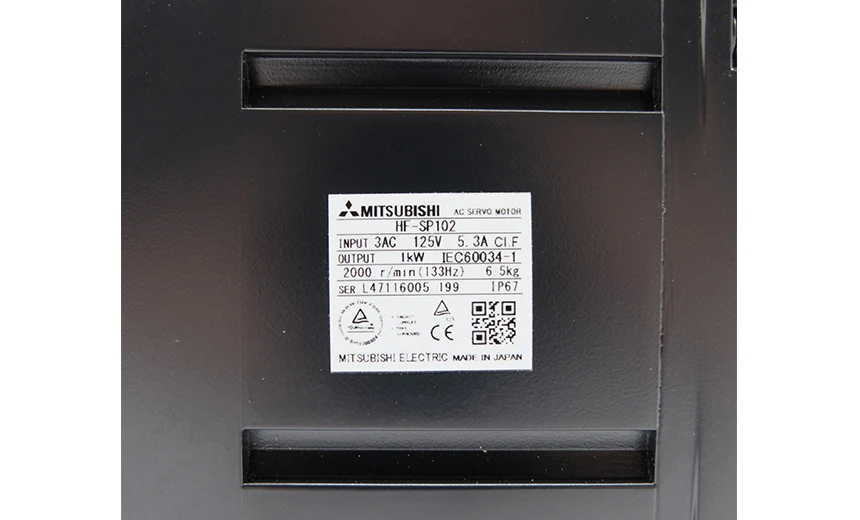

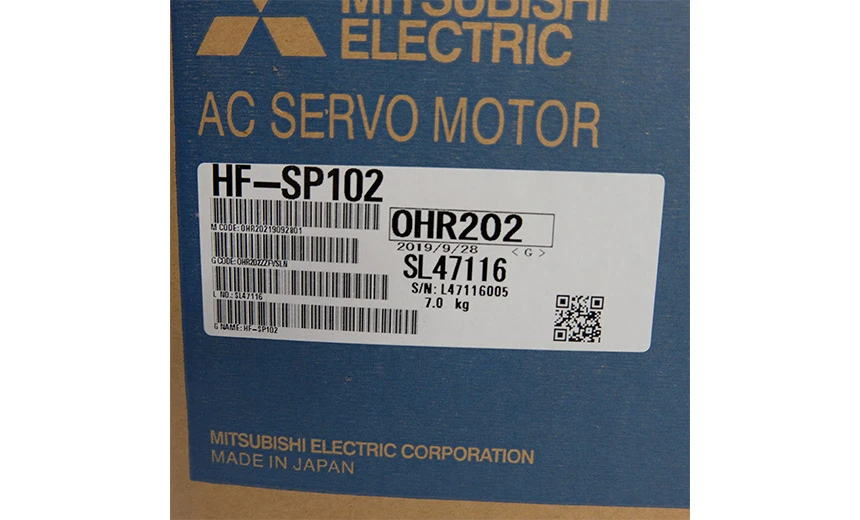

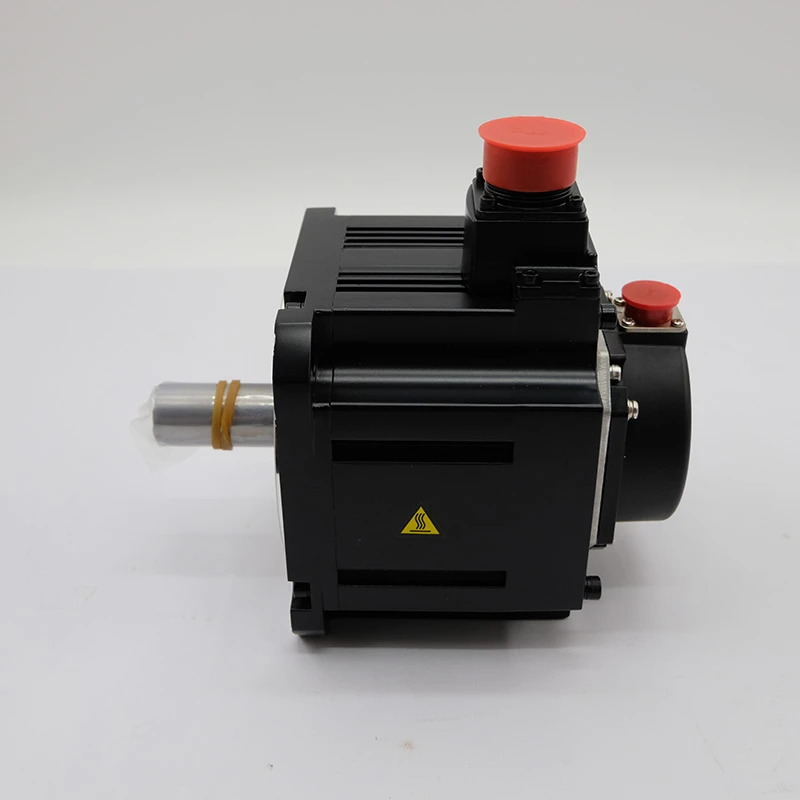

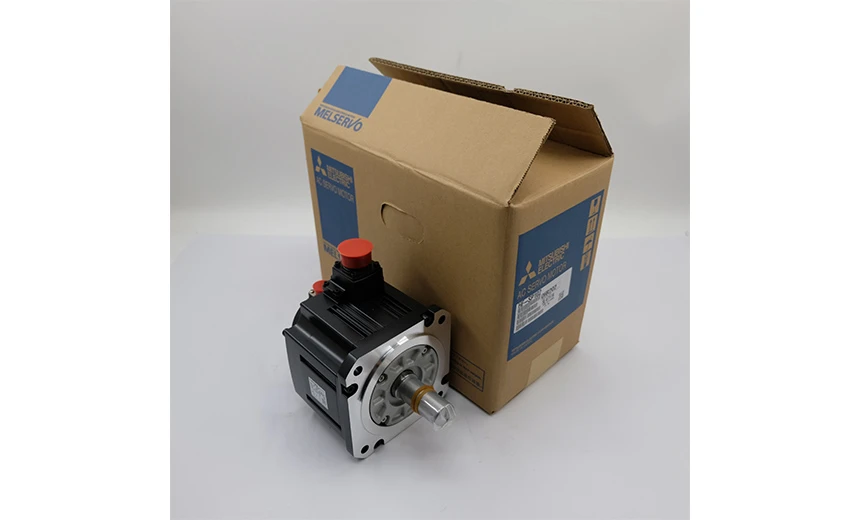

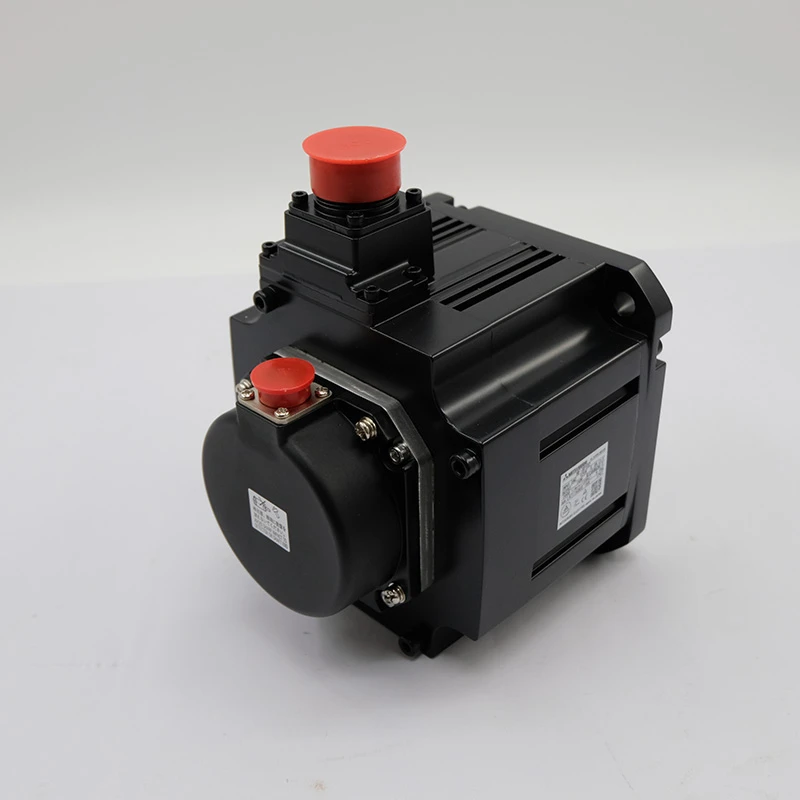

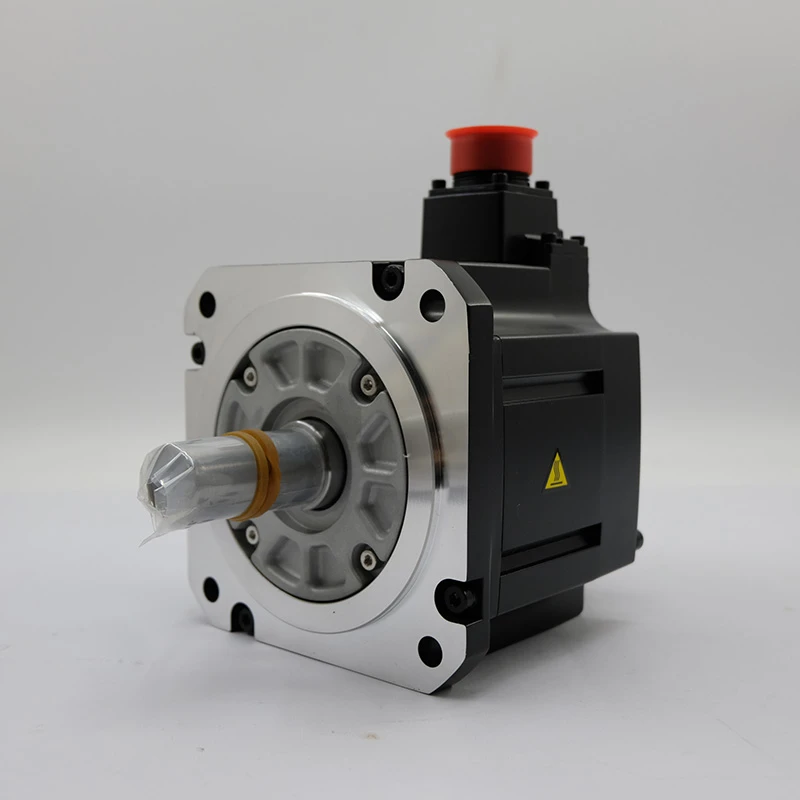

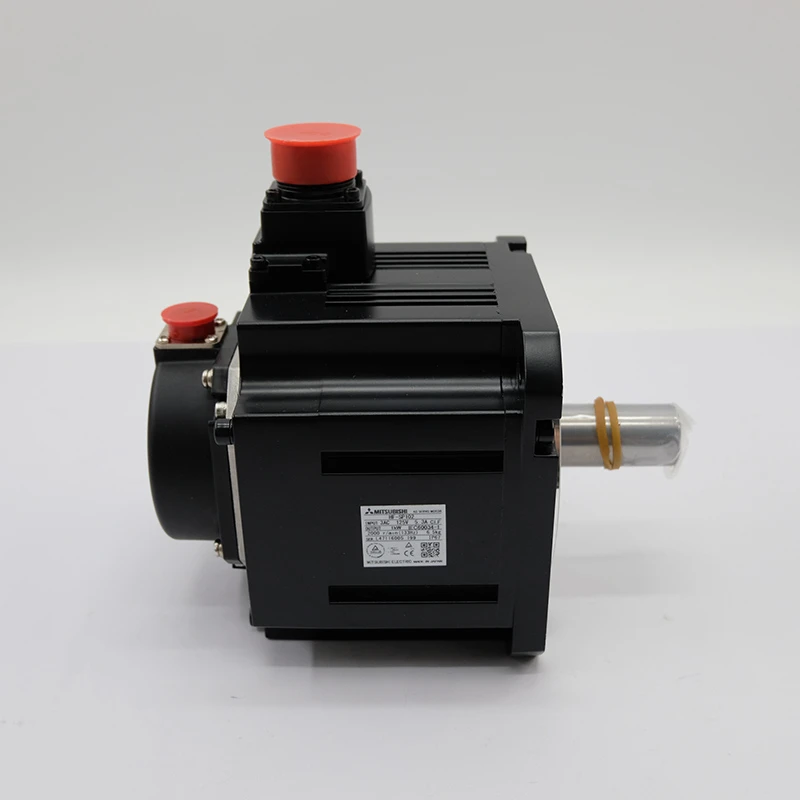

Model: HF-SP102
Brand: Mitsubishi
Size: 32*25* 16.5cm
Weight: 7kg
Country of origin: Japan
Series: HF-SP
Power: 0.4kW
Rated voltage: 380V
Product certification: CCC
Speed Response frequency: 50Hz
Applicable motor: HF-KP43
Product type: Servo
Encoder type: Value encoder
Shaft end specification: no keyway
Installation method: vertical
Protection class: ip65
Instruction interface | SSCNET III interface SSCNET III (Full Closed Loop Control) Universal interface Built-in CC-Link mapping function | |
Voltage level | 200V | |
Rotary servo motor model name | HF-SP102 | |
Corresponding servo amplifier | CC-Link IE Indicates the onsite network interface | - |
SSCNET III/H port | - | |
2-axis integrated SSCNET III/H interface | - | |
Three-axis integrated SSCNET III/H interface | - | |
Universal interface | MR-J3-100A | |
SSCNET III interface | MR-J3-100B | |
SSCNET III (Totally enclosed control) | MR-J3-100B-RJ006 | |
Built-in CC-Link compatible positioning function | MR-J3-100T | |
2-axis integrated SSCNET III interface | ||
MR-J3W-1010B | ||
Power capacity [KVA] | 1.7 | |
Continuous feature | Rated output [KW] | 1.0 |
Rated torque [N·m] | 4.77 | |
Maximum torque [N·m] | 14.3 | |
Rated speed [r/min] | 2000 | |
Maximum speed [r/min] | 3000 | |
Instantaneous allowable speed [r/min] | 3450 | |
Rated power at rated torque [kW/s] | 19.2 | |
Rated current [A] | 5.3 | |
Maximum current [A] | 15.9 | |
The HF-SP102 is a high-performance servo motor designed by Mitsubishi Electric for medium industrial machinery with the following features:
1. Wide range of application: HF-SP102 is suitable for the field of medium-sized industrial machinery, including but not limited to transport devices, XY workbench and other application scenarios. It is designed to meet various industrial automation needs and provide users with reliable motion control solutions.
2. High-precision positioning: Using 262,144 pulse/revolution (18 bit) high-resolution encoder, HF-SP102 can achieve high-precision positioning control. Whether it requires precise position control or high-speed motion, it can meet the requirements of users.
3. Fast response speed: the maximum speed reaches 3000 r/min, so that HF-SP102 can quickly respond to instructions and achieve high-speed movement. This fast response can improve production efficiency and shorten production cycles.
4. Advanced control interface: HF-SP102 has advanced control interface such as SSCNET III interface, SSCNET III (full closed-loop control), universal interface and built-in CC-Link corresponding positioning function. These interfaces can be seamlessly interacted with various control systems to provide flexible control methods.
5. Stable and reliable performance: with a completely closed self-cooling structure (protection grade: IP67), HF-SP102 has good anti-interference ability and stability, and can operate stably in harsh working environments to ensure the continuity and stability of production.
6. High efficiency and energy saving design: HF-SP102 focuses on energy saving and efficiency improvement in design. Through optimized motor design and intelligent power control strategy, efficient energy utilization is realized and equipment operating costs are reduced.
7. User friendliness: The operation interface is simple and intuitive, easy to set and adjust parameters, improve the user's operation convenience and use experience. HF-SP102 provides users with a more intelligent and convenient mode of operation.
In summary, as a powerful and stable servo motor, HF-SP102 is widely used in the field of medium-sized industrial machinery, providing users with a reliable motion control solution to help the development of industrial automation.
