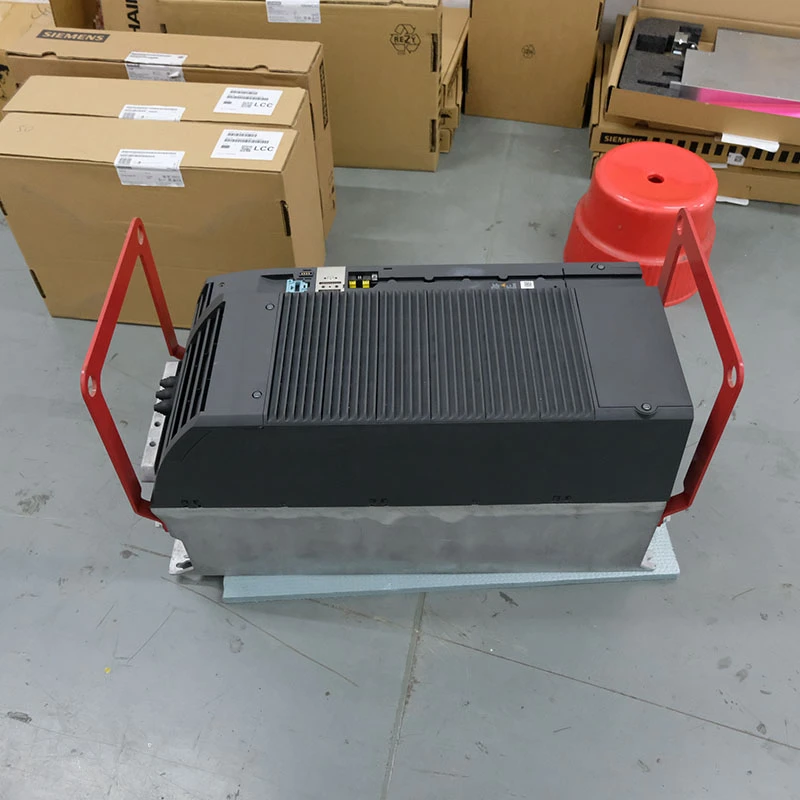

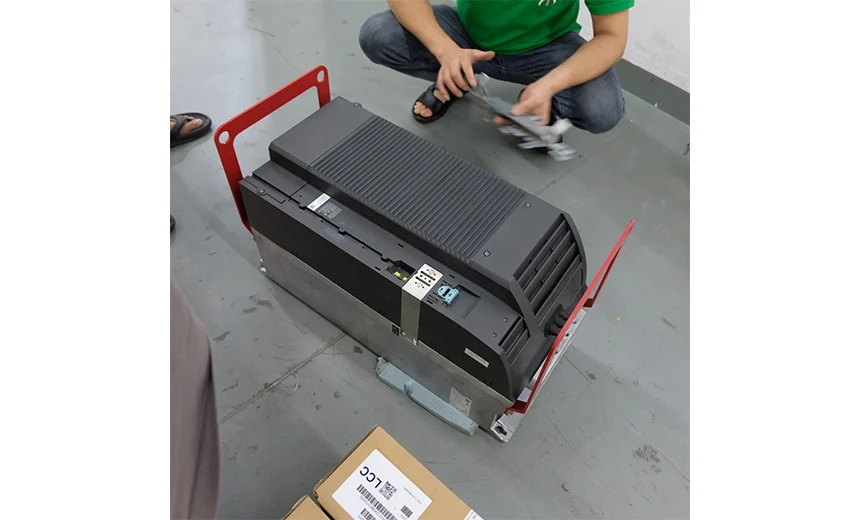

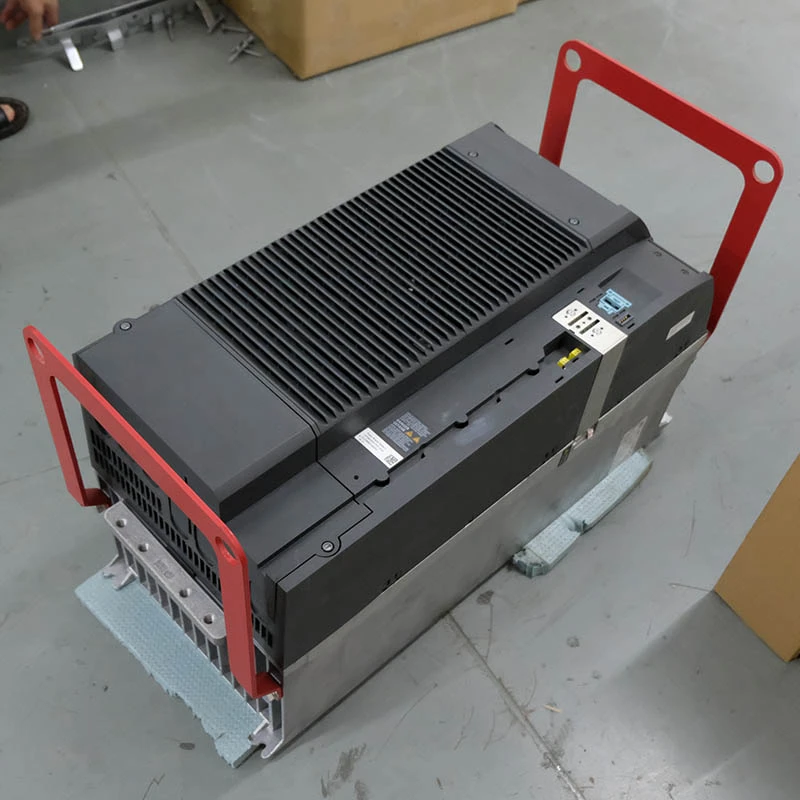

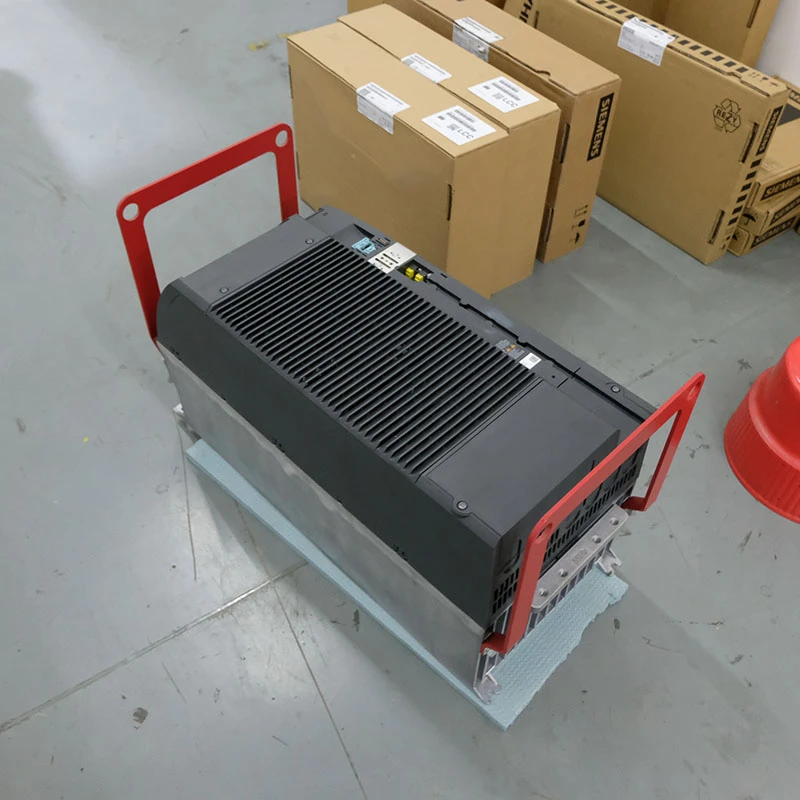

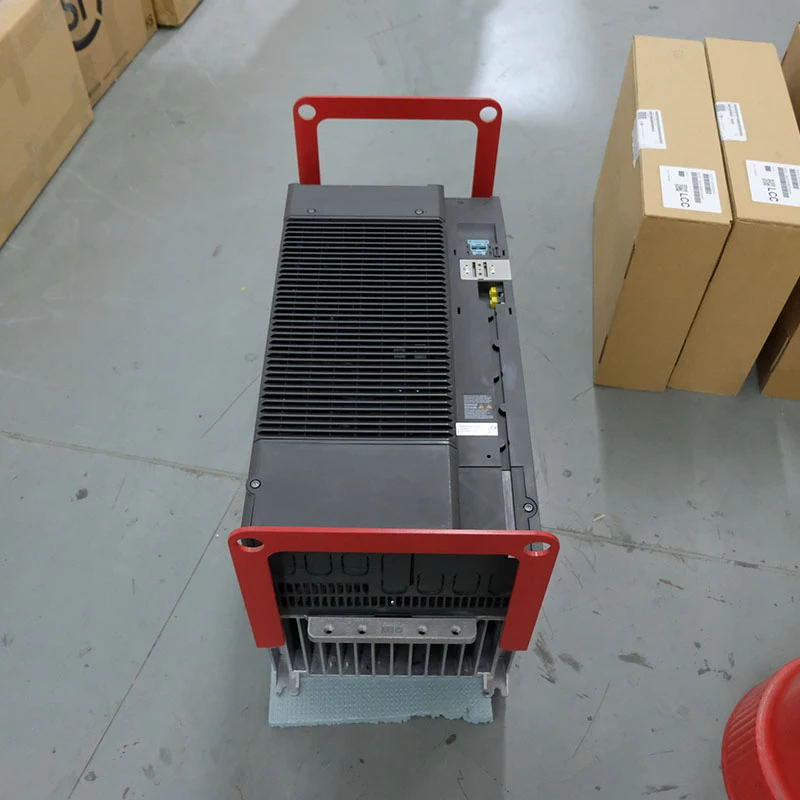

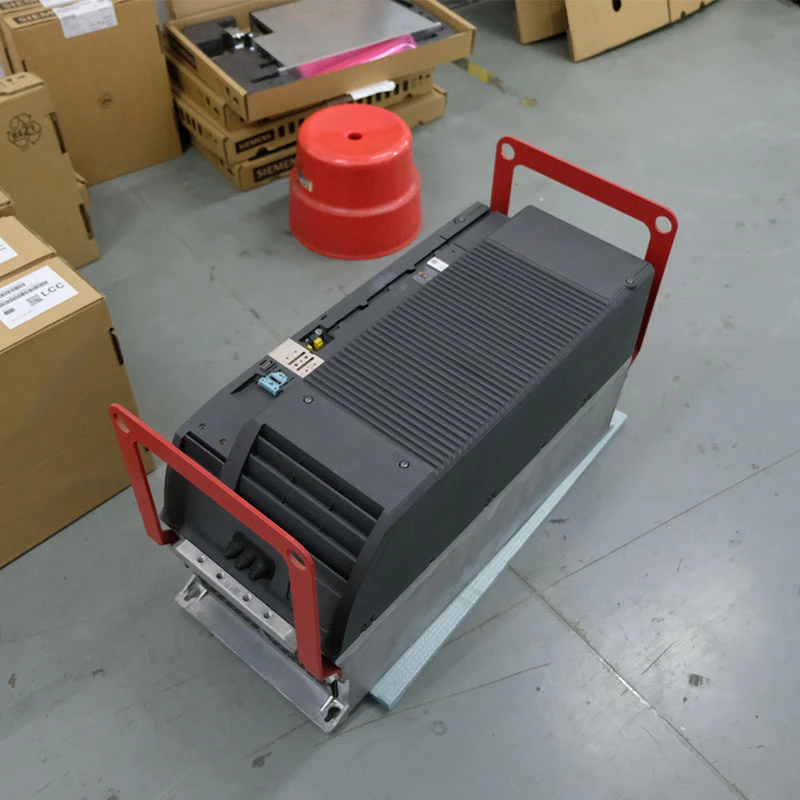

The Siemens 6SL3210-1PE31-5UL0 power module is a high-performance and reliable device suitable for various industrial application scenarios, providing users with a stable and reliable drive solution.

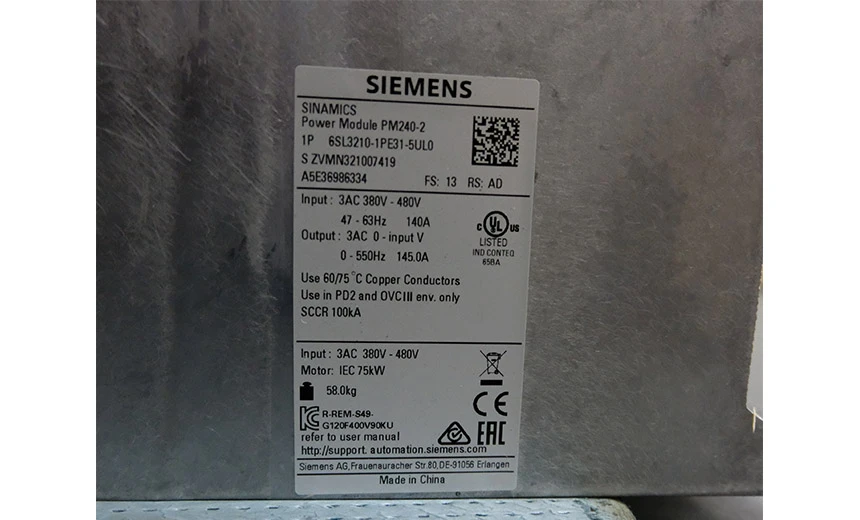

Model: 6SL3210-1PE31-5UL0
Brand: Siemens
Size: 31*71*44cm
Weight: 58kg
Country of origin: Germany
Series: G120 series
Number of phases: single phase
Voltage: 3AC380-480V standard
Filter configuration: UL [No built-in A-level filter]
Product certification: CE
Rated output current: I (HO) 1
Siemens 6SL3210-1PE31-5UL0

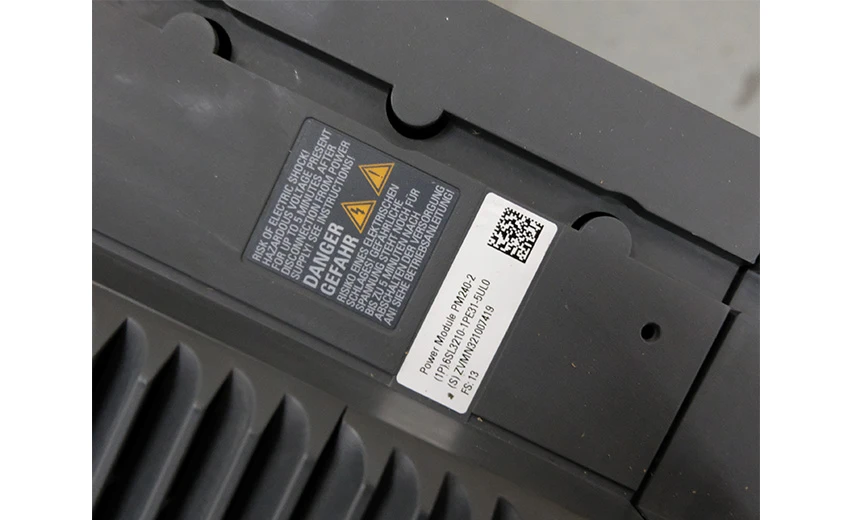

Description: This is a SINAMICS G120 power module, model number PM240-2, equipped with an integrated brake chopper. Suitable for 380-480V +10/-20% three-phase AC power supply, frequency range 47-63Hz. In the heavy overload state, its power can reach 55kW, and in the light overload state, it can reach 75kW. Ambient temperatures operate in the range of -20°C to +50°C (HO) and -20°C to +40°C (LO).
Important features:
High performance power module: The module is capable of delivering up to 55kW of power and can withstand 200% overload for a short period of time (3 seconds). This makes it suitable for a variety of industrial applications, including scenarios requiring instantaneous high power.
Integrated Brake Chopper: The integrated brake chopper can effectively convert brake energy into heat energy and dissipate it into the surrounding environment. This helps protect the motor and equipment, extending their service life.
Wide range of applications: The power module is suitable for a variety of industrial applications, including driving motors, pumps, fans, compressors, etc.
High reliability: Siemens' SINAMICS family is known for its high reliability, and this power module is no exception. It is designed and manufactured to strict quality standards and is capable of stable operation in harsh working environments.
Compact design: The compact design of 708x305x357mm (H x W x D) makes the power module easy to install and maintain, while also saving space.
Protection grade and approval: The protection grade of this power module is IP20, without control unit and operation unit. Approved from CU firmware version V4.7 HF8.
To sum up, the Siemens 6SL3210-1PE31-5UL0 power module is a high-performance and reliable device suitable for various industrial application scenarios, providing users with a stable and reliable drive solution.
