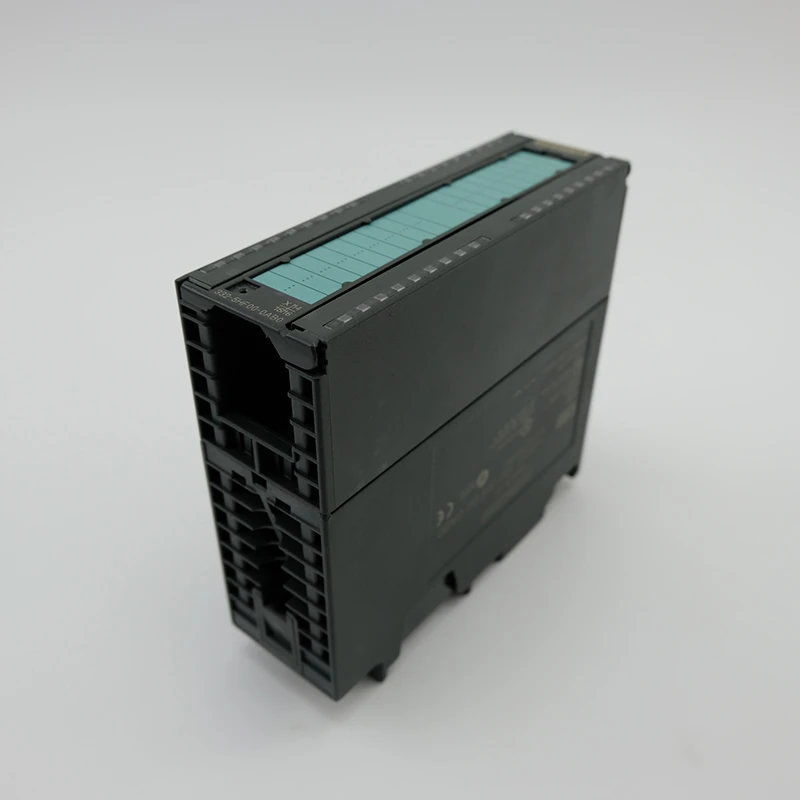

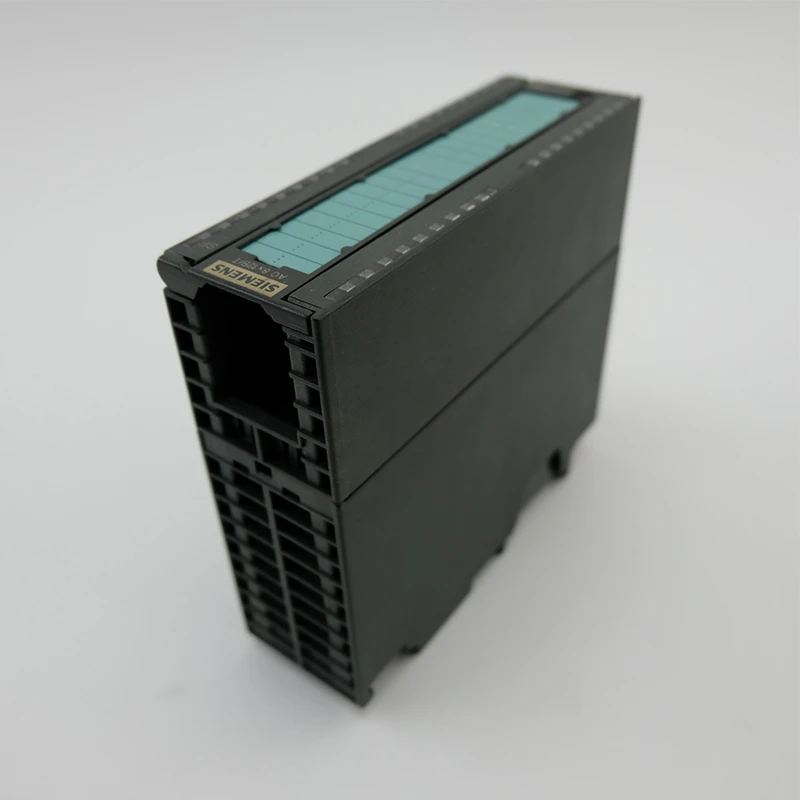

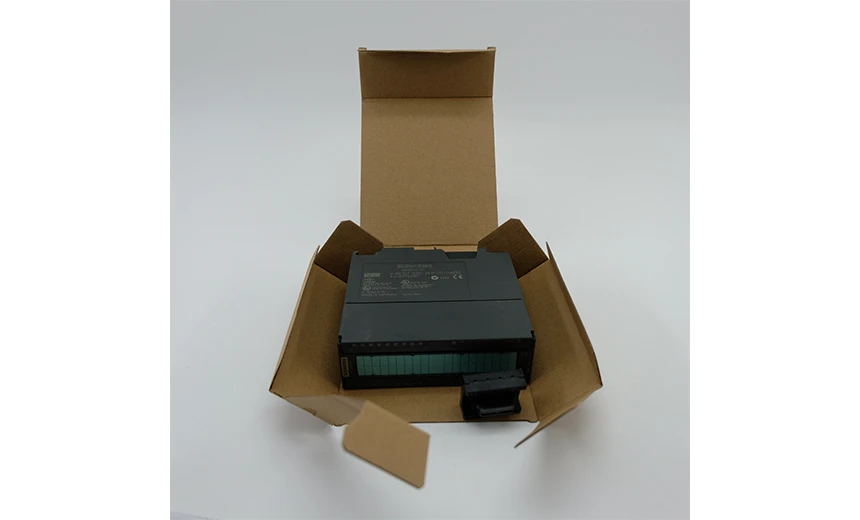

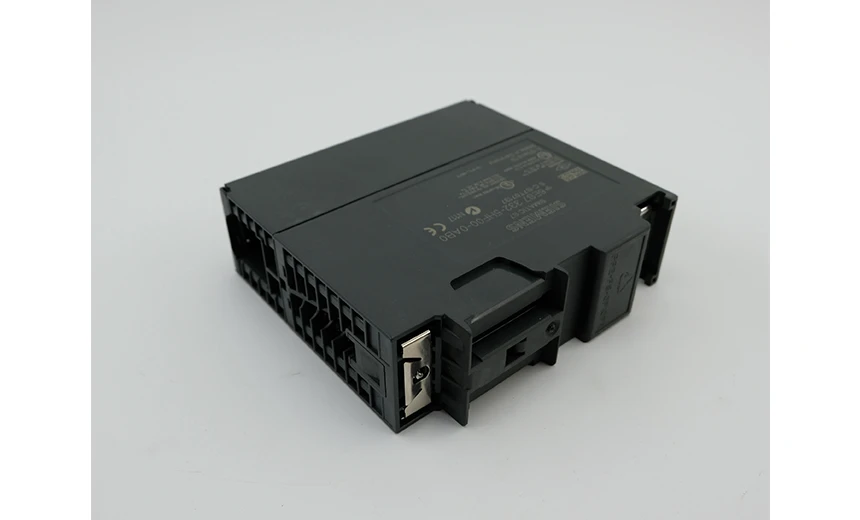

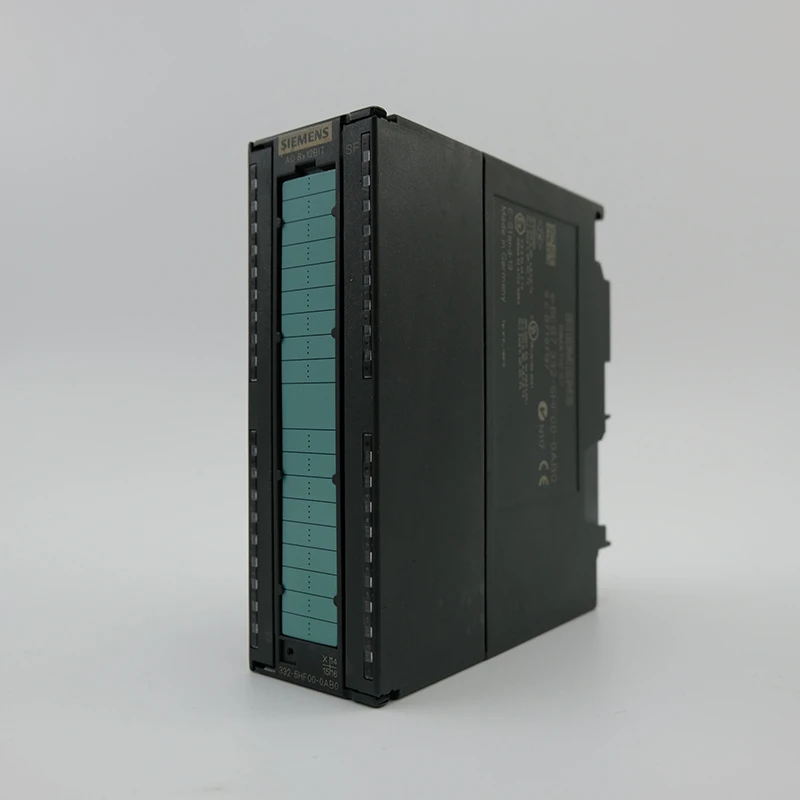

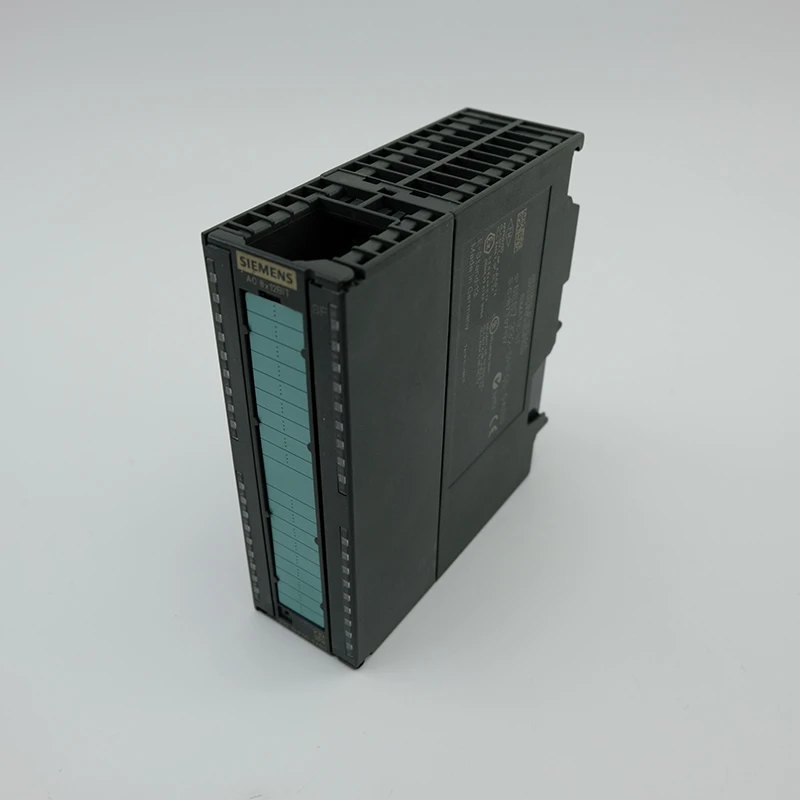

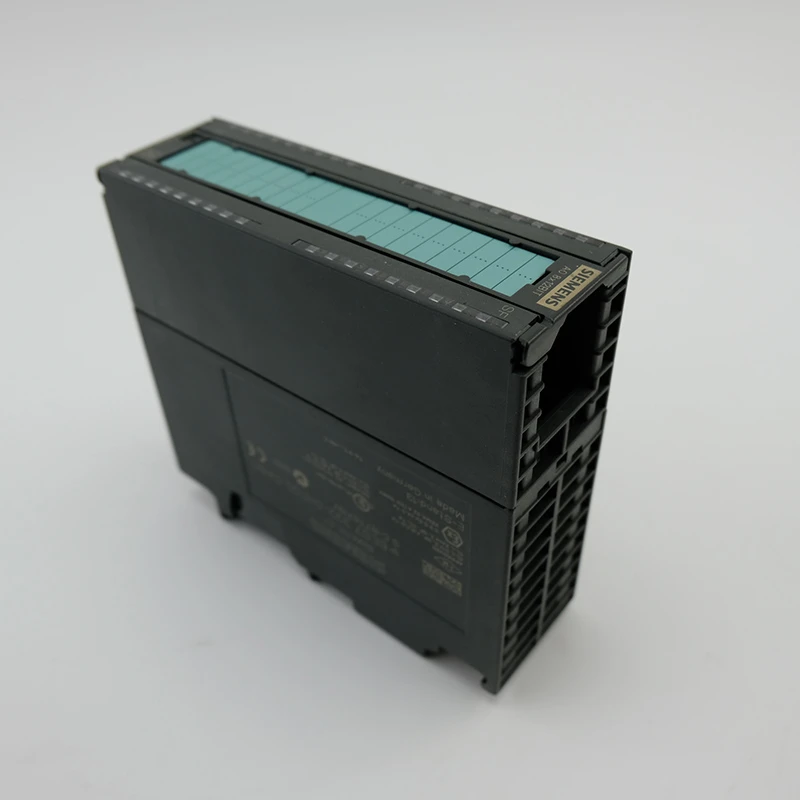

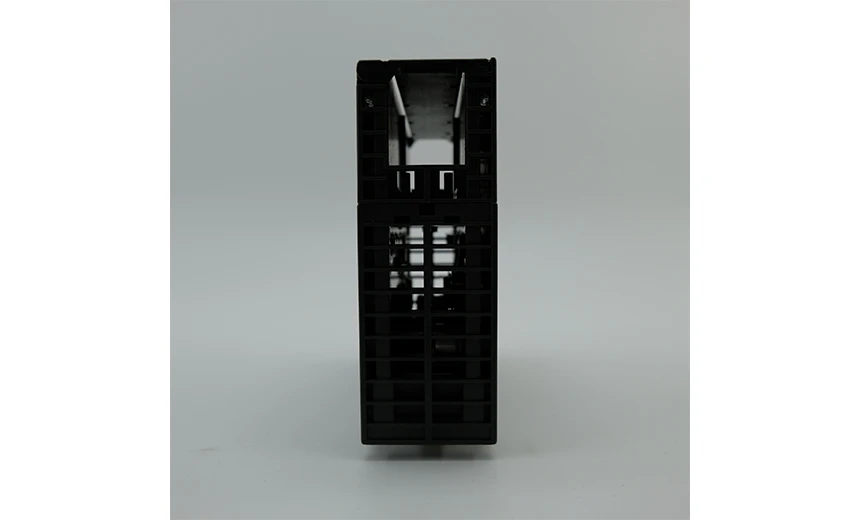

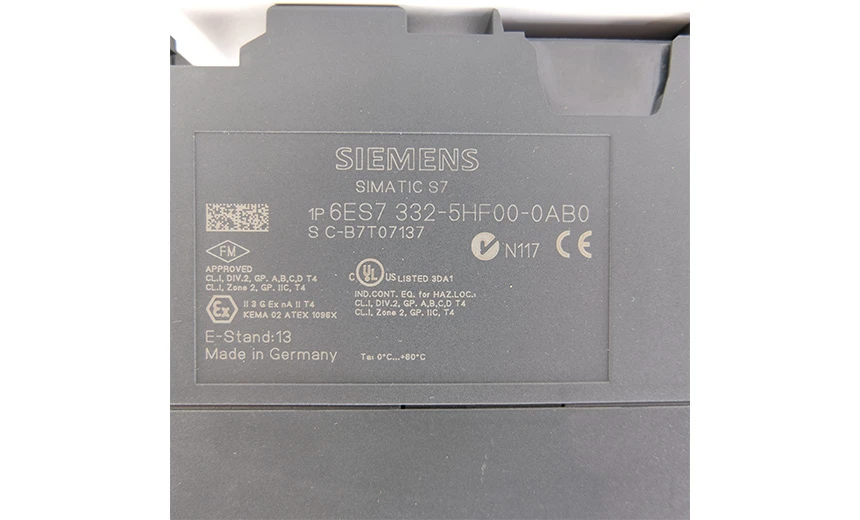

The Siemens 6ES7332-5HF00-0AB0 is an analog output module in the SIMATIC S7-300 series, also known as SM 332. As an analog output module, it has 8 analog output channels, which can convert digital signals to analog signals for output to external actuator components, such as solenoid valves, contactors, low-power motors, lights, etc.
Model: 6ES7332-5HF00-0AB0
Brand: Siemens
Size: 13*15*5cm
Weight: 0.32kg
Country of origin: Germany
Output frequency: 36
Working voltage: 380V~480V
Rated voltage: 24V
Rated current: 32A
Contact form: 24-220
The Siemens 6ES7332-5HF00-0AB0 is an analog output module in the SIMATIC S7-300 series, also known as SM 332. As an analog output module, it has 8 analog output channels, which can convert digital signals to analog signals for output to external actuator components, such as solenoid valves, contactors, low-power motors, lights, etc.
The module supports a variety of output ranges, including 0 to 10V, 1 to 5V, -10 to +10V, 0 to 20mA, -20 to +20mA, 4 to 20mA, etc., to meet the input requirements of different devices. Each output port has short circuit protection to ensure safe operation in case of short circuit. In addition, the module is equipped with load resistance and capacitive load parameters, ensuring compatibility with external devices.
The module has a 40-pin connection design for easy connection to the S7-300 controller, and supports pluggable utilization of the activated backplane bus, making it more flexible and convenient. It also has high accuracy and stability, providing precise output over the entire temperature range.
Siemens 6ES7332-5HF00-0AB0 module can monitor the operating status in real time through the diagnostic function, and has an alarm function, which can realize fault diagnosis and alarm to ensure the reliability and stability of the system operation. In addition, the module also uses potential isolation and insulation technology, which can effectively isolate the electrical signal between the channel and the backplane bus to ensure the safety of the system.
To sum up, the Siemens 6ES7332-5HF00-0AB0 module is a powerful, stable and reliable analog output module, which has a wide range of application prospects and plays an important role in industrial automation control systems.
