Siemens 6AV2124-0JC01-0AX0 is a powerful and easy to operate smart panel, with high-definition display, multi-interface, large capacity storage and stable operating system characteristics, suitable for industrial control and monitoring fields, to provide users with convenient and efficient human-computer interaction experience. At the same time, it provides maintenance guidance for common faults to help users better maintain and manage the equipment.
Model: 6AV2124-0JC01-0AX0
Brand: Siemens
Size: 36*27*11cm
Weight: 2.4kg
Country of origin: Germany
Monitor size: 9 inches
Resolution: 16000000
Processor: X86
Display type: touch screen
Display color: 16777216
Memory: Standard
Input method: touch screen input

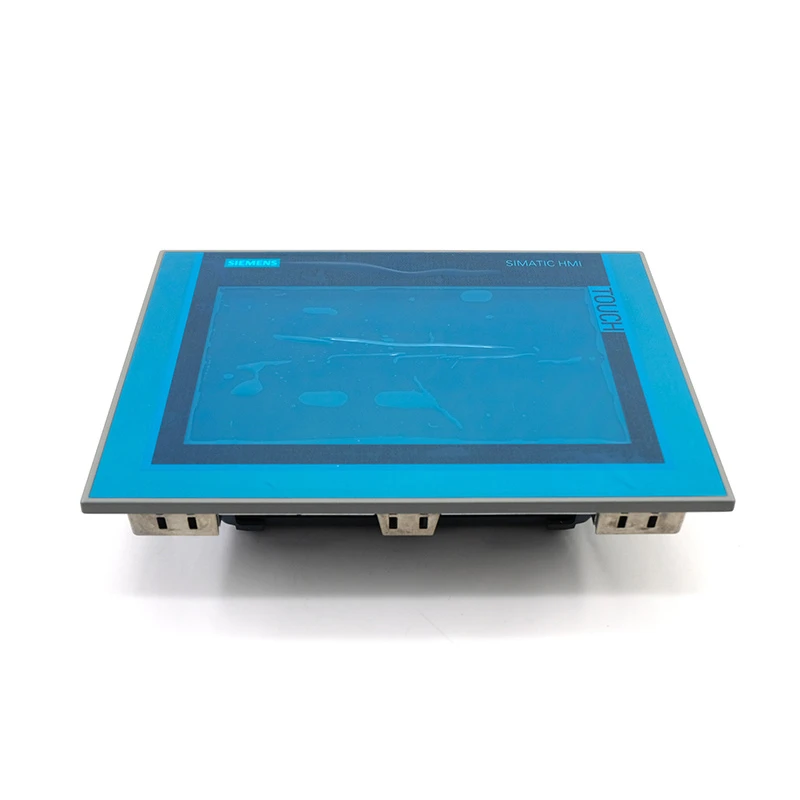

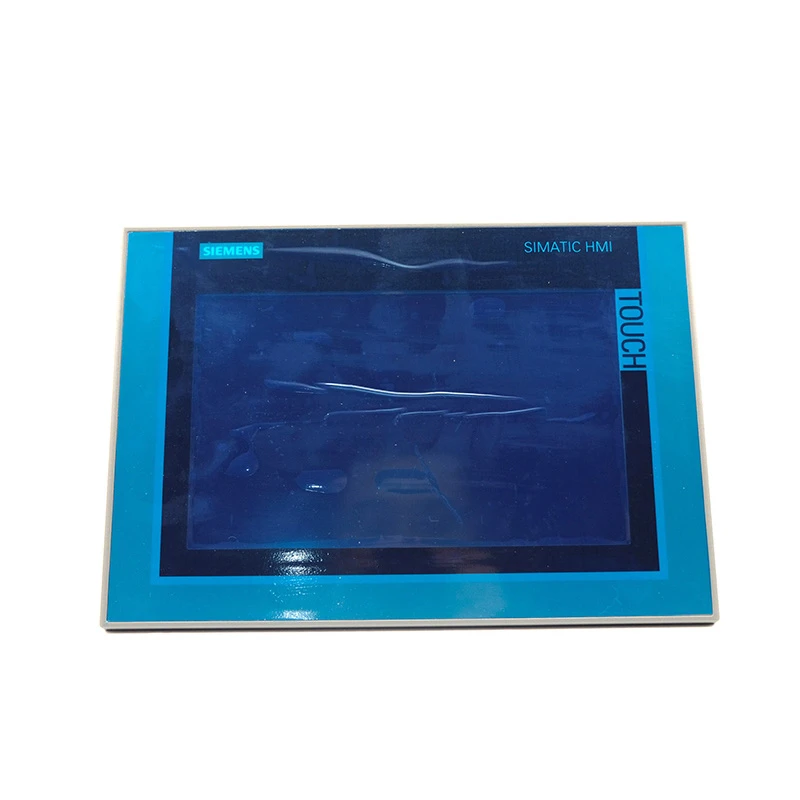

The Siemens 6AV2124-0JC01-0AX0 is a smart panel in the SIMATIC HMI TP900 Comfort series. It is touch-operated and comes with a 9-inch widescreen TFT display that supports 16 million colors and provides excellent graphics. The panel has PROFINET interface and MPI/PROFIBUS-DP interface, built-in 12MB of project mode memory, Windows CE 6.0 operating system, for WinCC Comfort version 11 or later.
Main feature
1. Hd display: The 9-inch widescreen TFT display supports 16 million colors with a resolution of 800x480 pixels, presenting clear and vivid images and text, providing a high-quality user experience.
2. Multi-interface: The device has PROFINET interface and MPI/PROFIBUS-DP interface, which can realize efficient communication and data exchange with other devices, and improve the flexibility and scalability of the system.
3. Large capacity storage: built-in 12MB project mode memory, can store a large number of project data and configuration information, to ensure the stability and reliability of the system.
4. Stable operating system: Equipped with Windows CE 6.0 operating system, it has good compatibility and stability, and provides users with friendly operation interface and rich functions.
5. Multiple interfaces: The device is equipped with a variety of interfaces, including RS485, USB, SD card, etc., to meet the data transmission and connection requirements in different scenarios.
6. Industrial Ethernet: With industrial Ethernet interface, support 2 ports (switch), integrated status LED and switch port, providing a more convenient network connection.
Mechanical/material properties
1. Installation mode: It can be installed vertically (in portrait format) or horizontally (in landscape format), applicable to different installation scenarios.
2. Shell material: The front is made of aluminum, which has good durability and corrosion resistance and is suitable for the requirements of industrial environment.
Maintenance and troubleshooting
1. Common faults: The operating system cannot be installed on the touch screen, the screen is not displayed, and the system reports an error, which may be caused by software abnormalities, hardware faults, or connection problems.
2. Maintenance guidance: For common faults, you can eliminate and repair them by reinstalling the operating system, checking the screen connection cable, and updating the driver.
Sum up
Siemens 6AV2124-0JC01-0AX0 is a powerful and easy to operate smart panel, with high-definition display, multi-interface, large capacity storage and stable operating system characteristics, suitable for industrial control and monitoring fields, to provide users with convenient and efficient human-computer interaction experience. At the same time, it provides maintenance guidance for common faults to help users better maintain and manage the equipment.
