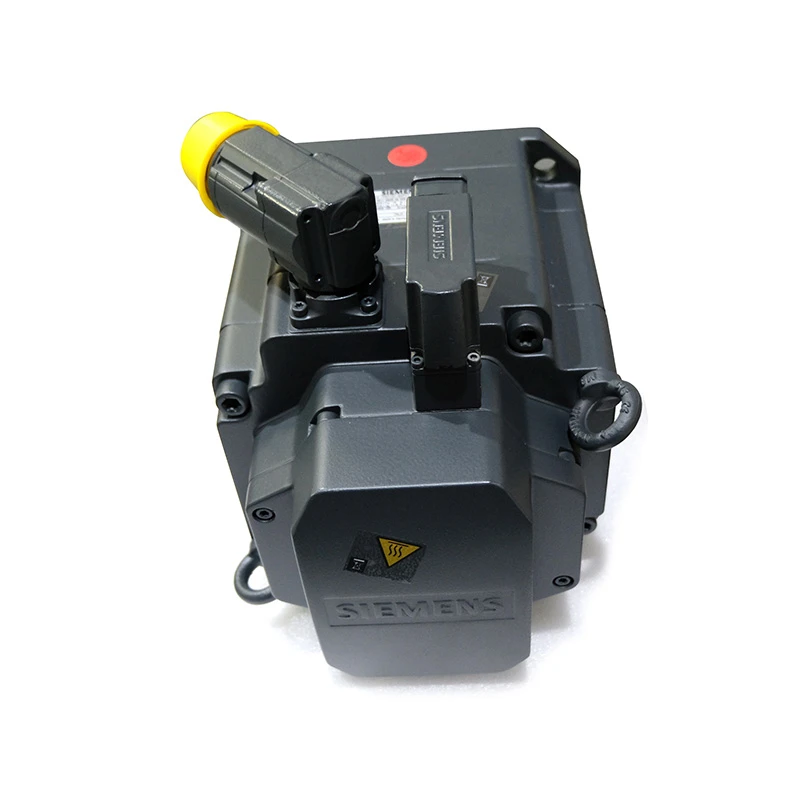

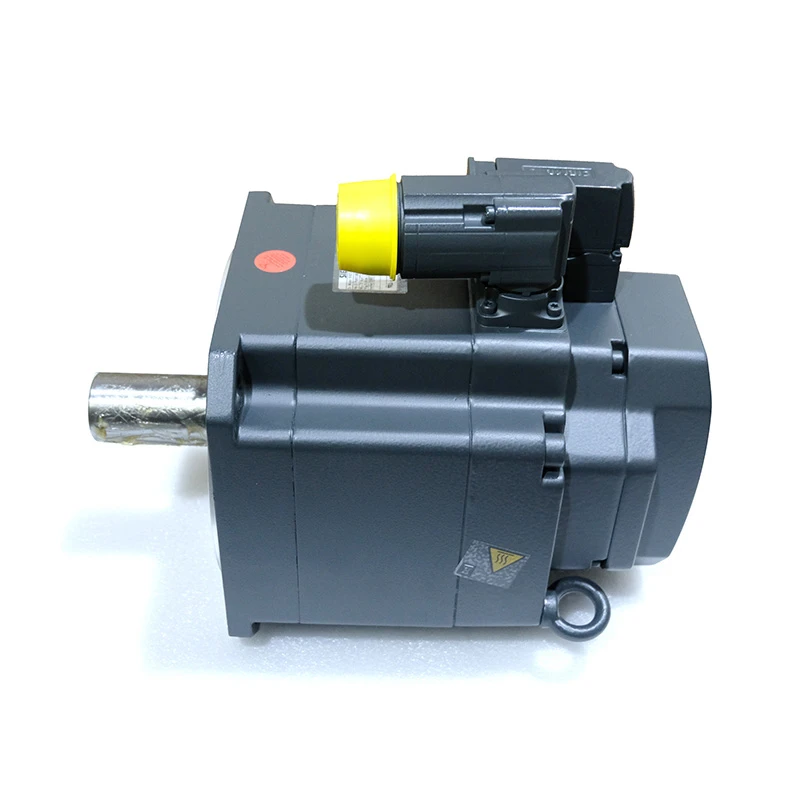

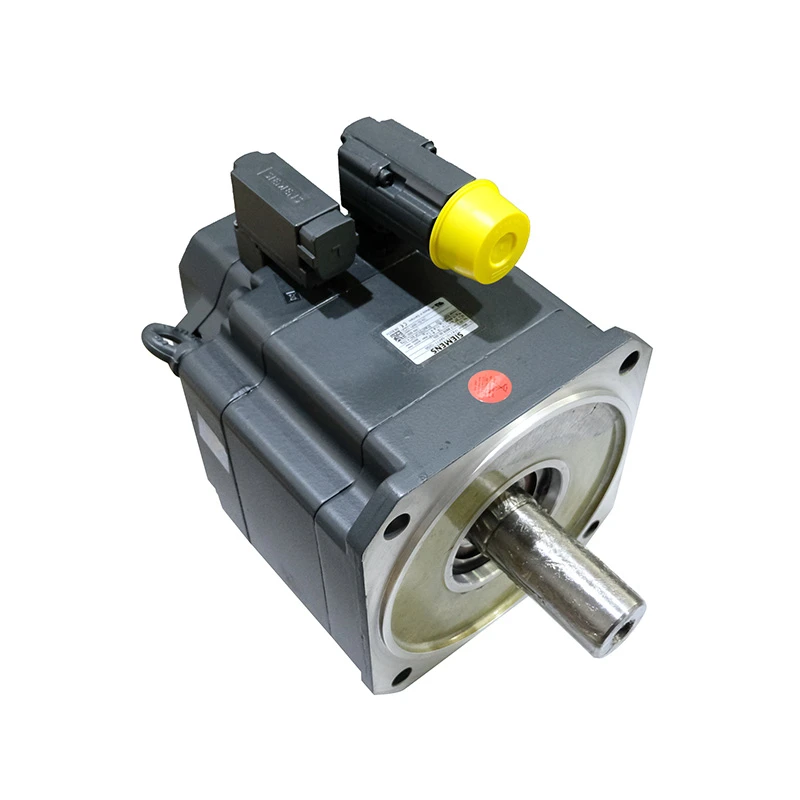

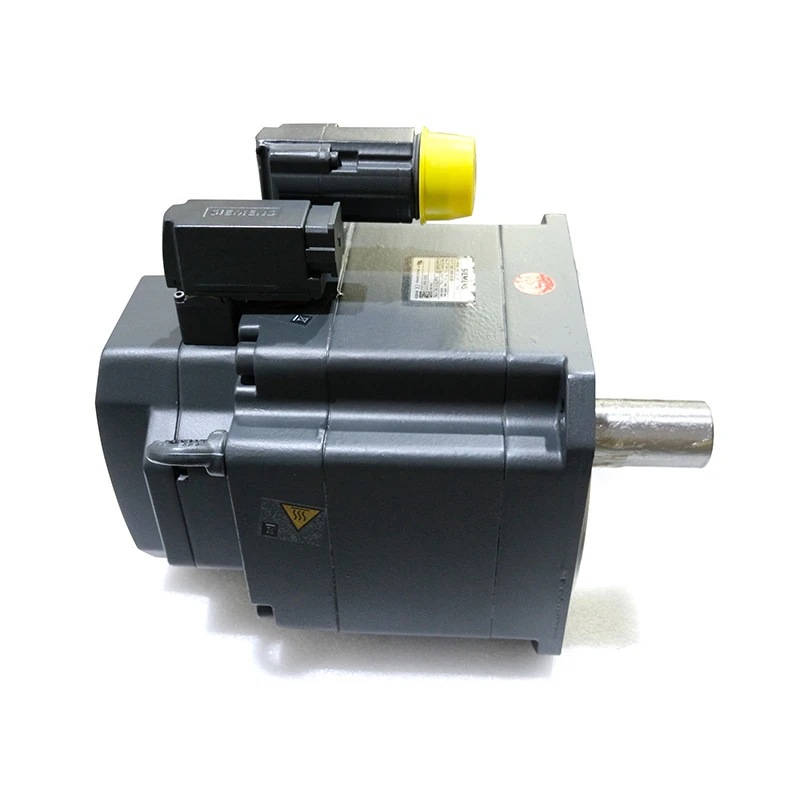

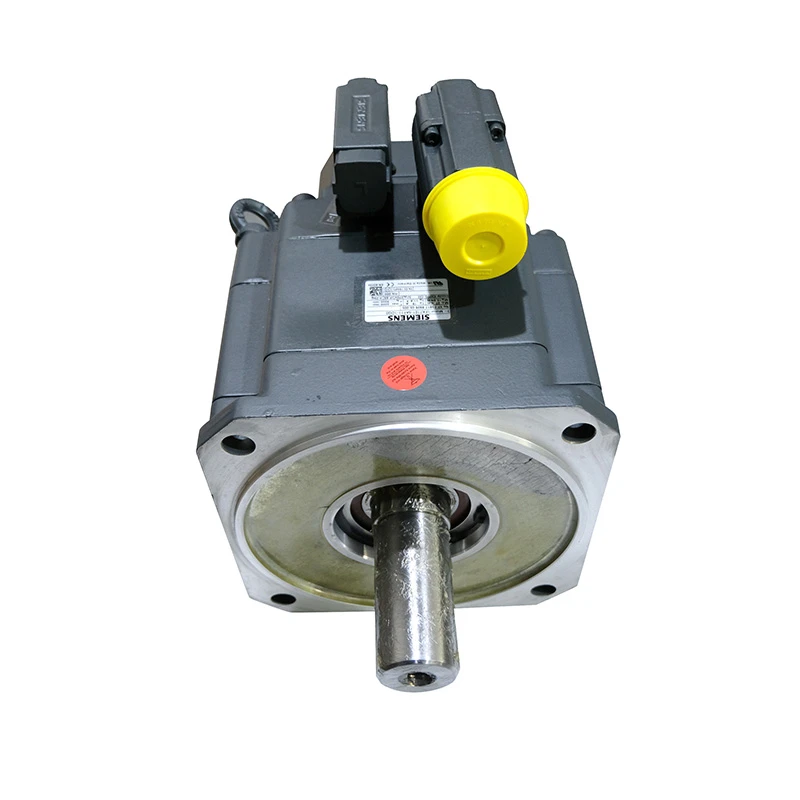

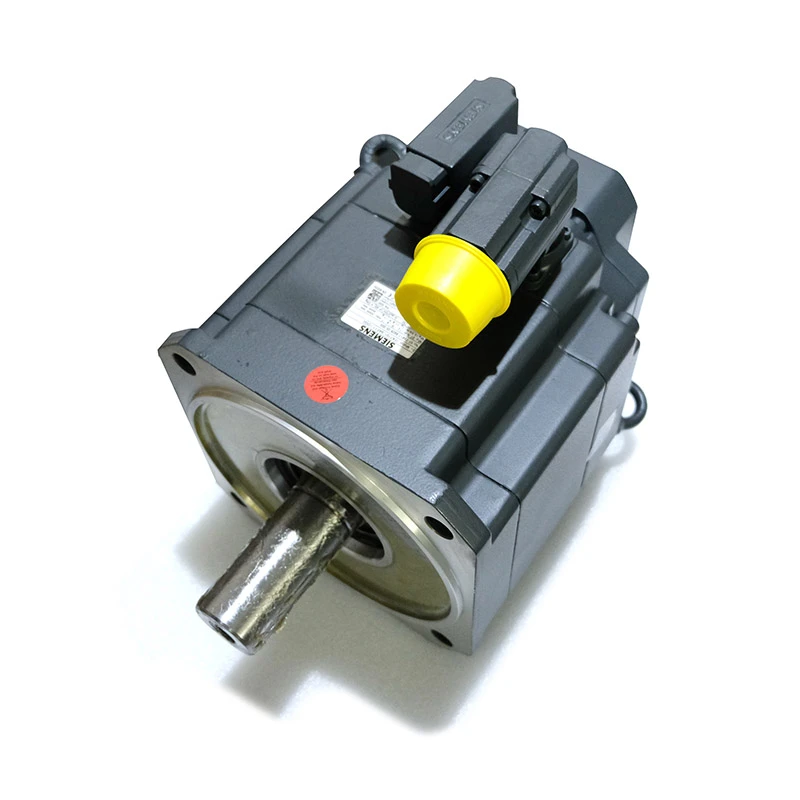

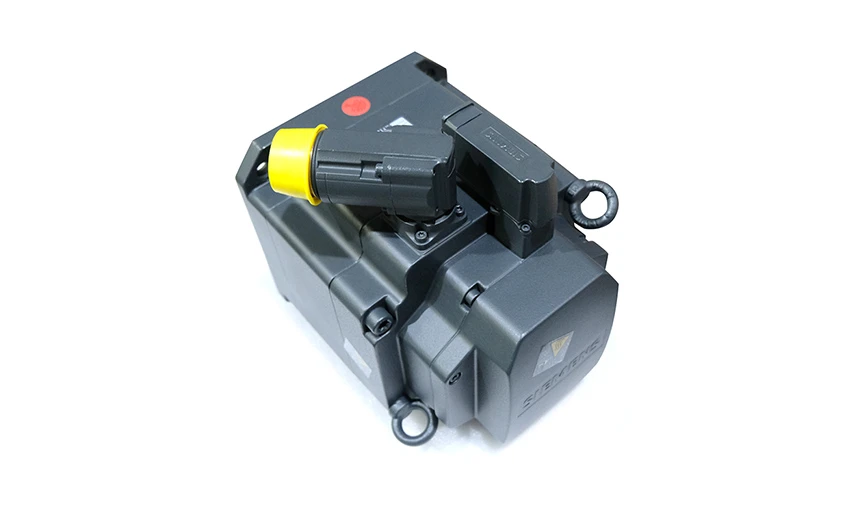

The 1FK7101-5AF71-1DG0 is a Siemens servo motor that provides reliable power support for applications such as industrial production lines and machining equipment. This motor features a compact design with excellent performance and reliability.
Model: 1FK7101-5AF71-1DG0
Brand: Siemens
Size: 48*37*34cm
Weight: 26.2kg
Country of origin: Germany
Series: Servo series
Power: 4.3kW
Product Certification: ROHS
Applicable motor: Compact
Application: Factory automation
Product type: permanent magnet synchronous motor

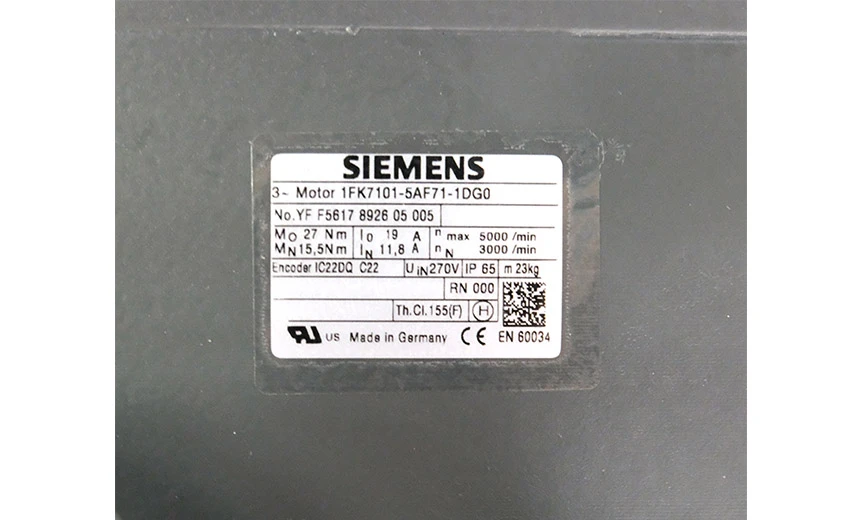

Shaft height: 100
Rated power: 4.3kW
Rated current: 11.8A
Rated speed: 3000rpm
Rated torque: 15.5Nm
Encoder type: encoder IC22DQ
Shaft end specification: optical shaft
Installation mode: Embedded
Protection class: IP65 and IP67 drive flange
The 1FK7101-5AF71-1DG0 is a Siemens servo motor that provides reliable power support for applications such as industrial production lines and machining equipment. This motor features a compact design with excellent performance and reliability.
The motor has the following main features:
Specification: 1FK7101-5AF71-1DG0 Spare part synchronous servo motor adopts self-cooling design (IMB5), rated torque of 27Nm, rated speed of 3000rpm, power up to 4.85kW. It is equipped with a power plug/signal plug that can rotate 270°, as well as an incremental encoder 2048 S/R and Drive-CLiQ interface, making it easier to integrate and control.
Application scenario: The motor is suitable for various industrial applications, including automated production lines and mechanical processing equipment. Its stable performance and efficient power output make it an integral part of the production process.
Performance parameters: 1FK7101-5AF71-1DG0 Spare synchronous servo motor with 8-pole design, rated torque of 15.5 Nm, static torque (60 K) of 22.40 Nm. Its moment of inertia is 79.900 kgcm² and its effective coefficient is 93.0%, ensuring excellent operational stability and accuracy.
Service and alarm: The motor can be combined with the SINAMICS S120 drive for precise control of speed and position. In the process of use, common servo system alarms such as 416, 426, 436, 446, 456 servo alarms of FANUC6ME system, and 1364 servo alarms of Siemens 880 system need to be troubleshooting and maintenance according to the alarm number to ensure the normal operation of the equipment.
In summary, the 1FK7101-5AF71-1DG0 spare parts synchronous servo motor has excellent performance, reliable quality and wide applicability, providing important power support for industrial production, is the ideal choice in the field of industrial automation.
