Lenze MFEMAXX071-42C1C | Lenze servo motor

Main features

1. High performance: Provides highly efficient power output for a wide range of industrial applications.

2. Power supply voltage: support a variety of power supply voltage, depending on the model.

3. Power range: 11.50 kW

4. Communication Interface: Supports a variety of communication interfaces for easy integration with control systems.

5. Feedback type: support a variety of encoder feedback to ensure precise control.

6. Installation: a variety of installation methods to adapt to different installation environments.

7. Conformity standards: conform to many international standards, such as EN 60034, ISO CL.F, IP55.

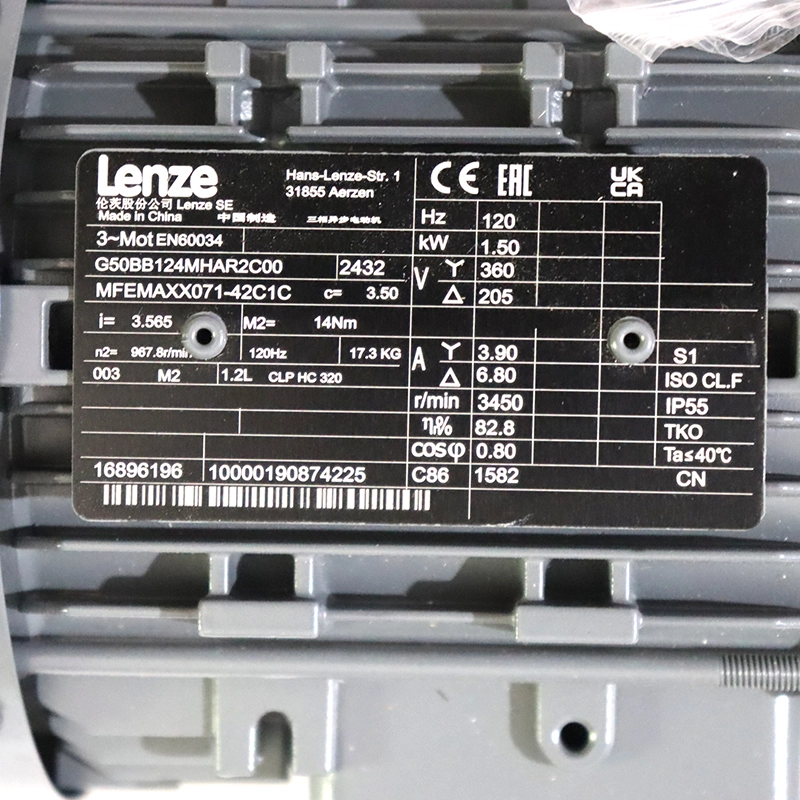

Technical parameters

8. Power supply voltage: support a variety of power supply voltage, depending on the model.

9. Power range: 11.50 kW

10.Rated frequency: 120 Hz

11. Rated current: depending on the models

12.Rated speed: 3450 r/min

13.Rated torque: 14 Nm

14. Reduction ratio: i = 3.565

15.Efficiency: 82.8%

16.Power factor: cos(φ) = 0.80

17. Protection grade: IP55

18. Insulation grade: ISO CL.

19. Working system: S1 (continuous working system)

20. Weight: 17.3 kg

21.Ambient Temperature: Maximum 40°C

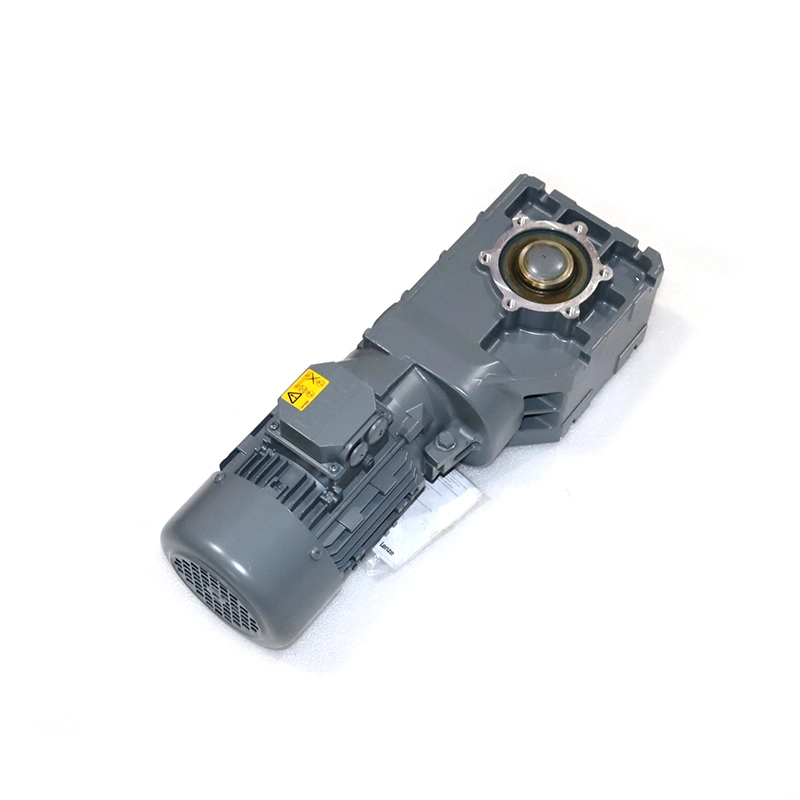

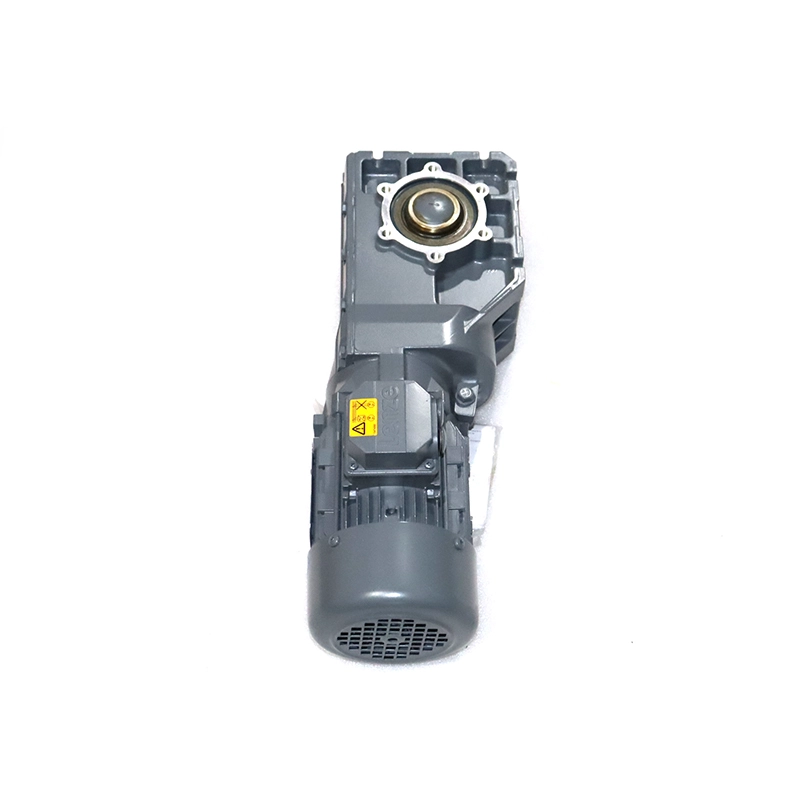

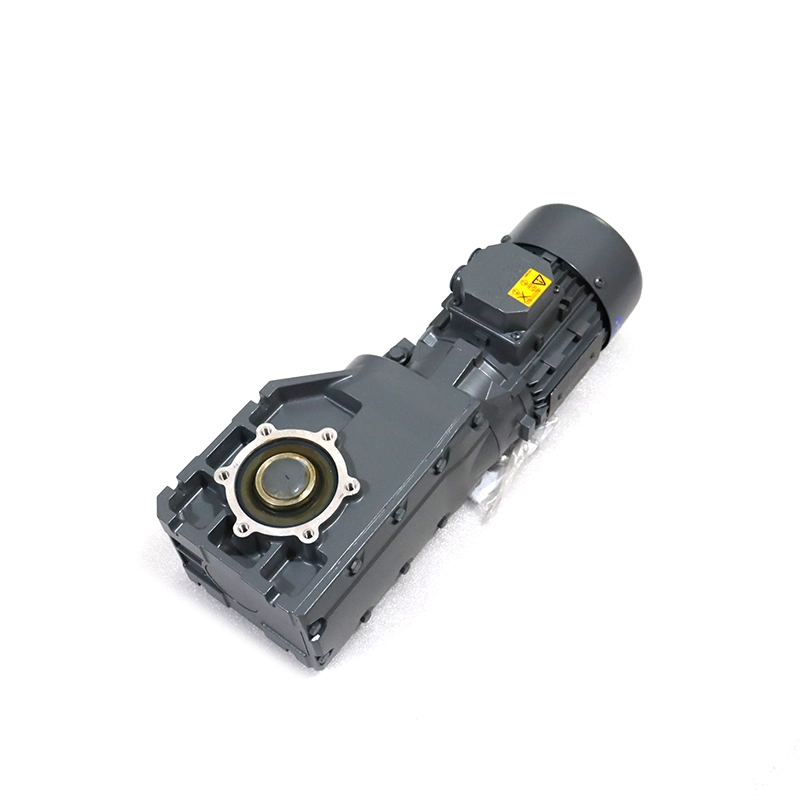

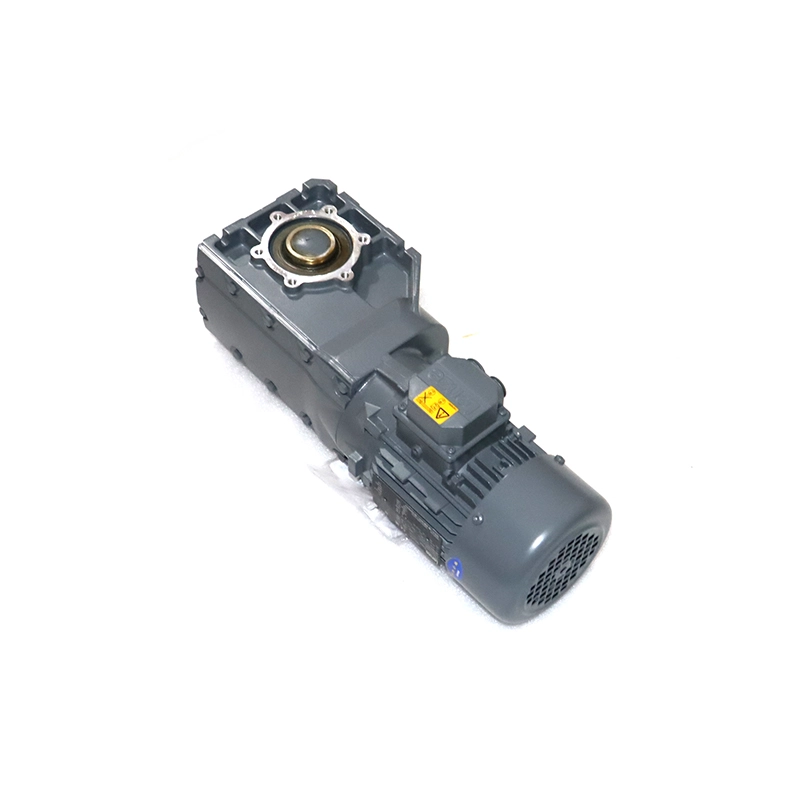

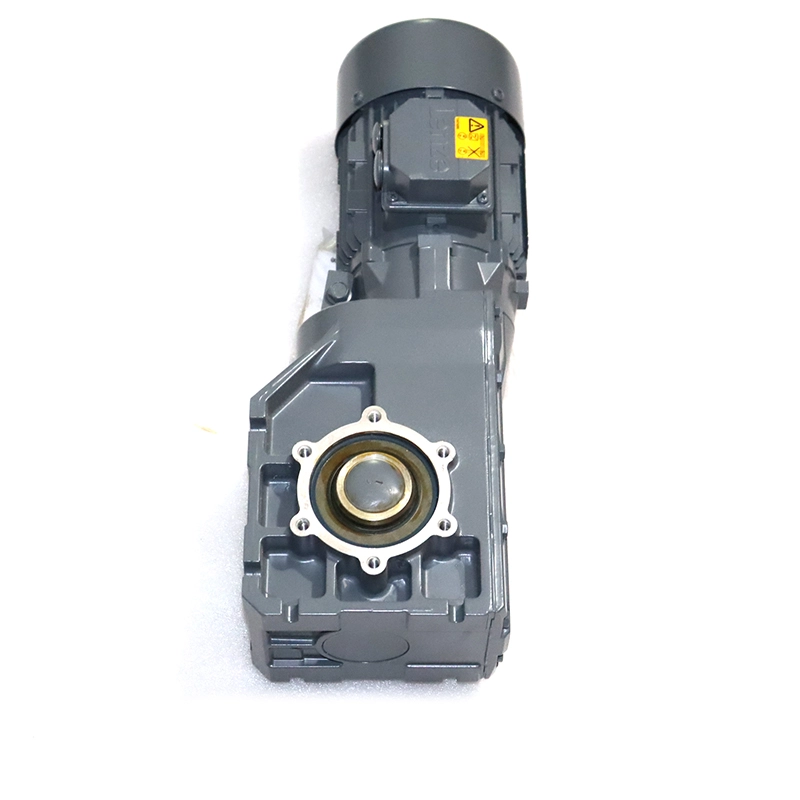

Details of Lenze MFEMAXX071-42C1C | Lenze servo motor
