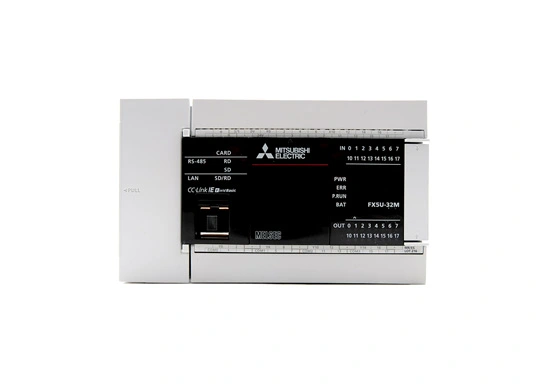

FX5U-32MR

The Mitsubishi PLCFX5U-32MR is a basic CPU unit with 16 built-in input points and 16 output points, and the output type is relay, which is suitable for AC power supply The product has a variety of functions and features that make it suitable for a variety of industrial automation control scenarios12.


The specific specifications of the FX5U-32MR are as follows:

  • Input specifications: The input form is drain/source type, the number of input points is 16 points, the connection status is a detachable terminal block (M3 screw), the input signal voltage is DC24V +20%, -15%, the input signal current is 5.3mA/DC24V (X000~X0170), 4mA/DC24V (after X020), and the input resistance is 4.3KΩ (5.6KΩ after X020) 13.

  • Output specifications: The output type is relay, the number of output points is 16 points, the connection status is replaceable electronic station (M3 screw), the external power supply is DC30 or less, AC250V or less (AC240 or less when CE, UL, cUL certification is not corresponding), the minimum load is DC5V 2mA, and the response time is about 10ms 12.


The FX5U-32MR also has a variety of functions and features:

  • Built-in functions: including built-in 12-bit 2ch analog input and 1ch analog output, built-in RS485 port (with MODBUS function) and Ethernet port, built-in SD memory card, easy to upgrade and mass production, with RUN/STOP/RESET switch, no need to turn off the main power to restart, high-speed system bus, communication speed is about 3 times that of FX150U, built-in 4-axis pulse output, maximum pulse output frequency is 200Kpps 24.

  • Special functions: including positioning and pulse output function, a PLC unit can output 2 points 100KHz pulse at the same time, equipped with 7 special positioning instructions, including zero return, position readout, relative drive and special pulse output control, real-time clock function and hour meter function, continuous scanning function, input filter adjustment function, component annotation recording function, remote maintenance function, password protection function 5.


To sum up, the FX5U-32MR is a powerful Mitsubishi PLC product for industrial automation scenarios that require high speed, high reliability, and multiple control functions.


The Mitsubishi PLC FX5U-32MR/ES product specifications are detailed below


【Input Specifications】

 ◆ Input form: drain/source

 ◆ Number of input points: 16 points

 ◆ Connection Status: Removable Terminal Block (M3 Screw)

 ◆ Input signal voltage: DC24V +20%, -15%

 ◆ Input signal current: 5.3mA/DC24V (X000~X0170), 4mA/DC24V (after X020)

 ◆ Input resistance: 4.3KΩ (5.6KΩ after X020)

 ◆ Input ON current: 3.5mA or more (3.5mA after X020)

 ◆ Input OFF current: 1.5mA or less

 ◆ Number of input response frequency:

    X000~X005:200kHz

    X006~X007:10kHz

 ◆ Input response time (H/W filter delay):

    X000~X005: 2.5μs or less for ON, 2.5μs or less for OFF

    X006~X007: 30μs or less for ON, 50μs or less for OFF

 ◆ Input response time (digital filter setpoint): None, 10μs, 0.1ms, 0.2ms, 0.4ms, 0.6ms, 1ms, 5ms, 10ms (initial value), 20ms, 70ms (in noise duck hook)

 ◆ Input signal form: no voltage contact input leakage NPN open collector transistor, source PNP open collector transistor

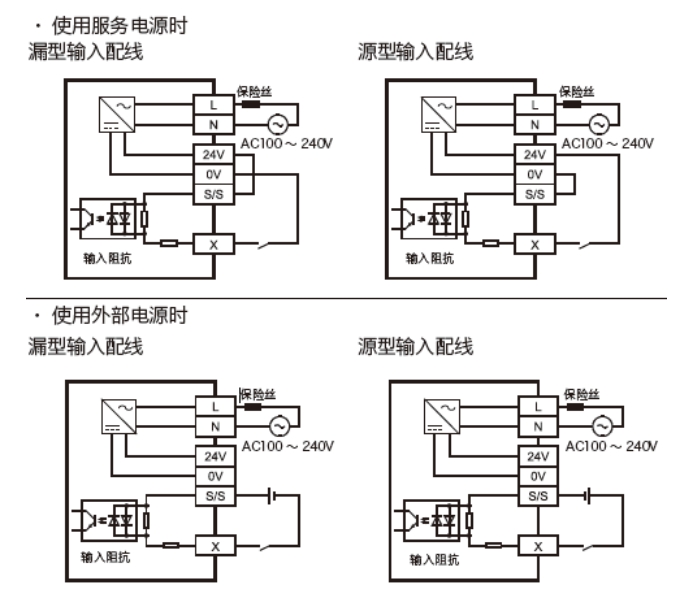

 ◆ Input Circuit:



【Output Specifications】

 ◆ Output Type: Relay

 ◆ Number of output points: 16

 ◆ Connection status: replaceable electronic station (M3 screw)

 ◆ External power supply: 30 DC or less, AC250 V or less (AC240 or less except for CE, UL, and cUL certifications)

 ◆ Minimum load: DC5V 2mA

 ◆ Response time: about 10ms

 ◆ Circuit insulation: mechanical insulation

 ◆ Display output indication: LED light is on when ON is output

 ◆ Maximum resistance load: 2A/1 point

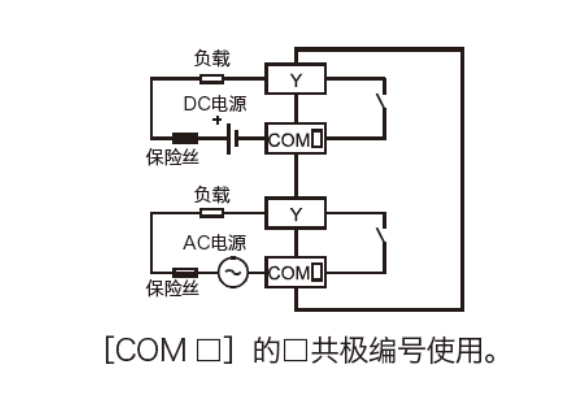

 ◆ Output circuit diagram




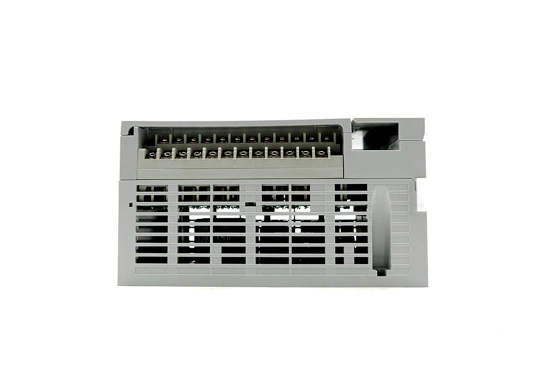

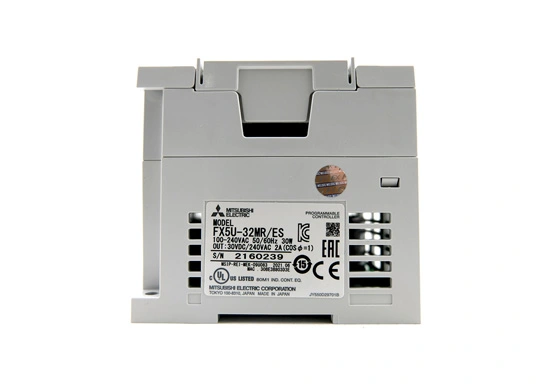

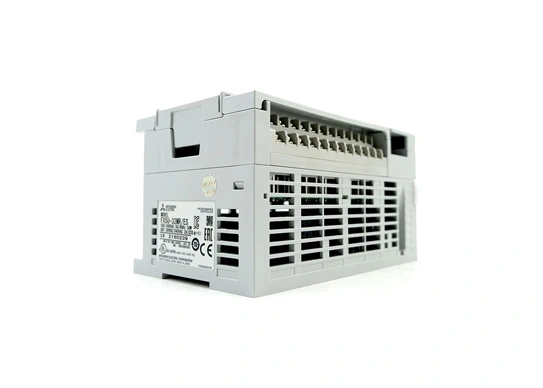

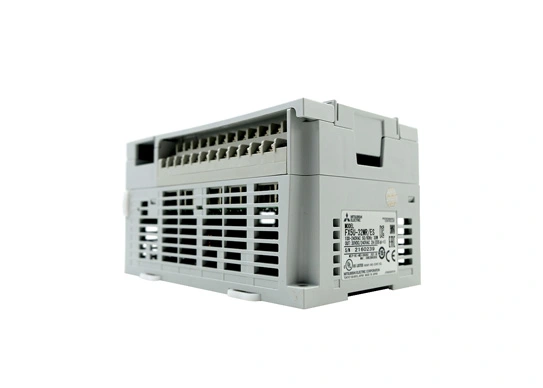

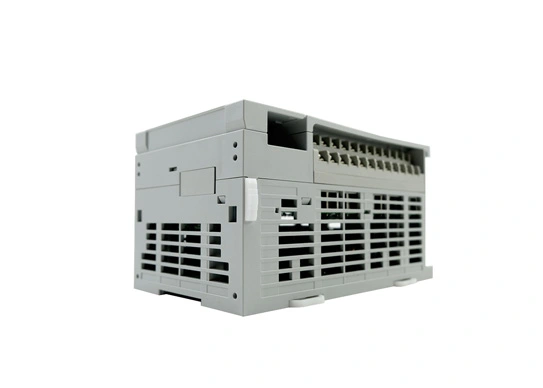

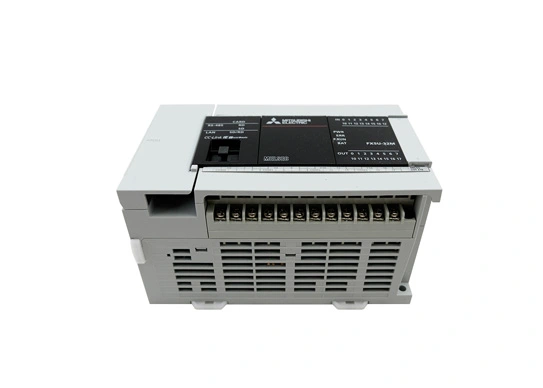

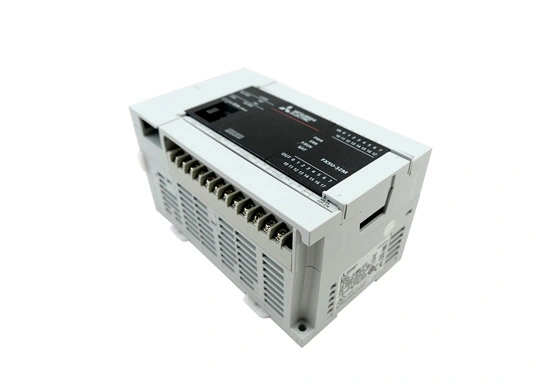

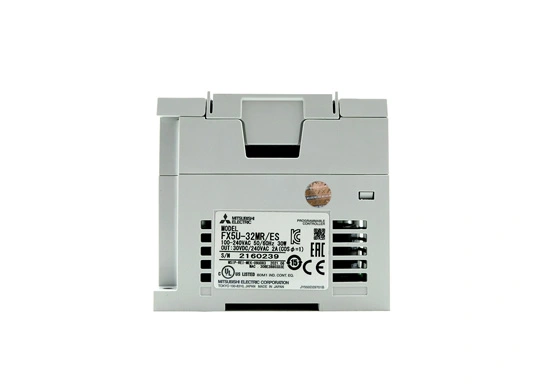

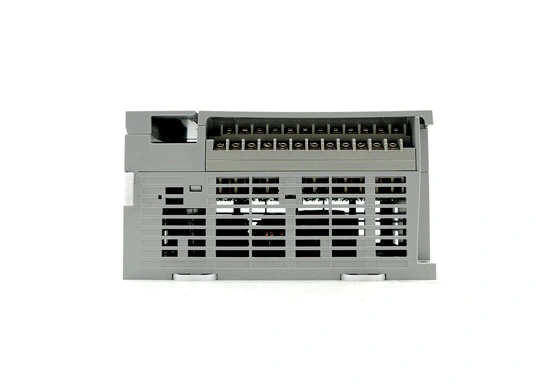

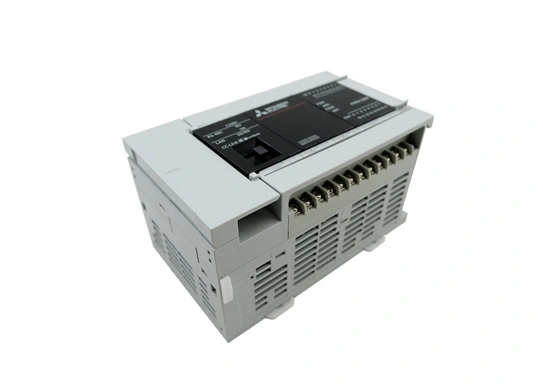

Details of FX5U-32MR
