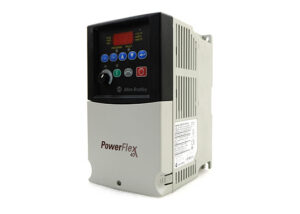

The 22B-D010N104 is an Allen-Bradley PowerFlex 40 AC drive rated for 480 V, 10 A — a 5 HP (4 kW) class drive found on conveyors, pumps, fans, and mixers across North American plants. When one trips a fault code and stops a line, you need two things fast: what the code means, and how quickly you can get a working drive back in. This guide covers both, plus how to choose between repair and replacement.
What Is the 22B-D010N104?
The 22B-D010N104 belongs to the PowerFlex 40 family of compact variable frequency drives from Allen-Bradley (Rockwell Automation). The “D” in the model number marks the 480 V class (3-phase input), and “010” is the 10 A output current rating — driving motors up to 5 HP (4 kW) in normal duty.
PowerFlex 40 drives are popular because they are simple: an integral keypad with LED display, sensorless vector control, and an RS485 (DSI) communication port for integration with PLCs. If you are connecting one to a PLC for the first time, our VFD and PLC integration guide walks through the wiring and control logic.
22B-D010N104 Specifications
| Item | Specification |
|---|---|
| Model | 22B-D010N104 |
| Drive family | Allen-Bradley PowerFlex 40 |
| Input | 3-phase, 480 V class AC |
| Output current | 10 A |
| Motor rating | 5 HP / 4 kW (normal duty) |
| Control mode | Sensorless vector control, V/Hz |
| Keypad | Integral LED keypad/display |
| Communications | RS485 (DSI) port; optional network modules |
| Status | Mature product line — widely installed, actively traded on the secondary market |
Common 22B-D010N104 Fault Codes and What They Usually Mean
The PowerFlex 40 displays faults as F-codes on its keypad. These are the ones we see most on drives coming into our repair lab — and what actually causes them in the field:
| Fault code | Meaning | Most common real-world cause |
|---|---|---|
| F003 | Power loss | Input phase loss, loose mains terminals, or a weak upstream supply |
| F004 | Undervoltage | Mains dip, undersized supply, or failing DC bus capacitors |
| F005 | Overvoltage | High mains, or regenerative energy from an overhauling load with no braking resistor |
| F012 | HW overcurrent | Shorted motor cable, failing motor insulation — or a failing output stage in the drive |
| F013 | Ground fault | Motor or cable insulation breakdown to ground; occasionally drive internal damage |
Two field rules from our bench experience: first, F012 and F013 are motor-and-cable problems until proven otherwise — megger the motor before blaming the drive. Second, repeated F004 faults on an aging drive usually mean the DC bus capacitors are wearing out, which is a straightforward repair.
Common Hardware Failures We See
- DC bus capacitor aging. The most common age-related failure. Symptoms: undervoltage faults, reduced torque, or a drive that faults under load but runs fine unloaded.
- Cooling fan failure. A stalled fan leads to over-temperature trips and, if ignored, power-stage damage. Listen for grinding — it is your early warning.
- Output stage (IGBT) failure. Usually secondary damage from a shorted motor or cable. Test the motor before installing a repaired or replacement drive.
- Keypad/display failure. Faded displays and dead buttons are common on drives in hot or dusty panels. The drive often still runs — but you cannot program or diagnose it.
- Control board damage from moisture or dust. Conformal coating only goes so far. Corrosion causes erratic, hard-to-diagnose behavior.
Have a 22B-D010N104 showing a fault code? Send us the code and what the drive was doing when it tripped — our engineers will tell you the likely cause before you spend anything. [email protected]
Repair or Replace: What Makes Sense?
| Option | Typical cost | Lead time | Best when |
|---|---|---|---|
| Repair your failed drive | Lowest — save up to 75% | 3–5 days standard | Failure is capacitors, fan, keypad, or control board |
| Tested replacement from stock | Moderate | Ships in 48 hours | The line is down and downtime costs more than the drive |
| Untested surplus | Varies | Varies | Only if you can test it under load before installation |
One PowerFlex 40 specific note: save your parameters. If the old drive still powers up, copy the parameter set before removing it. If it does not, your replacement drive will need commissioning from scratch — motor data, accel/decel, and I/O configuration. When you order from us, send your parameter list and we can pre-configure the replacement before it ships.
22B-D010N104 In Stock at OUKE
We keep the 22B-D010N104 PowerFlex 40 drive in stock, bench-tested under load before shipping. Orders leave our Dongguan warehouse within 48 hours via DHL, FedEx, or UPS, with a minimum 1-year warranty and no MOQ. We also carry the wider Allen-Bradley range — see our Allen-Bradley product overview for PLCs, drives, and modules.
Prefer repair? Standard turnaround is 3–5 working days, with a 99.5% first-pass success rate.
FAQ
What motor size does the 22B-D010N104 drive?
It is rated 10 A output on 480 V class input, driving motors up to 5 HP (4 kW) in normal duty. Always match the drive to the motor’s full-load amps, not just horsepower.
What does fault F012 mean on a PowerFlex 40?
F012 is a hardware overcurrent fault. In the field it is most often caused by a shorted motor cable or failing motor insulation — test the motor and cable first. If they check out, the drive’s output stage needs bench diagnosis.
Can I replace a 22B-D010N104 with a different PowerFlex 40 model?
Only within the same voltage class and at equal or higher current rating. Never substitute a 230 V class drive for a 480 V application, and never undersize the current rating. Send us your motor nameplate and we will confirm the correct match.
My drive shows F004 (undervoltage) repeatedly. Is the drive failing?
Possibly — but check the incoming mains first. If the supply is stable, repeated F004 on an aging PowerFlex 40 usually means the DC bus capacitors are wearing out. That is a routine, cost-effective repair.
How long does repair take?
Our standard repair turnaround is 3–5 working days with a minimum 1-year warranty. If downtime is critical, a tested drive ships from stock within 48 hours.
Get Your 22B-D010N104 Back Running Fast
Need a tested 22B-D010N104 or a repair quote for your failed drive? We have 100,000+ SKUs in stock, all tested, shipped within 48 hours — no MOQ. Send us your part number: [email protected] or WhatsApp +86 15107352558.
