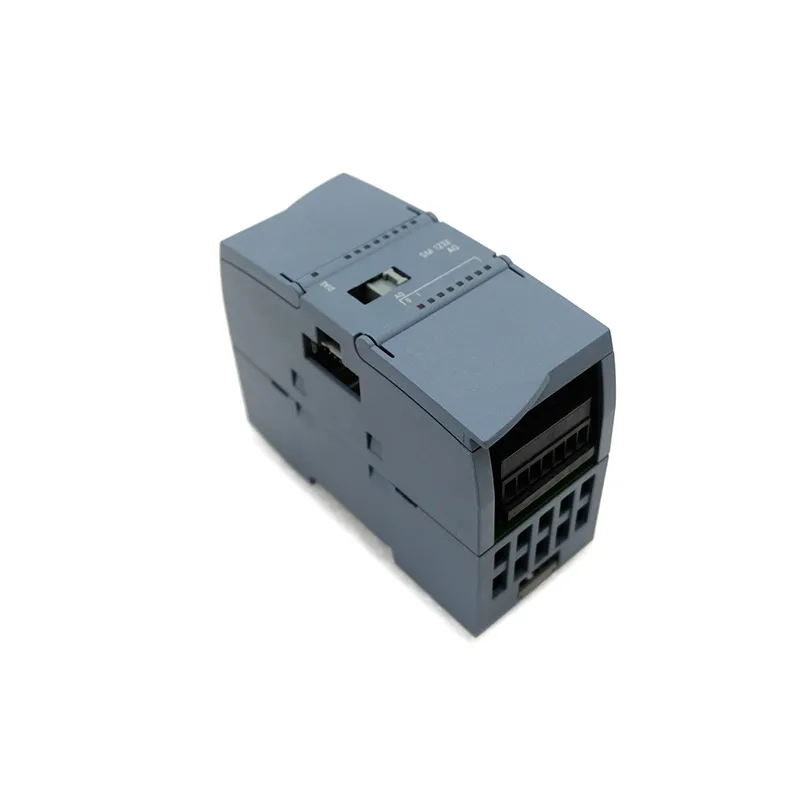

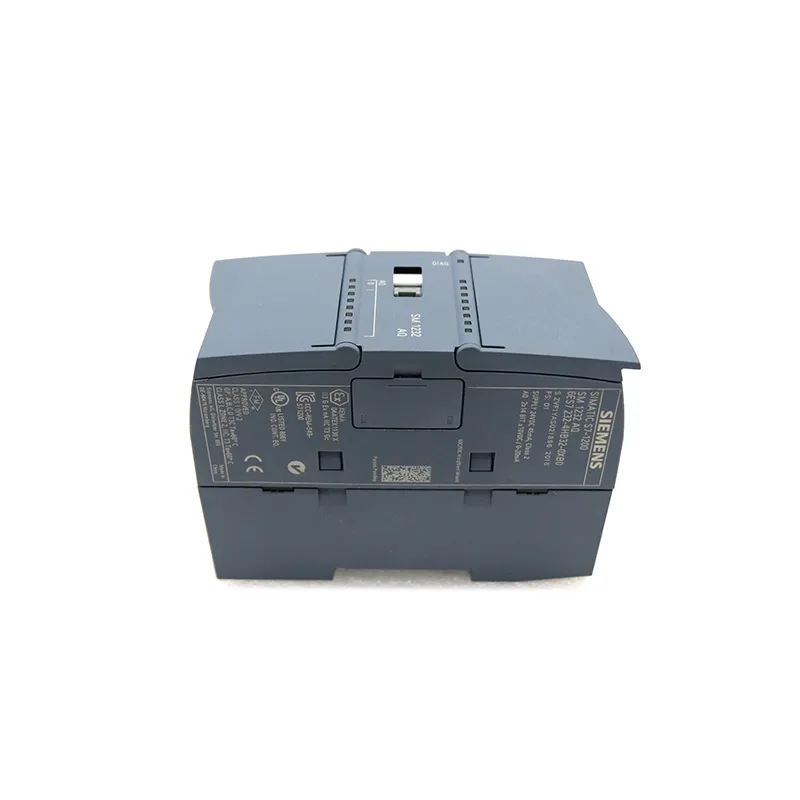

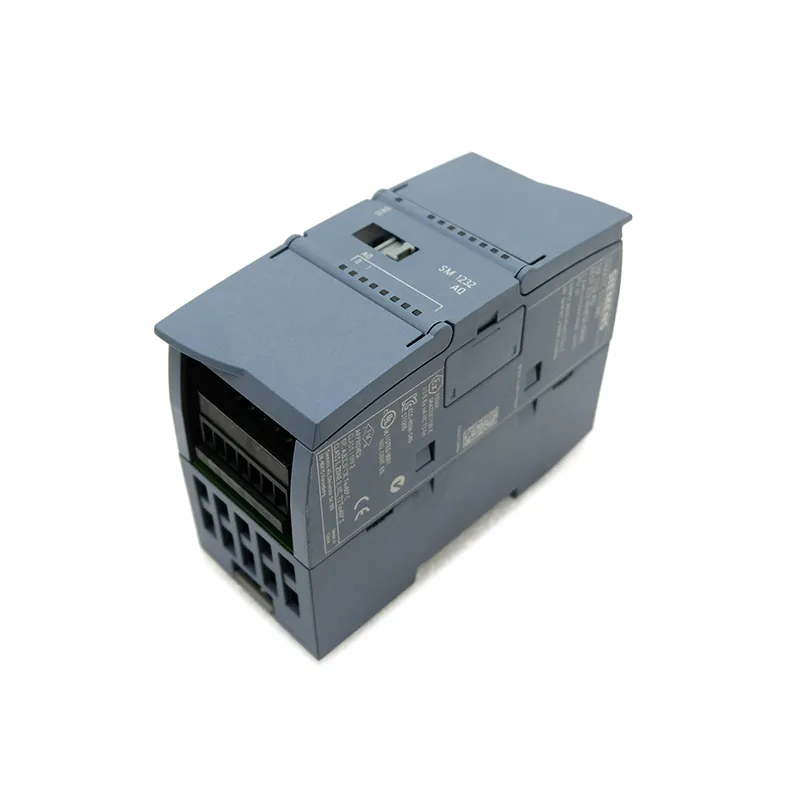

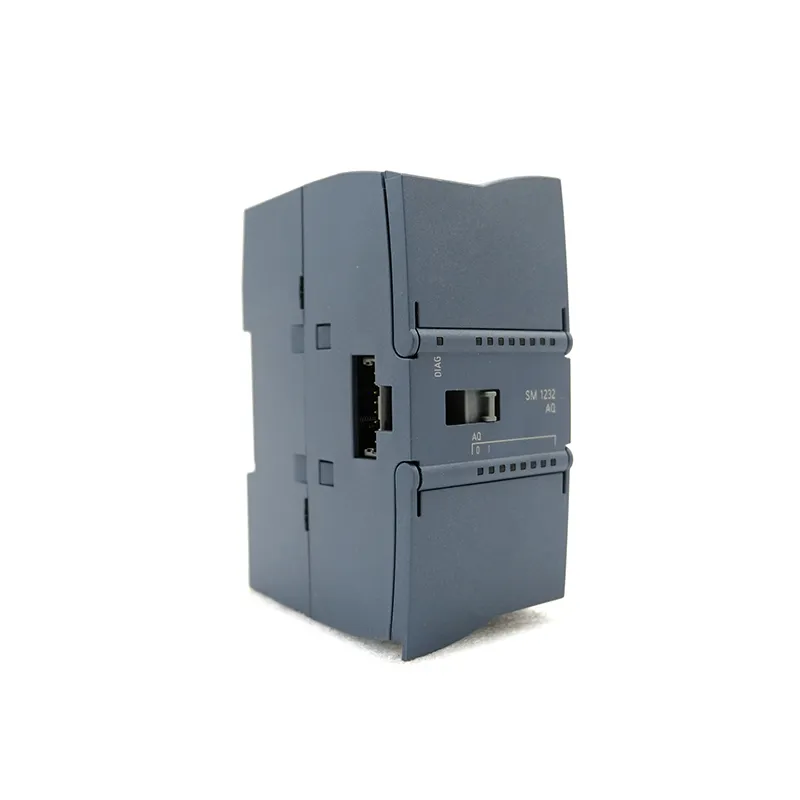

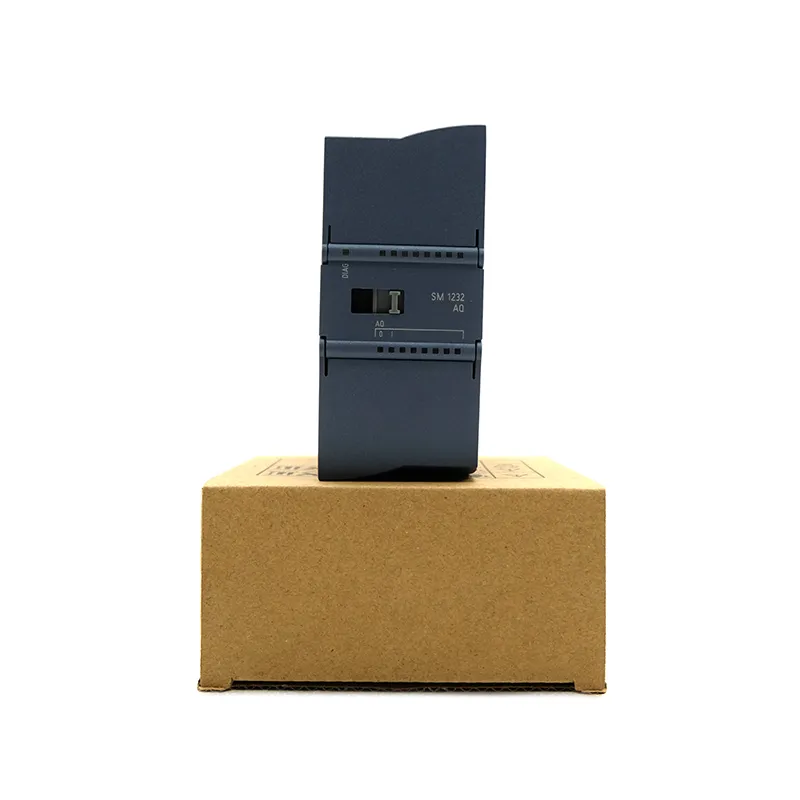

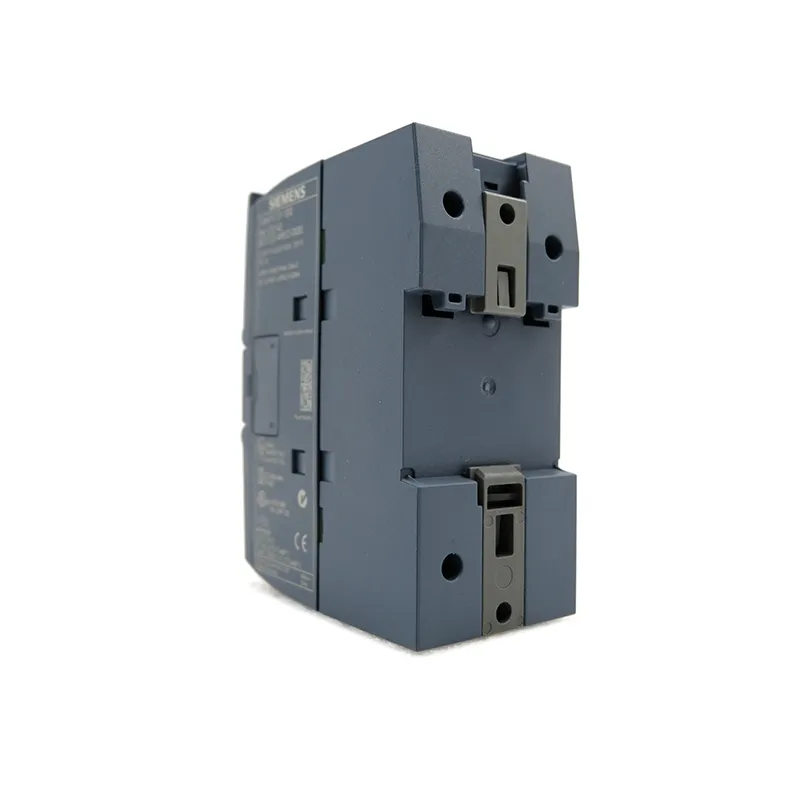

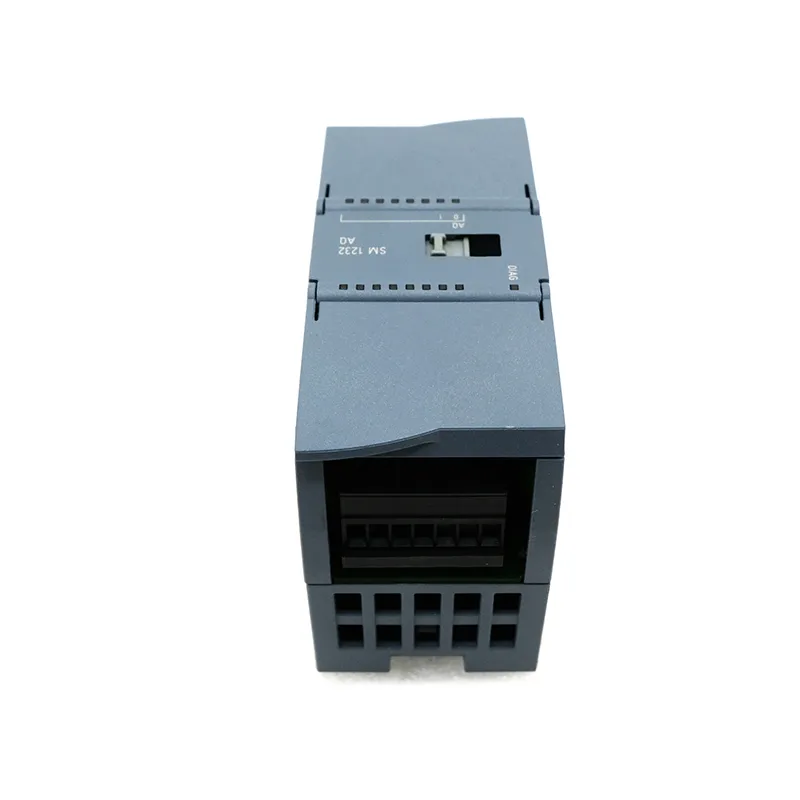

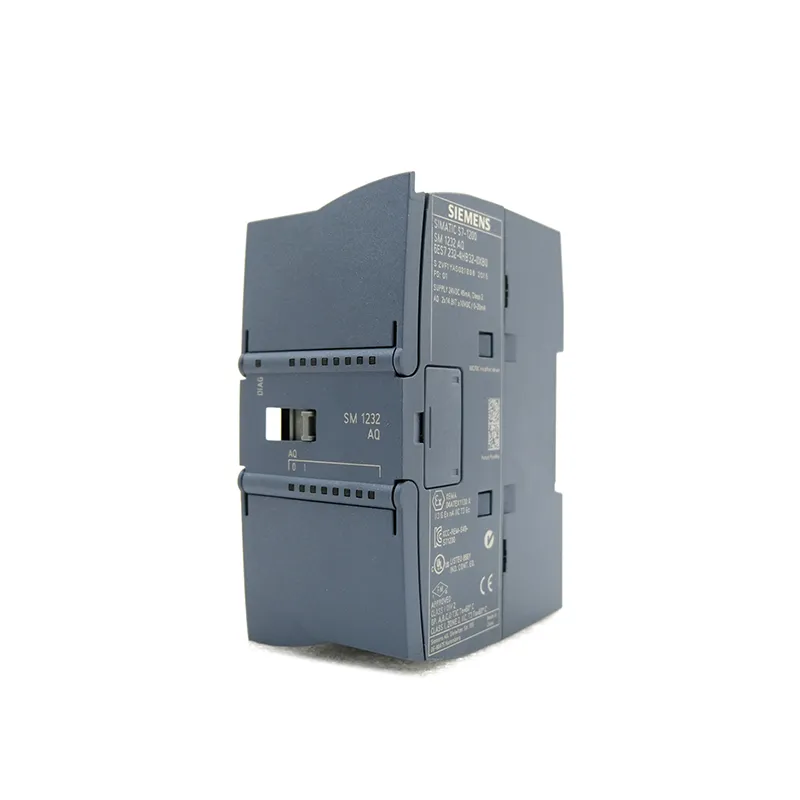

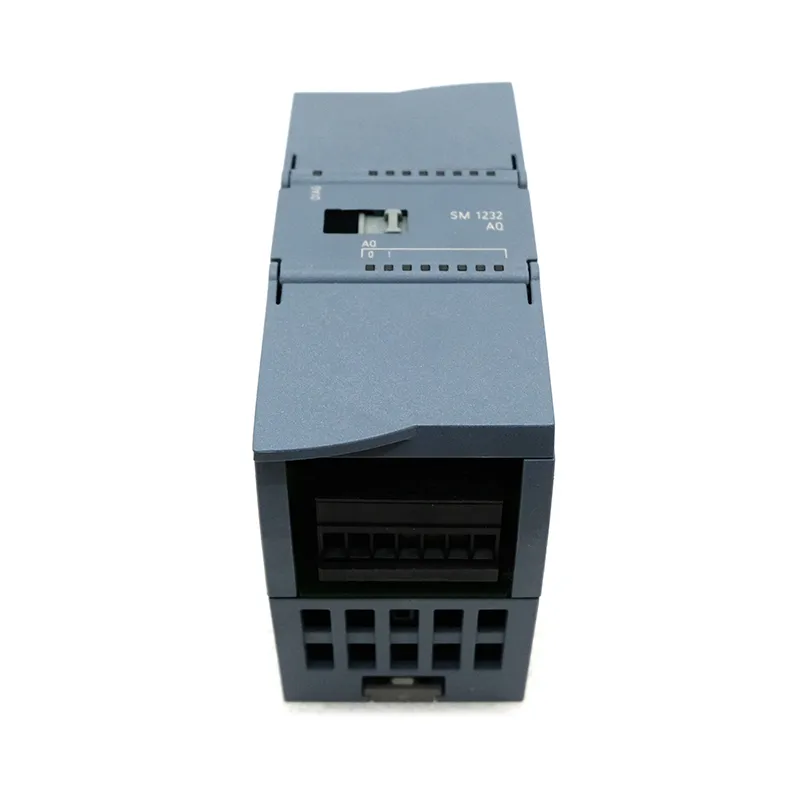

Siemens 6ES7 232-4HB32-0XB0 SM 1232 Analog Output Module
The Siemens 6ES7 232-4HB32-0XB0 is a SIMATIC S7-1200 SM 1232 analog output module with 2 analog outputs. It supports ±10 V voltage output with 14-bit resolution, or 0-20 mA and 4-20 mA current output with 13-bit resolution.
Before ordering, verify the complete identification label and confirm that the offered module matches the requirements of the installed S7-1200 system. The article number alone should not be used to establish replacement compatibility.
Product Identification
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7 232-4HB32-0XB0 |
| Product Series | SIMATIC S7-1200 |
| Module Type | SM 1232 analog output module |
| Product Type Designation | SM 1232, AQ 2×14 bit |
| Number of Analog Outputs | 2 |
| Voltage Output Range | -10 V to +10 V |
| Voltage Output Resolution | 14 bit |
| Current Output Range | 0 to 20 mA or 4 mA to 20 mA |
| Current Output Resolution | 13 bit |
Selection and Replacement Checks
Compare the article number, product type designation and any additional version information on the existing module with the unit being offered. Confirm suitability for the specific S7-1200 configuration using the applicable Siemens documentation.
- Verify the complete module identification and nameplate ratings.
- Confirm the S7-1200 CPU model, installed I/O configuration and system requirements.
- Check the required output signal type, voltage or current range and wiring arrangement.
- Confirm any configuration or commissioning requirements before replacement.
- Have installation and maintenance performed by qualified personnel in accordance with Siemens safety instructions.
Do not assume that different SM 1232 modules or article numbers are interchangeable. Any proposed replacement must be checked against the requirements of the specific installation.
Condition and Supplied Items

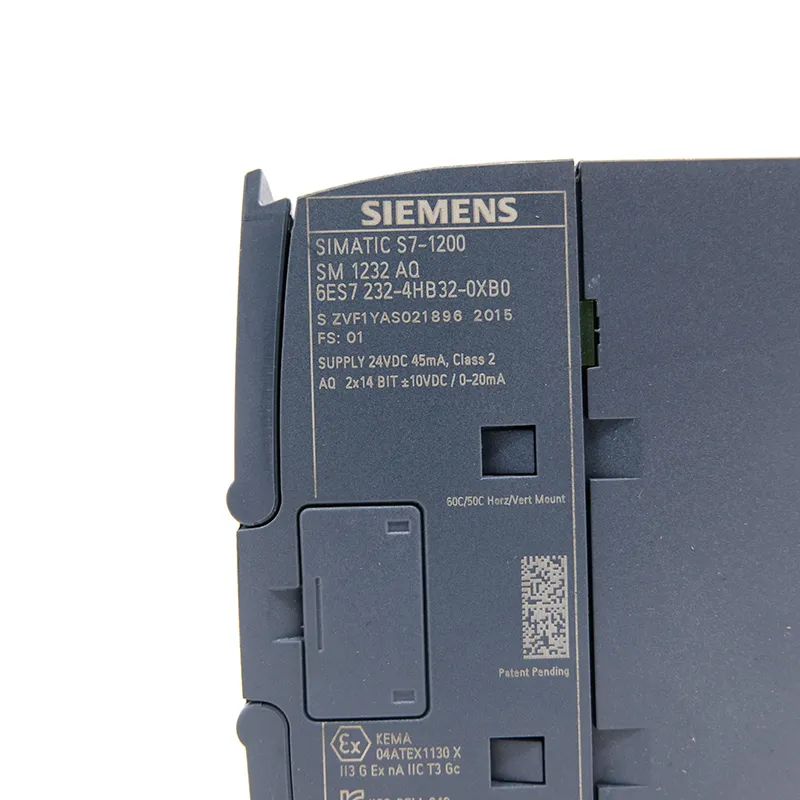

Confirm the condition of the actual module and request photographs of its identification label before purchase. Check whether connectors, terminal blocks, cables, mounting accessories or other items are included in the quotation.
Confirm the actual dimensions, net weight and packed shipping weight separately when planning installation or transport.
Request a Quotation
To request a quotation for the Siemens 6ES7 232-4HB32-0XB0 SM 1232 analog output module, provide the required quantity, preferred product condition and delivery destination. For replacement enquiries, include clear photographs of the existing module’s identification label and details of the S7-1200 system where available.
Confirm availability, lead time, supplied items and applicable warranty terms with OUKE before placing an order.
