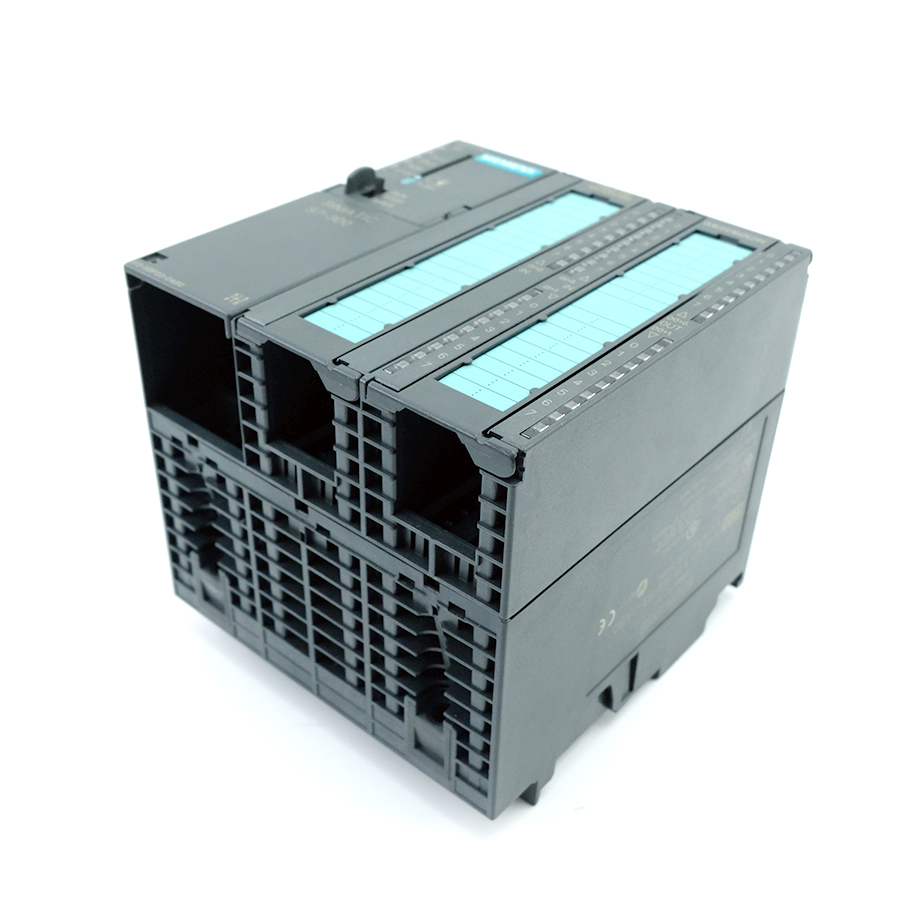

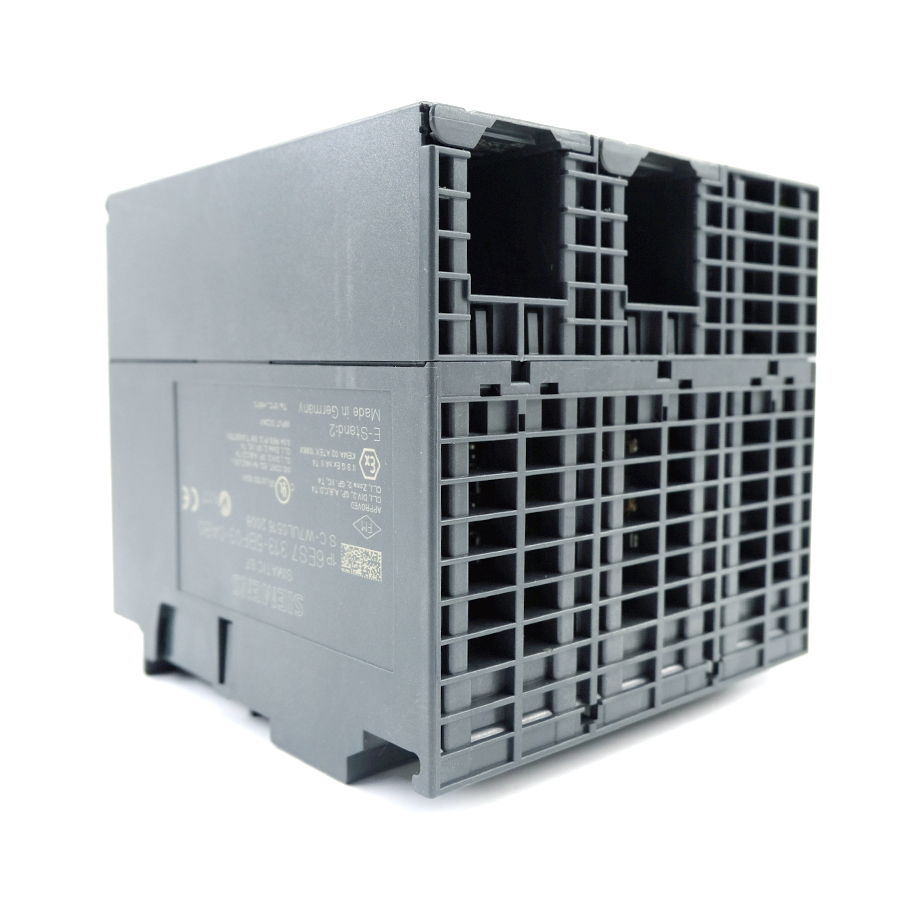

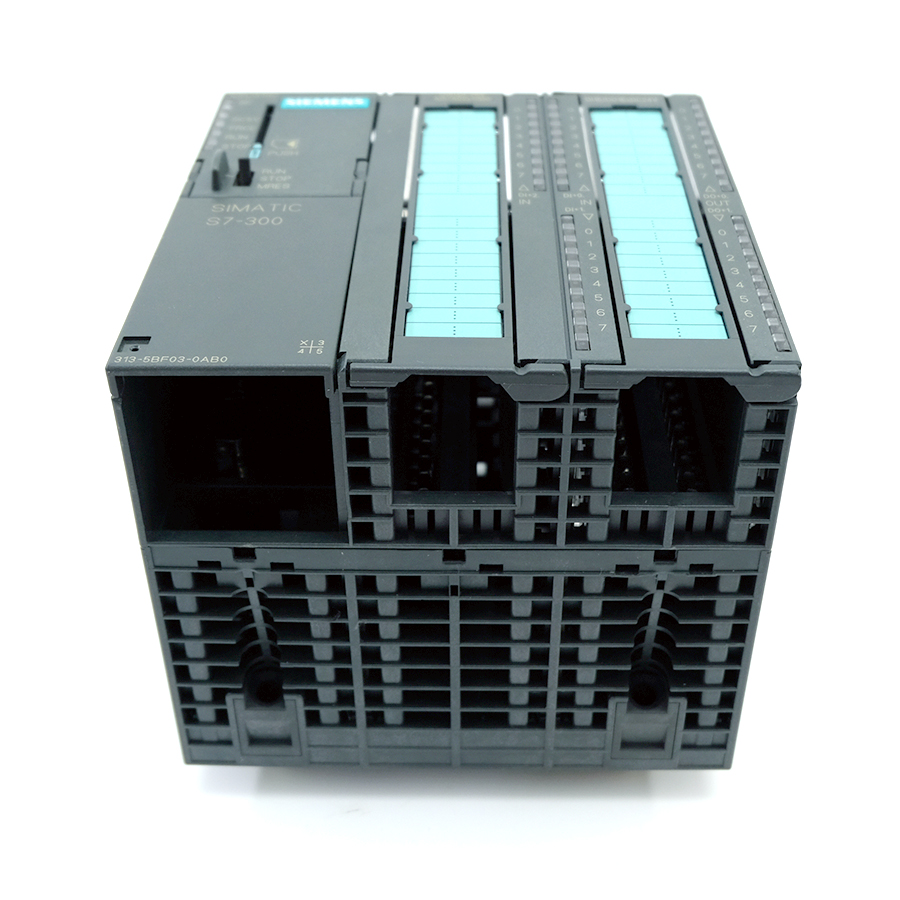

Detailed Description:
-

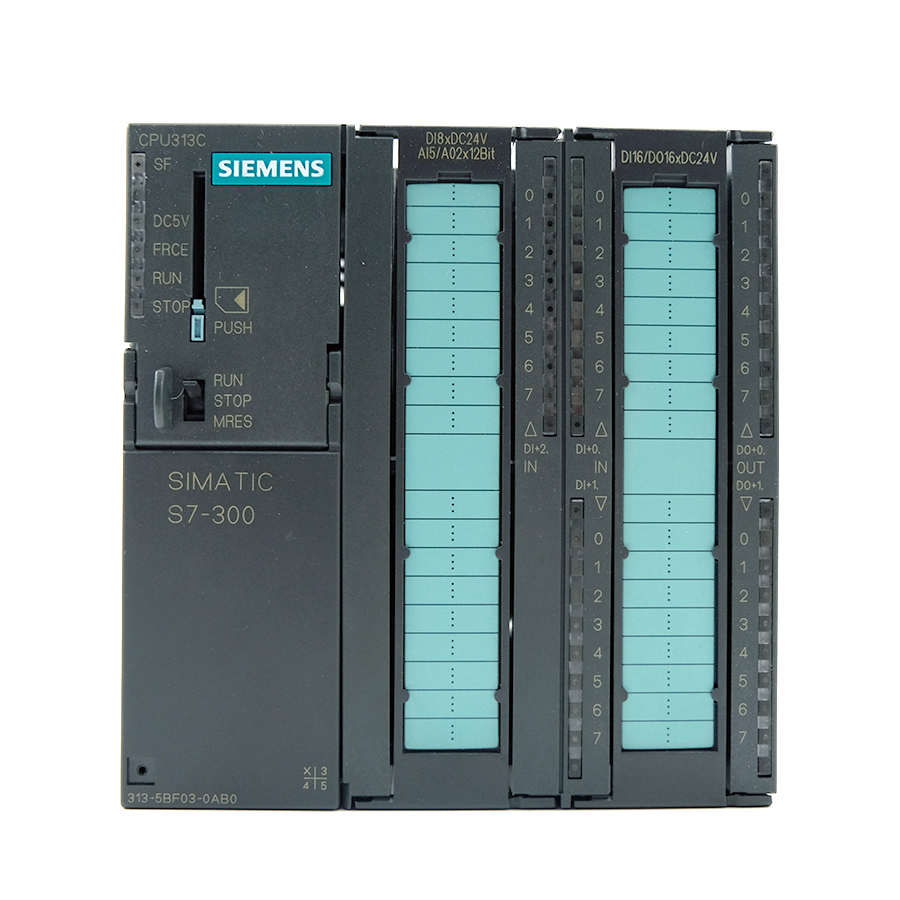

Integrated I/O: The CPU natively integrates 24 digital inputs and 16 digital outputs, both operating at 24V DC. These integrated I/O points can be used to directly connect sensors and actuators.
-
High-Speed Counting: Integrates 1 high-speed counter with a maximum counting frequency of 10 kHz, suitable for precise counting and measurement of rotary encoder signals.
-
Communication Capability: Equipped with 1 MPI interface for programming, monitoring, and communication with HMI devices via the MPI network. It also supports simple positioning control via the integrated I/O points.
-
Program and Data Storage: Uses a Micro Memory Card (MMC) as the load memory, enabling maintenance-free, battery-less operation. The CPU features fast and stable program execution and cycle times.
-
Compact Design: Integrates the CPU, I/O, and specific technological functions into a single module, saving control cabinet space and cost, offering a cost-effective solution.
-
Expandability: Can still be expanded with a rack holding a maximum of 8 modules for connecting additional digital, analog, or communication modules to meet more complex application requirements.
Key Specifications:
| Parameter | Details |
|---|---|

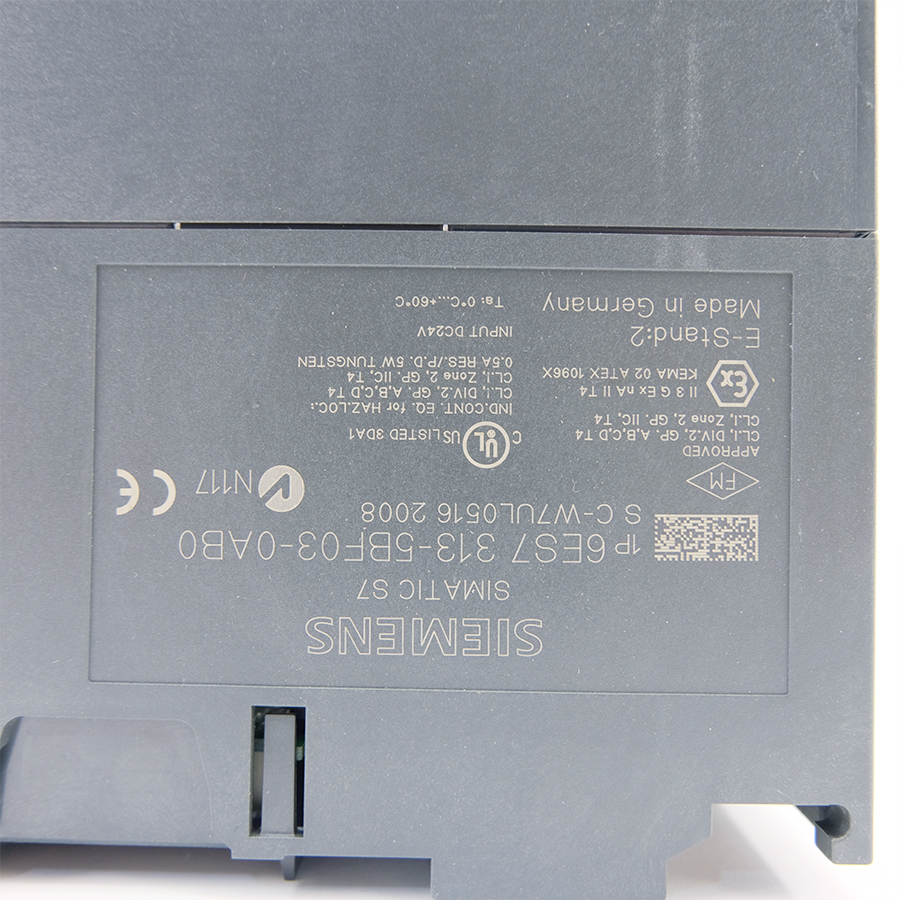

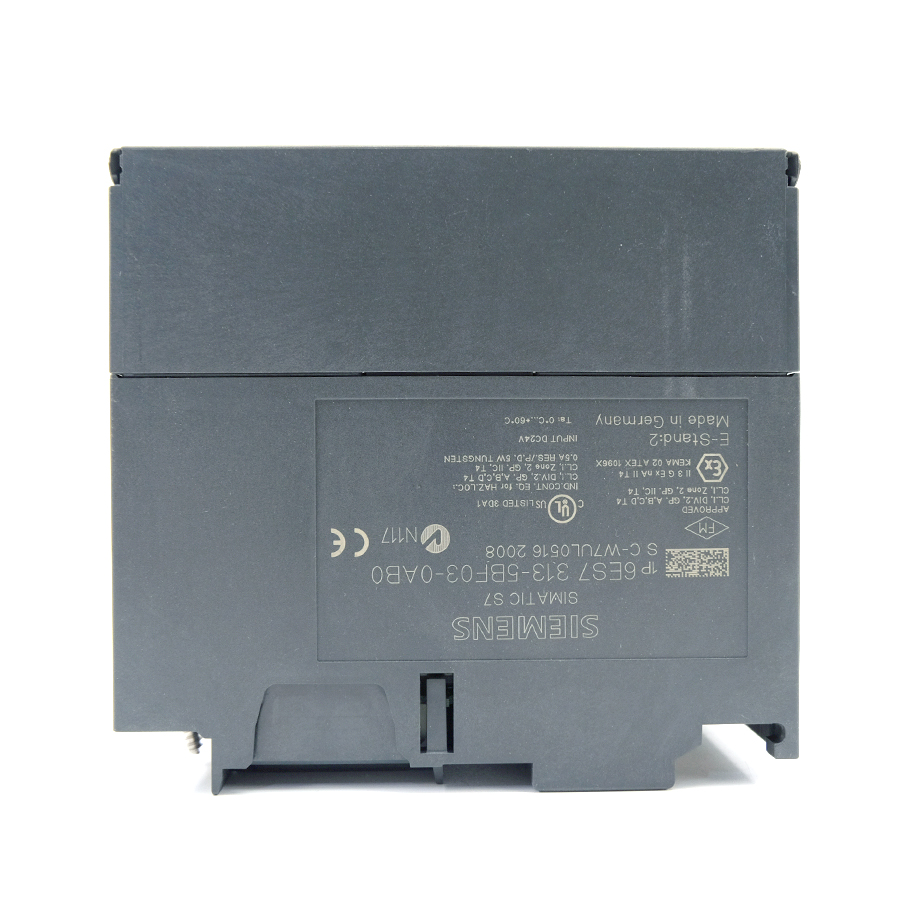

| Model | 6ES7313-5BF03-0AB0 |
| Series | SIMATIC S7-300 |
| Module Type | Compact CPU (CPU 313C) |
| Integrated Digital Inputs | 24 channels, 24 V DC (sink/source) |
| Integrated Digital Outputs | 16 channels, 24 V DC / 0.5 A |
| Integrated High-Speed Counter | 1 channel, up to 10 kHz |
| Work Memory | 96 KB |
| Bit Instruction Execution Time | 0.2 µs |
| Integrated Communication Interface | 1 x MPI (max. 187.5 Kbps) |
| Max. Expandable Modules | 8 modules |
| Supply Voltage | 24 V DC |
| Load Memory | Micro Memory Card (MMC) |
| Programming Software | STEP 7 (e.g., TIA Portal) |
