Detailed Description:
-
Operation & Display: Utilizes a 7-inch widescreen TFT color LCD for clear display. Operation is via a resistive touchscreen, supporting finger or stylus input. The front panel has a protection rating of IP65, making it dust-tight and protected against water jets, suitable for industrial environments.
-
Basic Functions: Supports creating process screens, displaying alarm messages, managing user permissions (up to 50 users), and simple recipe data management. Ideal for replacing traditional pushbuttons and indicator lights, enabling a modernized operator interface for equipment.
-
Communication Connectivity: Integrates 1 PROFINET interface for connecting to controllers like SIMATIC S7-1200/1500. Also provides 2 USB 2.0 ports for project transfer, connecting a mouse/keyboard, or USB flash drives.
-
Project Configuration: Configured and programmed using WinCC Basic within TIA Portal (or higher editions like WinCC Comfort/Advanced). Configuration projects can be easily migrated between different screen sizes within the same series.
-
Power & Mounting: Operates on 24 V DC power supply and supports panel cut-out mounting with a shallow depth, saving control cabinet space.
-
Application Scenarios: Widely used in small to medium-sized machinery and equipment, such as packaging machines, injection molding machines, food processing equipment, environmental control units, and other applications requiring color display and basic touch operation.
Key Specifications:
| Parameter | Details |
|---|---|
| Model | 6AV2124-1GC01-0AX0 |

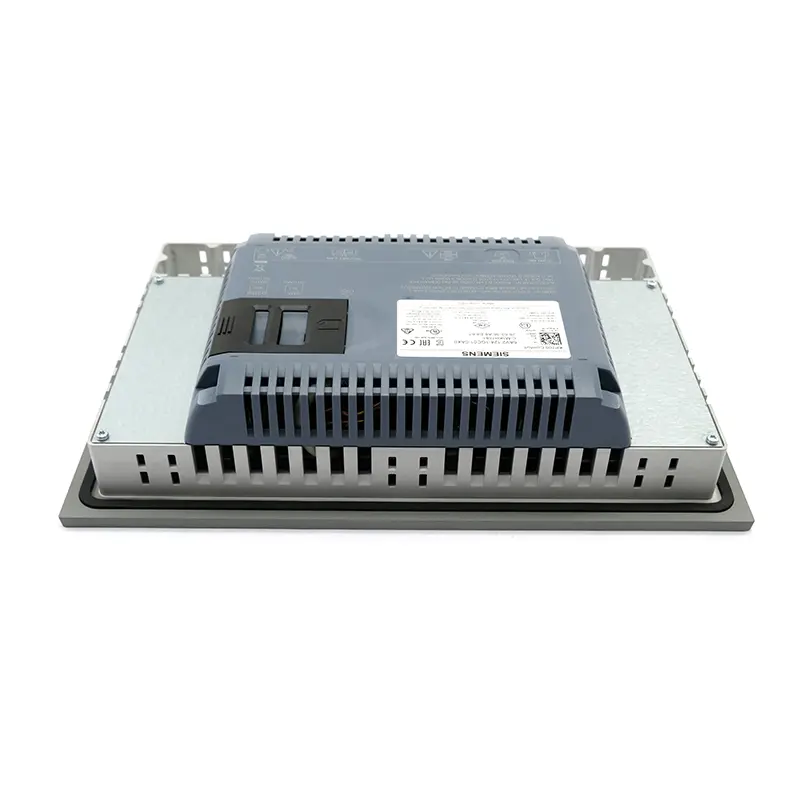

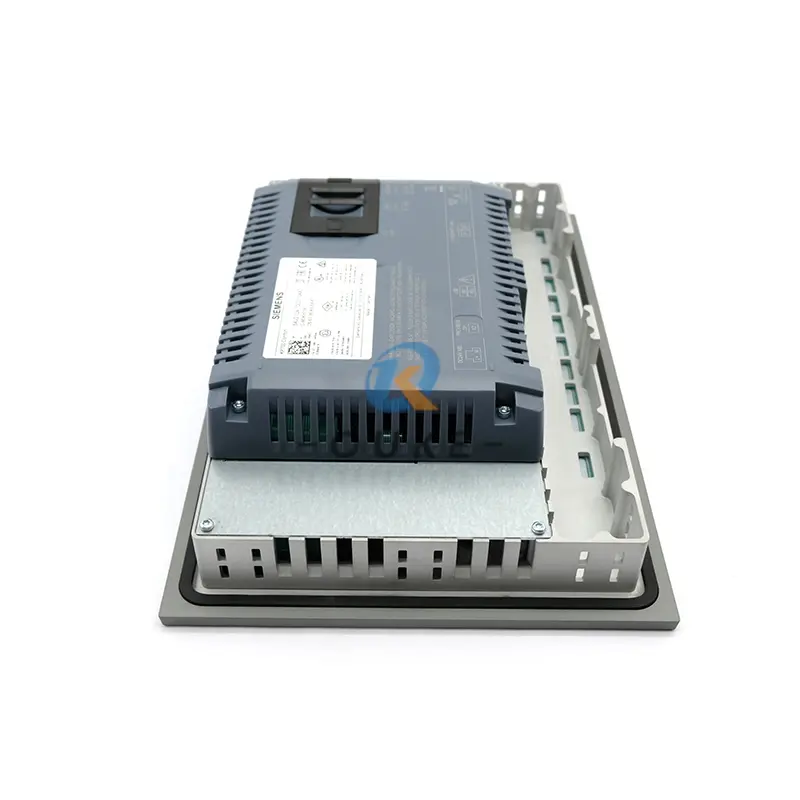

| Series/Model | SIMATIC HMI Basic Panel KTP700 Basic |
| Display | 7-inch TFT Color LCD, Resolution 800 x 480 (WVGA)， Widescreen |
| Colors | 65,536 colors |
| Operation | Resistive Touchscreen |
| Communication Interfaces | 1x PROFINET (RJ45), 2x USB 2.0 |
| User Management | Up to 50 users |
| Alarms | Supports alarm buffer |
| Recipes | Supports recipe data management |
| Power Supply | 24 V DC |
| Protection Rating (Front) | IP65 / NEMA 4X |

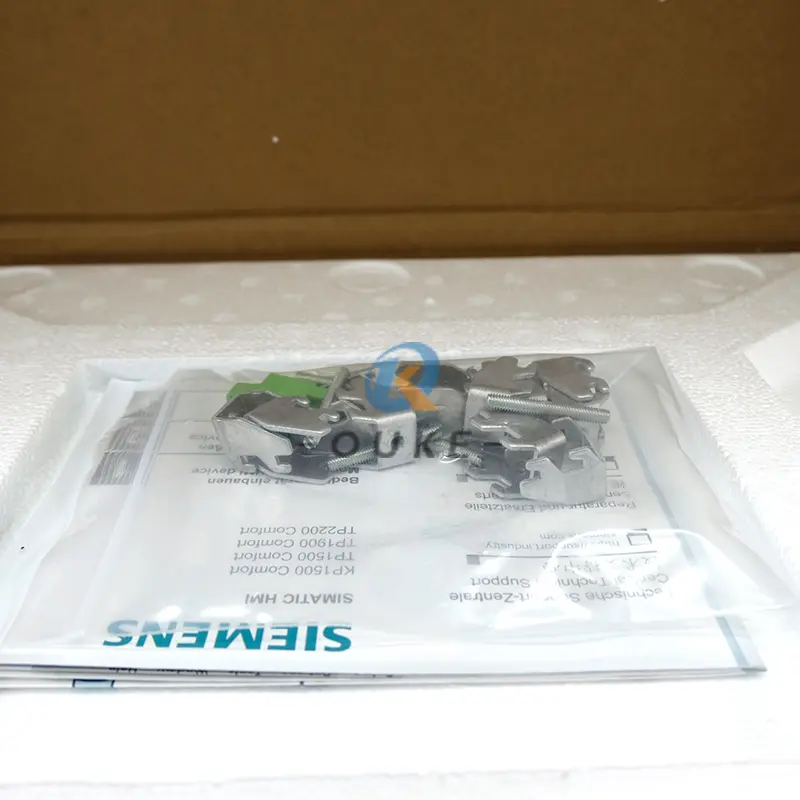

| Mounting | Panel Cut-out Mounting |
| Configuration Software | TIA Portal WinCC (Basic/Comfort/Advanced) |
| Dimensions (W x H x D) | Approx. 214 mm x 159 mm x 47 mm |
| Cut-out Dimensions (W x H) | Approx. 193 mm x 138 mm |
