SICK DFS60A-TEPZ00S09 Incremental Encoder – TTL/HTL 1024 PPR

The SICK DFS60A-TEPZ00S09 from the DFS60 series is a programmable incremental encoder with 1024 pulses per revolution (programmable up to 65,536), 6-channel TTL/HTL output, and 4.5-32V DC supply. It features ±0.03° error limits and M12 connector for robust industrial use.

Model Number:DFS60A-TEPZ00S09

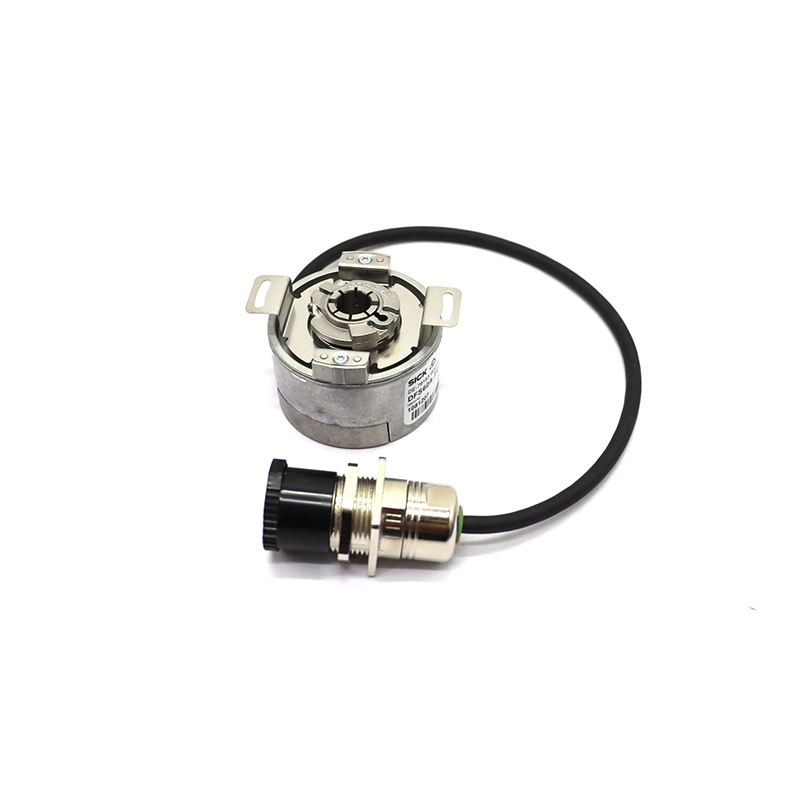

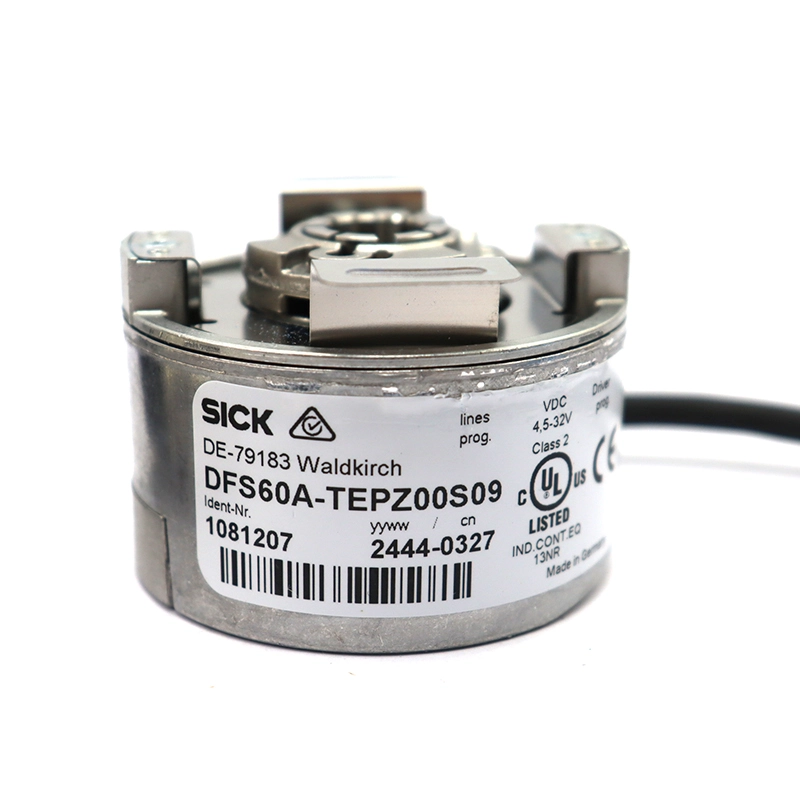

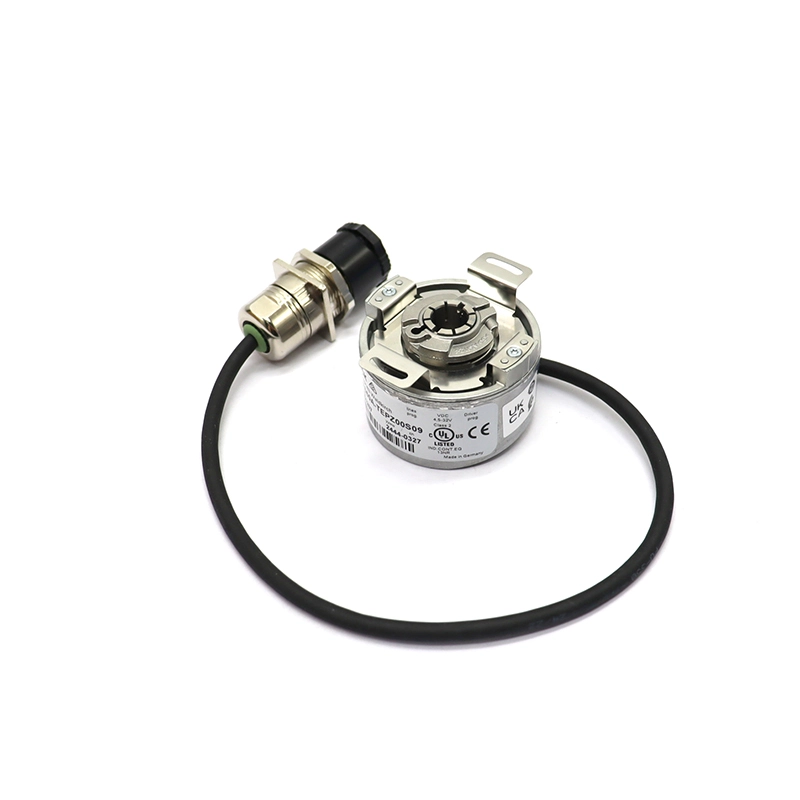

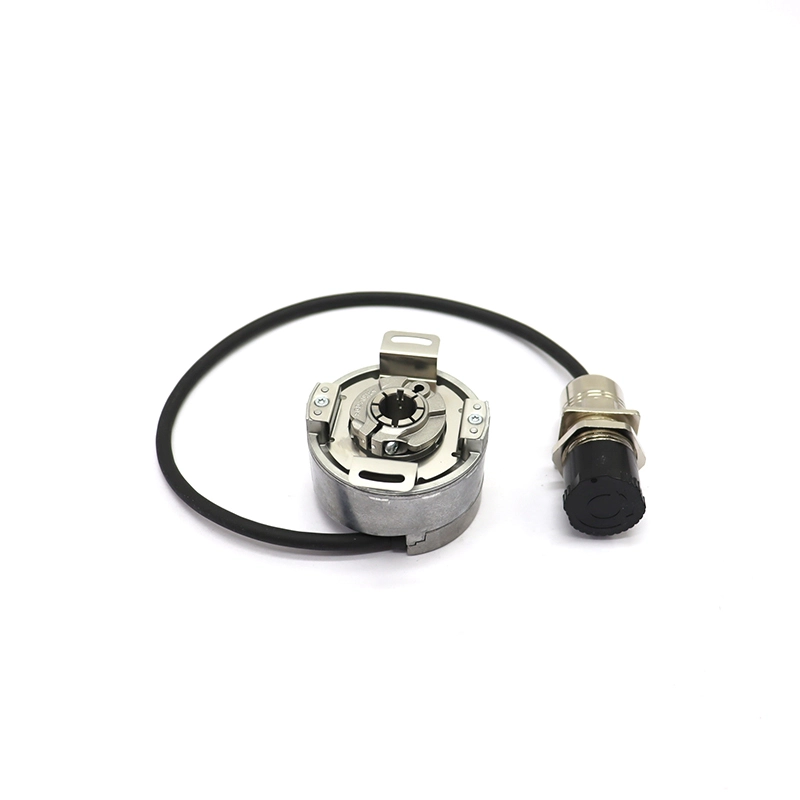

Product Image

Submit your inquiry and we'll respond within 24 hours

100k+ Parts

Extensive Inventory

Warranty Coverage

New parts: 1-Year | Used: 3-Month

17+ Years

Industry Experience

Fast Shipping

Ships Within 48 Hours

Product Description

Platform Compatibility and Uses

The DFS60A-TEPZ00S09 suits demanding industrial applications like robotics, conveyors, and machine tools, offering mechanical interfaces (face/servo flange, hollow/solid shaft) and electrical options (TTL/HTL/RS422). Programmable resolution simplifies customization for precise positioning.

This encoder’s compact 60mm diameter and versatile mounting make it ideal for tight spaces in automation setups.

Technical Implementation

Incremental signals (A, /A, B, /B, R, /R) with 90° zero pulse and ≤820 kHz output frequency ensure accurate feedback; 32ms initialization and short-circuit/reverse polarity protection enhance reliability. Aluminum die-cast housing resists harsh conditions.

Physical Characteristics and Installation

Clamping ring flange with 10mm solid shaft mounts easily; -40°C to +100°C range and 0.8 Ncm startup torque support extreme environments. M12 8-pin connector simplifies cabling.

Key Specifications

Parameter	Specification
Catalog Number	DFS60A-TEPZ00S09
Pulses per Revolution	1024 (programmable to 65,536)
Interface	TTL/HTL (6-channel A/B/R)
Supply Voltage	4.5-32 V DC
Output Frequency	≤820 kHz
Error Limits	±0.03°
Operating Temperature	–40°C to +100°C
Shaft Diameter	12 mm (solid)
Connector	M12, 8-pin
Housing Material	Aluminum die cast
