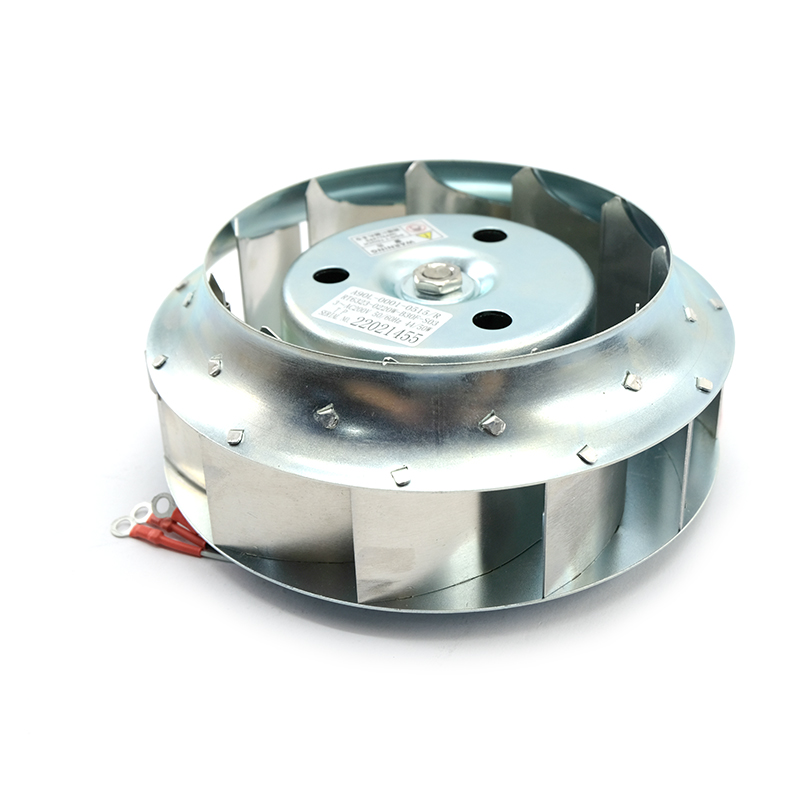

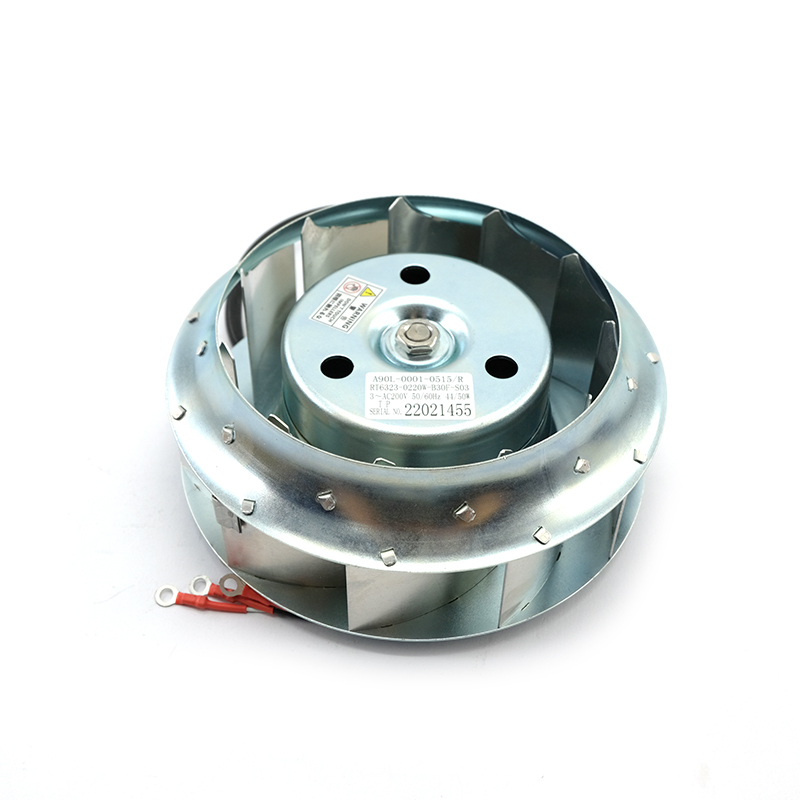

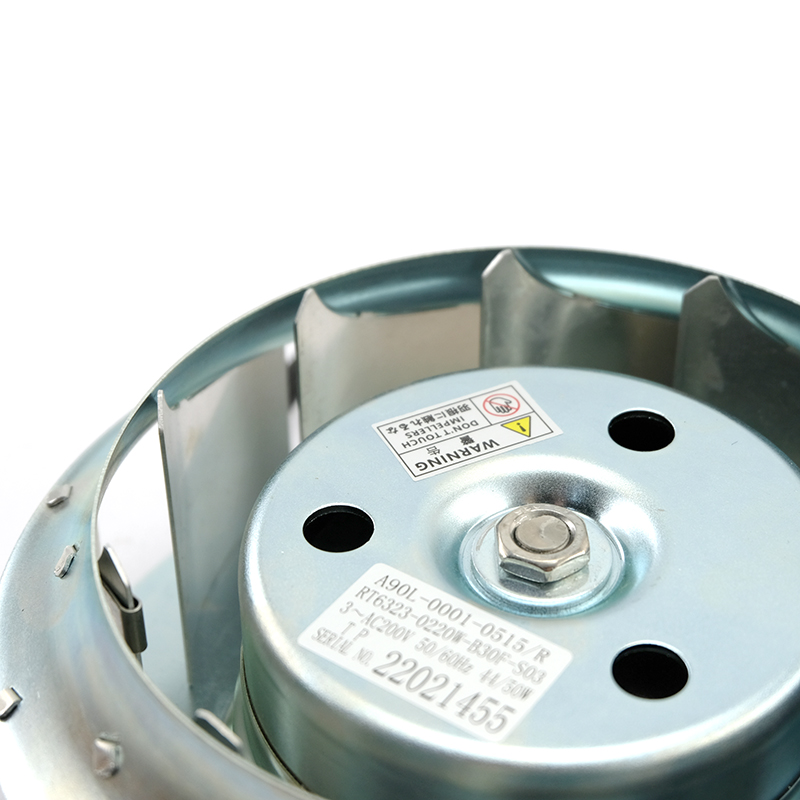

The A90L‑0001‑0515 fan is designed as an integrated cooling‑fan assembly mounted on the rear or side of Fanuc‑series built‑in AC spindle motors and robot‑axis servo units, where it continuously circulates air over the motor windings and internal electronics. It is used on CNC machining centers, turning lathes, grinding machines, and Fanuc robots to prevent overheating during heavy‑cutting, high‑speed milling, or long‑run automation cycles, thereby extending motor life and reducing thermal‑fault alarms. The fan is often sold as A90L‑0001‑0515/R, indicating a 200 VAC 3‑phase centrifugal / sirocco‑type fan with a back‑exhaust or forced‑air design that matches the original spindle‑motor heat‑dissipation channels.

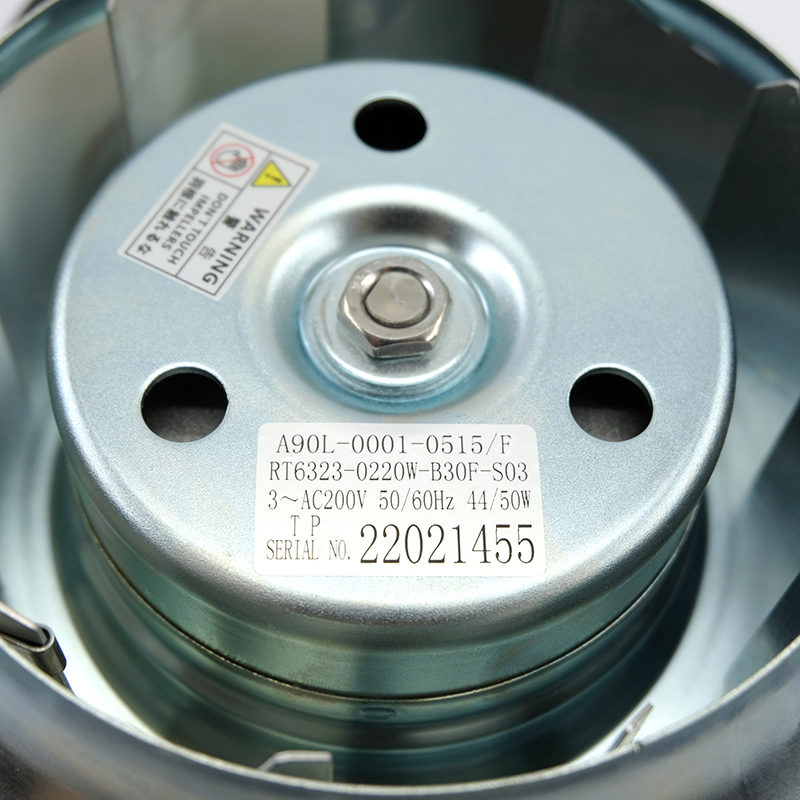

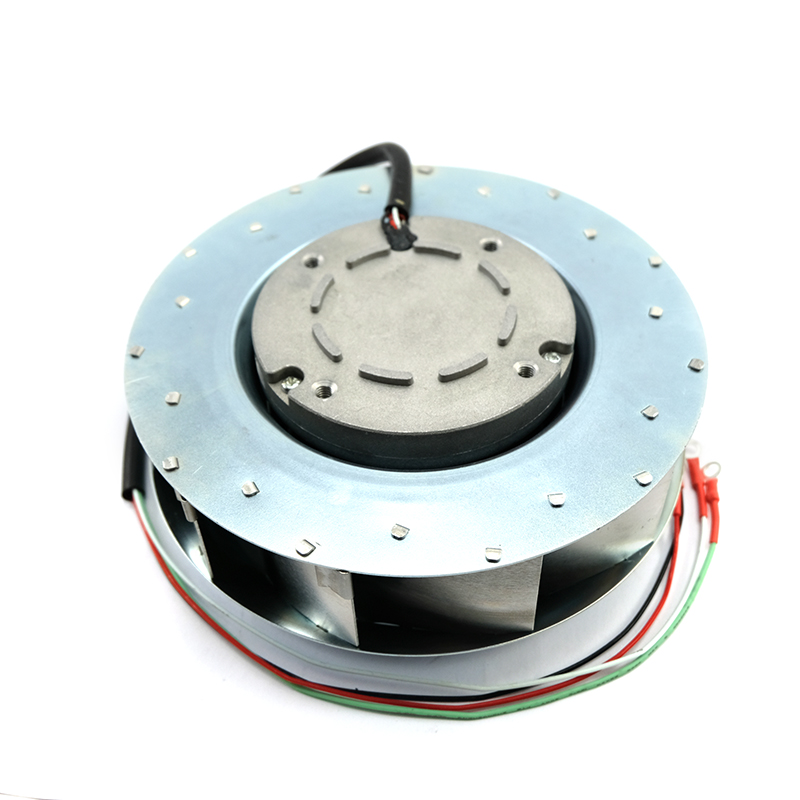

Technically, the A90L‑0001‑0515‑class fan units operate on AC 200 V, 50/60 Hz, drawing power in the 44–50 W range with a 3‑phase current around 1.2–1.5 A total at full speed (≈2800 rpm on many variants). They are typically built as centrifugal or axial‑centrifugal (sirocco) fans with stainless‑steel or zinc‑coated housings and metallic impellers, capable of moving about 7–10 CFM of air at relatively low noise (≈25–30 dB). The fan is powered directly from the spindle‑motor 3‑phase bus, so it runs whenever the spindle or robot axis is energized, and is rated for continuous‑duty use with a typical 50,000‑hour MTBF to ensure reliability in harsh shop environments.

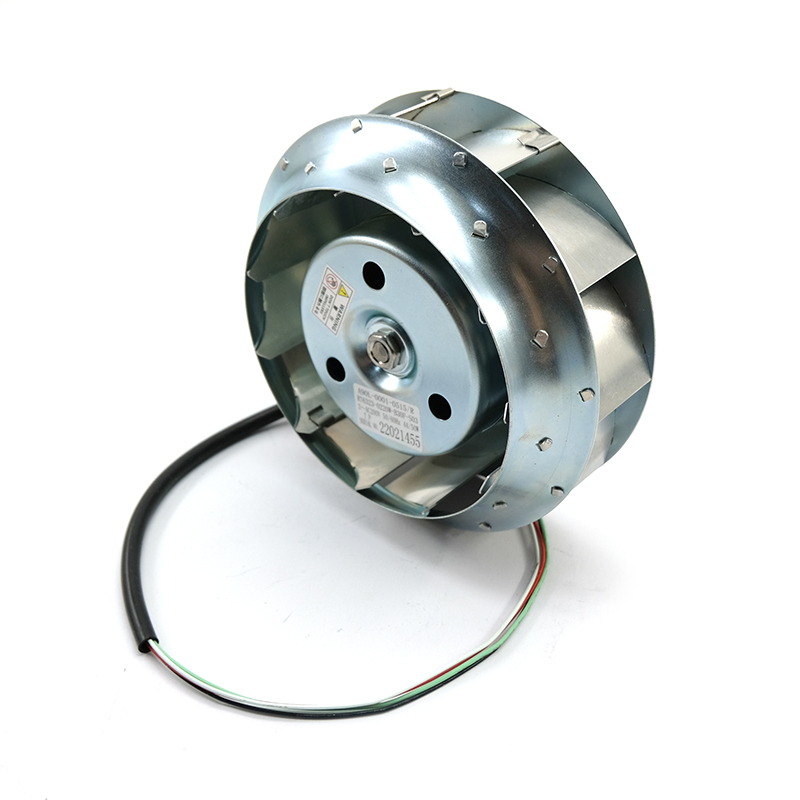

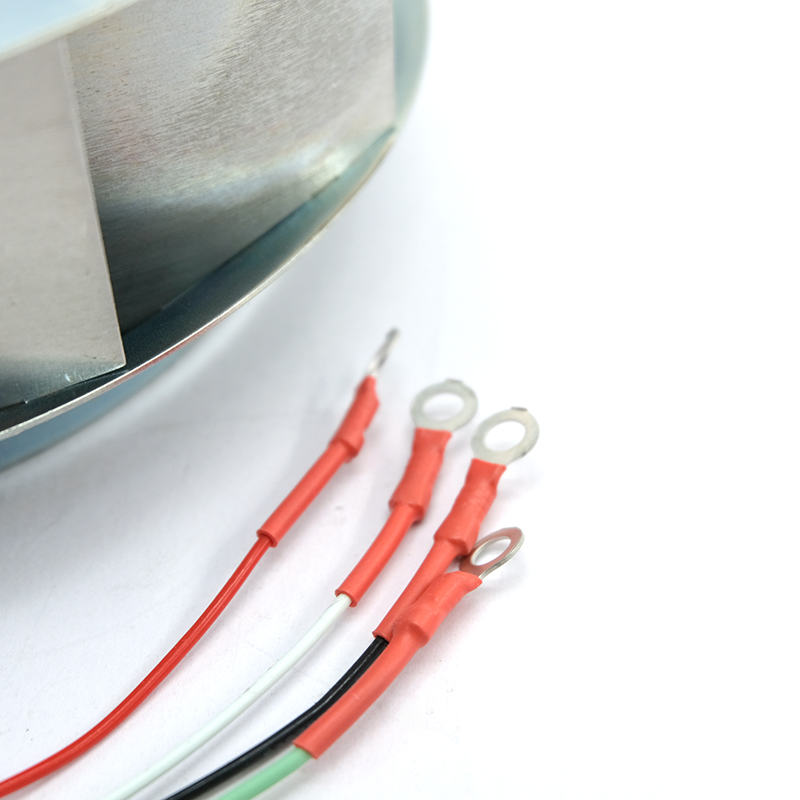

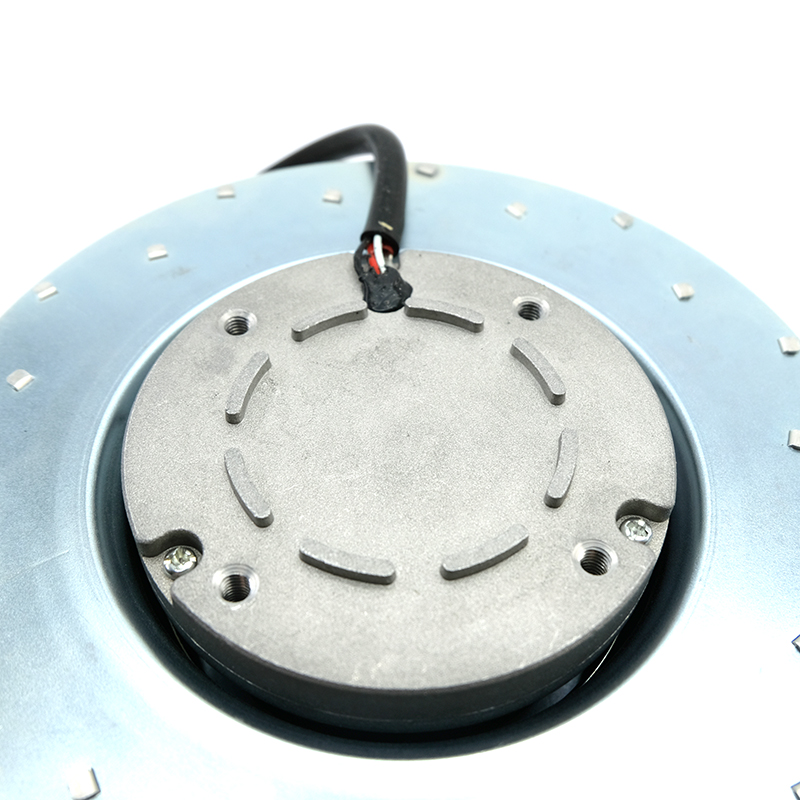

Mechanically, the A90L‑0001‑0515‑series fans are compact fan‑motor assemblies with a rectangular or circular flange (often around 135–150 mm on the longest side) that bolt directly to the spindle‑motor or servo‑amp housing using the same bolt‑pattern as the original unit. Many models ship with a matching 3‑phase wiring harness that terminates either in bare leads or a Fanuc‑style plug for plug‑and‑play replacement. Typical aftermarket listings advertise these fans as compatible with HV‑class AC spindle motors and similar servo‑drive cooling ducts, and they are often sourced from or equivalent to Minebea / NMB‑style RT‑or PT‑series centrifugal fans (e.g., RT6323‑0220W‑B30F‑S03). Installation is straightforward: unbolt the failed fan, align the new A90L‑0001‑0515 fan‑unit flange to the same holes, secure it with screws, and reconnect the 3‑phase power leads or connector; no software or parameter changes are required.
