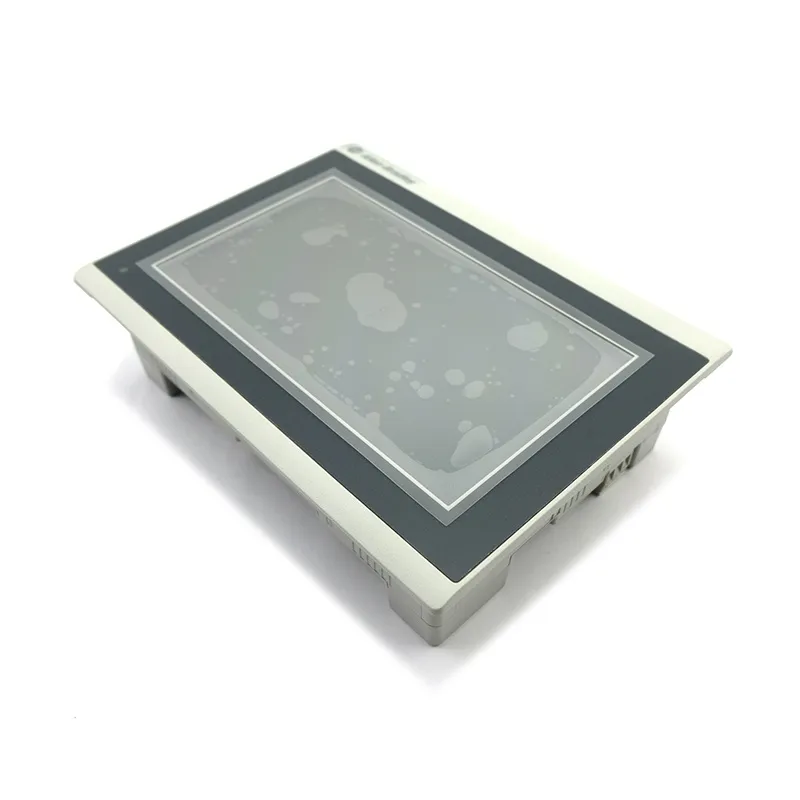

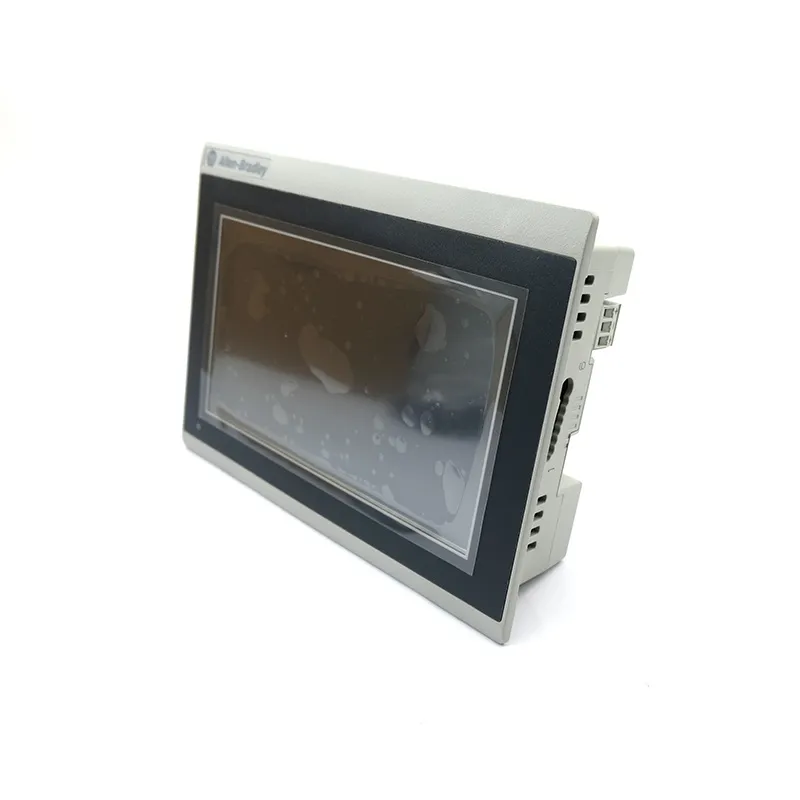

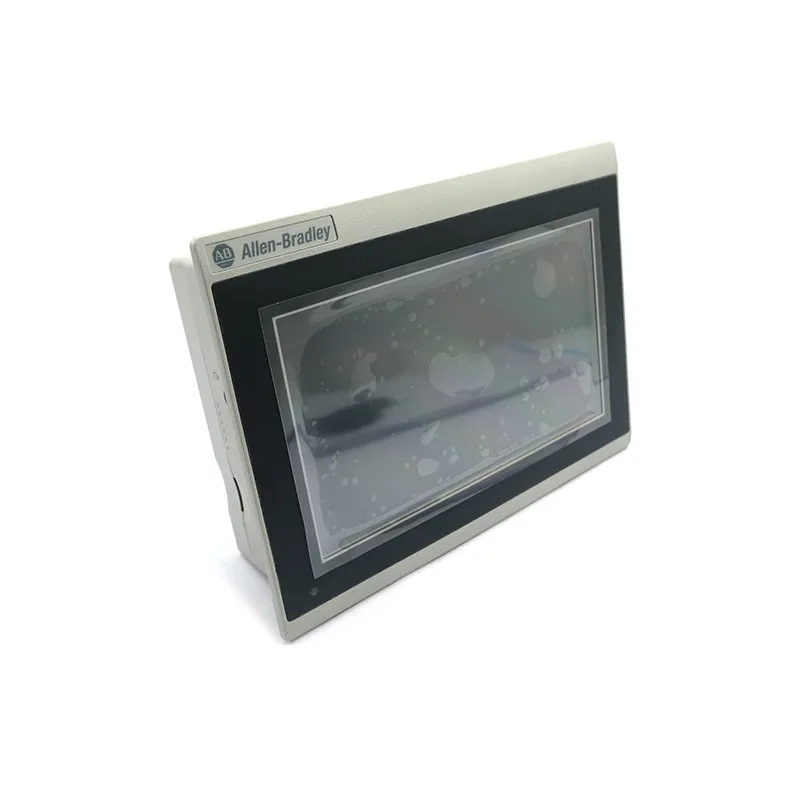

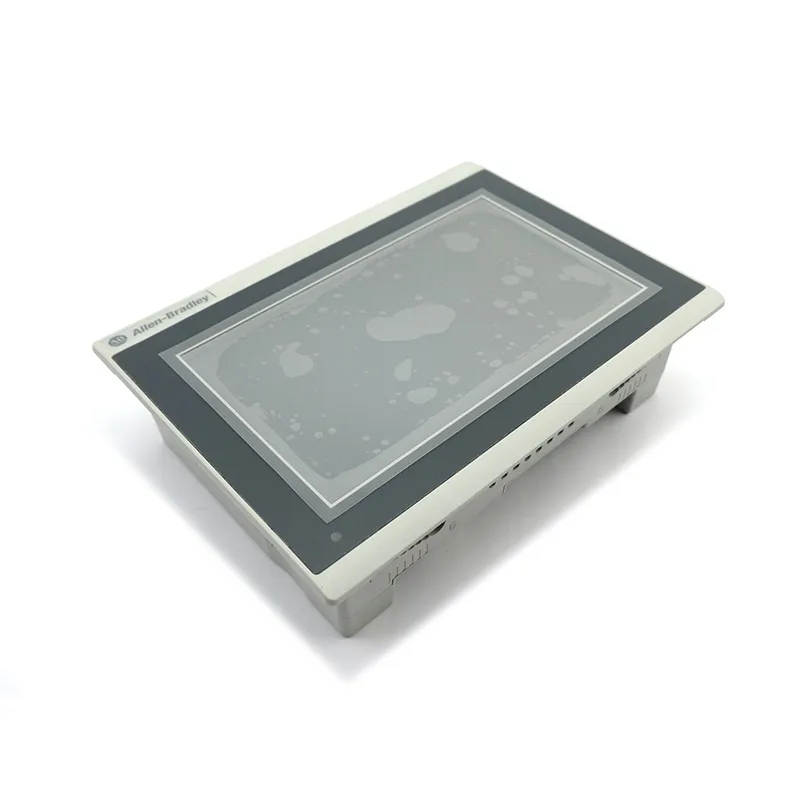

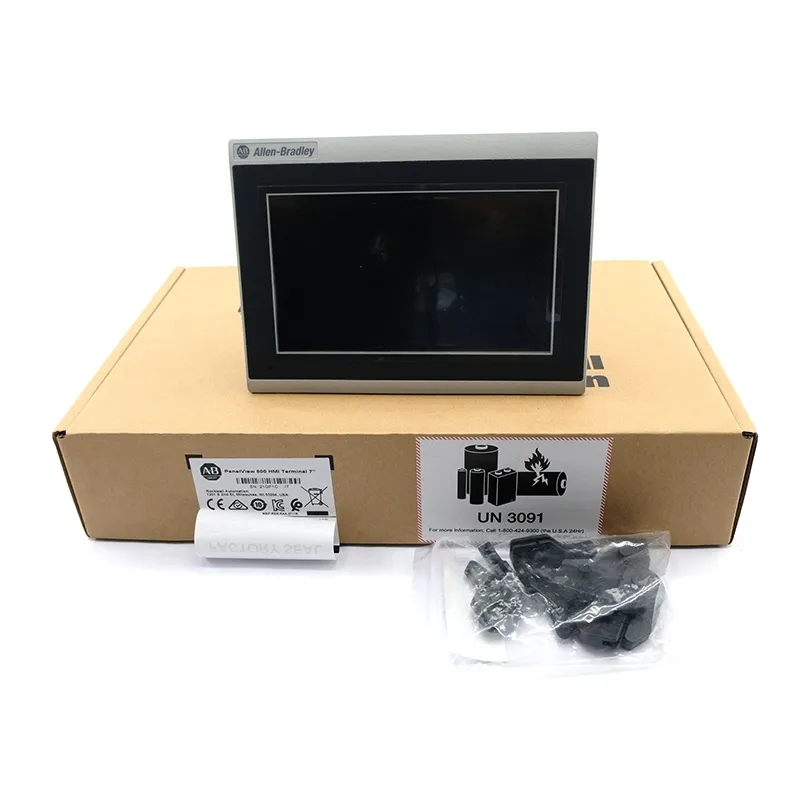

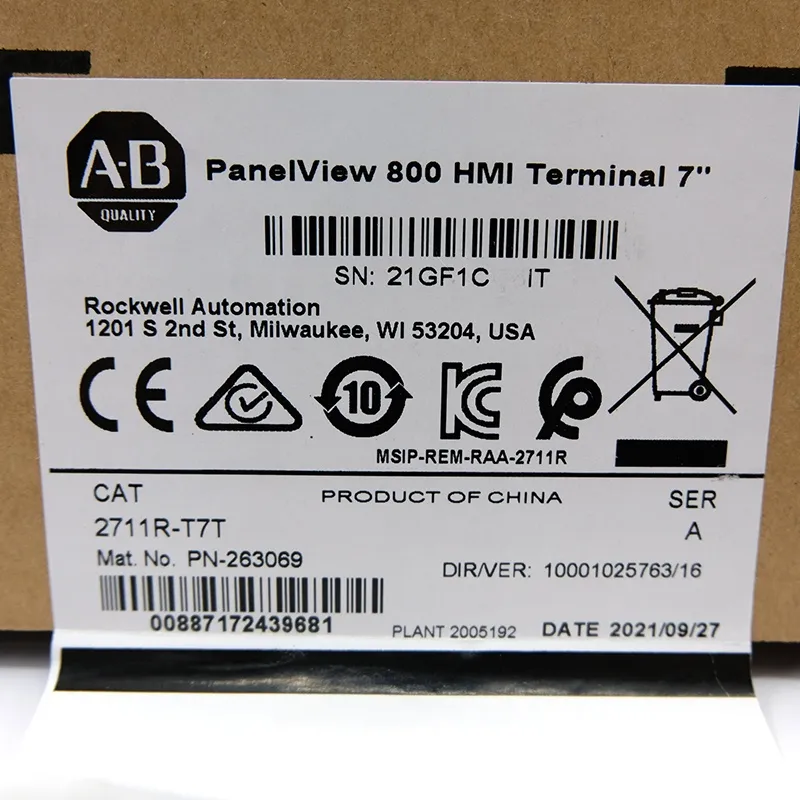

The 2711R-T7T is a PanelView 800 graphic terminal designed as a cost‑effective 7″ touchscreen HMI for MicroLogix, Micro800 and small CompactLogix controllers. It features a 7-inch color transmissive TFT active‑matrix LCD in widescreen format with 800 × 480 (WVGA) resolution, 65K colors, and a viewing area of approximately 153.6 × 86.6 mm (6.05 × 3.41 in), providing clear visualization of graphics, text, and alarms in a compact panel cutout.
Operator input is via an analog resistive touchscreen (no function keys), rated for up to 1 million actuations, allowing use with gloved hands in industrial environments. Internally, the terminal includes a high‑performance 800 MHz CPU, 256 MB flash memory and 256 MB DDR RAM, supporting responsive HMI performance and storage for applications, recipes and alarm history. The LED backlight is rated for a minimum of 40,000 hours (≈5 years at 25 °C), contributing to long service life.

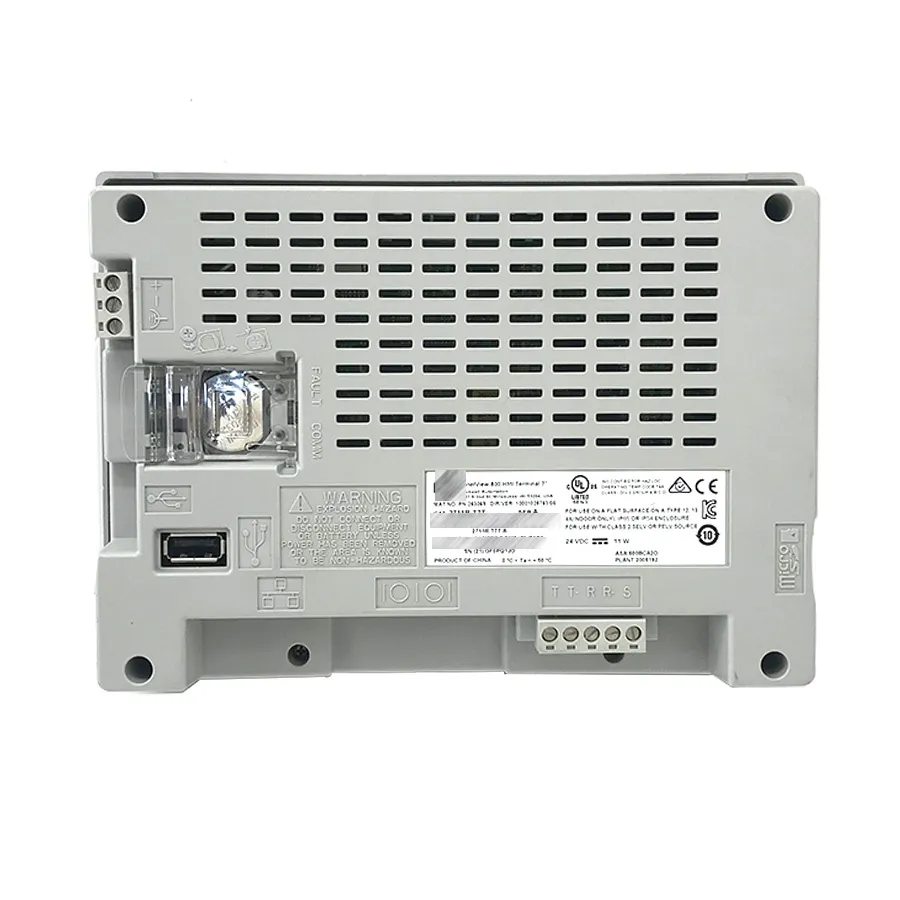

For connectivity, the 2711R-T7T offers a rich set of ports: one Ethernet port, one RS‑232, one RS‑422/485, one USB device port, one USB host port, and a microSD card slot for application transfer and firmware updates. It operates from an 18–32 V DC power supply with typical power consumption around 11 W and supports remote monitoring and troubleshooting via VNC when used with appropriate firmware. The terminal is designed for panel mounting, with approximate dimensions of 5.67 in H × 7.75 in W × 2.13 in D and weight around 0.65 kg (1.44 lb).
Typical applications include food processing, material handling, air‑handling units, small machines and OEM equipment where a compact 7″ HMI with integrated Ethernet and serial ports provides an economical yet capable operator interface.
