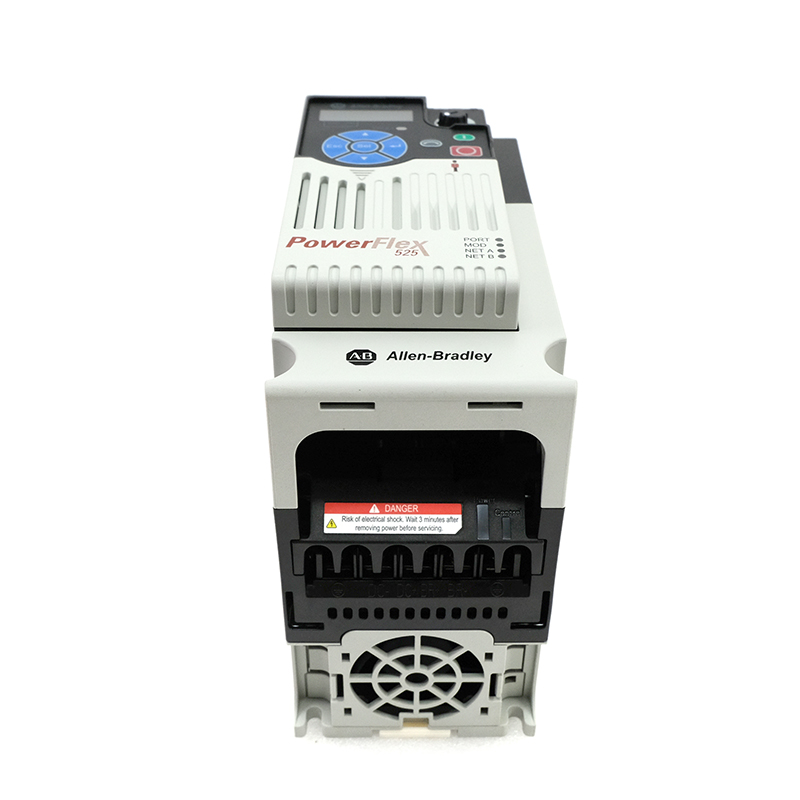

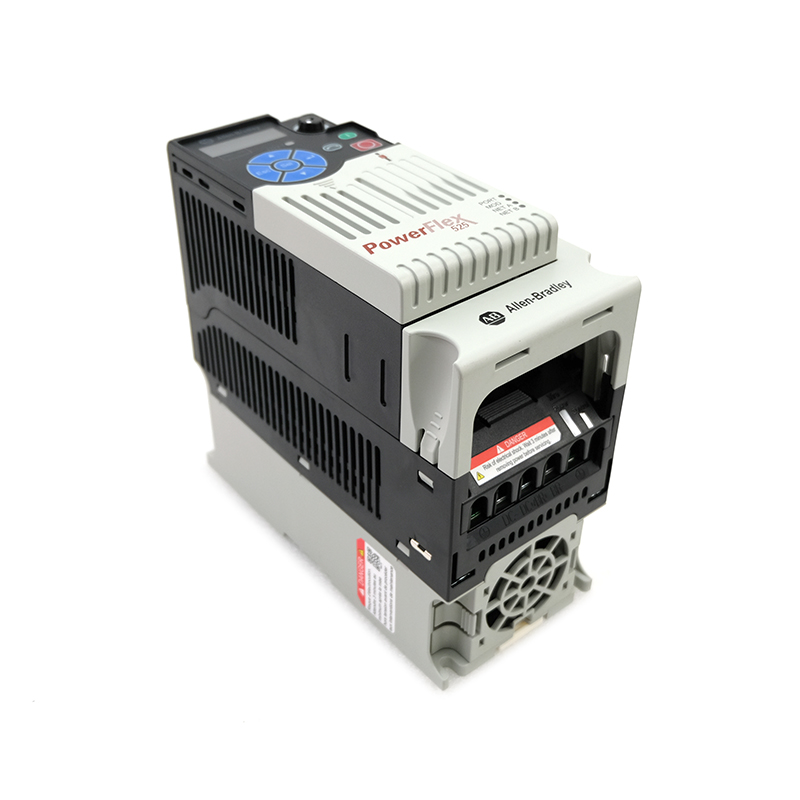

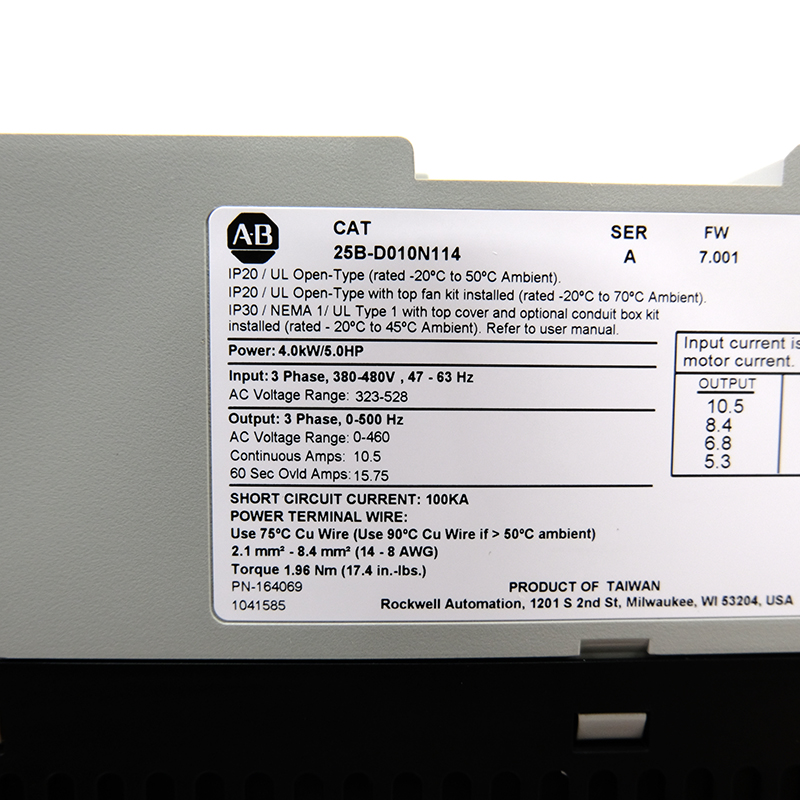

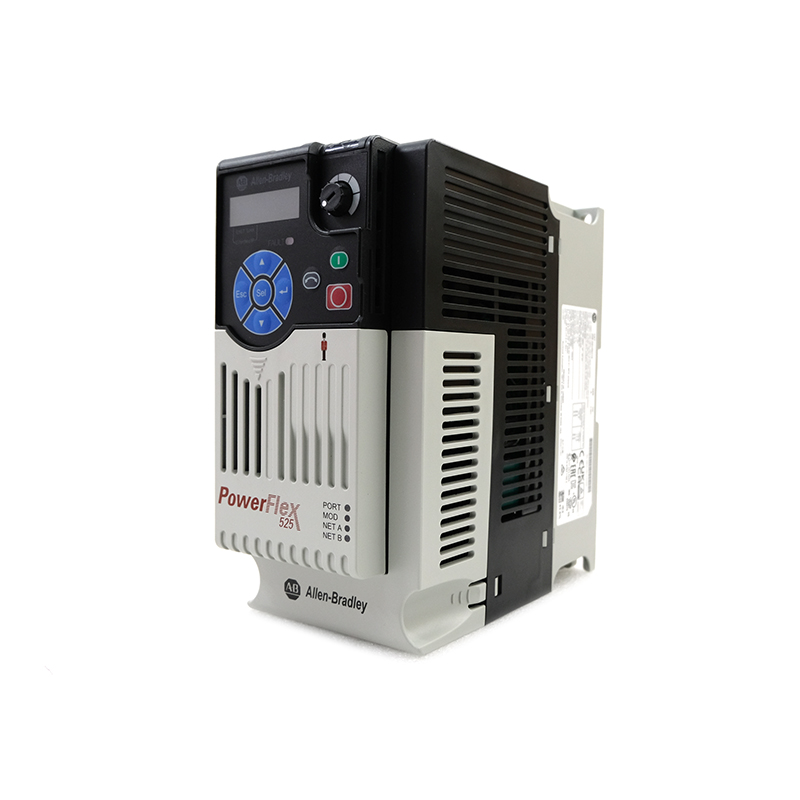

The 25B-D010N114 is part of the PowerFlex 525 AC drive family, offering next‑generation motor control with integrated communication and safety for a wide range of general‑purpose and process applications. It accepts an input voltage range of 380–480 V AC, 3‑phase, 50/60 Hz and provides an output of 0–460 V AC, 3‑phase, with a rated output current of 10.5 A and output power of 4.0 kW (5 HP) for both normal‑duty and heavy‑duty operation. The drive is a Frame B unit with an IP20, UL/NEMA Open Type enclosure and panel‑mount design, suitable for installation in control cabinets.
As a PowerFlex 525 with embedded EtherNet/IP and safety, the 25B-D010N114 includes two embedded Ethernet ports supporting EtherNet/IP and DLR (Device Level Ring) network topologies, enabling easy integration with Logix controllers and other Ethernet devices. It also features Safe Torque-Off (STO) safety functionality certified to PLd/SIL2, Cat 3, allowing removal of torque without disconnecting main power, and reducing external safety hardware requirements. An integrated EMC filter helps meet EMC standards and reduce conducted noise.

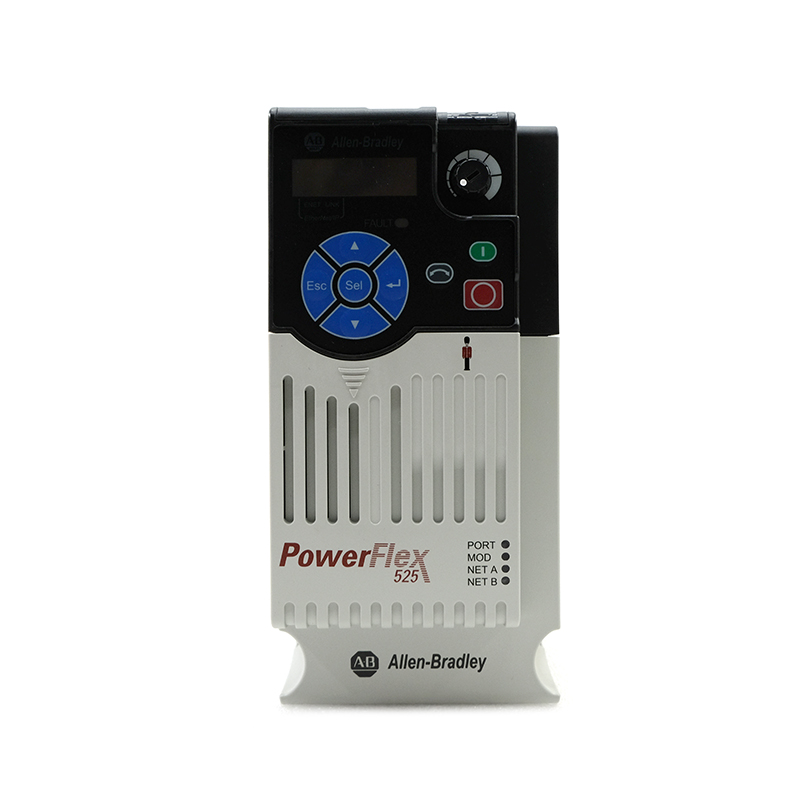

Control capabilities include V/Hz, sensorless vector control (SVC), closed-loop velocity vector control, and permanent magnet motor control, giving the drive flexibility for induction and permanent‑magnet motor applications. The 25B-D010N114 provides rich I/O: 7 digital inputs, 2 opto‑isolated transistor outputs, 2 relay outputs, 2 analog inputs, and 1 analog output, plus a built‑in RS‑485 port alongside Ethernet. The integral keypad with potentiometer and LED display simplifies local configuration, speed adjustment and diagnostics.
Typical applications include 5 HP pumps, fans, conveyors, mixers and general‑purpose machinery where a compact, Ethernet‑enabled, safety‑rated 480 V drive is required.
