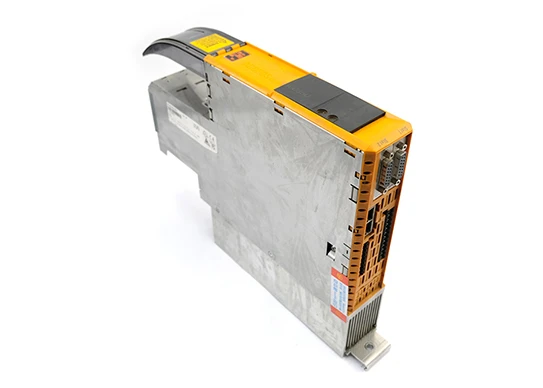

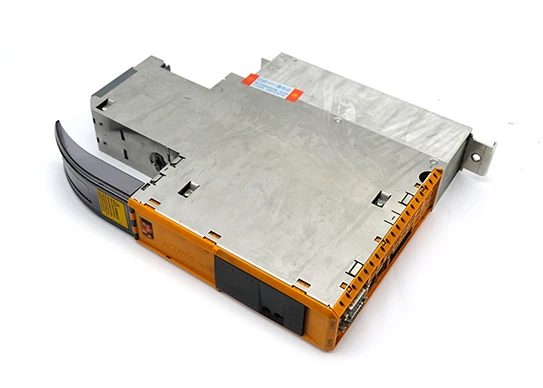

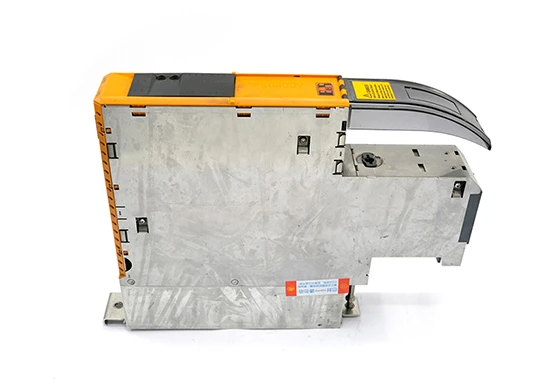

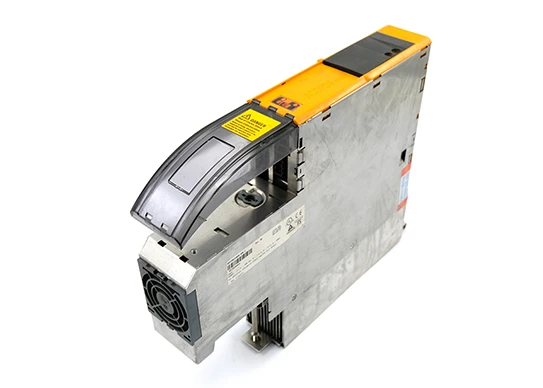

The 8BVI0055HWD0.000-1 is a two-axis inverter module in the B&R ACOPOSmulti motion system, designed to be supplied from a common DC bus (800 V DC nominal, 900 V DC max) and to drive two separate servo axes in high‑performance machines. Each axis provides a continuous current of 7.6 A and a peak current of up to 18.9 A, supporting continuous mechanical power up to 5.5 kW per axis for medium‑power servo motors in packaging, robotics, material handling and other dynamic applications.
The module operates with a nominal switching frequency of 5 kHz, which can be configured to 10 kHz or 20 kHz to balance noise, efficiency and dynamic response. It includes terminals for motor power, motor holding brake and temperature sensor connections, simplifying wiring and integration with B&R servo motors. Two ACOPOSmulti plug‑in module slots are available on the front, allowing users to add resolver, incremental/SSI, EnDat/BiSS or other encoder interfaces such as 8AC122 or 8AC123 modules to match the feedback device on each axis.
Mechanically, the 8BVI0055HWD0.000-1 is designed for wall mounting with integrated cooling, with approximate dimensions of 53 mm (W) × 317 mm (H) × 263 mm (D) and weight around 2.8 kg, allowing high axis density in control cabinets. The module supports integrated safety concepts including uncontrolled standstill and safe stop functions when used with appropriate system components, and it is certified to CE, UL and cULus standards for global deployment. Typical applications include multi-axis packaging lines, robotic systems, conveyor and sorting systems, and other demanding automation tasks where synchronized and precise motion is required.
