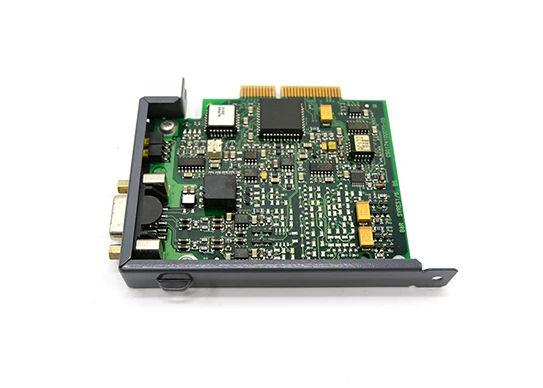

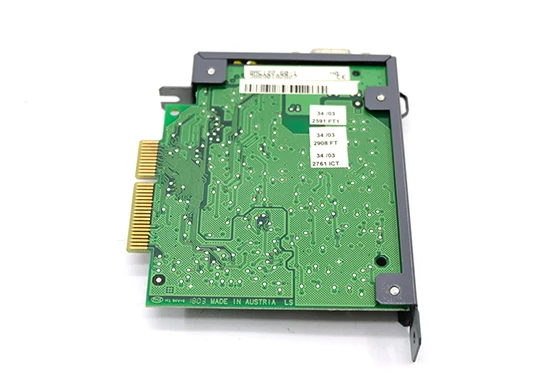

B&R 8AC122.60-1 | B&R Resolver Interface Module -

Brand: B&R

Model: 8AC122.60-1

Product size: 11*9*1.5cm

Weight: 0.5kg

Place of origin: Austria

Type: ACOPOS plug-in module

Slots: Slots 2, 3, and 4

Maximum cable length: 100 meters

Power consumption: Maximum 2.5 watts

Module characteristic

Module type: ACOPOS plug-in module, suitable for installation in a specific slot of the ACOPOS servo drive.

Monitoring function: The ability to monitor and process input signals from the encoder for precise position and speed control.

Scope of application: Mainly used in the field of industrial automation, especially in the application scenarios requiring high precision control and stability.

Parser type: Support BRX type parser, can achieve high precision angular position measurement.

Technical parameter

Input signal parameters: Support 10kHz encoder input signal, providing a maximum output current of 50mA and a typical differential voltage of 3.4Veff.

Angular position resolution: 14 bits per turn for very accurate position measurement.

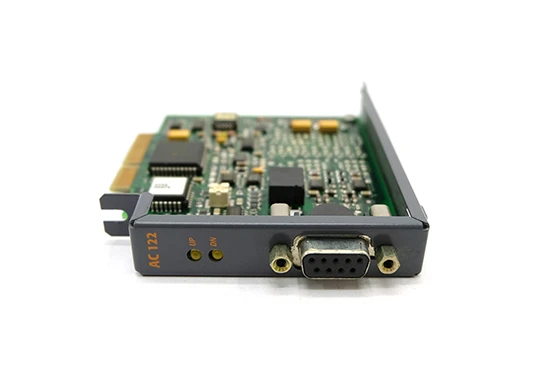

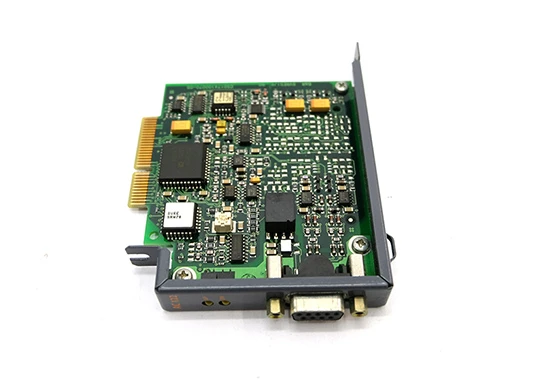

Connection mode: The module end is connected with a 9-pin female DSUB for easy installation.

Status indicator: with up/down LED indicator, easy for users to monitor the status and fault diagnosis.

Environmental adaptability

Operating temperature range: 5°C to 40°C, up to 55°C, can adapt to a variety of working environments.

Ambient humidity: 5% to 85% relative humidity during operation and 5% to 95% relative humidity during storage, suitable for use under various humidity conditions.

Electrical parameter

Parser input voltage: in the range of 3 to 7Vrms, can meet different voltage requirements.

Electrical isolation: There is no electrical isolation between the parser and ACOPOS. Pay attention to the insulation problem.

Certification and assurance

Certification: Through CE, UKCA and UL certification, to ensure the quality and safety of products.

Featured services: to provide one-year warranty service, to ensure the reliability and stability of products.

B&r 8AC122.60-1 module is a powerful and stable Resolver interface module for a variety of industrial automation applications to meet the needs of users for precision control and reliability.
