ABB 3BSE008510R1 | ABB DO810 Digital Output Module

The ABB 3BSE008510R1 (DO810) provides 16 digital outputs rated 24 VDC (12-32 V), 0.5 A/channel with two isolated groups of 8 channels, short-circuit/over-temperature protection, LED status indicators, and process voltage supervision for ABB DCS/PLC systems.

Model Number:ABB 3BSE008510R1

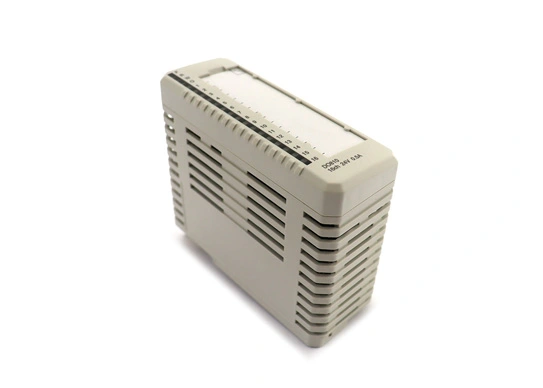

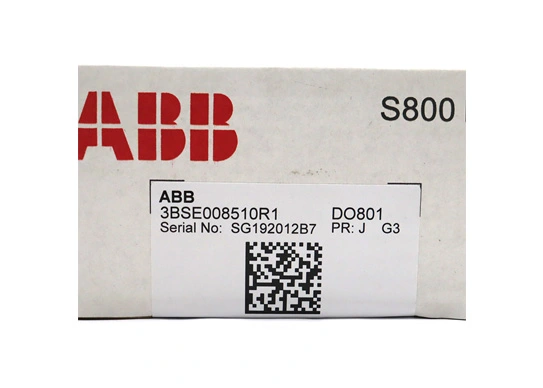

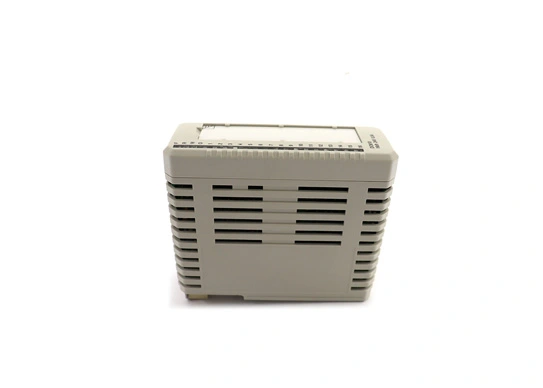

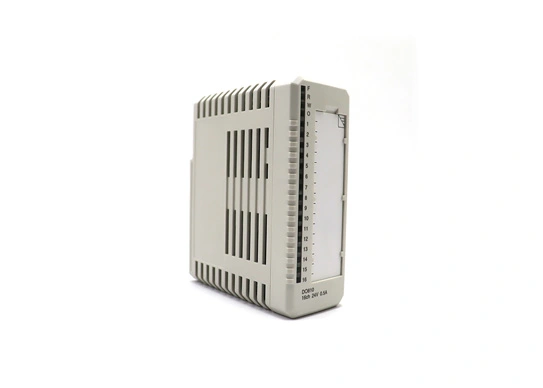

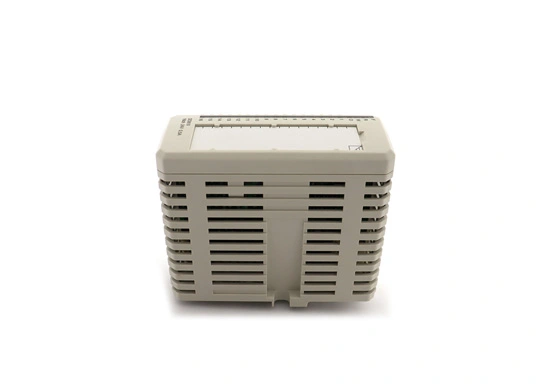

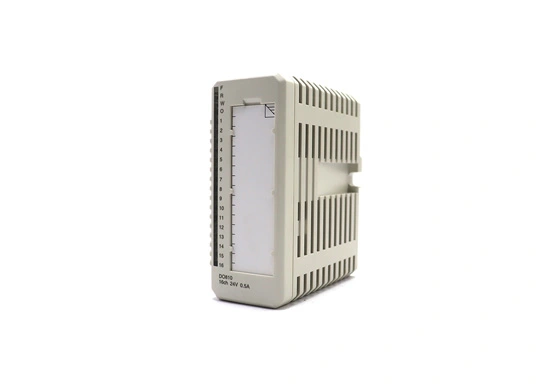

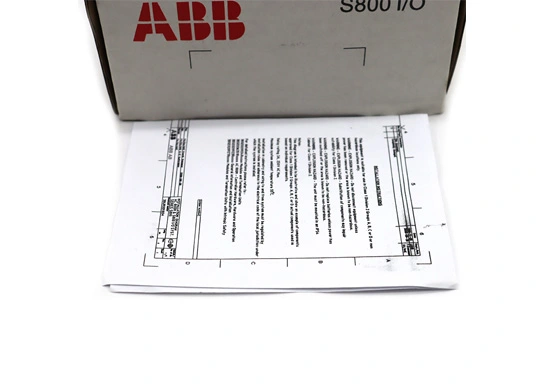

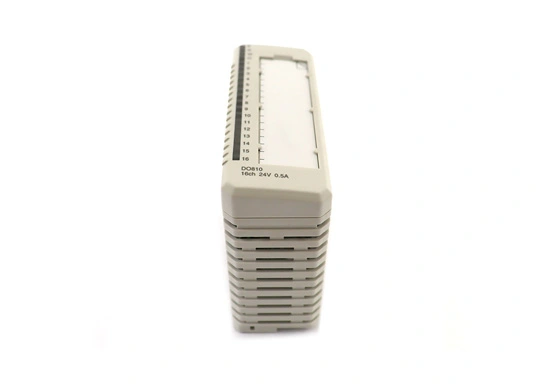

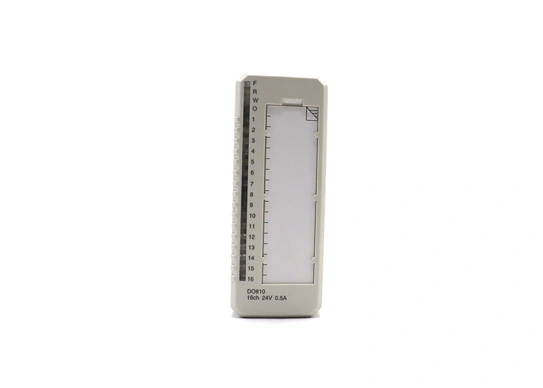

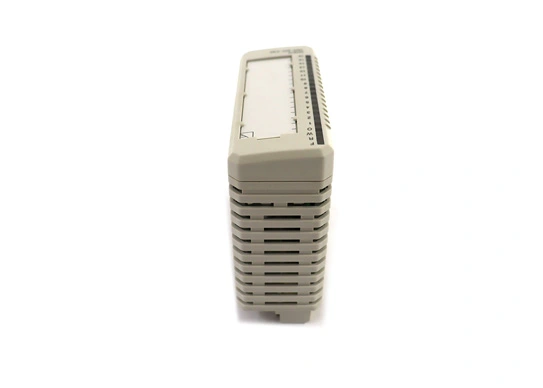

Product Image

Submit your inquiry and we'll respond within 24 hours

100k+ Parts

Extensive Inventory

Warranty Coverage

New parts: 1-Year | Used: 3-Month

17+ Years

Industry Experience

Fast Shipping

Ships Within 48 Hours

The DO810 (3BSE008510R1) is a high-density digital output module for ABB’s S800 I/O system, designed for reliable control of field devices like solenoids, valves, indicators, and relays in process automation and safety applications. Each of the 16 channels delivers 0.5 A continuous at 12-32 VDC, organized into two electrically isolated groups (8 channels + voltage supervision input per group) for enhanced noise immunity and fault tolerance.

Each output channel features a high-side driver with short-circuit protection, over-voltage/over-temperature safeguards, inductive load suppression, EMC filtering, and bicolor LED status indication. Process voltage supervision detects power loss and reports via ModuleBus to the I/O controller. The module requires TU810/TU812/TU814/TU830/TU833 termination units for field wiring and mounts on S800 backplanes with hot-swap capability.

IP20 protection and DIN-rail mounting suit control cabinets, with operation from -25 to +70°C and 5-95% humidity. Comprehensive diagnostics support predictive maintenance in DCS environments like 800xA and Safety Systems.

Technical Specifications Table

Category	Specification
Model	DO810 (3BSE008510R1)
Outputs	16 channels (2 groups × 8)
Output Voltage	12-32 VDC
Output Current	0.5 A/channel continuous
Protection	Short-circuit, over-voltage, over-temp
Isolation	2 groups (8 channels each)
Supervision	Process voltage monitoring
Termination Units	TU810/TU812/TU814/TU830/TU833
System	S800 I/O
