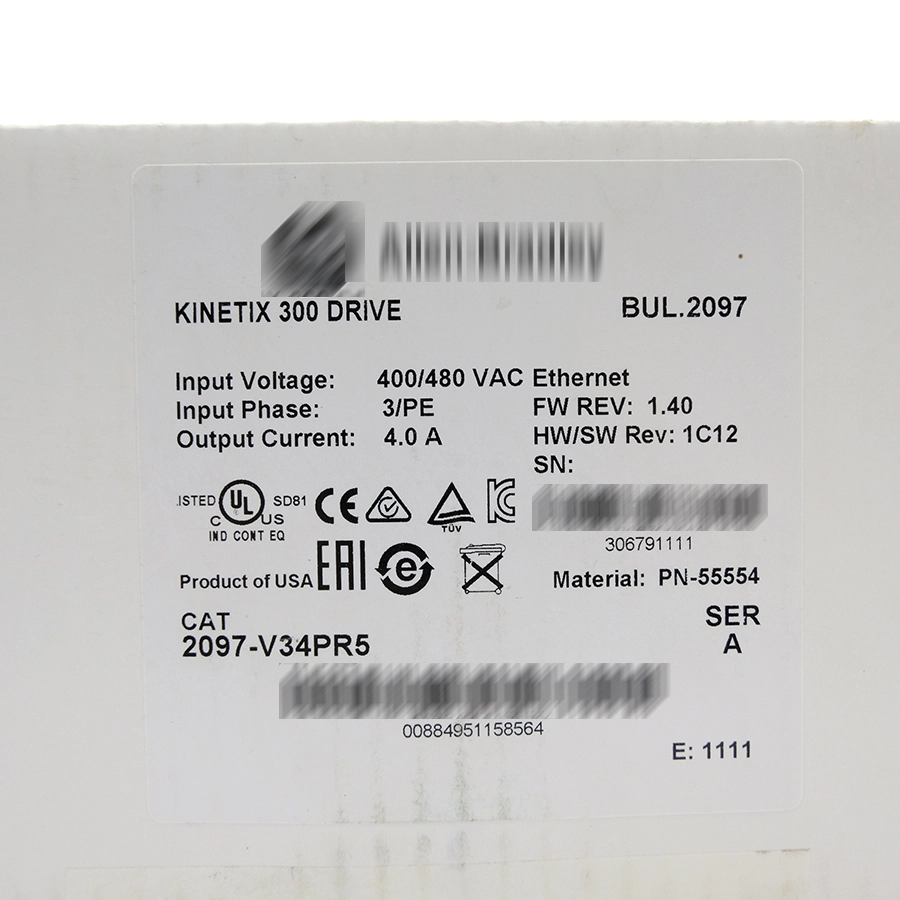

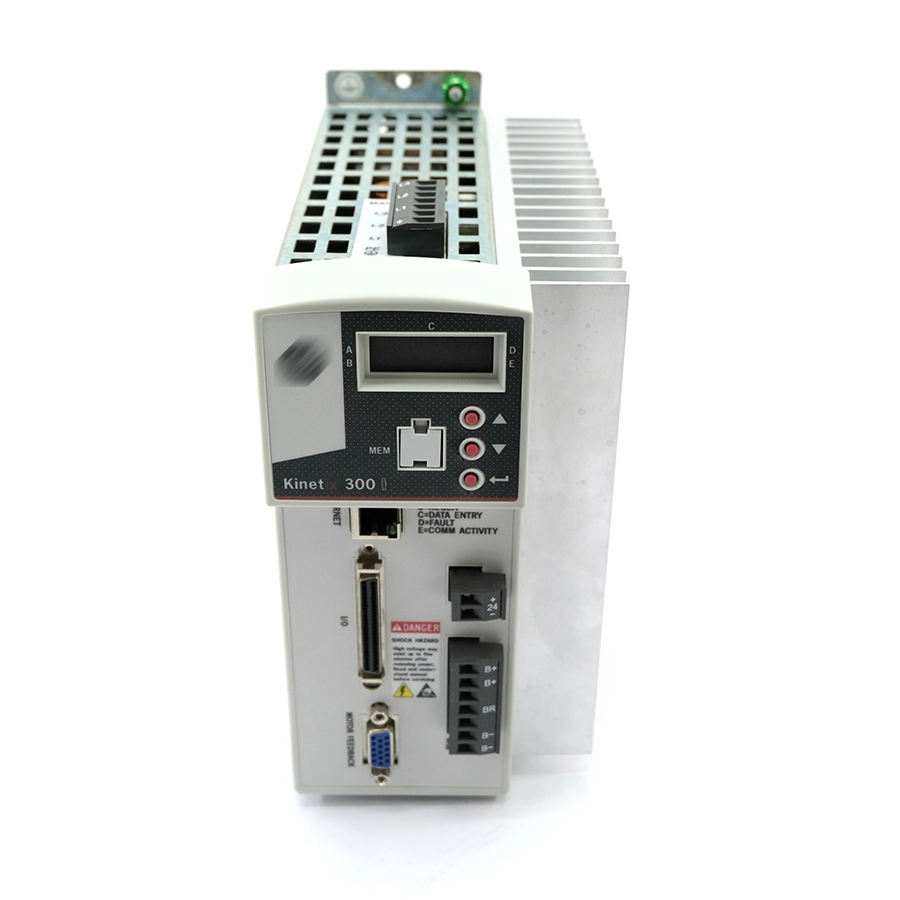

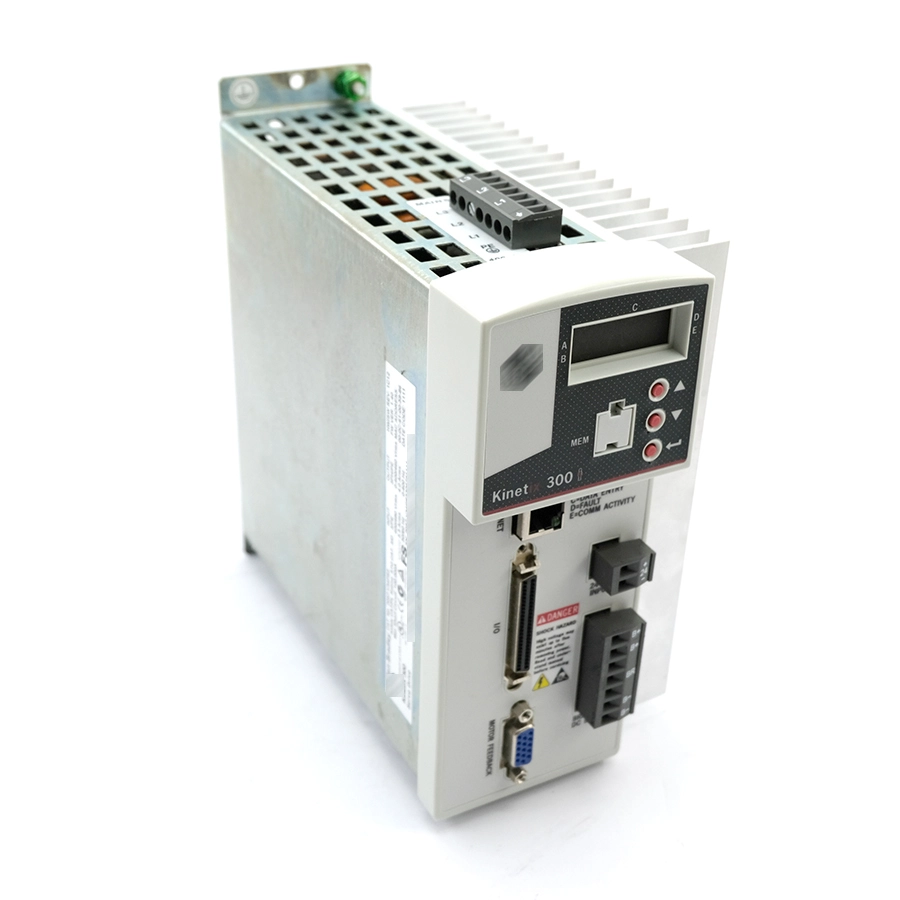

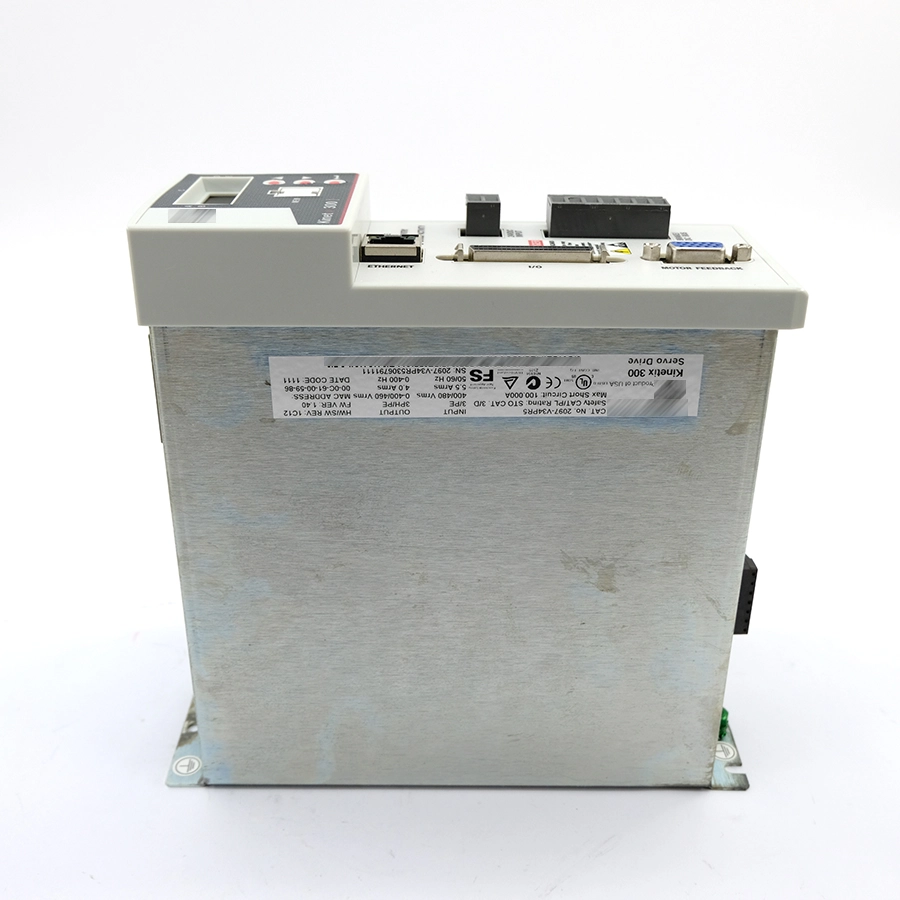

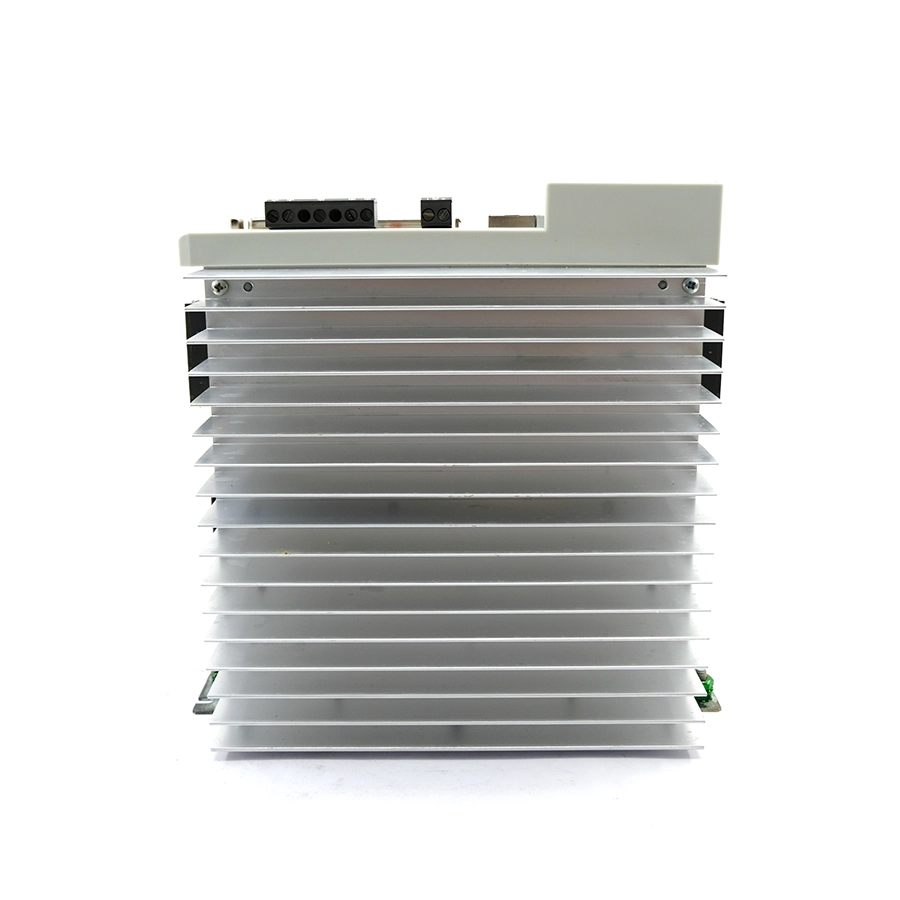

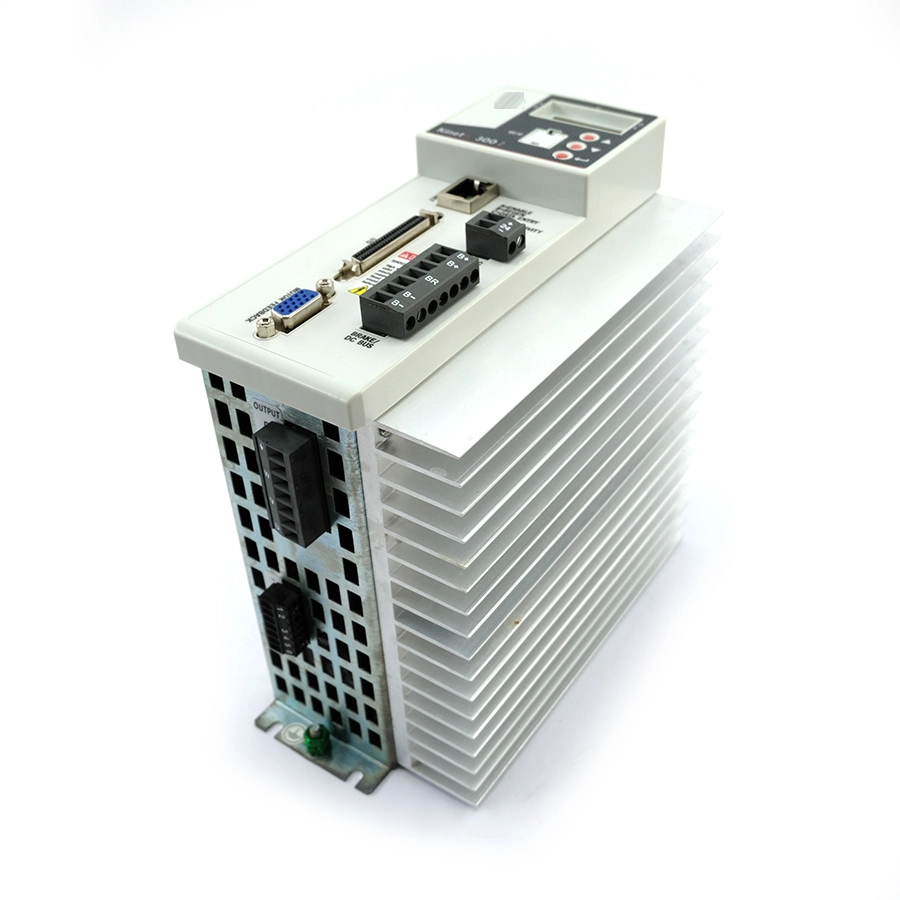

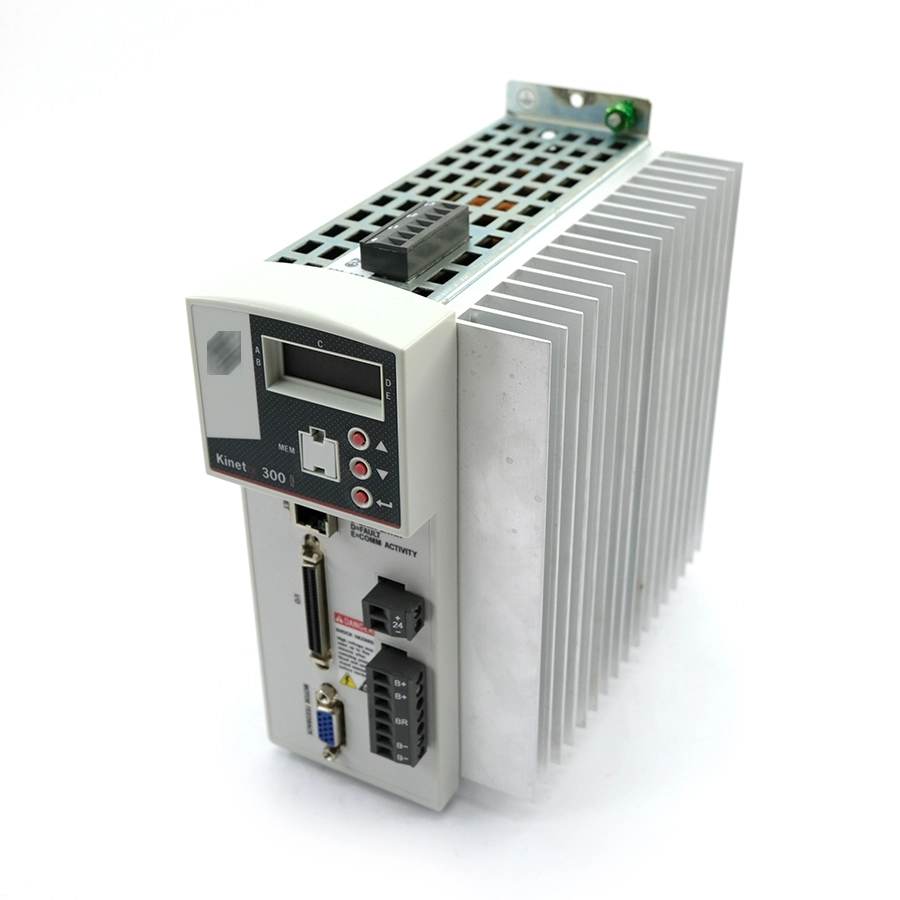

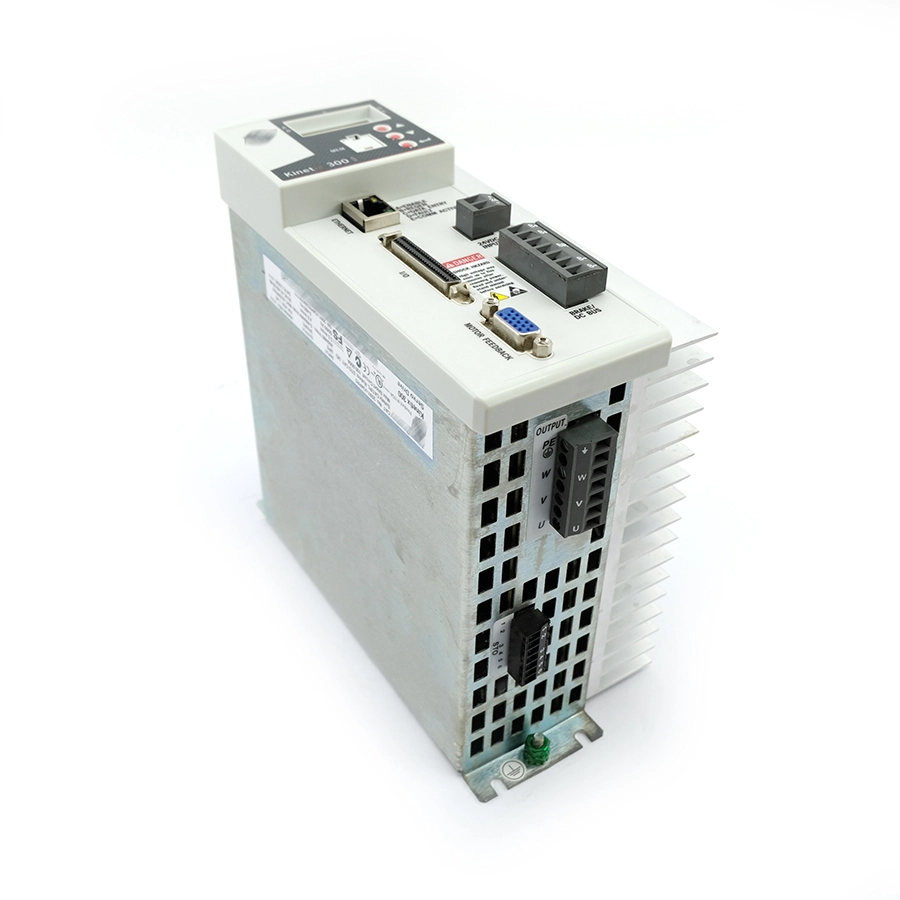

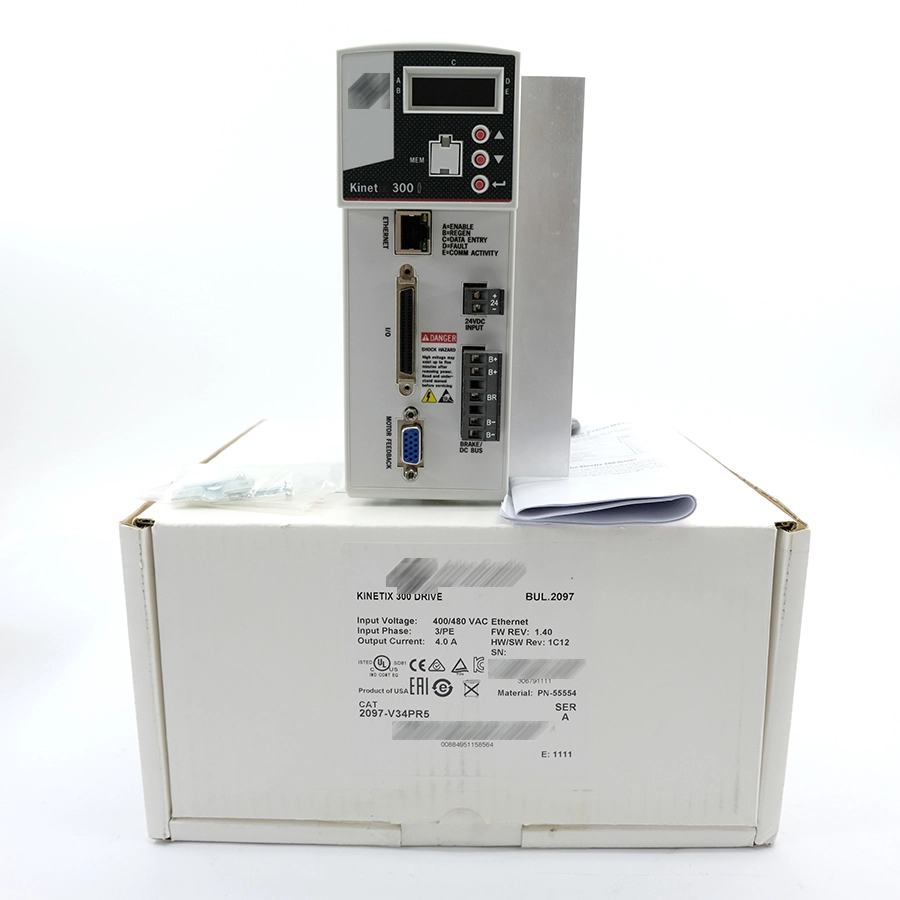

The 2097-V34PR5-2 belongs to the Kinetix 300 family of EtherNet/IP indexing servo drives, designed for single-axis motion control where cost-effective integrated Ethernet communication is required. It operates from a 480 V AC three-phase input (48–62 Hz) and delivers 2.0 kW output power with 5.7 A continuous output current (0‑peak), making it suitable for small to medium servo motors in packaging, material handling, and assembly machines.
The drive features an integrated EtherNet/IP port, allowing direct connection to PLCs and PACs for indexing motion profiles such as point-to-point moves, homing, and registration, configured via Rockwell motion tools. It includes Safe Torque-Off (STO) functionality that can remove torque-generating power from the motor without removing main power from the drive, supporting safety-related machine designs and reducing restart times.
Typical technical characteristics include 58 W power dissipation, panel mounting with minimum clearances of 3 mm (0.12 in) on the sides and 25 mm (1.0 in) top and bottom for airflow, and compatibility with a range of feedback devices such as Hiperface, TTL incremental, and serial encoders. The drive is certified to CE, UL, cUL, C-Tick, KC standards and is targeted for use with 480 V-class servo motors in applications up to 3.0 kW across the Kinetix 300 range.
