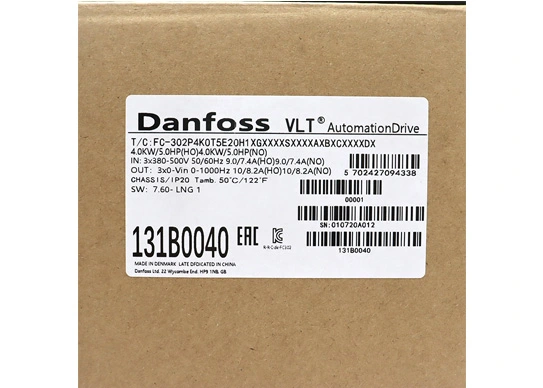

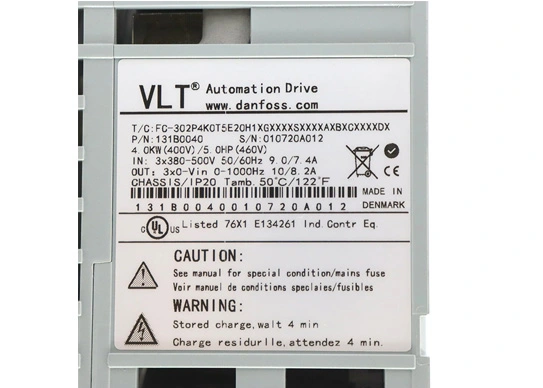

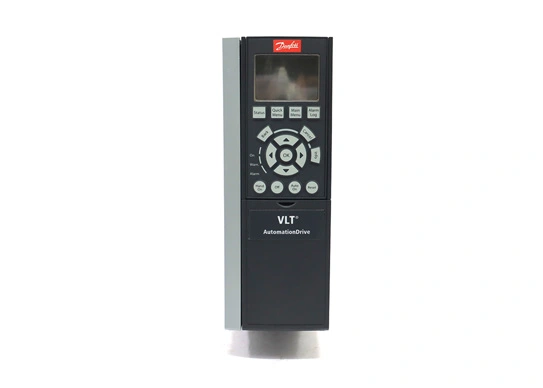

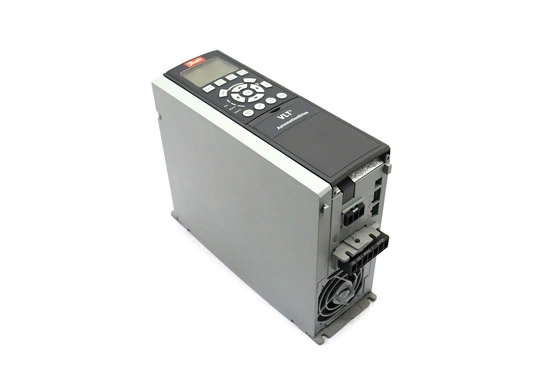

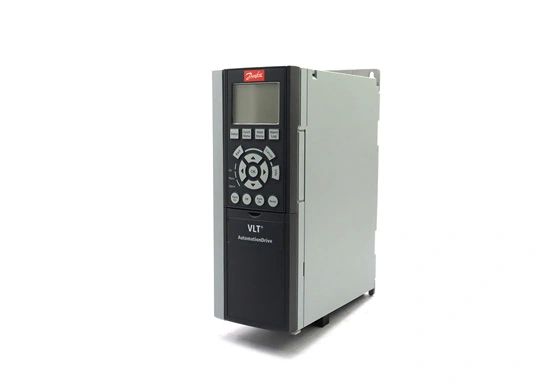

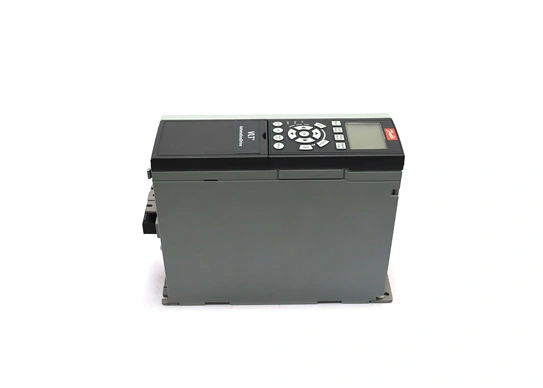

Part number 131B0040 corresponds to model code FC‑302P4K0T5E20H1XGXXXXSXXXXAXBXCXXXXDX, a variant within the Danfoss VLT AutomationDrive FC‑302 family. This drive provides a power rating of 4.0 kW (P4K0) / 5.0 HP at a three‑phase 380–500 V AC supply, suitable for controlling induction or permanent‑magnet motors in pumps, fans, compressors and general machinery. The enclosure is IP20 (E20) chassis‑mount, intended for installation inside a control panel, and includes an integrated RFI filter (H1) Class A1/B (C1) for reduced electromagnetic emissions on the mains.
The 131B0040 variant is specified as having no brake chopper, meaning any dynamic braking must be handled by the motor/load or external solutions rather than an internal braking resistor circuit. It is delivered with a graphical local control panel for parameter setting, monitoring and manual operation, and uses standard, non‑coated PCBs, with no additional mains, C1, A, B or D options fitted beyond what is defined in the type code. According to the technical listing, key ratings include kVA ≈ 6.93, continuous output current around 8.2–10 A (depending on overload mode) and power loss ≈124 W at high overload.

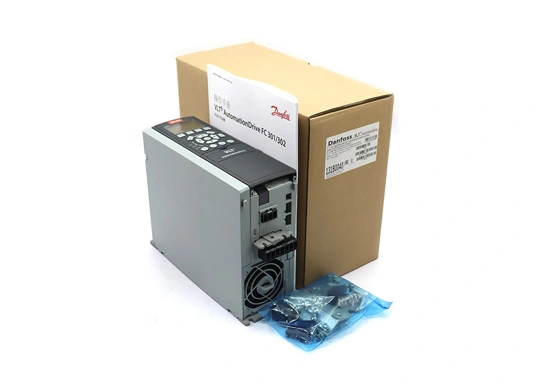

Mechanical data show an A2 frame size with approx. 90 mm width and 220 mm depth, and a net weight of about 4.59 kg (gross weight approx. 5.11 kg). The drive is a general‑purpose AutomationDrive, so it can be configured via parameters and application macros for many uses; related Danfoss product lines like VLT Refrigeration Drive FC 103 share similar efficiency‑ and reliability‑oriented features, such as compressor and fan control, though 131B0040 itself is explicitly listed under the FC‑302 family. It is supplied as a brand‑new product in original Danfoss packaging with standard manufacturer warranties.
Key Specifications
